12A-559Q795 - MTD Pro Walk-Behind Mower (2006) General Assembly Parts Diagram

Pro Walk-Behind Mower

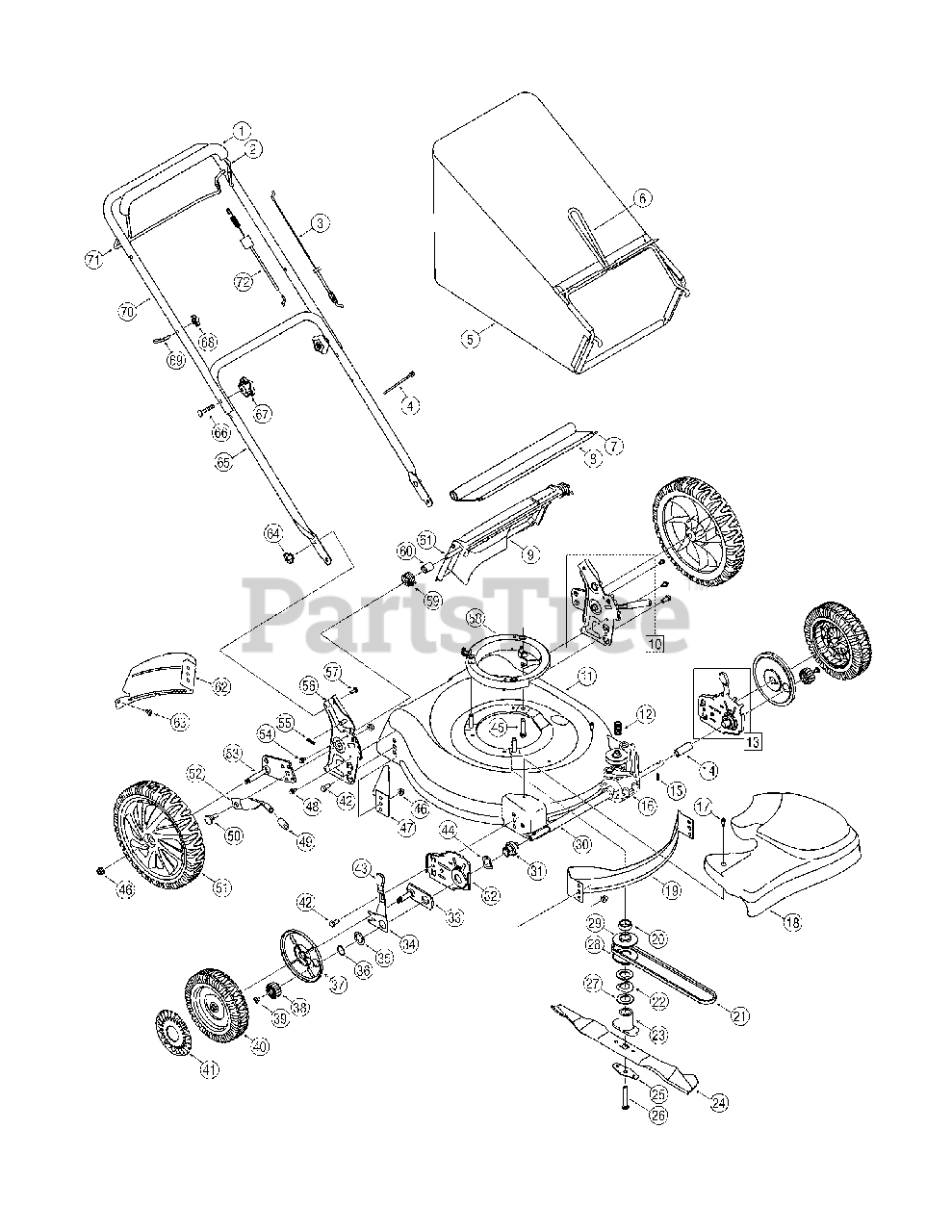

General Assembly Parts Diagram

  • Title

1

MTD 731-2626

Bail Cover

$11.99

$

In Stock, only 2 left!

0

2

MTD 747-1161A-0637

Blade Control

$12.99

$

In Stock, Qty 20+

0

3

MTD 946-1113

Control Cable 37.75-inch
(Superseded to 946-1113A)

$18.99

$

In Stock, Qty 20+

0

4

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

5

MTD 964-04007A

Grass Bag Assembly

$124.99

$

In Stock, Qty 18

0

6

MTD 747-04080A

Grass Bag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0

7

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

8

MTD 731-04998

Trailshield

$29.99

$

In Stock, Qty 10

0

9

MTD 753-06366

Rear Door

$46.99

$

Usually ships in 3-6 days

0

10

MTD 987-02057

Height Adj. Bracket Assy

$

$

Not available

10

MTD 987-02056

Height Adj. Bracket Assy

$

$

Not available

11

MTD 987-01537

21-inch Deck

$

$

Not available

12

MTD 732-1043

Compression Spring

$4.49

$

In Stock, Qty 14

0

13

MTD 987-02193

Front Height Adj. Assy - LH
(Superseded to 987-02193A)

$61.99

$

In Stock, only 1 left!

0

13

MTD 987-02194A

Front Height Adj. Assy - RH

$61.99

$

Usually ships in 3-6 days

0

14

MTD 750-04595

Sleeve Spacer .52 ID x 1.5

$4.49

$

In Stock, only 1 left!

0

15

MTD 915-0221

Dowel Pin

$3.99

$

In Stock, Qty 20+

0

16

MTD 918-04376B

Transmission

$

$

Not available

17

MTD 710-1650

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

18

MTD 931-05013A

Deck Cover

$48.99

$

Usually ships in 3-6 days

0

19

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

20

MTD 750-04438A

Sleeve Spacer

$4.49

$

Usually ships in 3-6 days

0

21

MTD 954-0637A

V-Type Belt

$14.99

$

In Stock, Qty 20+

0

22

MTD 736-04173

Spring Washer 1.005 x 1.825

$12.99

$

In Stock, only 2 left!

0

23

MTD 748-04082

Blade Adapter with Star

$34.99

$

In Stock, Qty 17

0

24

MTD 942-0741A

21-inch Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 736-0524B

Bell Blade Spacer
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

26

MTD 710-1257

Screw 3/8-24 x 2.5

$7.49

$

In Stock, Qty 20+

0

27

MTD 736-0250

Flat Washer 1 x 1.75

$4.49

$

In Stock, Qty 12

0

28

MTD 956-04160

Key Half Pulley

$19.99

$

In Stock, only 2 left!

0

29

MTD 956-04161

Upper Half Pulley

$12.99

$

Usually ships in 3-6 days

0

30

MTD 750-04594

Sleeve Spacer

$8.49

$

In Stock, only 1 left!

0

31

MTD 982-0015

Front Bearing Assembly

$29.99

$

Usually ships in 3-6 days

0

32

MTD 787-01298A-0637

Adjustment Plate RH

$18.99

$

Usually ships in 3-6 days

0

32

MTD 787-01299A-0637

Adjustment Plate LH

$15.99

$

In Stock, only 1 left!

0

33

MTD 987-02044

Pivot Plate Assembly

$

$

Not available

34

MTD 732-0706

Spring Lever RH

$14.99

$

In Stock, only 4 left!

0

34

MTD 732-0707

Spring Lever LH

$14.99

$

In Stock, only 1 left!

0

35

MTD 736-0474

Flat Washer 1.01 x 1.5 x .

$6.49

$

In Stock, only 4 left!

0

36

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$4.99

$

In Stock, Qty 20+

0

37

MTD 782-7551A

Wheel Cover

$4.99

$

In Stock, Qty 20+

0

38

MTD 717-1762

Spur Gear 14T RH

$12.99

$

In Stock, Qty 9

0

38

MTD 717-1761

Spur Gear 14T LH

$12.99

$

In Stock, Qty 12

0

39

MTD 710-04531

Screw 1/4-20 x .39

$4.99

$

In Stock, Qty 20+

0

40

MTD 734-2042A

Front Wheel 8 x 2.125 Gear

$35.99

$

In Stock, Qty 20+

0

41

MTD 731-0981C

Hubcap

$9.99

$

In Stock, Qty 6

0

42

MTD 710-0216

Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

43

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

44

MTD 936-0447

Wave Washer 1.5 x 1 x .
(Superseded to 736-0447)

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-1008

Screw TT 3/8-16 x 1.875

$5.49

$

In Stock, Qty 20+

0

46

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

47

MTD 782-5004B

Rear RH Baffle

$23.99

$

Usually ships in 3-6 days

0

48

MTD 710-1652

Screw TT 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

49

MTD 720-0312

Foam Grip

$4.49

$

In Stock, Qty 7

0

50

MTD 938-0507B

Shoulder Screw
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

51

MTD 734-04093

Rear Wheel 12 x 2.125 Idle

$63.99

$

In Stock, only 2 left!

0

52

MTD 732-0866

Spring Lever

$

$

Not available

53

MTD 987-02335

Pivot Arm Assembly RH

$25.99

$

In Stock, only 1 left!

0

53

MTD 987-02336

Pivot Arm Assembly LH

$

$

Not available

54

MTD 710-0599

Screw TT 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

55

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

56

MTD 987-02056

Handle Bracket Assembly RH

$

$

Not available

56

MTD 987-02057

Handle Bracket Assembly LH

$

$

Not available

57

MTD 710-0703

Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

58

MTD 631-0075B

Engine Spacer

$

$

Not available

59

MTD 732-04090A

Torsion Spring RH

$7.49

$

Usually ships in 3-6 days

0

59

MTD 732-04089A

Torsion Spring LH

$7.49

$

Usually ships in 3-6 days

0

60

MTD 950-04162

Spacer

$

$

Not available

61

MTD 747-0996

Pivot Rod

$29.99

$

Usually ships in 3-6 days

0

62

MTD 782-5003A

Rear Baffle LH

$28.99

$

Usually ships in 3-6 days

0

63

MTD 710-1017

Screw AB 1/4-14 x .625

$7.99

$

In Stock, Qty 20+

0

64

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

65

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, Qty 10

0

66

MTD 710-1174

Carriage Bolt 5/16-18 x 2

$6.99

$

In Stock, Qty 20+

0

67

MTD 720-04072A

Star Knob

$6.49

$

In Stock, Qty 20+

0

68

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 15

0

70

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

71

MTD 747-1214

Drive Control

$21.99

$

In Stock, Qty 10

0

72

MTD 946-04203

Control Cable 51-inch

$44.99

$

In Stock, Qty 12

0
