12A-565H136 - Yard Machines Walk-Behind Mower (1998) (Homebase) General Assembly (Model Series 560) Parts Diagram

Walk-Behind Mower

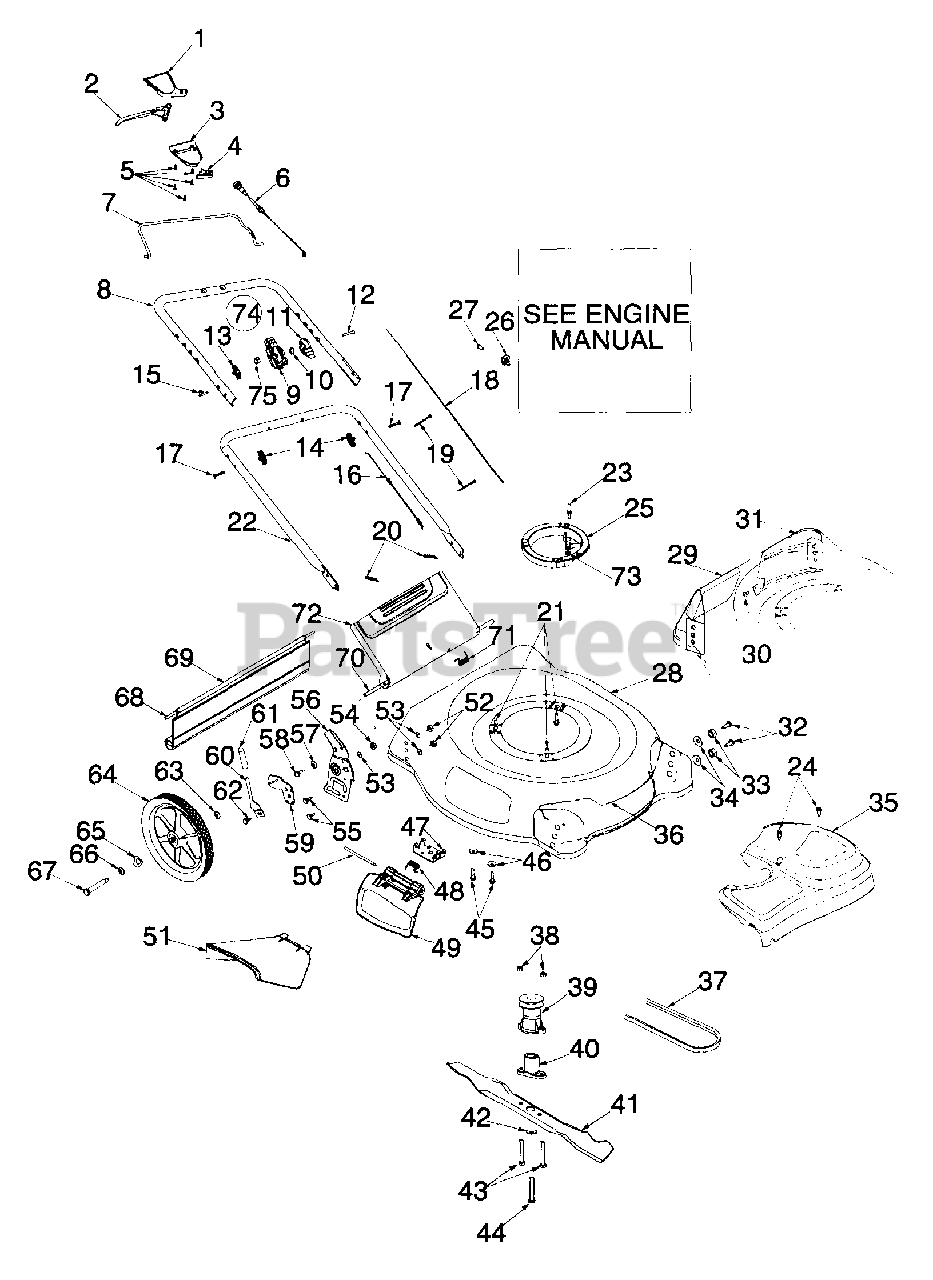

General Assembly (Model Series 560) Parts Diagram

  • Title

1

MTD 731-1057

Upper Drive Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

2

MTD 731-0620

Drive Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

3

MTD 731-1058

Lower Drive Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

4

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

5

MTD 710-0841

Screw #10-12: .75

$3.99

$

Usually ships in 3-6 days

0

6

MTD 746-0960

Drive Cable
(Superseded to 946-0960)

$46.99

$

Usually ships in 3-6 days

0

7

MTD 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0

MTD 647-0004

Deluxe Control Lever
(Superseded to 747-0824B-0637)

$61.99

$

In Stock, only 1 left!

0

8

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 1 left!

0

$43.99

$

In Stock, only 1 left!

0

9

MTD 746-0875

Throttle Hsg.
(Superseded to 946-0875)

$8.99

$

In Stock, Qty 14

0

10

MTD 736-0501

Curved Washer .663 x .980 x .014
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

11

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 10

0

12

MTD 710-0605

Screw Oval C-Sunk 1/4-20 x 1.61

$4.49

$

In Stock, only 4 left!

0

13

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-0276

Knob
(Superseded to 920-0276)

$3.49

$

In Stock, Qty 9

0

15

MTD 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 15

0

16

MTD 746-0843

Throttle Cable: 55" (B&S)
(Superseded to 946-0671A)

$13.99

$

In Stock, Qty 9

0

MTD 746-0847

Throttle Cable: 42" (Tec)
(Superseded to 946-1115)

$26.99

$

Usually ships in 3-6 days

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

18

MTD 746-0550

Control Cable: 39" (B&S)
(Superseded to 946-0550)

$20.99

$

In Stock, Qty 8

0

MTD 746-0737

Control Cable: 51" (Tec)
(Superseded to 946-0737)

$26.99

$

Usually ships in 3-6 days

0

19

MTD 726-0240

Tie Cable
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

20

MTD 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-1008

Tapp Screw w/Hex Lock Wash

$5.49

$

In Stock, Qty 20+

0

22

MTD 749-0907A

Handle - Lower
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 7

0

$46.99

$

In Stock, Qty 7

0

23

MTD 711-1293

Pin-Belt Keeper

$4.49

$

Usually ships in 3-6 days

0

24

MTD 7510042824

Screw #12 x .457
(Superseded to 710-1650)

$4.49

$

In Stock, Qty 20+

0

25

MTD 631-0075

Engine Spacer
(Superseded to 631-0075B)

$

$

Not available

26

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

MTD 7510007775

Cable Clamp (Tec)
(Superseded to TC-27793)

$1.99

$

In Stock, only 4 left!

0

27

MTD 710-1237

Hex Screw: T: #10-32 x .625 Lg. (B&S)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Screw: #10-32 x .38 Lg. (Tec)

$

$

Not available

28

MTD 782-0082

21" RD Deck

Variations

MTD 782-0082-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0082-0662

21" RD Deck - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0082-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 782-0082-0698

No Longer Available - HUNTER GREEN (0698)

$

$

Not available

$

$

29

MTD 782-5004

Rear Baffle Right
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Scr: AB: 1/4-14: .625: Trustrx

$7.99

$

In Stock, Qty 20+

0

31

MTD 782-5003

Rear Baffle Left
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

32

MTD 710-0216

Hex Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

33

MTD 736-0331

Bell Wash .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

34

MTD 712-0798

Hex Nut 3/8-16

$3.99

$

Usually ships in 3-6 days

0

35

MTD 731-1936

Trans Cover - Black
(Superseded to 931-05132A)

$47.99

$

Usually ships in 3-6 days

0

MTD 731-1937

Trans Cover - Yellow
(Superseded to 931-04580)

$

$

Not available

MTD 731-2101

Trans Cover - Gray
(Superseded to 731-2101A)

$

$

Not available

36

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 754-0465

V Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 20+

0

38

MTD 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

39

MTD 756-1146

Drive Pulley
(Superseded to 756-1146A)

$53.99

$

Usually ships in 3-6 days

0

40

MTD 753-0825

Blade Adapter Kit
(Superseded to 753-05151)

Note: (Incl. Ref. 38, 42-44)

$62.99

$

Usually ships in 3-6 days

0

41

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0452

Bell Washer .396 I.D. x 1.140 O.D. x .095

$4.49

$

In Stock, Qty 16

0

43

MTD 710-0606

Hex Screw 1/4-20 x 1.50

$4.99

$

In Stock, Qty 15

0

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.49

$

In Stock, Qty 20+

0

45

MTD 710-0599

Tapp Screw 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

46

MTD 736-0270

Bell Wash .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

47

MTD 782-7006

Hinged Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

48

MTD 732-0731

Torsion Spring .290 ID x 1.95
(Superseded to 932-0731)

$9.99

$

Usually ships in 3-6 days

0

49

MTD 682-7000

Mulch Plug Ass'y.

$

$

Not available

50

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

51

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$26.99

$

In Stock, Qty 5

0

52

MTD 712-0798

Hex Nut 3/8-16

$3.99

$

Usually ships in 3-6 days

0

53

MTD 736-0356

Bell Wash .39 ID x 1.38 OD
(Superseded to 936-0356)

$

$

Not available

54

MTD 712-3005

Hex Flange Lock Nut 3/8-16

$6.49

$

Usually ships in 3-6 days

0

55

MTD 710-0896

Hex Screw w/wash 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

56

MTD 682-3056

Handle Bracket Ass'y RH
(Superseded to 682-3056A)

Variations

MTD 682-3056-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3056-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3056-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3056-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3056-0691

Handle Bracket Kit - BLACK JACK (0691)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3056-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$106.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

MTD 682-3057

Handle Bracket Ass'y LH
(Superseded to 753-05922)

Variations

MTD 682-3057-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057-0691

Handle Bracket Kit - BLACK JACK (0691)

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$106.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

57

MTD 736-0270

Bell Wash .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

58

MTD 710-0599

Hex Screw TT 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

59

MTD 17488

Pivot Bar RH
(Superseded to 17488A)

$14.99

$

In Stock, only 3 left!

0

MTD 17489

Pivot Bar LH
(Superseded to 17489A)

$14.99

$

In Stock, only 1 left!

0

60

MTD 732-0866

Height Adj Lever

$

$

Not available

61

MTD 720-0312

Foam Grip

$4.49

$

In Stock, Qty 7

0

62

MTD 738-0507B

Shldr Screw .500 Dia x .434

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0105

Wash. .401 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

64

MTD 734-1860

Wheel Comp. 14 x 2 Yellow Link Tread
(Superseded to 734-1860A)

$

$

Not available

MTD 734-1861

Wheel Comp. 14 x 2 Gray Link Tread

$65.99

$

Usually ships in 3-6 days

0

MTD 734-1864

Wheel Comp. 14 x 1.8 Gray Bar Tread
(Superseded to 734-04030)

$71.99

$

In Stock, only 1 left!

0

MTD 741-0484

Bearing (2 per Wheel)
(Superseded to 941-0484)

Note: (Incl. w/No. 64 )

$6.99

$

In Stock, only 2 left!

0

65

MTD 736-0182

Spring Washer .50 ID x 1.0 OD

$4.49

$

In Stock, Qty 10

0

66

MTD 736-0456

Flat Washer .510 x 1.373 x .04
(Superseded to 936-0456)

$4.49

$

In Stock, Qty 10

0

67

MTD 738-0481

Shldr Screw .500 x 2.62 3/8-16
(Superseded to 938-0481A)

$6.49

$

In Stock, Qty 19

0

68

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

69

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$29.99

$

In Stock, Qty 10

0

70

MTD 747-0996

Pivot Rod

$29.99

$

Usually ships in 3-6 days

0

71

MTD 732-0809

Torsion Spring
(Superseded to 932-0809)

$17.99

$

Usually ships in 3-6 days

0

72

MTD 782-7599A

RD Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 712-0271

Hex Nut 1/4-20 Thread

$4.49

$

In Stock, Qty 20+

0

74

MTD 811-00185

Throttle Body Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 9-12, 75)

$34.99

$

In Stock, Qty 9

0

75

MTD 712-0324

Hex Lock Nut, 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0
