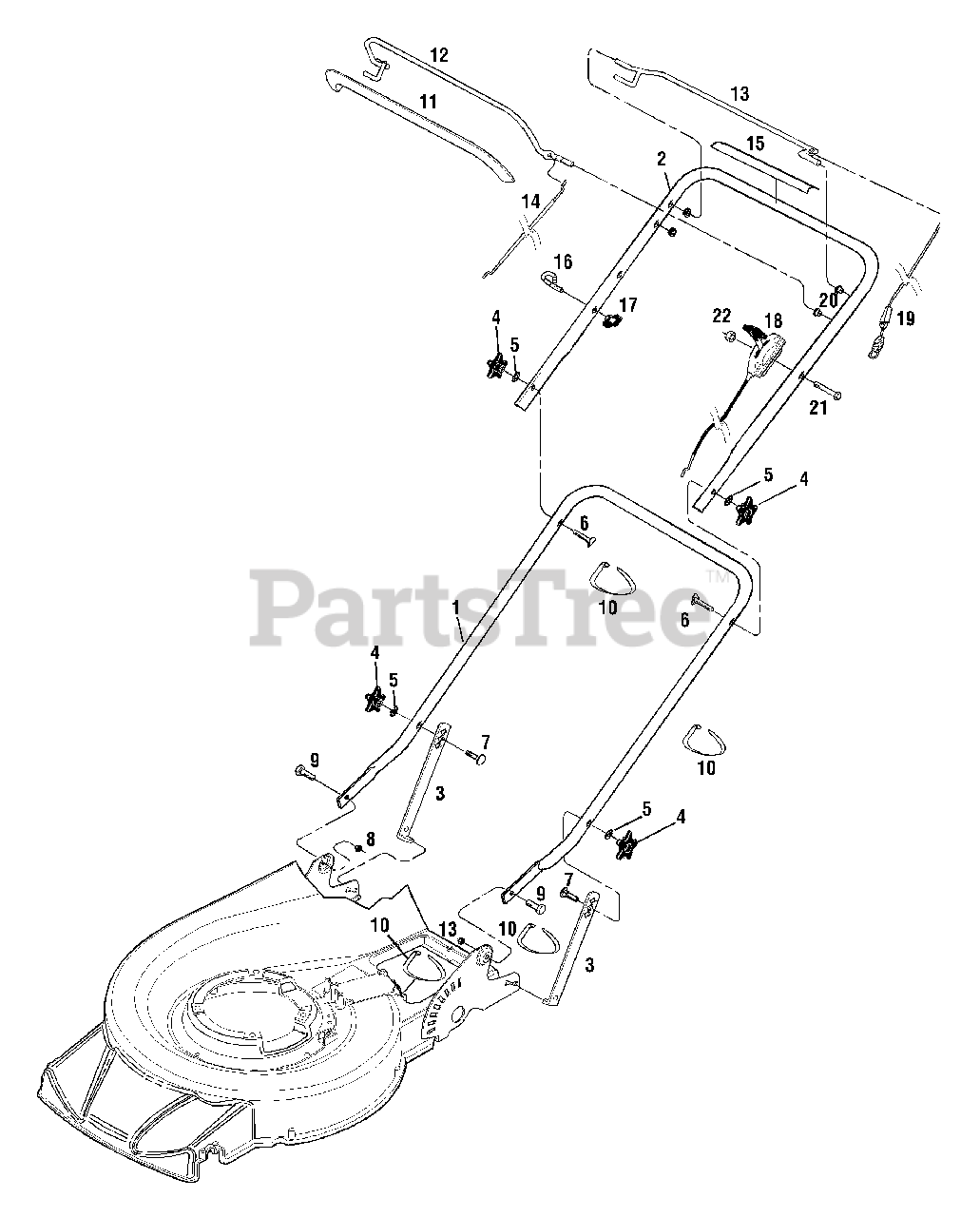

12A-909J063 - Troy-Bilt Tuff-Cut 909J Walk-Behind Mower (2002) Handle Parts Diagram

Tuff-Cut 909J Walk-Behind Mower

Handle Parts Diagram

  • Title
1

Troy-Bilt 1917021001

Lower Handlebar

$

$

Not available

2

MTD 1917026001

Upper Handlebar

$

$

Not available

3

MTD 1917036001

Handlebar Support Strut

$

$

Not available

4

MTD 1763767

Handlebar Adjustment Knob

$

$

Not available

5

Troy-Bilt 1177038

Ext. Tooth Lock Washer, 5/16

$

$

Not available

6

Troy-Bilt 1731025

Curved Head Screw, 5/16-18 x 1-3/4
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1917087

Carriage Bolt, 5/16-18 x 1-3/4, Special

$

$

Not available

8

Troy-Bilt 912-0375

Hex Lock Nut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 12

0

9

Troy-Bilt 1100068

Hex Hd. Screw, 3/8-16 x 3/4, GR. 5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

10

Troy-Bilt 1763682

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

11

Troy-Bilt 1917050

Bail Grip

$

$

Not available

12

Troy-Bilt 1917053001

Operator Presence Control Bail

$

$

Not available

13

MTD 1917085001

Wheel Drive Bail

$

$

Not available

14

Troy-Bilt 1917081

Operator Presence Control Cable
(Superseded to 1917081P)

$

$

Not available

15

MTD 1918161

Decal - Bail Operating Instructions

$

$

Not available

16

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 14

0

17

Troy-Bilt 720-0279

Wing Knob, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1917037

Speed Control Lever/Cable
(Superseded to 1917037099)

$68.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1917032

Drive Control Cable
(Superseded to 1917032P)

$38.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1908677

Bushing, Nyliner

$

$

Not available

20

UNKNOWN

$

$

Not available

21

MTD 1917091

Hex Hd. Screw, M6

$

$

Not available

22

Troy-Bilt 1917092

Hex Nut, M6

$

$

Not available
