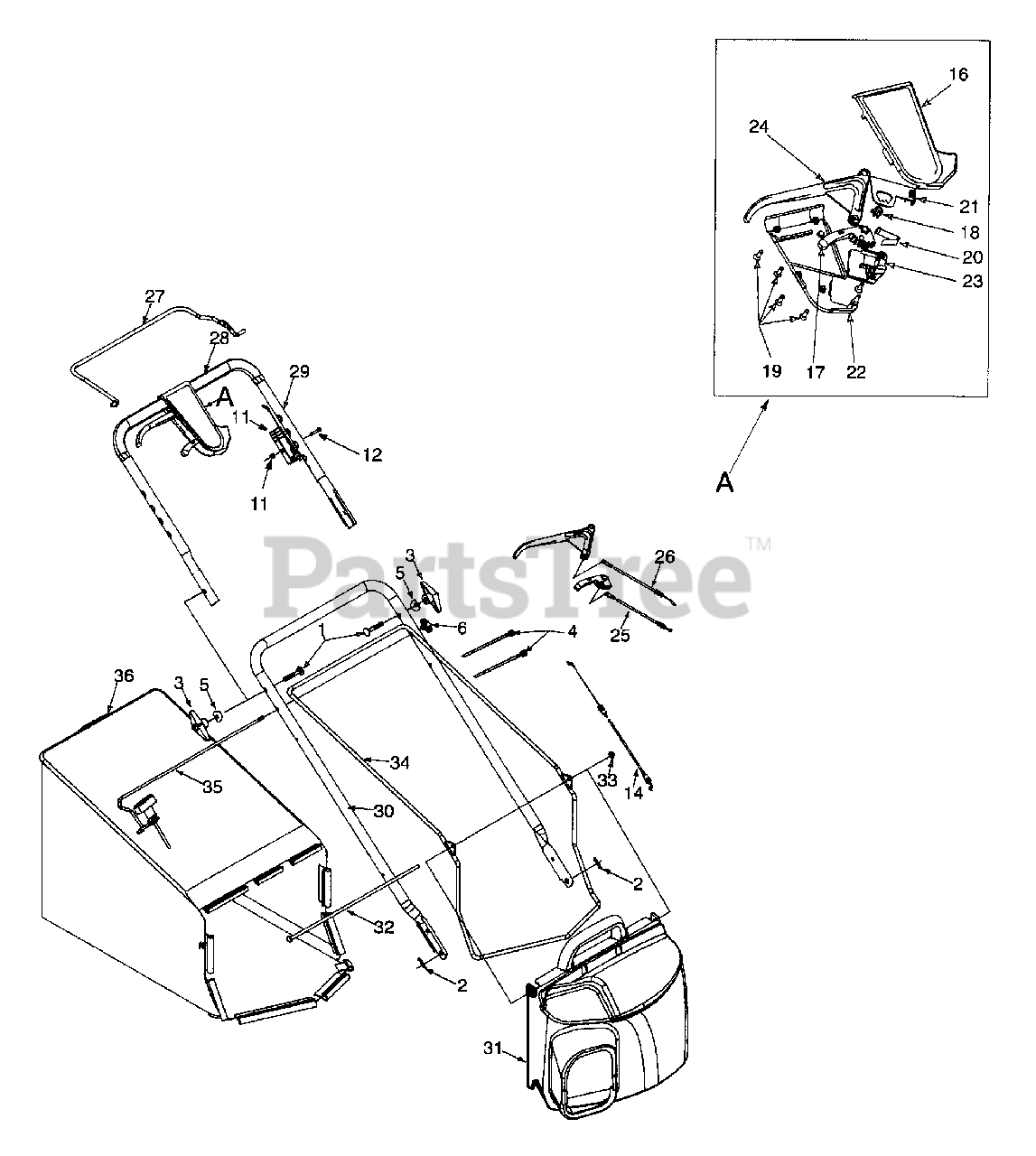

12A-967K000 - Yard Machines Walk-Behind Mower (1997) Bagger Parts Diagram

Walk-Behind Mower

Bagger Parts Diagram

  • Title

1

MTD 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

2

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0241

Knob Ass'y Wingnut 5/16-18
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

4

MTD 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

5

MTD 736-0451

Wash. Sad. .320 1 D x .830 OD

$3.99

$

In Stock, only 2 left!

0

6

MTD 712-0429

Hex Nut 5/16 Thd.

Note: Code N

$3.99

$

In Stock, Qty 20+

0

11

MTD 746-0883

Control Cable Box

$15.99

$

In Stock, Qty 20+

0

12

MTD 710-0605

Oval-C-Sunk Screw

$4.49

$

In Stock, only 4 left!

0

?13

MTD 712-0324

Hex L-Nut 1/4 - 20 Thd.

$3.49

$

In Stock, Qty 20+

0

14

MTD 746-0922

Control Cable 60" Lg.
(Superseded to 946-0922)

Note: Code N

$28.99

$

Usually ships in 3-6 days

0

16

MTD 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

18

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$4.99

$

In Stock, Qty 5

0

19

MTD 710-0841

C Sunk Tap Screw #10 x .75

$3.99

$

Usually ships in 3-6 days

0

20

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$8.99

$

In Stock, Qty 5

0

21

MTD 16864

6 Spd. Rack Cable Brkt.

$10.99

$

Usually ships in 3-6 days

0

22

MTD 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

25

MTD 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$30.99

$

In Stock, Qty 6

0

26

MTD 746-0710A

S.P Cable
(Superseded to 946-0710A)

$37.99

$

In Stock, Qty 7

0

27

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0

28

MTD 720-0294

Foam Grip (2 Reqd.)
(Superseded to 720-0294A)

$6.99

$

In Stock, Qty 6

0

29

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 1 left!

0

$43.99

$

In Stock, only 1 left!

0

30

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Note: Code N

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 7

0

$46.99

$

In Stock, Qty 7

0

31

MTD 631-0071

Grassbag Cover w/Label

$96.99

$

In Stock, only 1 left!

0

32

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

MTD 747-0937

Frame - Grassbag
(Superseded to 747-0937-0637)

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

35

MTD 747-0940A

Rod, Support
(Superseded to 747-0940A-0637)

Note: Code N

Variations

MTD 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

36

MTD 664-0076

Grassbag
(Superseded to 964-0076)

$91.99

$

Usually ships in 3-6 days

0
