12A-978Q597 - Columbia 21" Walk-Behind Mower (2008) Drive Assembly 978Q Parts Diagram

21" Walk-Behind Mower

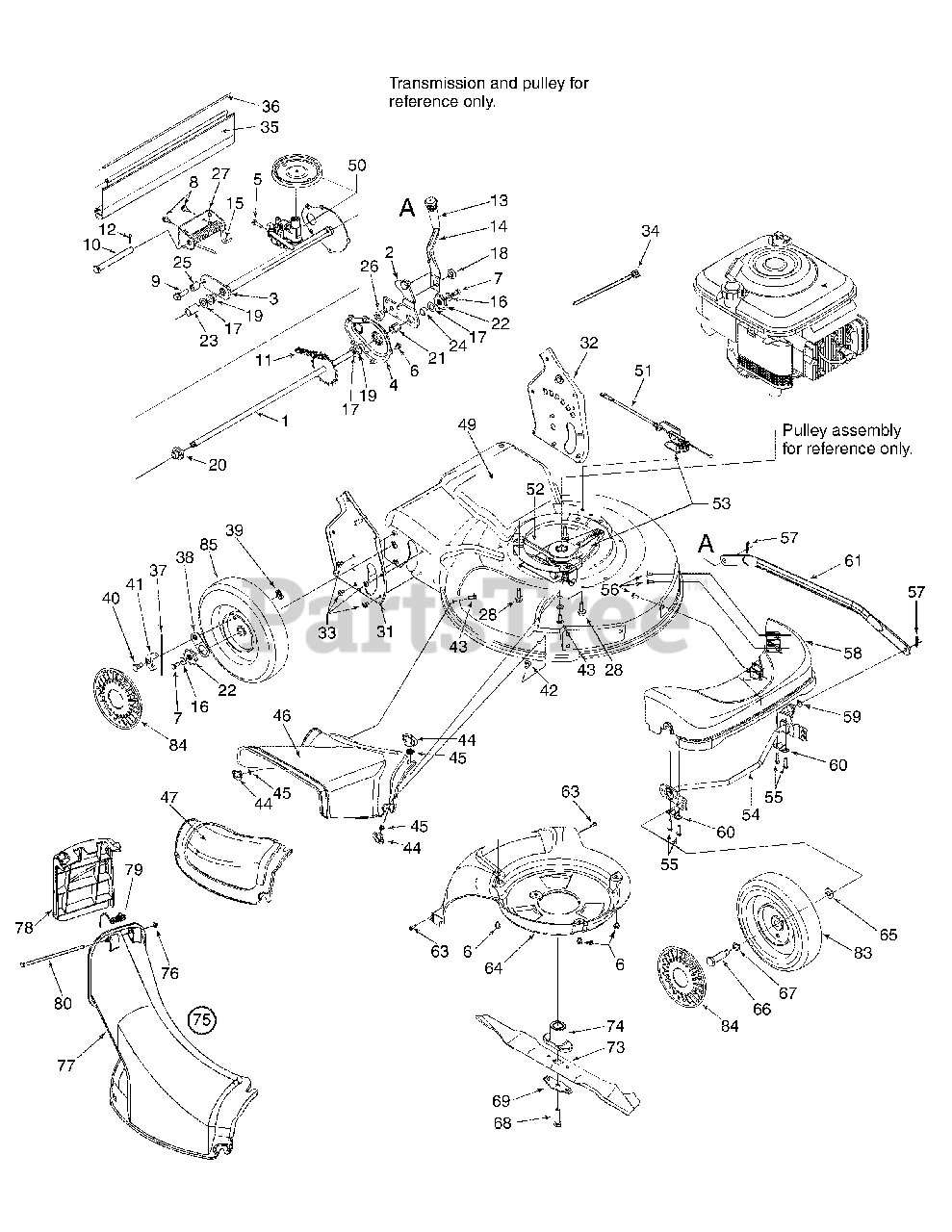

Drive Assembly 978Q Parts Diagram

  • Title

1

White Outdoor 638-0012

Axle Ass’y 20T x 21.46" Lg.
(Superseded to 938-0012A)

$69.99

$

Usually ships in 3-6 days

0

2

White Outdoor 682-0531

Pivot Arm Ass’y
(Superseded to 682-0531-0637)

Variations

White Outdoor 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

3

White Outdoor 682-7526

Trans Axle Ass’y
(Superseded to 682-7526-0637)

Variations

White Outdoor 682-7526-0637

AXLE CHAIN ASSEMBLY BLACK - POWDER BLACK (0637)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

4

White Outdoor 682-7528

Chain Cover
(Superseded to 682-7528-0637)

Variations

White Outdoor 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 710-0604A

Hex Wash HD Scr 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .38

$4.49

$

In Stock, Qty 16

0

7

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-1652

Hex Wash HD. TT Tap Scr. 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$11.99

$

In Stock, Qty 6

0

11

White Outdoor 713-0453

Chain, No. 48 Endless .50 x 24 links
(Superseded to 913-0453)

$11.99

$

In Stock, only 3 left!

0

12

White Outdoor 714-0474

Cotter Pin

$4.49

$

In Stock, Qty 16

0

13

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

14

White Outdoor 732-0803A

Spring Lever

$14.99

$

In Stock, Qty 20+

0

15

White Outdoor 732-0832

RH Torsion Sprocket

$17.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-0270

Cupped Wash. .25 ID x .88 OD x .062

$3.99

$

In Stock, Qty 13

0

17

White Outdoor 736-0369

Washer, Flat .505 ID x 1.0

$4.49

$

In Stock, Qty 6

0

18

White Outdoor 738-0529

Shoulder Nut .625 DIA. x .165
(Superseded to 938-0529)

$10.99

$

In Stock, Qty 5

0

19

White Outdoor 741-0324A

Flange Bearing .506 ID

$7.49

$

In Stock, Qty 8

0

20

White Outdoor 741-0522

Hex Flange Bearing

$7.99

$

In Stock, only 2 left!

0

21

White Outdoor 741-0978

Hex Sleeve Bearing .504 x .830 Lg.

$4.49

$

In Stock, Qty 6

0

22

White Outdoor 748-0318

Ratchet Wheel
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 8

0

23

White Outdoor 750-0151

Spacer .55 ID x .75
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

24

White Outdoor 750-0515

Sleeve .511 id x .70 od x .37" lg.

$4.49

$

In Stock, Qty 7

0

25

White Outdoor 750-0807

Spacer .38 x .625" Lg.

$5.99

$

Usually ships in 3-6 days

0

26

White Outdoor 750-1056

Shoulder Spacer .385 ID x .715" Lg.
(Superseded to 950-1056)

$6.99

$

In Stock, only 2 left!

0

27

White Outdoor 782-0568

Spring Bracket
(Superseded to 782-0568B-0637)

Variations

White Outdoor 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$3.99

$

In Stock, only 4 left!

0

29

White Outdoor 710-1237

Hex Wash Hd Screw 10-32 x 5/8

$4.49

$

Usually ships in 3-6 days

0

30

White Outdoor 751B213146

Clamp Casing - Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

31

White Outdoor 682-3052

Handle Brkt. Ass’y RH

Variations

White Outdoor 682-3052-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3052-0716

BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3052-0650

BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3052-0662

BRACKET HANDLE RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

32

White Outdoor 682-3053

Handle Brkt. Ass’y LH

Variations

White Outdoor 682-3053-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3053-0650

BRACKET HANDLE LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3053-0716

BRACKET HANDLE LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3053-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3053-0662

BRACKET HANDLE LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3053-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3053-0689

BRACKET HANDLE LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-3053-4015

BRACKET HANDLE LH - FIRE RED (4015)

$

$

Not available

$

$

33

White Outdoor 710-1348

Screw AB 1/4-20

$6.49

$

In Stock, only 3 left!

0

34

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

35

White Outdoor 731-1901A

Rear Flap 17.25" Lg.

$37.99

$

In Stock, only 4 left!

0

36

White Outdoor 732-0842

Rear Flap Wire

$5.99

$

In Stock, Qty 11

0

37

White Outdoor 10622B

Spring Nylon

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 16855

Pawl Plate

$5.99

$

In Stock, Qty 20+

0

39

White Outdoor 712-0414

Toplock Flat Weldnut 1/4-20

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 738-0137A

Shoulder Screw .340 x .285: 1/4-20

$9.49

$

In Stock, Qty 19

0

41

White Outdoor 748-0188B

Pawl LH
(Superseded to 948-0188B)

Note: (Not Shown)

$10.99

$

In Stock, Qty 18

0

41

White Outdoor 748-0381

Pawl RH

$11.99

$

In Stock, Qty 12

0

42

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 710-0703

Carriage Bolt 1/4-10 x .75

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$3.99

$

In Stock, Qty 11

0

46

White Outdoor 731-1832

Side Chute

$

$

Not available

47

White Outdoor 731-1833A

Mulching Baffle
(Superseded to 931-1833A)

$41.99

$

In Stock, Qty 8

0

49

White Outdoor 782-0046B

Deck Ass’y

Note: (w/logo)

Variations

White Outdoor 782-0046B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0046B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

$194.99

$

Usually ships in 3-6 days

0

49

White Outdoor 782-0078B

Deck Ass’y

Note: (w/o logo)

Variations

White Outdoor 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

White Outdoor 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

White Outdoor 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

White Outdoor 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

White Outdoor 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

50

White Outdoor 618-0263A

Transmission Ass’y
(Superseded to 918-0263A)

$271.99

$

Usually ships in 3-6 days

0

51

White Outdoor 746-0711B

SP Cable 51.0" Lg.
(Superseded to 946-0711B)

$29.99

$

In Stock, Qty 14

0

52

White Outdoor 754-0460

V-Belt 3/8 x 39.24" Lg.
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 15

0

54

White Outdoor 611-0064

Axle Ass’y
(Superseded to 611-0064-0637)

Variations

White Outdoor 611-0064-0498

Front Axle Assembly, Black - OLD CUB YELLOW (0498)

$91.99

$

Usually ships in 3-6 days

0

White Outdoor 611-0064-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

White Outdoor 611-0064-0665

Front Axle Assembly, Black - YARDMAN GREEN (0665)

$91.99

$

Usually ships in 3-6 days

0

$91.99

$

Usually ships in 3-6 days

0

55

White Outdoor 710-1241

Hex Wash. Hd. B-Tap Scr. 1/4 x 1.0" lg

$6.49

$

In Stock, Qty 20+

0

56

White Outdoor 710-1242

Torx Hd. Scr. 5/16 x .75

$4.49

$

In Stock, Qty 19

0

57

White Outdoor 714-0104

Int. Cotter Pin 5/16 DIA

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 731-1829

Front Cover- Yellow
(Superseded to 931-1829)

$132.99

$

In Stock, only 3 left!

0

58

White Outdoor 731-1834

Front Cover- Grey

$117.99

$

Usually ships in 3-6 days

0

58

White Outdoor 731-1836

Front Cover- Black

$135.99

$

Usually ships in 3-6 days

0

59

White Outdoor 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.49

$

In Stock, only 2 left!

0

60

White Outdoor 741-0492A

Bushing Block .505 dia.

$5.99

$

In Stock, Qty 12

0

61

White Outdoor 782-0565

Single Lever Arm Control
(Superseded to 782-0565-0637)

Variations

White Outdoor 782-0565-0498

ARM-CONTROL SGL LV - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 782-0565-0637

ARM-CONTROL SGL LV - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 782-0565-0665

ARM-CONTROL SGL LV - YARDMAN GREEN (0665)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

63

White Outdoor 710-0895

Screw 1/4-15 X .75

$5.99

$

In Stock, Qty 20+

0

64

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$34.99

$

In Stock, Qty 10

0

65

White Outdoor 736-0105

Cupped Wash .400 ID x .88 OD x .06

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

67

White Outdoor 736-0504

Wave Washer .51" ID
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

68

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.49

$

In Stock, Qty 20+

0

69

White Outdoor 736-0524A

Bell Blade Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

73

White Outdoor 742-0741

Blade 21"
(Superseded to 942-0741A)

Note: (w/star)

$29.99

$

In Stock, Qty 20+

0

74

White Outdoor 748-0377C

Blade Adapter
(Superseded to 748-0377E)

Note: (w/star)

$17.99

$

In Stock, Qty 16

0

75

White Outdoor 631-0067

Chute Assembly

Note: (Incl. Ref No. 76-80)

$83.99

$

Usually ships in 3-6 days

0

76

White Outdoor 726-0111

Push Cap .188 Rod

$6.49

$

Usually ships in 3-6 days

0

77

White Outdoor 731-1713B

Top Chute
(Superseded to 931-0066)

$107.99

$

Usually ships in 3-6 days

0

78

White Outdoor 731-1874

Chute Door
(Superseded to 731-1874A)

$16.99

$

Usually ships in 3-6 days

0

79

White Outdoor 732-0819

Torsion Spring

$8.99

$

Usually ships in 3-6 days

0

80

White Outdoor 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

83

White Outdoor 734-2004A

Front Wheel Ass'y 8 x 2.125
(Superseded to 753-08093)

Note: (Idle/Zag Ball Brg)

$42.99

$

In Stock, Qty 11

0

84

White Outdoor 731-0981A

Hub Cap -Grey
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

84

White Outdoor 731-0982A

Hub Cap - Beige
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0

84

White Outdoor 731-1426A

Hub Cap -Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

85

White Outdoor 734-2044

Rear Wheel Ass’y 9 x 2.125
(Superseded to 734-2044B)

Note: (Drive/Zag/Blk)

$47.99

$

In Stock, Qty 11

0

86

White Outdoor 731-04526

Shroud - Yellow
(Superseded to 931-04526)

$

$

Not available

87

White Outdoor 7510042823

Screw

$

$

Not available
