12A-978Q755 - Yard Machines Walk-Behind Mower (2004) (Walmart) Transmission & Bag Parts Diagram

Walk-Behind Mower

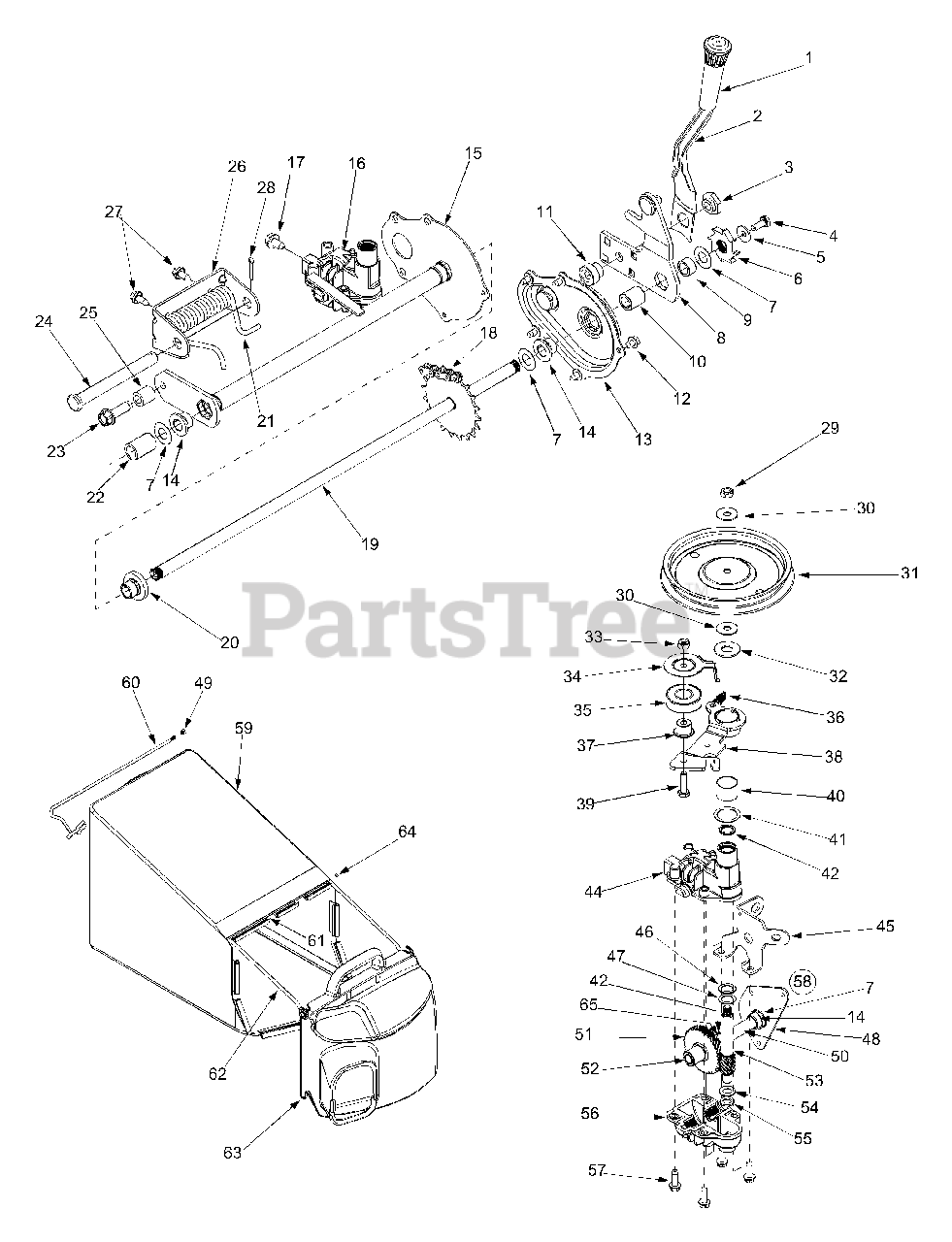

Transmission & Bag Parts Diagram

  • Title

1

MTD 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

2

MTD 732-0803A

Spring Lever

$14.99

$

In Stock, Qty 20+

0

3

MTD 738-0529

Shoulder Nut.825 x.165 Lg.
(Superseded to 938-0529)

$10.99

$

In Stock, Qty 5

0

4

MTD 710-0751

Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0270

Bell Washer.285 ID x.75 OD

$3.99

$

In Stock, Qty 13

0

6

MTD 748-0318

Wheel Rachet
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 8

0

7

MTD 736-0369

Flat Washer.508 ID x 1.0 OD

$4.49

$

In Stock, Qty 6

0

8

MTD 682-0531

Pivot Arm Assembly
(Superseded to 682-0531-0637)

Variations

MTD 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

9

MTD 750-0515

Spacer.510 ID x.70 OD

$4.49

$

In Stock, Qty 7

0

10

MTD 741-0978

Sleeve Bearing.504 ID x.830 OD

$4.49

$

In Stock, Qty 6

0

11

MTD 750-1056

Shoulder Spacer
(Superseded to 950-1056)

$6.99

$

In Stock, only 2 left!

0

12

MTD 710-0653

Tap Screw 1/4-20 x.375

$4.49

$

In Stock, Qty 16

0

13

MTD 682-7528

Chain Cover Assembly
(Superseded to 682-7528-0637)

Variations

MTD 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 741-0324A

Flange Bearing.506 ID x.590 Lg

$7.49

$

In Stock, Qty 8

0

15

MTD 682-7526

Transmission Axle Assembly
(Superseded to 682-7526-0637)

Variations

MTD 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

16

MTD 618-0263A

Transmission Assembly
(Superseded to 918-0263A)

$271.99

$

Usually ships in 3-6 days

0

17

MTD 710-0604A

Hex Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 713-0453

Chain
(Superseded to 913-0453)

$11.99

$

In Stock, only 3 left!

0

19

MTD 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$69.99

$

Usually ships in 3-6 days

0

20

MTD 741-0522

Flange Bearing.506 ID x.715 Lg

$7.99

$

In Stock, only 2 left!

0

21

MTD 732-0832

Torsion Spring

$17.99

$

Usually ships in 3-6 days

0

22

MTD 750-0151

Spacer.550 ID x.750 OD
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

23

MTD 710-1315

Screw 3/8-16 x.25

$3.99

$

In Stock, Qty 20+

0

24

MTD 711-0835

Clevis Pin.50 Dia x 4.82 Lg.
(Superseded to 911-0835)

$11.99

$

In Stock, Qty 6

0

25

MTD 750-0807

Spacer.385 ID x.624 OD

$5.99

$

Usually ships in 3-6 days

0

26

MTD 782-0568

Height Adjustment Spring Bracket
(Superseded to 782-0568B-0637)

Variations

MTD 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 710-1652

Screw 1/4-20 x.625

$3.99

$

In Stock, Qty 20+

0

28

MTD 714-0474

Cotter Pin

$4.49

$

In Stock, Qty 16

0

29

MTD 712-3025

Hex Jam Nut 5/16-24

$6.99

$

Usually ships in 3-6 days

0

30

MTD 736-0425

Bell Washer.325 ID x.930 OD

$4.49

$

In Stock, Qty 16

0

31

MTD 756-0656

Pulley

$34.99

$

Usually ships in 3-6 days

0

32

MTD 736-3084

Flat Washer.510 ID x 1.120 OD

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0896

Hex Jam Nut 1/4-28

$4.49

$

In Stock, Qty 6

0

34

MTD 782-7598

Belt Keeper

$14.99

$

In Stock, only 1 left!

0

35

MTD 741-0124

Bearing
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

36

MTD 732-0849A

Extension Spring
(Superseded to 932-0849A)

$3.99

$

In Stock, Qty 5

0

37

MTD 750-1050

Flange Spacer

$4.99

$

Usually ships in 3-6 days

0

38

MTD 682-0027A

Idler Bracket Assembly
(Superseded to 982-0027A)

$17.99

$

Usually ships in 3-6 days

0

39

MTD 710-0299

Hex Cap Screw 1/4-28 x 1.0

$4.49

$

Usually ships in 3-6 days

0

40

MTD 741-0682A

Bearing Sleeve

$10.99

$

In Stock, only 2 left!

0

41

MTD 736-0570

Flat Washer.885 ID x 1.45 OD
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

42

MTD 721-0329

Oil Seal
(Superseded to 921-0329)

$9.49

$

Usually ships in 3-6 days

0

44

MTD 618-0253

Upper Housing Assembly

$

$

Not available

45

MTD 782-7601A

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

MTD 782-7601A-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 741-0690

Bearing

$4.49

$

Usually ships in 3-6 days

0

47

MTD 736-0616

Thrust Washer.504 ID x.70 OD
(Superseded to 936-0616)

$4.49

$

Usually ships in 3-6 days

0

48

MTD 782-7595

Pivot Bracket

$24.99

$

Usually ships in 3-6 days

0

49

MTD 712-0429

Hex Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

50

MTD 711-1168

Output Shaft 6T

$31.99

$

In Stock, only 1 left!

0

51

MTD 717-1469

Gear 34T

$58.99

$

Usually ships in 3-6 days

0

52

MTD 741-0674

Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

53

MTD 717-1487

Pinion Shaft 10T
(Superseded to 917-1487)

$63.99

$

Usually ships in 3-6 days

0

54

MTD 736-0314

Thrust Washer 3/8 x.70

$6.49

$

Usually ships in 3-6 days

0

55

MTD 736-0569

Thrust Washer.388 x.625
(Superseded to 936-0569)

$

$

Not available

56

MTD 618-0252

Lower Housing Assembly
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

57

MTD 710-0642

Hex Screw 1/2-20 x.75

$4.49

$

In Stock, Qty 20+

0

58

MTD 611-0066

Shaft Assembly
(Superseded to 911-0066)

$

$

Not available

59

MTD 664-0074

Grass Bag
(Superseded to 964-0076A)

$91.99

$

In Stock, only 3 left!

0

60

MTD 747-0940A

Support Rod w/ Rope Guide
(Superseded to 747-0940A-0637)

Variations

MTD 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

61

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

62

MTD 747-0937

Grass Bag Frame
(Superseded to 747-0937-0637)

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

63

MTD 631-0071

Grass Bag Cover

$96.99

$

In Stock, only 1 left!

0

64

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

65

MTD 741-0673

Bearing
(Superseded to 941-0673)

$5.99

$

In Stock, only 2 left!

0
