12A-986Q795 - MTD Pro Walk-Behind Mower (2005) General Assembly Parts Diagram

Pro Walk-Behind Mower

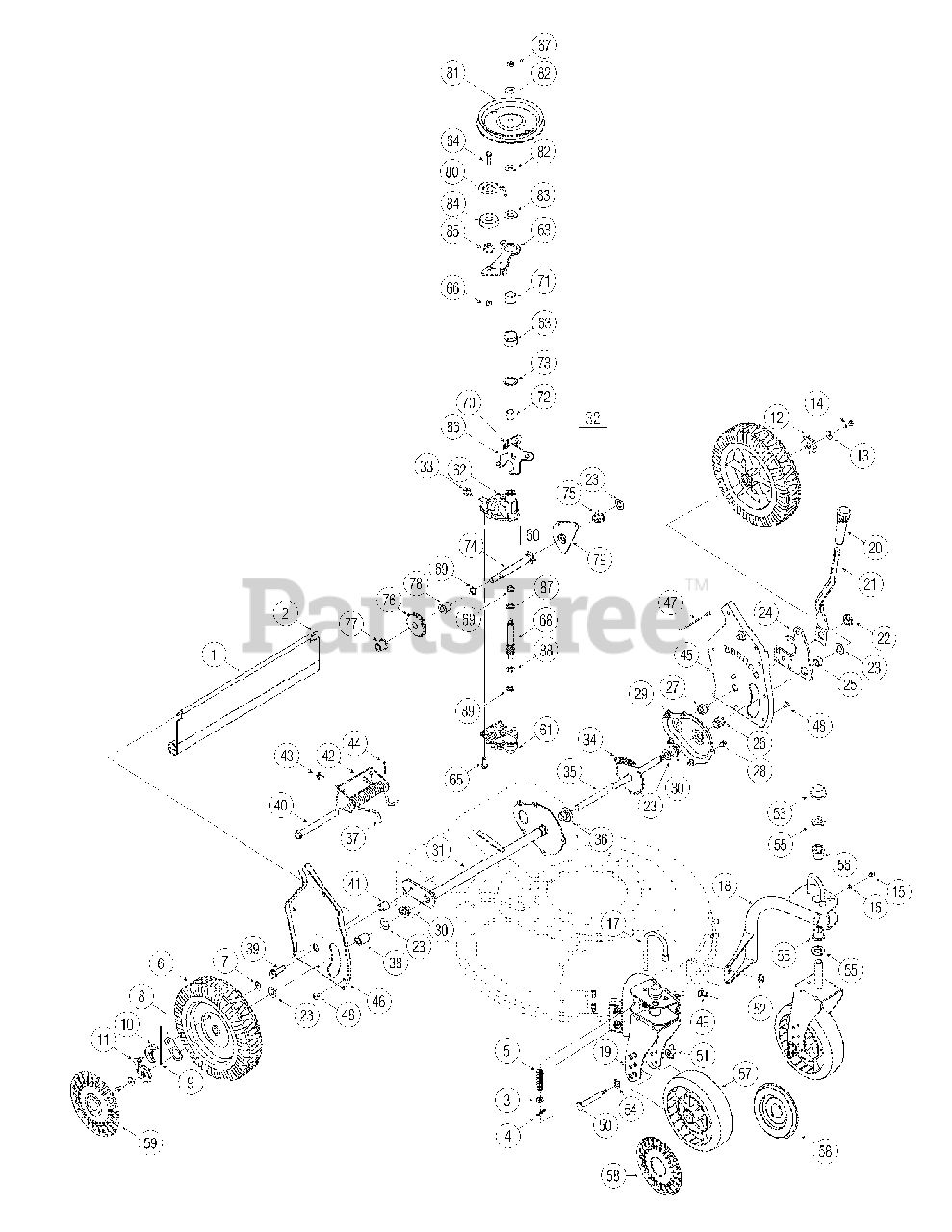

General Assembly Parts Diagram

  • Title

1

MTD 731-1901A

Trail Shield

$37.99

$

In Stock, only 4 left!

0

2

MTD 732-0842

Trail Shield Wire

$5.99

$

In Stock, Qty 11

0

3

MTD 936-0264

Flat Washer.330 ID x.630 OD

$6.49

$

In Stock, Qty 11

0

4

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

5

MTD 932-0306A

Compression Spring

$7.99

$

In Stock, Qty 20+

0

6

MTD 734-2044B

Wheel 9 x 2

$47.99

$

In Stock, Qty 11

0

7

MTD 912-0414

Top Lock Tab Weld Nut 1/4-20
(Superseded to 712-0414)

$3.99

$

In Stock, Qty 20+

0

8

MTD 16855

Ratchet Pawl Plate

$5.99

$

In Stock, Qty 20+

0

9

MTD 10622BP

Plastic Spring Ratchet
(Superseded to 10622B)

$4.49

$

In Stock, Qty 20+

0

10

MTD 748-0381

Pawl RH

$11.99

$

In Stock, Qty 12

0

10

MTD 948-0188B

Pawl LH

$10.99

$

In Stock, Qty 18

0

11

MTD 938-0137A

Shoulder Screw.340 ID x.285 OD
(Superseded to 738-0137A)

$9.49

$

In Stock, Qty 19

0

12

MTD 948-0318

Wheel Ratchet

$9.99

$

In Stock, Qty 8

0

13

MTD 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 13

0

14

MTD 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

15

MTD 937-3000

Grease Fitting

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0931

Flat Washer.203 ID x.403 OD

$4.49

$

In Stock, only 1 left!

0

17

MTD 747-0924

Wheel Pin Lock

$19.99

$

In Stock, only 1 left!

0

18

MTD 682-9020A

Caster Assembly RH

Variations

MTD 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

MTD 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

MTD 682-9020A-0629

CASTER ASM-RH - SILVER FLAKE (0629)

$

$

Not available

MTD 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

MTD 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

MTD 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

MTD 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

18

MTD 682-9021A

Caster Assembly LH

Variations

MTD 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$108.99

$

In Stock, only 1 left!

0

MTD 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$108.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$116.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$116.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

MTD 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

MTD 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

MTD 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

19

MTD 682-9024

Caster Bracket Assembly RH

Variations

MTD 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$76.99

$

In Stock, only 3 left!

0

MTD 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$61.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0691

BRACKET CASTER - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0716

Caster Bracket, RH - CUB YELLOW-99 (0716)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$70.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0637

BRACKET CASTER - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$61.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$61.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$61.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$70.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

19

MTD 682-9026

Caster Bracket Assembly LH
(Superseded to 682-9026A)

Variations

MTD 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$79.99

$

In Stock, Qty 5

0

MTD 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$73.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$73.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$79.99

$

In Stock, only 1 left!

0

MTD 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$79.99

$

In Stock, only 1 left!

0

MTD 682-9026-0637

BRACKET ASSY-WHEEL LH - POWDER BLACK (0637)

$79.99

$

In Stock, only 1 left!

0

MTD 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$73.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$73.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4033

BRACKET ASSY-WHL L - FLINT MICA (4033)

$73.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

20

MTD 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

21

MTD 732-0803A

Spring Lever

$14.99

$

In Stock, Qty 20+

0

22

MTD 938-0529

Shoulder Nut.825 x .165 Lg.

$10.99

$

In Stock, Qty 5

0

23

MTD 936-0369

Flat Washer .508 ID x 1.0 OD
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 6

0

24

MTD 782-0566B-0637

Pivot Arm Assembly

$41.99

$

In Stock, only 1 left!

0

25

MTD 750-0515

Spacer .510 ID x .70 OD

$4.49

$

In Stock, Qty 7

0

26

MTD 741-0978

Sleeve Bearing .504 ID x .830 OD

$4.49

$

In Stock, Qty 6

0

27

MTD 950-1056

Shoulder Spacer

$6.99

$

In Stock, only 2 left!

0

28

MTD 710-0653

Tap Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

29

MTD 682-7528-0637

Chain Cover Assembly

$

$

Not available

30

MTD 741-0324A

Flange Bearing .506 ID x .590 Lg

$7.49

$

In Stock, Qty 8

0

31

MTD 682-7526-0637

Transmission Axle Assembly

$122.99

$

Usually ships in 3-6 days

0

32

MTD 918-0263A

Transmission Assembly Complete

$271.99

$

Usually ships in 3-6 days

0

33

MTD 710-0604A

Hex Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

MTD 913-0453

Chain

$11.99

$

In Stock, only 3 left!

0

35

MTD 938-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$69.99

$

Usually ships in 3-6 days

0

36

MTD 941-0522

Flange Bearing .506 ID x .715 Lg
(Superseded to 741-0522)

$7.99

$

In Stock, only 2 left!

0

37

MTD 732-0832

Torsion Spring

$17.99

$

Usually ships in 3-6 days

0

38

MTD 950-0151

Spacer .550 ID x .750 OD

$9.99

$

In Stock, Qty 20+

0

39

MTD 710-1315

Screw 3/8-16 x .25

$3.99

$

In Stock, Qty 20+

0

40

MTD 911-0835

Clevis Pin .50 Dia x 4.82 Lg.

$11.99

$

In Stock, Qty 6

0

41

MTD 750-0807

Spacer .385 ID x .624 OD

$5.99

$

Usually ships in 3-6 days

0

42

MTD 782-0568-0637

Spring Bracket: Height Adjustment
(Superseded to 782-0568B-0637)

$

$

Not available

43

MTD 710-1652

Screw 1/4-14 x .825

$3.99

$

In Stock, Qty 20+

0

44

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

45

MTD 682-3053

Handle Bracket Assembly - LH

Variations

MTD 682-3053-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3053-0637

Handle Bracket Assembly - LH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3053-0650

No Longer Available BRACKET HA - RED METALLIC (0650)

$

$

Not available

MTD 682-3053-0716

No Longer Available BRACKET HA - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3053-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3053-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3053-0665

Handle Brkt. Ass'y. L.H. - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3053-0689

No Longer Available BRACKET HA - POLO GREEN (0689)

$

$

Not available

MTD 682-3053-4015

No Longer Available BRACKET HA - FIRE RED (4015)

$

$

Not available

$

$

46

MTD 682-3052

Handle Bracket Assembly - RH

Variations

MTD 682-3052-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3052-0637

Handle Bracket Assembly - RH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3052-0716

No Longer Available BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3052-0650

No Longer Available BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

MTD 682-3052-0662

Handle Brkt. Ass'y. R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

47

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

48

MTD 710-1348

Screw 1/4-14 x.500

$6.49

$

In Stock, only 3 left!

0

49

MTD 710-0260A

Carriage Bolt 5/16-18 x.62

$3.99

$

In Stock, Qty 20+

0

50

MTD 911-1146

Caster Axle

$12.99

$

In Stock, Qty 20+

0

51

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

52

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

53

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

54

MTD 936-0232

Wave Washer.531 ID x.781 OD
(Superseded to 736-0232)

$4.49

$

In Stock, Qty 18

0

55

MTD 736-0366

Flat Washer.640 ID x 1.12 OD

$4.49

$

In Stock, Qty 14

0

56

MTD 741-0685

Flange Bearing

$3.99

$

In Stock, Qty 18

0

57

MTD 734-1857

Wheel 7 x 2

$42.99

$

In Stock, Qty 11

0

58

MTD 731-1887

Hubcap - Spoke w/ Hole

$10.99

$

Usually ships in 3-6 days

0

59

MTD 731-0981C

Hubcap - Radial Spoke

$9.99

$

In Stock, Qty 6

0

60

MTD 911-0066

Shaft Assembly

$

$

Not available

61

MTD 918-0252

Lower Housing Assembly

$42.99

$

Usually ships in 3-6 days

0

62

MTD 618-0253

Upper Housing Assembly

$

$

Not available

63

MTD 982-0027A

Idler Bracket Assembly

$17.99

$

Usually ships in 3-6 days

0

64

MTD 710-0299

Hex Cap Screw 1/4-28 x 1.0

$4.49

$

Usually ships in 3-6 days

0

65

MTD 710-0642

Hex Screw 1/2-20 x .75

$4.49

$

In Stock, Qty 20+

0

66

MTD 712-0896

Hex Jam Nut 1/4-28

$4.49

$

In Stock, Qty 6

0

67

MTD 712-3025

Hex Jam Nut 5/16-24

$6.99

$

Usually ships in 3-6 days

0

68

MTD 917-1487

Pinion Shaft 10T

$63.99

$

Usually ships in 3-6 days

0

69

MTD 921-0329

Oil Seal

$9.49

$

Usually ships in 3-6 days

0

70

MTD 932-0849A

Extension Spring

$3.99

$

In Stock, Qty 5

0

71

MTD 741-0682A

Bearing Sleeve

$10.99

$

In Stock, only 2 left!

0

72

MTD 741-0690

Bearing

$4.49

$

Usually ships in 3-6 days

0

73

MTD 936-0616

Thrust Washer .504 ID x .70 OD

$4.49

$

Usually ships in 3-6 days

0

74

MTD 711-1168

Output Shaft 6T

$31.99

$

In Stock, only 1 left!

0

75

MTD 741-0324A

Flange Bearing

$7.49

$

In Stock, Qty 8

0

76

MTD 717-1469

Gear 34T

$58.99

$

Usually ships in 3-6 days

0

77

MTD 941-0674

Flange Bearing

$8.99

$

Usually ships in 3-6 days

0

78

MTD 941-0673

Flange Bearing

$5.99

$

In Stock, only 2 left!

0

79

MTD 782-7595

Pivot Bracket

$24.99

$

Usually ships in 3-6 days

0

80

MTD 782-7598

Belt Keeper

$14.99

$

In Stock, only 1 left!

0

81

MTD 756-0656

Pulley

$34.99

$

Usually ships in 3-6 days

0

82

MTD 936-0425

Bell Washer .325 ID x .930 OD
(Superseded to 736-0425)

$

$

Not available

83

MTD 736-3084

Flat Washer .510 ID x 1.120 OD

$4.49

$

In Stock, Qty 20+

0

84

MTD 941-0600

Bearing

$23.99

$

In Stock, Qty 20+

0

85

MTD 750-1050

Flange Spacer

$4.99

$

Usually ships in 3-6 days

0

86

MTD 782-7601A-0637

Cable Bracket

$

$

Not available

87

MTD 936-0570

Flat Washer .885 ID x 1.45 OD

$5.99

$

Usually ships in 3-6 days

0

88

MTD 936-0569

Thrust Washer .388 x .625

$

$

Not available

89

MTD 936-0314

Thrust Washer 3/8 x .70
(Superseded to 736-0314)

$

$

Not available
