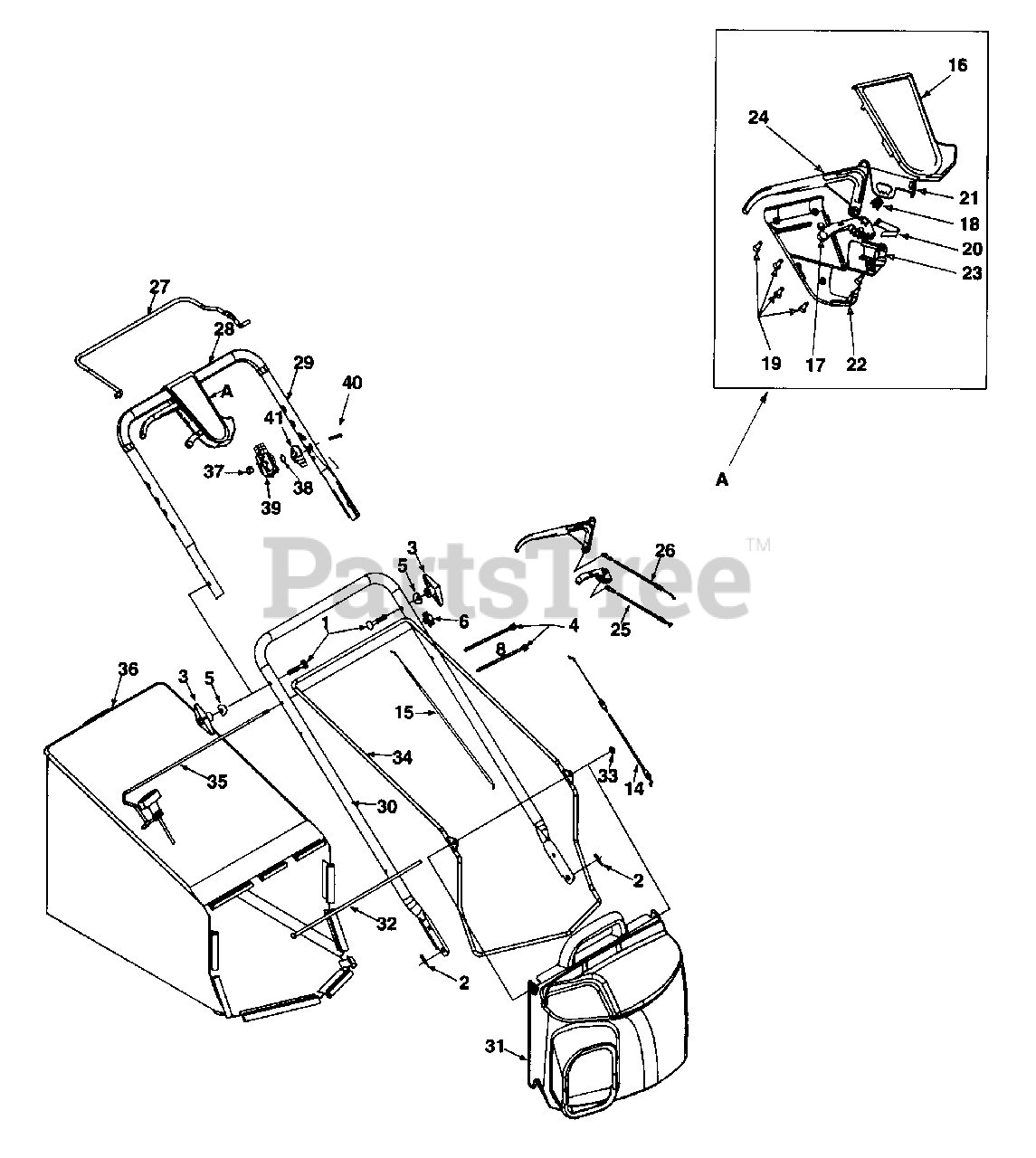

12A-998Q401 - Yard-Man Walk-Behind Mower (2000) Handle & Bag Assembly Parts Diagram

Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title

1

MTD 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

2

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0241

Wingknob 5/16-18
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

4

MTD 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

5

MTD 736-0451

Wash. Sad. .320 ID x .830 OD

$3.99

$

In Stock, only 2 left!

0

6

MTD 720-0279

Handle Knob, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1270

Screw 1/4-20 x 1.3

$4.49

$

In Stock, only 2 left!

0

?11

MTD 712-0324

Nut 1/4-20 Top Locknut Insert

$3.49

$

In Stock, Qty 20+

0

?12

MTD 746-0883

Housing, Control Cable

$15.99

$

In Stock, Qty 20+

0

14

MTD 746-0912

Control Cable 44" Lg.
(Superseded to 946-0912)

$24.99

$

In Stock, Qty 5

0

15

MTD 746-1115

Throttle Control 47" Lg.
(Superseded to 946-1115)

$26.99

$

Usually ships in 3-6 days

0

16

MTD 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

18

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$4.99

$

In Stock, Qty 5

0

19

MTD 710-1667

C Sunk Tap Screw #10-16 x .625
(Superseded to 710-1667A)

$3.99

$

In Stock, Qty 13

0

20

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$8.99

$

In Stock, Qty 5

0

21

MTD 16864

6 Spd. Rack Cable Brkt.

$10.99

$

Usually ships in 3-6 days

0

22

MTD 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

25

MTD 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$30.99

$

In Stock, Qty 6

0

26

MTD 746-0713

Self Prop. Cable 52"
(Superseded to 946-0713A)

$29.99

$

In Stock, only 3 left!

0

27

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0

28

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (2 Reqd.)

$6.99

$

In Stock, Qty 6

0

29

MTD 749-0439C

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439C-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 1 left!

0

$43.99

$

In Stock, only 1 left!

0

30

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 7

0

$46.99

$

In Stock, Qty 7

0

31

MTD 631-0071

Grassbag Cover w/Logo

$96.99

$

In Stock, only 1 left!

0

32

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

MTD 747-0937

Frame - Grassbag
(Superseded to 747-0937-0637)

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

35

MTD 747-0940A

Rod, Support
(Superseded to 747-0940A-0637)

Variations

MTD 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

36

MTD 664-0074

Grassbag
(Superseded to 964-0076A)

$91.99

$

In Stock, only 3 left!

0

37

MTD 712-0324

Hex Lock Nut, 1/4-20

$3.49

$

In Stock, Qty 20+

0

38

MTD 736-0501

Curved Wash. .663 x .980 x .014
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

39

MTD 646-0876

Throttle/Choke Housing

$36.99

$

Usually ships in 3-6 days

0

40

MTD 710-0605

Oval C-Sunk Screw 1/4-20 x 1.825

$4.49

$

In Stock, only 4 left!

0

41

MTD 746-0876

Throttle/Choke Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 10

0
