12A-999L401 - Yard-Man Walk-Behind Mower (2001) Speed Control Parts Diagram

Walk-Behind Mower

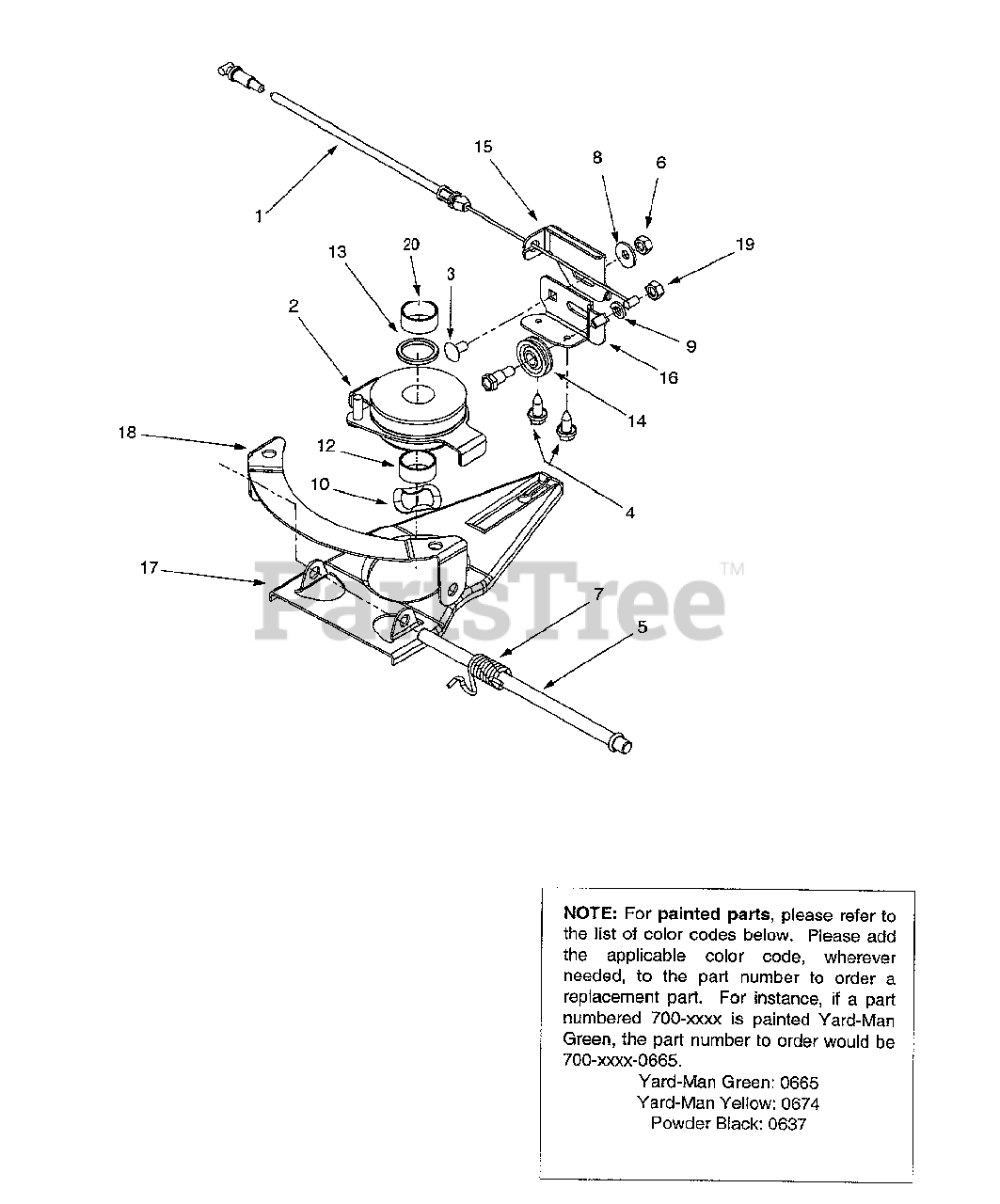

Speed Control Parts Diagram

  • Title

1

MTD 746-0939

Speed Selector Cable, 53"
(Superseded to 946-0939A)

$30.99

$

In Stock, Qty 5

0

2

MTD 656-0613

Multi-Speed Pulley Assembly
(Superseded to 956-0613A)

$67.99

$

In Stock, only 2 left!

0

3

MTD 710-0167

Carriage Bolt, 1/4-20 x. 5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0896

Self-Tapping Screw, 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

5

MTD 711-1114

Pivot Shaft

$11.99

$

Usually ships in 3-6 days

0

6

MTD 712-0287

Nut, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

7

MTD 732-0807

LH Torsion Spring
(Superseded to 932-0807)

$7.49

$

In Stock, only 1 left!

0

8

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 12

0

9

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

10

MTD 736-0526

Wave Washer, 1.38 x .88 x .029

$6.49

$

Usually ships in 3-6 days

0

?11

MTD 738-0924

Shoulder Bolt, .34 x .35 x 1/4-20
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

12

MTD 750-1070

Sleeve Spacer, .88 ID x 1 OD x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 11

0

13

MTD 750-1071

Sleeve Spacer, .88 ID x 1.13 OD x .12
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

14

MTD 756-0625

Cable Roller

$8.99

$

In Stock, Qty 20+

0

15

MTD 782-7574A

Cable Adjuster Bracket
(Superseded to 782-7574A-0637)

Variations

MTD 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 782-7575A

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

Variations

MTD 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 782-7596

Control Arm
(Superseded to 782-7596A)

Variations

MTD 782-7596-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 782-7597

Pivot Bracket

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$8.99

$

In Stock, only 3 left!

0

$8.99

$

In Stock, only 3 left!

0

19

MTD 712-0138

Hex Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

20

UNKNOWN

$

$

Not available
