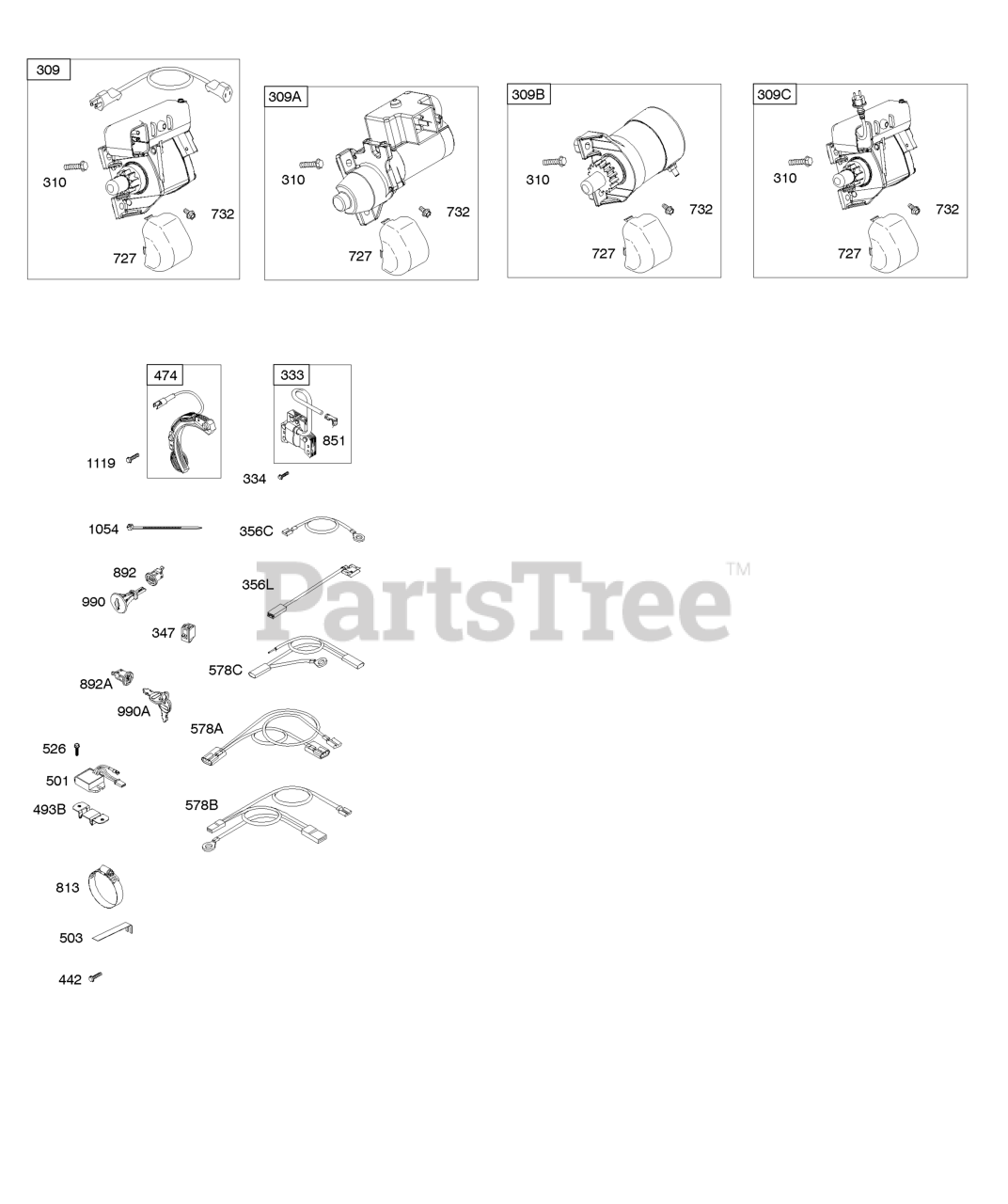

12A102-0145-E8 - Briggs & Stratton Horizontal Engine Electric Starter Parts Diagram

Horizontal Engine

Electric Starter Parts Diagram

  • Title

310

Briggs & Stratton 698113

Screw

Note: (Starter Motor)

$

$

Not available

333

Briggs & Stratton 796964

Armature-Magneto

$57.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 795333

Switch-Rocker

$14.99

$

In Stock, only 2 left!

0

356C

Briggs & Stratton 695630

WIRE, Stop

$8.49

$

Usually ships in 2-12 days

0

356L

Briggs & Stratton 790552

Wire-Stop

$12.99

$

In Stock, only 1 left!

0

442

Briggs & Stratton 795012

Screw

Note: (Starter Strap)

$5.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 793640

Alternator

$62.99

$

Usually ships in 2-12 days

0

493B

Briggs & Stratton 691177

BRACKET, Mounting

$25.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 698315

REGULATOR

$104.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 699889

Strap-Starter

$

$

Not available

526

Briggs & Stratton 690297

Screw

Note: (Regulator)

$3.99

$

In Stock, Qty 19

0

578B

Briggs & Stratton 791956

Wire Assembly

$

$

Not available

727

Briggs & Stratton 698039

Cover-Starter Drive

$8.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 699200

SCREW

Note: (Starter Drive Cover)

$4.49

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$25.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

892

Briggs & Stratton 791944

Switch-Key

$16.99

$

In Stock, Qty 6

0

892A

Briggs & Stratton 798182

SWITCH, Key

$31.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 794696

Key Set

$8.49

$

In Stock, Qty 20+

0

990A

Briggs & Stratton 798177

SET, Key
(Superseded to 847146)

$35.99

$

In Stock, only 1 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 699772

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
