12ABD2M7897 - Columbia Walk-Behind Mower (2018) Deck Assembly Parts Diagram

Walk-Behind Mower

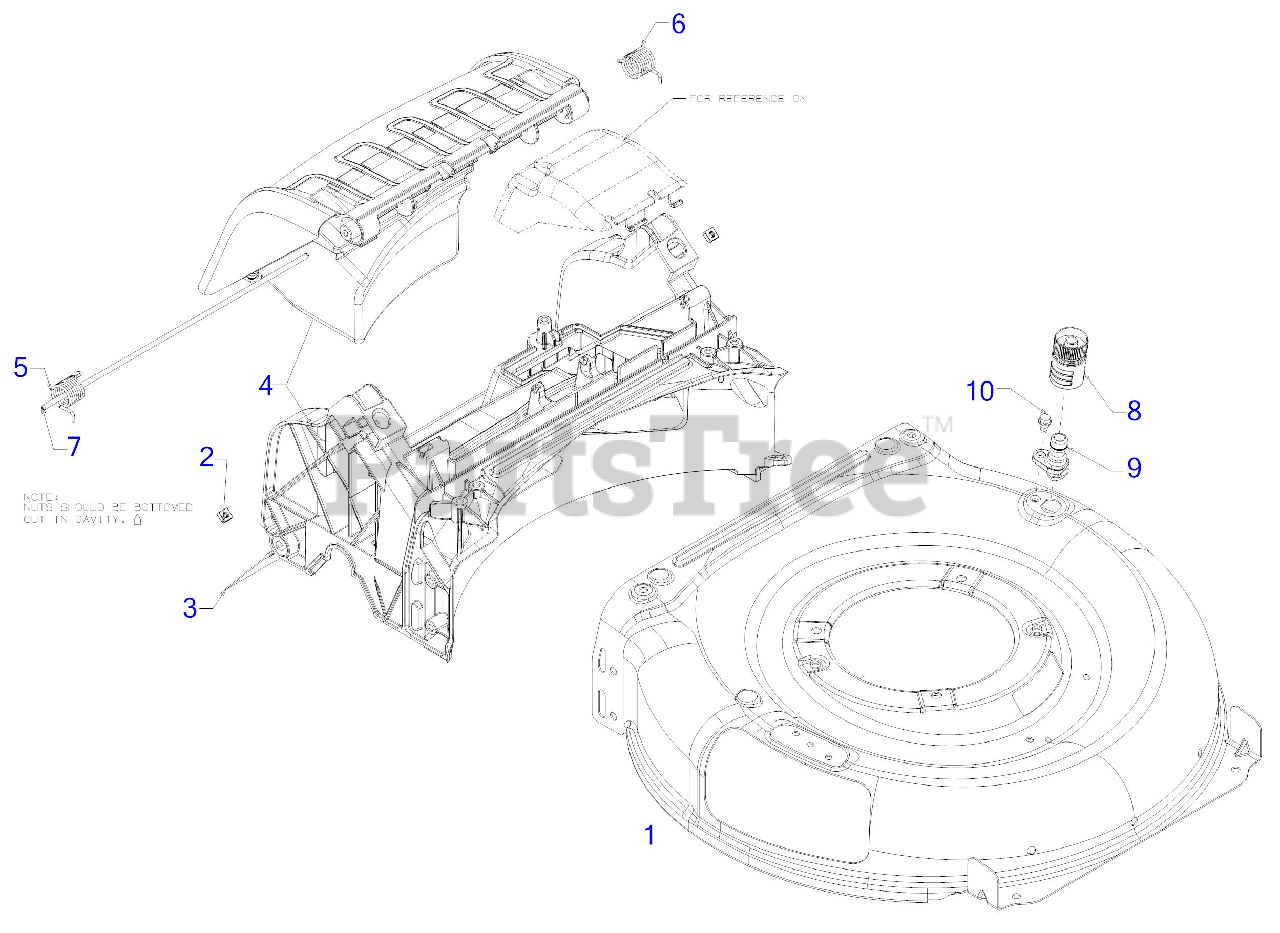

Deck Assembly Parts Diagram

  • Title

1

MTD 787-02002B

21" DECK (3N1)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 787-02002B-0638

DECK-21" 3 IN 1 RW - MTD/TROY-BILT RED (0638)

$152.99

$

Usually ships in 3-6 days

0

MTD 787-02002B-4021

DECK-21" 3 IN 1 RW - CUB YELLOW 2 (4021)

$152.99

$

Usually ships in 3-6 days

0

MTD 787-02002B-0606

DECK-21" 3 IN 1 RW - MAJESTIC ORANGE (0606)

$152.99

$

Usually ships in 3-6 days

0

MTD 787-02002B-0689

DECK-21" 3 IN 1 RW - POLO GREEN (0689)

$123.99

$

Usually ships in 3-6 days

0

MTD 787-02002B-0691

DECK-21" 3 IN 1 RW - BLACK JACK (0691)

$152.99

$

Usually ships in 3-6 days

0

MTD 787-02002B-4033

DECK-21" 3 IN 1 RW - FLINT MICA (4033)

$152.99

$

Usually ships in 3-6 days

0

MTD 787-02002B-4044

DECK-21" 3 IN 1 RW - CRAFTSMAN RED (4044)

$152.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

2

MTD 712-04222

SQUARE NUT 1/4-20

$5.99

$

In Stock, Qty 20+

0

3

MTD 731-07203

TRAILSHIELD

$11.99

$

In Stock, Qty 20+

0

4

MTD 631-04554A

REAR BAG BAFFLE ASSEMBLY

$73.99

$

Usually ships in 3-6 days

0

5

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.99

$

In Stock, Qty 20+

0

6

MTD 732-05062A

TORSION SPRING (LH)

$5.99

$

In Stock, Qty 11

0

7

MTD 747-05183

REAR DOOR PIVOT ROD

$4.49

$

In Stock, Qty 10

0

8

MTD 921-04041

WATER NOZZLE

$24.99

$

In Stock, Qty 20+

0

9

MTD 731-07487

DECK WASH NOZZLE

$4.99

$

In Stock, Qty 19

0

10

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0
