12AE465F701 - Yard-Man Walk-Behind Mower (2004) General Assembly 1 Parts Diagram

Walk-Behind Mower

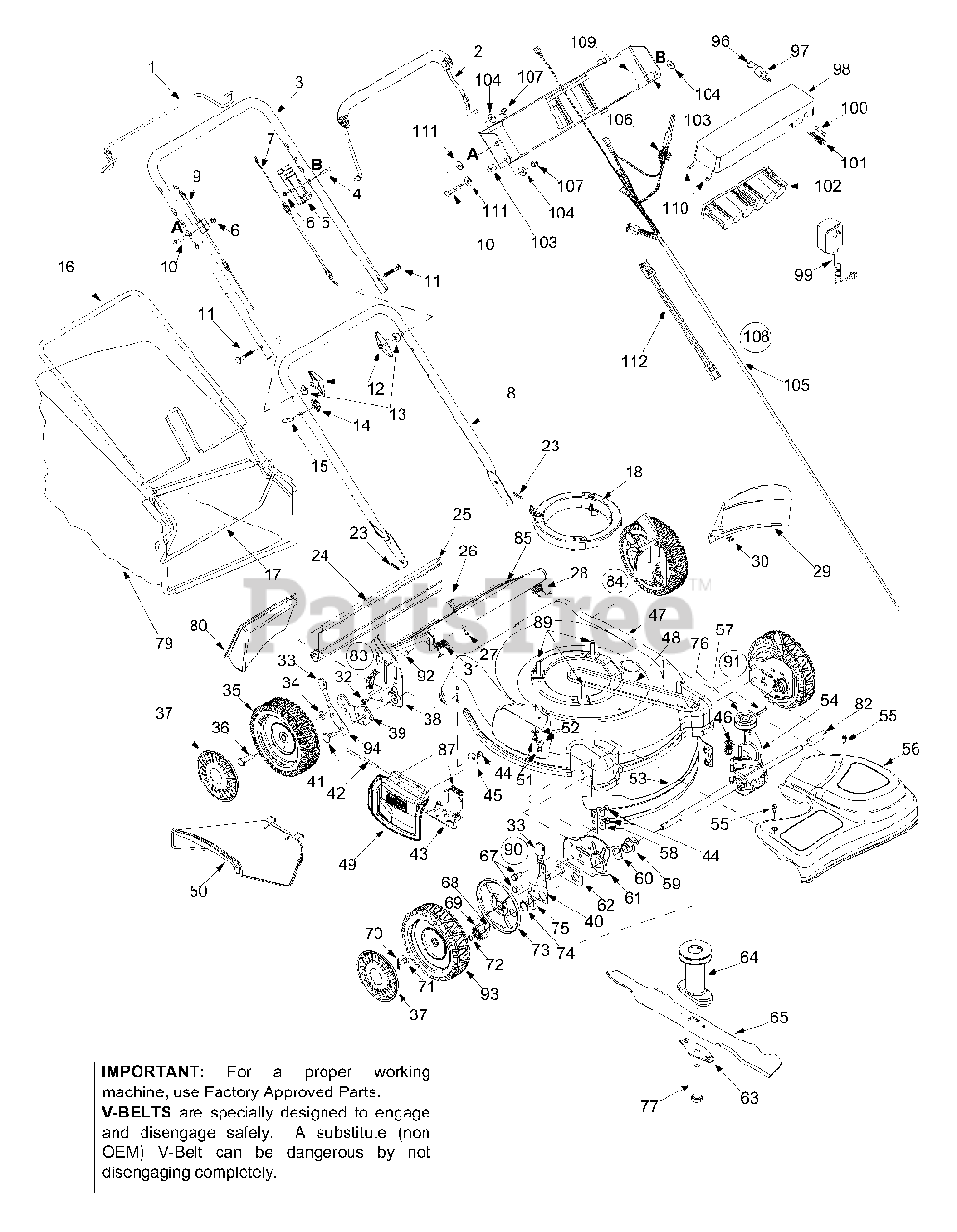

General Assembly 1 Parts Diagram

  • Title

1

MTD 747-1161A

Operator's Bail

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

2

MTD 747-1214

Drive Bail

$21.99

$

In Stock, Qty 10

0

3

MTD 749-1233A

Upper Handle
(Superseded to 749-1233D-0637)

Variations

MTD 749-1233A-0637

Upper Handle, Electric - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

4

MTD 710-0136

Hex Scr. 1/4-20

$3.99

$

In Stock, only 2 left!

0

5

MTD 746-0883

Control Housing

$15.99

$

In Stock, Qty 20+

0

6

MTD 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

7

MTD 746-1125

Control Cable: 50"

$

$

Not available

8

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

9

MTD 746-04127

Drive Cable

$

$

Not available

10

MTD 710-0606

Hex Screw 1/4-20 x 1.5"

$4.99

$

In Stock, Qty 15

0

11

MTD 710-1174

Carriage Bolt

$6.99

$

In Stock, Qty 20+

0

12

MTD 720-0284

Handle Knob

$6.49

$

In Stock, Qty 20+

0

13

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

14

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

16

MTD 764-0310

Grass Catcher Frame: Rear
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

17

MTD 764-0311

Grass Catcher Frame: Front
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 631-0075B

Engine Spacer Assembly

$

$

Not available

23

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

24

MTD 731-1236

Rear Trail Shield
(Superseded to 731-04998)

$29.99

$

In Stock, Qty 10

0

25

MTD 732-0700

Wire: Trail Shield
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

26

MTD 720-0275

Knob

$

$

Not available

27

MTD 710-0192

Scr. Tr. Mach. #10-24 x 0.380"

$3.49

$

In Stock, Qty 11

0

28

MTD 732-0677

Torsion Spring LH
(Superseded to 932-0677)

$7.49

$

Usually ships in 3-6 days

0

29

MTD 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Scr. AB 1/4-14 x 0.625"

$7.99

$

In Stock, Qty 20+

0

31

MTD 732-0678

Torsion Spring RH

$7.99

$

Usually ships in 3-6 days

0

32

MTD 710-0896

Hex Scr. w/ Wash. 1/4-14 x 0.62"

$3.99

$

In Stock, Qty 20+

0

33

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

34

MTD 736-0105

Bell Washer .375 x .870

$3.99

$

In Stock, Qty 20+

0

35

MTD 734-04087

Wheel: Rear

$25.99

$

In Stock, Qty 7

0

36

MTD 738-0102

Shoulder Screw

$9.49

$

In Stock, Qty 11

0

37

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

38

MTD 682-0513

Handle Bracket Assembly LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 682-0514

Handle Bracket Assembly RH
(Superseded to 682-0516-0637)

$

$

Not available

39

MTD 14766

Pivot Bar LH

$19.99

$

Usually ships in 3-6 days

0

MTD 14765

Pivot Bar RH

$19.99

$

Usually ships in 3-6 days

0

40

MTD 687-02018

Front Lever RH
(Superseded to 987-02018)

$22.99

$

Usually ships in 3-6 days

0

MTD 687-02017

Front Lever LH
(Superseded to 987-02017)

$

$

Not available

41

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

42

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

43

MTD 782-7006

Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

44

MTD 712-0431

Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

46

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 14

0

47

MTD 787-01006

3-in-1 Deck: 21"
(Superseded to 753-05203)

Variations

MTD 787-01006-0638

Service Kit, 21" De - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01006-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01006-0691

SERVICE KIT:21" DE - BLACK JACK (0691)

$

$

Not available

$

$

48

MTD 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

49

MTD 731-04161

Mulch Plug
(Superseded to 987-02055)

$25.99

$

In Stock, Qty 13

0

50

MTD 731-04177

Discharge Deflector SD

$17.99

$

In Stock, Qty 20+

0

51

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

52

MTD 736-0270

Bell Washer 0.265" x 0.75"

$3.99

$

In Stock, Qty 13

0

53

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 618-0657

Transmission Assembly Compl.
(Superseded to 753-05465)

$228.99

$

Usually ships in 3-6 days

0

55

MTD 7510042824

Screw #12 x 0.457"
(Superseded to 710-1650)

$4.49

$

In Stock, Qty 20+

0

56

MTD 731-04580

Front Drive Cover
(Superseded to 931-04580)

$

$

Not available

57

MTD 715-0169

Roll Pin

$

$

Not available

59

MTD 748-0355

Bearing Support

$12.99

$

In Stock, only 2 left!

0

60

MTD 736-0447

Wave Washer

$3.99

$

In Stock, Qty 20+

0

61

MTD 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

$21.99

$

In Stock, only 1 left!

0

62

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

63

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

64

MTD 748-04015A

Blade Adapter
(Superseded to 948-04015A)

$60.99

$

In Stock, only 2 left!

0

65

MTD 742-0741

Mulching Blade w/ Star: 21"
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

67

MTD 710-0216

Hex Screw

$3.99

$

In Stock, Qty 17

0

68

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$3.99

$

In Stock, Qty 20+

0

69

MTD 717-1762

Gear 14T RH

$12.99

$

In Stock, Qty 9

0

MTD 717-1761

Gear 14T LH

$12.99

$

In Stock, Qty 12

0

70

MTD 714-0101

Hairpin Clip

$4.49

$

In Stock, only 4 left!

0

71

MTD 736-3013

Flat Washer

$4.49

$

In Stock, Qty 9

0

72

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 6

0

73

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$4.99

$

In Stock, Qty 20+

0

74

MTD 716-0102

Snap Ring

$4.99

$

In Stock, Qty 20+

0

75

MTD 736-0474

Washer DD 1.5" O.D.

$6.49

$

In Stock, only 4 left!

0

76

MTD 756-1231

Input Pulley

$15.99

$

Usually ships in 3-6 days

0

77

MTD 710-1257

Hex Bolt

$7.49

$

In Stock, Qty 20+

0

78

MTD 736-0452

Bell Washer

$4.49

$

In Stock, Qty 16

0

79

MTD 764-0309

Grass Bag
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

80

MTD 782-5004A

Rear Baffle RH
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

82

MTD 750-1166

Slev. Spacer LH

$4.49

$

Usually ships in 3-6 days

0

MTD 750-1165

Slev. Spacer RH
(Superseded to 750-1210)

$

$

Not available

83

MTD 682-0516A

Height Adj. Assembly RH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

84

MTD 682-0515A

Height Adj. Assembly LH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

85

MTD 687-02086

RD Chute Door

$

$

Currently unavailable

87

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

88

MTD 726-0240

Cable Tie (not shown)
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

89

MTD 710-1008

TT Sems Screw

$5.49

$

In Stock, Qty 20+

0

90

MTD 682-0512A

Height Adj. Assembly RH Compl.
(Superseded to 987-02194A)

$61.99

$

Usually ships in 3-6 days

0

91

MTD 682-0511A

Height Adj. Assembly LH Compl.
(Superseded to 987-02193A)

$61.99

$

In Stock, only 1 left!

0

92

MTD 710-1248

Weld Pin

$

$

Currently unavailable

93

MTD 634-04100

Wheel: Front
(Superseded to 634-04100A)

$36.99

$

In Stock, Qty 19

0

94

MTD 687-02020

Spring Lever

$

$

Currently unavailable

95

MTD 731-04525

Engine Shroud (not shown)
(Superseded to 931-04525)

$47.99

$

Usually ships in 3-6 days

0

96

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

97

MTD 725-0873

Key Switch
(Superseded to 925-0873)

$

$

Not available

98

MTD 731-0891A

Battery Tray

$

$

Not available

99

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$72.99

$

In Stock, only 1 left!

0

100

MTD 725-0298

Fuse 7.5 Amp
(Superseded to 925-0298)

$4.49

$

Usually ships in 3-6 days

0

101

MTD 725-1428

Fuse Holder
(Superseded to 925-1428)

$

$

Not available

102

MTD 725-1276

Battery 12V
(Superseded to 925-1276)

$172.99

$

Usually ships in 3-6 days

0

103

MTD 750-04143

Spacer

$5.99

$

Usually ships in 3-6 days

0

104

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 13

0

105

MTD 725-1442

Harnesss: Electric Start
(Superseded to 925-1442)

$

$

Not available

106

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

107

MTD 712-0324

Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

108

MTD 625-0021

Harness Assembly Compl.

$

$

Not available

109

MTD 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

MTD 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

110

MTD 710-0969

TT Screw

$4.49

$

In Stock, only 3 left!

0

111

MTD 736-3090

Flat Washer

$6.49

$

In Stock, only 2 left!

0

112

MTD 725-1538

Harness Extension

$

$

Not available
