12AE469D755 - Yard-Man Walk-Behind Mower (2006) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

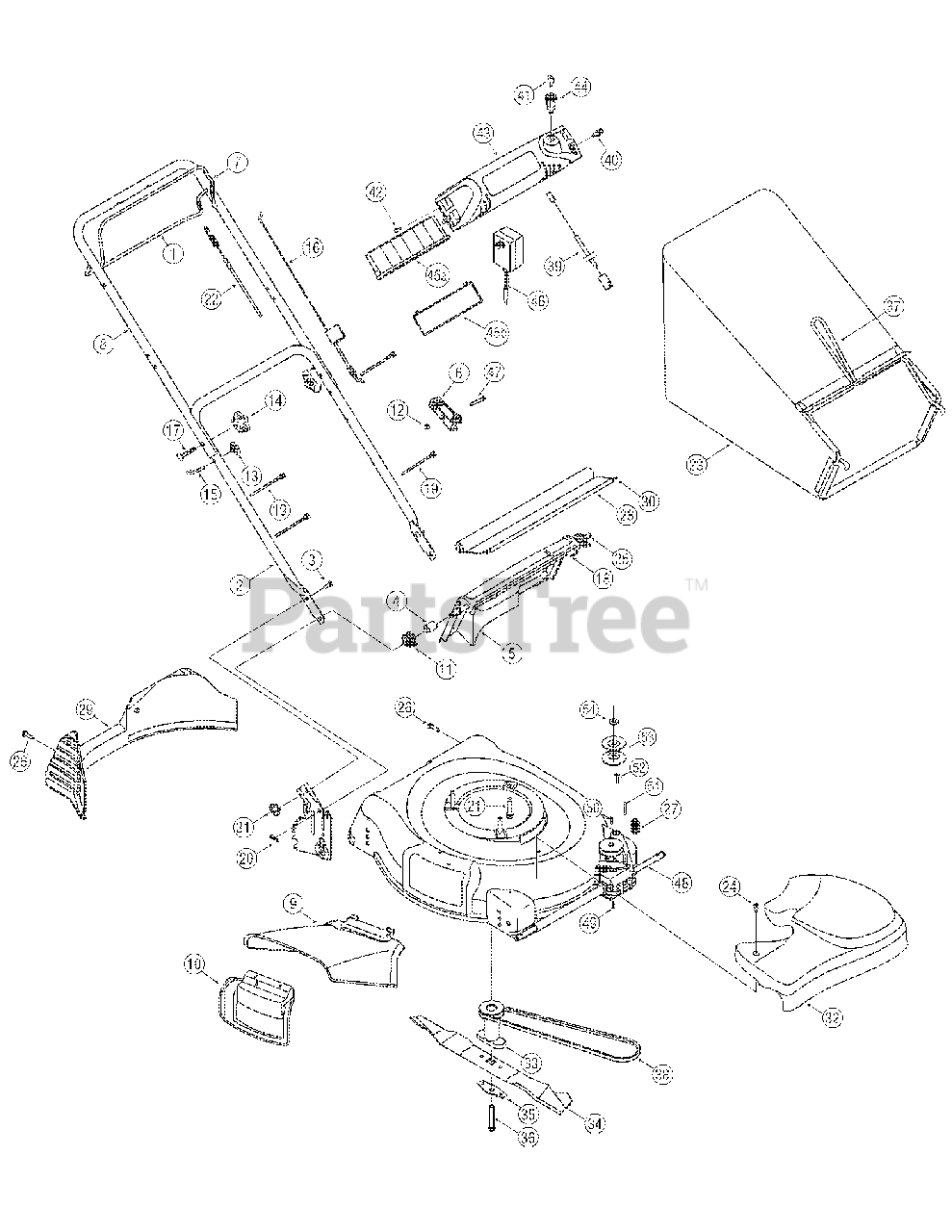

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control

$21.99

$

In Stock, Qty 9

0

2

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

3

MTD 710-0703

Carriage Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

MTD 750-04162

Spacer.375 x.50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

5

MTD 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

6

MTD 746-0883

ERS Housing

$15.99

$

In Stock, Qty 20+

0

7

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

8

MTD 749-1233B

Upper Handle
(Superseded to 749-1233D-0637)

Variations

MTD 749-1233B-0637

Upper Handle, Electric - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

9

MTD 731-04177

Chute Deflector

$17.99

$

In Stock, Qty 20+

0

10

MTD 687-02055

Mulch Plug Complete
(Superseded to 987-02055)

$25.99

$

In Stock, Qty 12

0

11

MTD 732-04090A

Torsion Spring - RH

$7.49

$

Usually ships in 3-6 days

0

12

MTD 712-0324

Hex Lock Nut, 1/4-20

$3.49

$

In Stock, Qty 20+

0

13

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-04072

Handle Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 14

0

16

MTD 746-04309

Control Cable - 39"
(Superseded to 946-04309)

$48.99

$

Usually ships in 3-6 days

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

18

MTD 732-04089A

Torsion Spring - LH

$7.49

$

Usually ships in 3-6 days

0

19

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

20

MTD 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-0654A

Self-Tapping Sems Screw

$3.99

$

Usually ships in 3-6 days

0

22

MTD 746-04282

Drive Cable - 48.75"
(Superseded to 946-04282)

$35.99

$

Usually ships in 3-6 days

0

23

MTD 664-04027

Grassbag Assembly
(Superseded to 964-04007A)

$124.99

$

In Stock, Qty 18

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.49

$

In Stock, Qty 20+

0

25

MTD 747-04035

Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

26

MTD 710-04371

Screw, 1/4-15 x 1.25

$6.49

$

Usually ships in 3-6 days

0

27

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 14

0

28

MTD 731-04998

Rear Trailing Shield

$29.99

$

In Stock, Qty 10

0

29

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

31

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

32

MTD 731-05021A

Transmission Cover
(Superseded to 931-05021A)

$58.99

$

Usually ships in 3-6 days

0

33

MTD 748-04015A

Blade Adapter
(Superseded to 948-04015A)

$60.99

$

In Stock, only 2 left!

0

34

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

35

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

36

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.49

$

In Stock, Qty 20+

0

37

MTD 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 10

0

$55.99

$

In Stock, Qty 10

0

38

MTD 754-04101

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

39

MTD 725-04293

Electric Starter Harness

$

$

Currently unavailable

40

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

41

MTD 725-0201

Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 12

0

42

MTD 710-1667A

Screw, #10-16 x .75

$3.99

$

In Stock, Qty 13

0

43

MTD 731-05505

Battery Hsg. (Used w/ Ref.# 45a)
(Superseded to 625-04030)

$

$

Not available

43

MTD 731-05459

Battery Hsg. (Used w/ Ref.# 45b)
(Superseded to 925-04072)

$92.99

$

Usually ships in 3-6 days

0

44

MTD 725-04347

Key Switch
(Superseded to 925-04347)

$31.99

$

Usually ships in 3-6 days

0

45a

MTD 725-1276

12 Volt Battery
(Superseded to 925-1276)

$172.99

$

Usually ships in 3-6 days

0

45b

MTD 725-04323

12 Volt Battery
(Superseded to 925-04323)

$106.99

$

In Stock, only 3 left!

0

46

MTD 725-04329

Battery Charger
(Superseded to 725-06121B)

$44.99

$

In Stock, Qty 20+

0

47

MTD 710-0136

Screw, 1/4-20 x 1.75

$3.99

$

In Stock, only 1 left!

0

48

MTD 617-04376

Transmission Assembly

$

$

Currently unavailable

49

MTD 710-04329

Torx Screw

$4.49

$

In Stock, only 2 left!

0

50

MTD 715-0129

Spirol Pin

$4.49

$

In Stock, only 1 left!

0

51

MTD 715-04030

Dowel pin

$

$

Not available

52

MTD 710-0969

Screw, #12-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

53

MTD 756-04132

Pulley, 3.82 x .313 x .68

$

$

Not available

54

MTD 736-0105

Bell Washer, .325 x .930 x .45

$3.99

$

In Stock, Qty 20+

0
