12AE999M401 - Yard-Man Walk-Behind Mower (1998) Handle Assembly (Model 999) Parts Diagram

Walk-Behind Mower

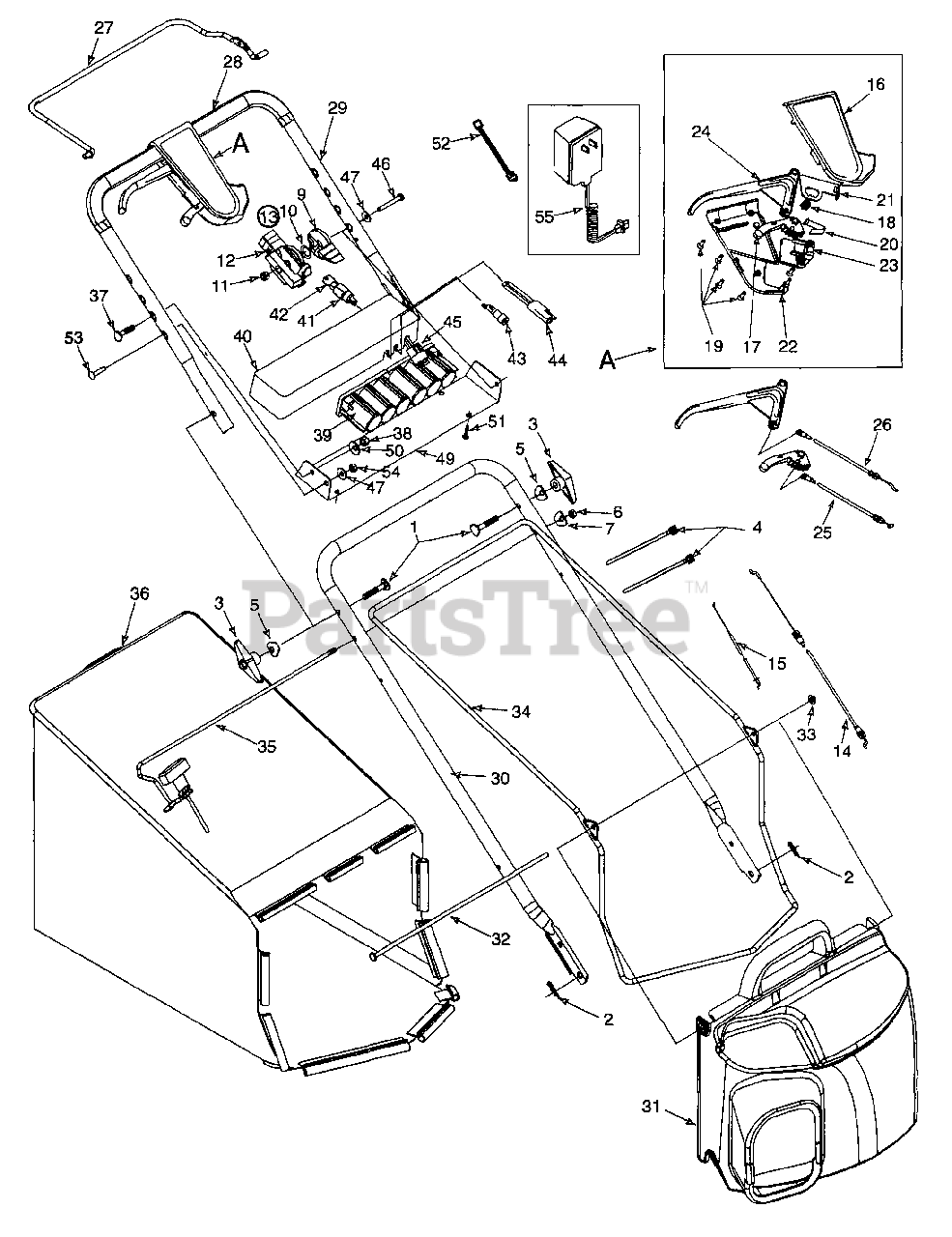

Handle Assembly (Model 999) Parts Diagram

  • Title

1

MTD 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

2

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0241

Knob Ass'y Wing Nut 5/16-18
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

4

MTD 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

5

MTD 736-0451

Wash. Sad. .320 ID x.830 OD

$3.99

$

In Stock, only 2 left!

0

6

MTD 712-0429

Hex Nut 5/16 Thd.

Note: (Code: N)

$3.99

$

In Stock, Qty 20+

0

7

MTD 736-0451

Saddle Washer

Note: (Code: N)

$3.99

$

In Stock, only 2 left!

0

9

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 9

0

10

MTD 736-0501

Spring Wash.Curved
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

11

MTD 712-0324

Nut 1/4-20 Top Lock Nut Insert

$3.49

$

In Stock, Qty 20+

0

12

MTD 646-0875

Housing, Throttle
(Superseded to 946-0875)

$8.99

$

In Stock, Qty 14

0

13

MTD 811-00303

Throttle Control
(Superseded to 811-0185)

Note: (Includes 9-12)

$34.99

$

In Stock, Qty 8

0

14

MTD 746-0557

Control Cable 47" Lg.
(Superseded to 946-0557)

$25.99

$

In Stock, Qty 5

0

15

MTD 746-0841

Cable Throttle 60" Lg.
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

16

MTD 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

18

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$4.99

$

In Stock, only 4 left!

0

19

MTD 710-0841

C Sunk Tap Screw #10 x .75 L

$3.99

$

Usually ships in 3-6 days

0

20

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$8.99

$

In Stock, Qty 5

0

21

MTD 16864

6 Spd. Rack Cable Brkt.

$10.99

$

Usually ships in 3-6 days

0

22

MTD 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 1 left!

0

25

MTD 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$30.99

$

In Stock, Qty 5

0

26

MTD 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$37.99

$

In Stock, Qty 6

0

27

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0

28

MTD 720-0294

Foam Grip (2 Reqd.)
(Superseded to 720-0294A)

$6.99

$

In Stock, Qty 6

0

29

MTD 749-04398

Upper Handle

$

$

Currently unavailable

30

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 6

0

$46.99

$

In Stock, Qty 6

0

31

MTD 631-0071

Grassbag Cover w/Label

$96.99

$

In Stock, only 1 left!

0

32

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

MTD 747-0937

Frame (Grassbag)
(Superseded to 747-0937-0637)

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

35

MTD 747-0940A

Rod, Support
(Superseded to 747-0940A-0637)

Note: (Code: N)

Variations

MTD 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

36

MTD 664-0074

Grassbag
(Superseded to 964-0076A)

$91.99

$

In Stock, only 3 left!

0

37

MTD 710-1250

Cur. Carr. Bolt 5/16-18 x 1" Lg.

$4.49

$

In Stock, Qty 5

0

38

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

MTD 725-1276

Battery Pack - 12 Volt
(Superseded to 925-1276)

$172.99

$

Usually ships in 3-6 days

0

40

MTD 731-0891A

Battery Tray

$

$

Not available

41

MTD 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

42

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 12

0

43

MTD 425-1428

Fuse Holder

$

$

Currently unavailable

MTD 725-0298

Fuse 7-1/2 Amp
(Superseded to 925-0298)

Note: (Not shown)

$4.49

$

Usually ships in 3-6 days

0

44

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

45

MTD 725-1442

Wire Harness
(Superseded to 925-1442)

$

$

Not available

46

MTD 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$6.99

$

In Stock, only 1 left!

0

47

MTD 736-0270

Bell Wash 1/4" I.D.

$3.99

$

In Stock, Qty 10

0

49

MTD 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

MTD 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 736-0242

Bell Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

51

MTD 710-0969

Truss Mch. Tap Scr. 1"

$4.49

$

In Stock, only 3 left!

0

52

MTD 725-1538

Harness Ext.

$

$

Not available

53

MTD 710-0111

Scr. 1/4-20 x 1.25

$3.49

$

Usually ships in 3-6 days

0

54

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

55

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$72.99

$

In Stock, only 1 left!

0
