12AF569S790 - White Outdoor 21" Walk-Behind Mower (2005) General Assembly Parts Diagram

21" Walk-Behind Mower

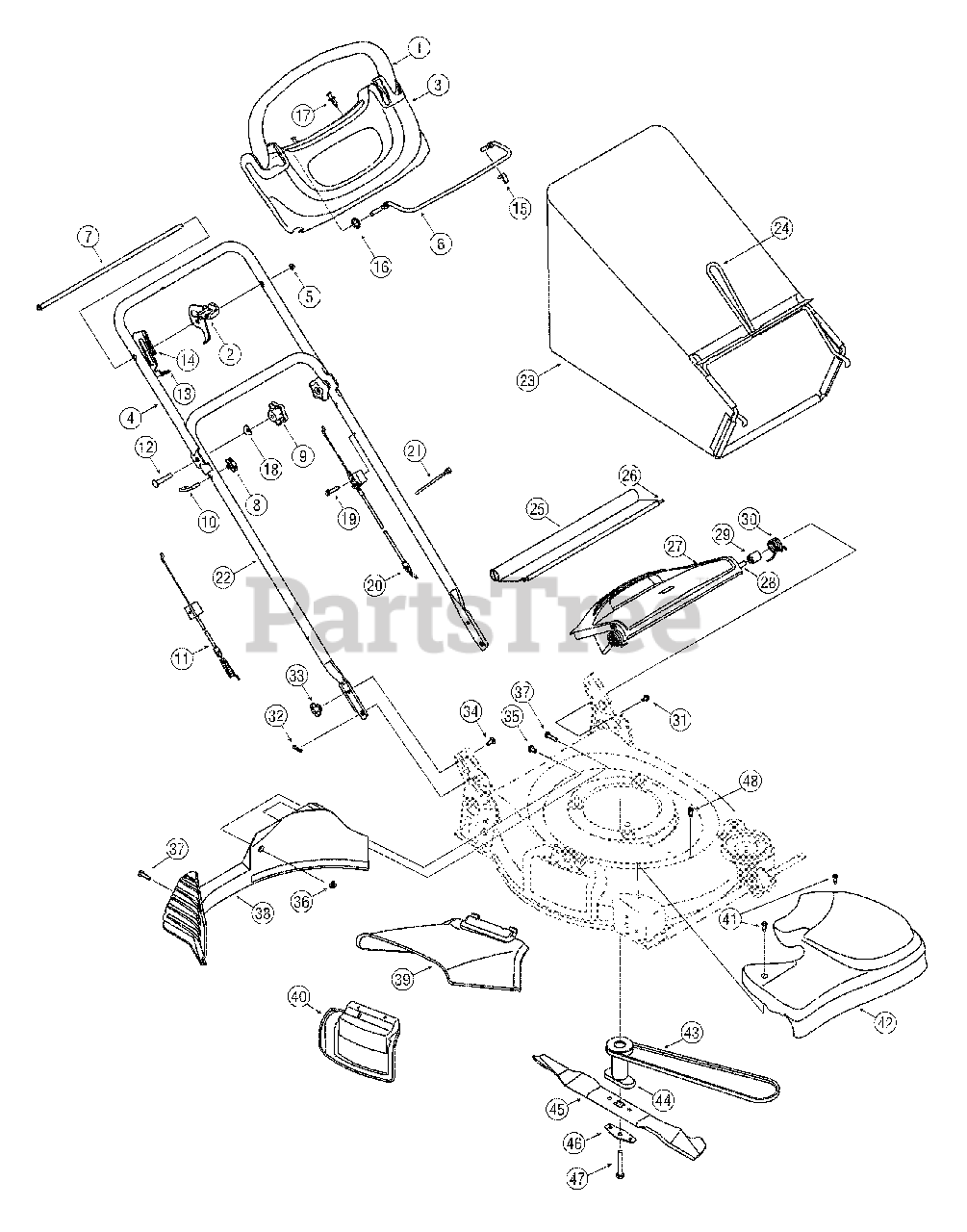

General Assembly Parts Diagram

  • Title

1

White Outdoor 931-04147

Drive Control Bar: Red

$

$

Not available

2

White Outdoor 647-04005

Self Start Control Assembly

$

$

Not available

3

White Outdoor 731-04087A

Handle Panel

$48.99

$

Usually ships in 3-6 days

0

4

White Outdoor 749-1507-0637

Upper Handle

$34.99

$

In Stock, only 1 left!

0

5

White Outdoor 926-0106

Speed Cap 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

6

White Outdoor 747-2133A-0637

Blade Control Bar

$17.99

$

Usually ships in 3-6 days

0

7

White Outdoor 747-2132A

Control Rod

$

$

Not available

8

White Outdoor 720-0279

Handle Knob

$4.99

$

In Stock, Qty 15

0

9

White Outdoor 720-04072

Handle Knob
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-1205

Eye Bolt

$4.49

$

In Stock, Qty 12

0

11

White Outdoor 746-1141

Smart Speed™ Control Cable
(Superseded to 946-1141)

$56.99

$

In Stock, only 3 left!

0

12

White Outdoor 710-0487

Carriage Bolt 5/16-18 x 2.0

$7.49

$

Usually ships in 3-6 days

0

13

White Outdoor 787-01038

Cable Bracket

$8.99

$

In Stock, only 1 left!

0

14

White Outdoor 732-04020

Extension Spring

$

$

Not available

15

White Outdoor 931-05175

Control Bar Stop Gray

$

$

Not available

16

White Outdoor 712-04016

Push Nut

$7.49

$

Usually ships in 3-6 days

0

17

White Outdoor 728-0199

Plastic Rivet

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

19

White Outdoor 710-0809

TT-Scr. 1/4-20 x 1.25

$7.49

$

In Stock, Qty 7

0

20

White Outdoor 746-04013

Smart Speed ™ SS Fwd. Drive Cable
(Superseded to 946-04013)

$48.99

$

In Stock, only 3 left!

0

21

White Outdoor 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 749-0907B

Lower Handle

Variations

White Outdoor 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$53.99

$

In Stock, only 3 left!

0

$53.99

$

In Stock, only 3 left!

0

23

White Outdoor 964-04034

Grassbag Assembly
(Superseded to 964-04007A)

$138.99

$

In Stock, Qty 11

0

24

White Outdoor 747-04080A

Grass Bag Frame

Variations

White Outdoor 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$63.99

$

In Stock, only 4 left!

0

$63.99

$

In Stock, only 4 left!

0

25

White Outdoor 731-04998

Rear Trailing Shield

$33.99

$

In Stock, Qty 6

0

26

White Outdoor 732-0700

Wire
(Superseded to 732P0700)

$4.99

$

In Stock, Qty 5

0

27

White Outdoor 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

28

White Outdoor 747-0996

Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

29

White Outdoor 950-04162

Spacer.375 x.50 x 1.02

$

$

Not available

30

White Outdoor 732-04089A

Torsion Spring LH

$8.49

$

Usually ships in 3-6 days

0

30

White Outdoor 732-04090A

Torsion Spring RH

$8.49

$

Usually ships in 3-6 days

0

31

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 16

0

33

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

35

White Outdoor 710-0286

Machine Screw 1/4-20

$4.99

$

Usually ships in 3-6 days

0

36

White Outdoor 712-04064

Flange Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-04371

HL Screw 1/4-15

$7.49

$

Usually ships in 3-6 days

0

38

White Outdoor 731-04150C

Rear Baffle 21" Rd.

$42.99

$

In Stock, only 2 left!

0

39

White Outdoor 731-04177

Chute Deflector

$20.99

$

In Stock, Qty 12

0

40

White Outdoor 987-02055

Mulch Plug Comp.

$29.99

$

In Stock, Qty 7

0

41

White Outdoor 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

42

White Outdoor 931-05013A

Transmission Cover

$55.99

$

Usually ships in 3-6 days

0

43

White Outdoor 954-04032B

V-Belt

$26.99

$

In Stock, Qty 20+

0

44

White Outdoor 948-04015A

Blade Adapter w/ Pulley

$69.99

$

In Stock, only 1 left!

0

45

White Outdoor 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$31.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$6.49

$

In Stock, Qty 20+

0

47

White Outdoor 710-1257

Hex Screw 3/8-24 x 2.50

$8.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-1002

Shoulder Screw 1/4-14

$4.49

$

Usually ships in 3-6 days

0
