12AF753B063 - Troy-Bilt Wide-Cut 33" Self-Propelled Mower (2003) Front Frame Assembly Parts Diagram

Wide-Cut 33" Self-Propelled Mower

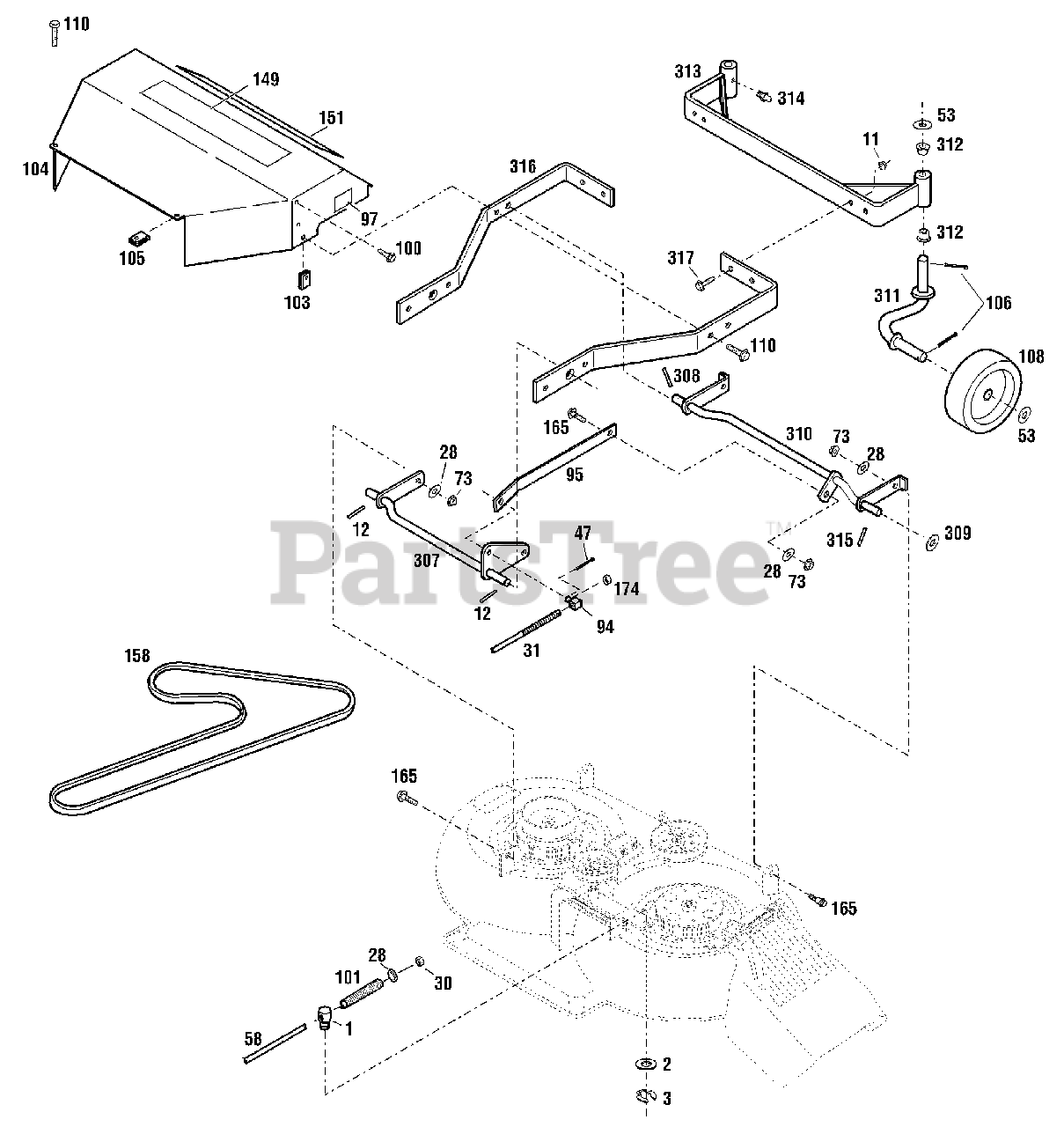

Front Frame Assembly Parts Diagram

  • Title

1

Troy-Bilt 1916897

Pivot

$24.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-20546

Washer

$

$

Not available

3

Troy-Bilt GW-9532

Clip Ring

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1186393

Flange Locknut, 3/8-16

$2.99

$

In Stock, only 1 left!

0

12

UNKNOWN

$

$

Not available

?16

Troy-Bilt 1185147

Cotter Pin, 3/32 x 5/8
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-3050

Flat Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 712-3000

Locknut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 1769895

Lift Crank
(Superseded to 1915831)

$23.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 714-0474

Cotter Pin

$4.49

$

In Stock, Qty 16

0

53

Troy-Bilt 1701447

Special Washer

$3.99

$

In Stock, Qty 12

0

58

MTD 1770247

Lower Blade Rod

$

$

Not available

73

Troy-Bilt 712-0266

Flange Locknut, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

94

MTD 1768231

Pivot Block

$

$

Not available

95

Troy-Bilt 1769521

Leveler Bar
(Superseded to 1769521001)

$

$

Not available

97

Troy-Bilt 777I00006

Cutting Height Decal

$

$

Not available

100

Troy-Bilt 1769344

Tap Screw, #8 x 3/8
(Superseded to 710-0227)

$3.99

$

In Stock, Qty 20+

0

101

Troy-Bilt 1769007

Compression Spring

$10.99

$

Usually ships in 3-6 days

0

103

MTD 726-04008

Speed Nut, 5/16-18
(Superseded to 926-04008)

$

$

Not available

104

Troy-Bilt 1764996

Belt Guard

$

$

Currently unavailable

105

Troy-Bilt 726-04006

Speed Nut, 5/16-18
(Superseded to 926-04006)

$12.99

$

In Stock, only 1 left!

0

106

Troy-Bilt 1100352

Cotter Pin

$4.49

$

In Stock, Qty 7

0

108

Troy-Bilt 1743891

Gage Wheel
(Superseded to 734-04005)

$

$

Not available

110

Troy-Bilt 1186329

Flange Lock Screw, 5/16 x 3/4
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

149

Troy-Bilt 777D06078

Logo Decal

$

$

Not available

151

Troy-Bilt 777D06077

33" Combination Deck Decal

$

$

Not available

158

Troy-Bilt 1769767

V-Belt

$44.99

$

In Stock, Qty 16

0

165

Troy-Bilt 1754125

Shoulder Bolt

$6.49

$

In Stock, Qty 9

0

174

Troy-Bilt 1770355

Toplock Nut
(Superseded to 712-0290)

$4.49

$

In Stock, Qty 12

0

307

MTD 1769903

Rear Lift Assembly

$

$

Not available

308

Troy-Bilt 1185469

Roll Pin, 1/4 x 1
(Superseded to 715-04034)

$6.49

$

In Stock, Qty 8

0

309

Troy-Bilt 736-0156

Flat Washer, 5/8

$3.99

$

In Stock, Qty 13

0

310

MTD 1770248

Front Lift Assembly

$

$

Not available

311

Troy-Bilt 1768477

Spindle Assembly
(Superseded to 1768477001)

$74.99

$

In Stock, only 2 left!

0

312

Troy-Bilt 1764140

Flange Bearing

$4.99

$

Usually ships in 3-6 days

0

313

Troy-Bilt 1769743

Gage Support

$

$

Currently unavailable

314

Troy-Bilt 1185976

Grease Fitting
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

315

Troy-Bilt 1185759

Drive Pin, 1/4 x 3

$

$

Not available

316

Troy-Bilt 1769899

Mower Support
(Superseded to 787-01003-0637)

$

$

Not available

317

Troy-Bilt 1186347

Whizlock Screw, 3/8-16 x 1
(Superseded to 710-04042)

$4.49

$

In Stock, Qty 5

0
