12AI832Q724 - MTD Platinum Walk-Behind Mower (2008) General Assembly Parts Diagram

Platinum Walk-Behind Mower

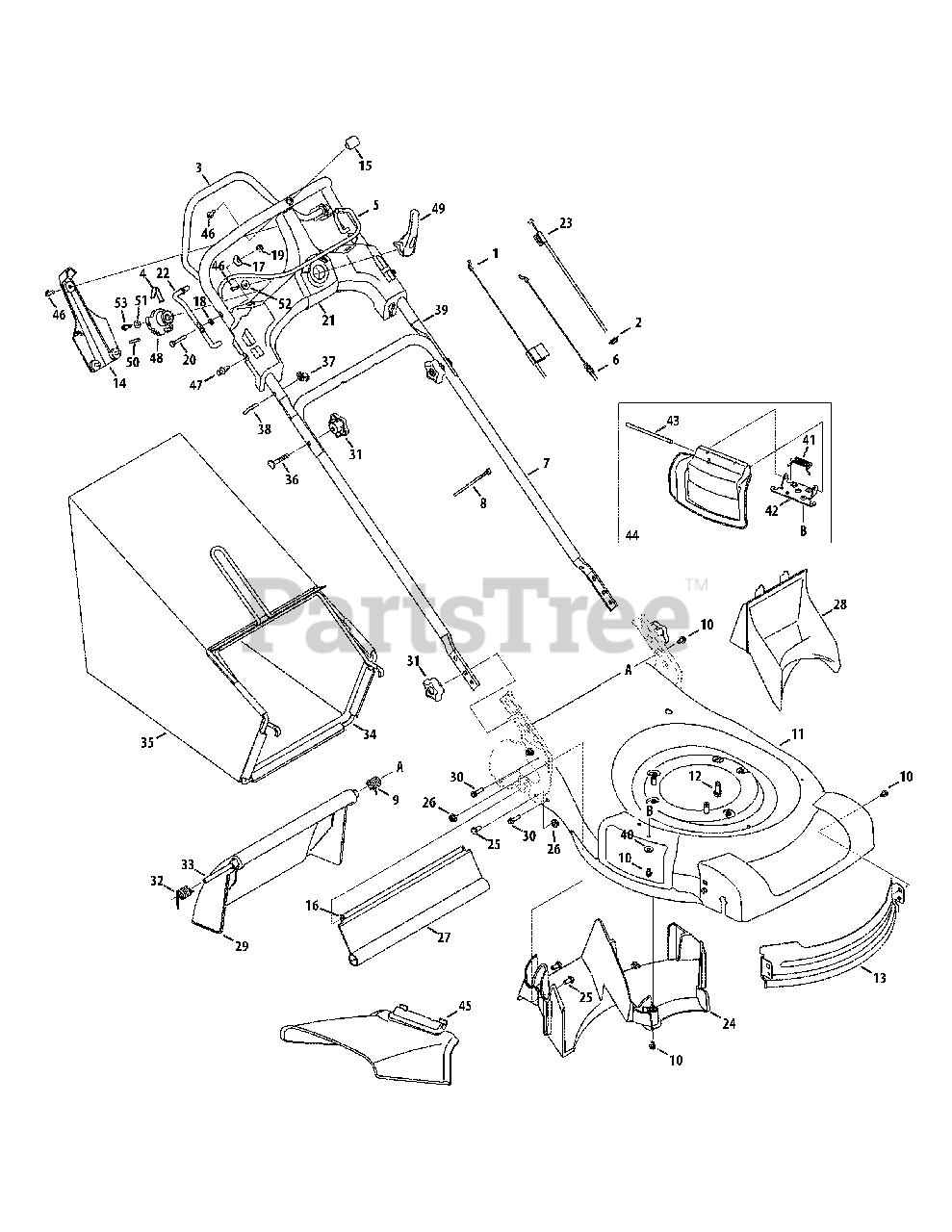

General Assembly Parts Diagram

  • Title

1

MTD 746-04515

Drive Cable
(Superseded to 946-04515)

$30.99

$

Usually ships in 3-6 days

0

2

MTD 735-04059

Rubber Grommet

$4.49

$

In Stock, Qty 11

0

3

MTD 687-02416

Drive Control
(Superseded to 987-02416)

$

$

Not available

4

MTD 732-04516

Shift Spring

$7.99

$

Usually ships in 3-6 days

0

5

MTD 747-04911A

Blade Control

$

$

Not available

6

MTD 746-04465

Control Cable
(Superseded to 946-04465A)

$23.99

$

In Stock, only 1 left!

0

7

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$49.99

$

In Stock, Qty 18

0

$49.99

$

In Stock, Qty 18

0

8

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

9

MTD 732-04535

Torsion Spring, LH

$4.49

$

Usually ships in 3-6 days

0

10

MTD 710-0599

TT Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

11

MTD 787-01618

21-inch Deck

Variations

MTD 787-01618-0606

DECK-RD 21" HI WHEEL - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01618-4033

DECK-RD 21" HI WHEEL - FLINT MICA (4033)

$

$

Not available

MTD 787-01618-0638

DECK-RD 21" HI WHEEL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01618-0665

DECK-RD 21" HI WHEEL - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01618-0689

DECK-RD 21" HI WHEEL - POLO GREEN (0689)

$

$

Not available

MTD 787-01618-0709

DECK-RD 21" HI WHEEL - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

12

MTD 710-0654A

TT Screw, 3/8-16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

13

MTD 787-01346

Front Deck Baffle
(Superseded to 987-01834)

$44.99

$

In Stock, only 3 left!

0

14

MTD 731-06304

Variable Speed Cont. Panel Cover

$

$

Not available

15

MTD 731-06305

Variable Speed Cont. Panel Cover

$

$

Not available

16

MTD 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

17

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

18

MTD 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

19

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0606

Screw, 1/4-20 x 1.50

$4.99

$

In Stock, Qty 15

0

21

MTD 631-04277

Variable Speed Control Panel
(Superseded to 631-04323)

$30.99

$

Usually ships in 3-6 days

0

22

MTD 747-04718

Bail Pivot Rod - RH
(Superseded to 747-04718A)

$22.99

$

Usually ships in 3-6 days

0

22

MTD 747-04719

Bail Pivot Rod - LH
(Superseded to 747-04719A)

$

$

Not available

23

MTD 746-04439

Variable Speed Cable
(Superseded to 946-04439A)

$39.99

$

In Stock, Qty 5

0

24

MTD 731-06173

Rear Baffle

$49.99

$

Usually ships in 3-6 days

0

25

MTD 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 9

0

26

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 731-05462A

Trailshield

$21.99

$

In Stock, only 2 left!

0

28

MTD 731-05157

Mulch Plug

$30.99

$

In Stock, only 3 left!

0

29

MTD 731-05017A

Rear Door
(Superseded to 931-05017A)

$

$

Not available

30

MTD 710-1241

Screw, 1/4-15 x 1.00

$6.49

$

In Stock, Qty 20+

0

31

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

32

MTD 732-04534

Torsion Spring, RH

$4.49

$

Usually ships in 3-6 days

0

33

MTD 711-04374

Door Pivot Rod

$31.99

$

Usually ships in 3-6 days

0

34

MTD 647-04051

Grass Catcher Frame
(Superseded to 647-04051B-0637)

Variations

MTD 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

35

MTD 664-04046A

Grass Catcher
(Superseded to 964-04046A)

$

$

Not available

36

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.00

$6.99

$

In Stock, Qty 20+

0

37

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 14

0

39

MTD 749-04436

Upper Handle
(Superseded to 749-04436-0637)

Variations

MTD 749-04436-0637

Upper Handle, 800/1 - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

40

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 12

0

41

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

42

MTD 17032A

Chute Deector Adapter

$10.99

$

In Stock, only 4 left!

0

43

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

44

MTD 687-02055

Mulch Plug Assembly
(Superseded to 987-02055)

$25.99

$

In Stock, Qty 13

0

45

MTD 731-04177

Side Discharge Chute

$17.99

$

In Stock, Qty 20+

0

46

MTD 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

47

MTD 728-0199

Rivet, Plastic

$4.49

$

In Stock, Qty 20+

0

48

MTD 731-06189

4 Speed Actuator

$4.49

$

In Stock, only 1 left!

0

49

MTD 731-06193

Speed Selector Level
(Superseded to 731-06193A)

$7.49

$

Usually ships in 3-6 days

0

50

MTD 715-04073

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

51

MTD 736-0275

Washer, Flat, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

52

MTD 736-3000

Washer, Flat, .250 x .750 x .119
(Superseded to 936-0176)

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-0895

Screw, 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0
