12AI869G211 - Troy-Bilt Walk-Behind Mower (2009) Drive System Parts Diagram

Walk-Behind Mower

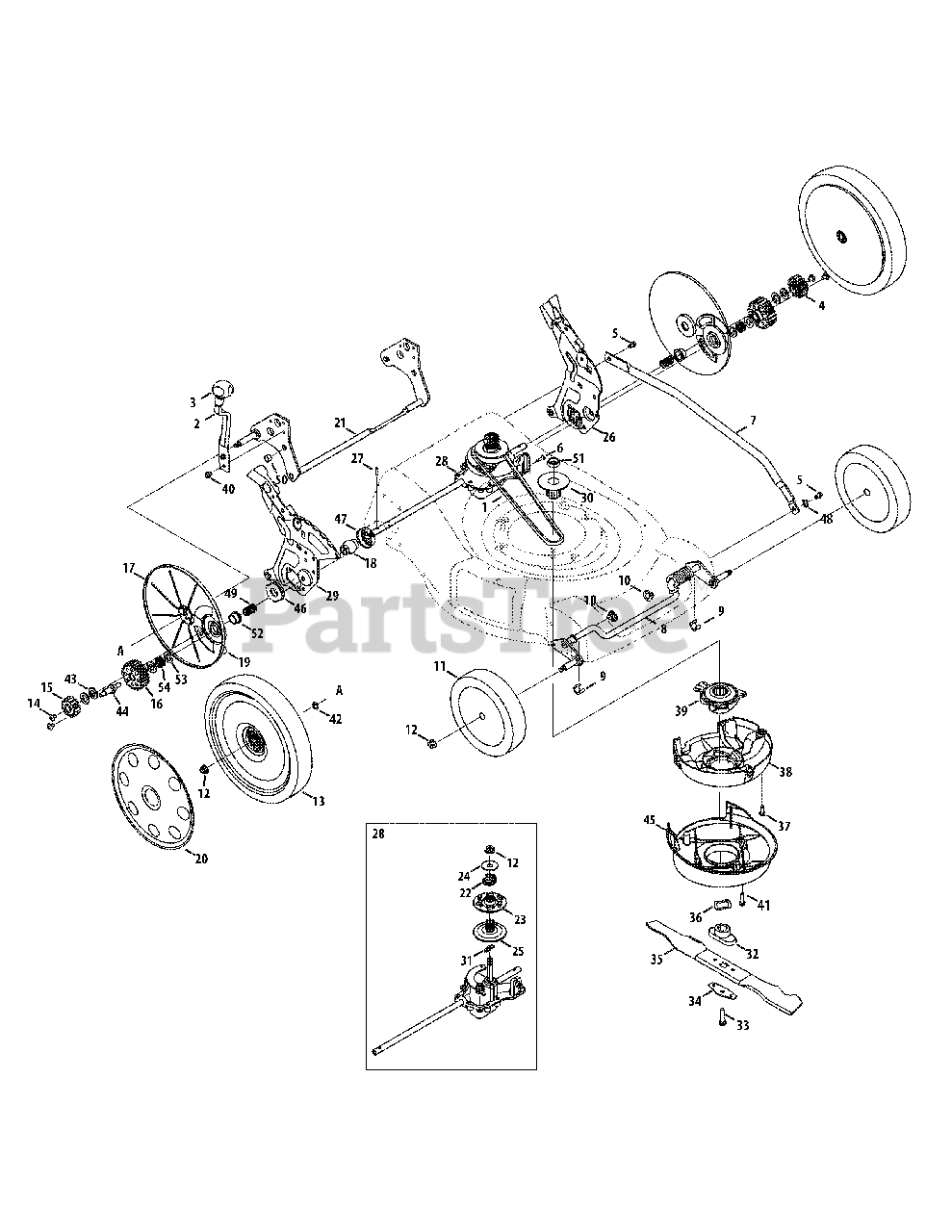

Drive System Parts Diagram

  • Title

1

Troy-Bilt 954-04176A

V-Belt

$24.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 732-04480A

Spring Lever

$9.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 720-04113

Height Adjuster Knob

$10.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 917-04577A

Spur Gear, 16T - LH

$

$

Not available

5

Troy-Bilt 738-04278

Shldr. Screw, 1/4-20 x 0.50

$7.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0895

Screw, 1/4-15 X .750

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 749-04414-0637

Cross Bracket
(Superseded to 749-04414A-0637)

$20.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 687-02367B-0637

Front Bracket Assembly

$

$

Not available

9

Troy-Bilt 731-05470

Clip Spacer

$5.49

$

In Stock, Qty 10

0

10

Troy-Bilt 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 12

0

11

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$45.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 934-04404

Rear Wheel

$

$

Not available

14

Troy-Bilt 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 10

0

15

Troy-Bilt 917-04578A

Spur Gear, 16T - RH

$15.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 917-04678

Gear, Spur, 23T

$35.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06145B

Wheel Dust Cover
(Superseded to 731-06145C)

$11.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 741-0604A

Bearing Sleeve

$13.99

$

In Stock, Qty 12

0

19

Troy-Bilt 787-01645

Dust Cover Seal Plate
(Superseded to 787-01645A)

$2.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 731-06146

Hub Cap

$22.99

$

Usually ships in 3-6 days

0

21

MTD 687-02390-0637

Rear Bracket Assembly

$

$

Not available

22

Troy-Bilt 732-04630

Compression Spring

$5.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 756-04316A

Upper Pulley

$

$

Not available

24

Troy-Bilt 936-0406

Flat Washer, .442 x 1.38 x .060

$7.49

$

In Stock, Qty 7

0

25

Troy-Bilt 756-04317A

Lower Pulley

$14.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 987-02428

Handle Bracket Assembly LH
(Superseded to 987-02503)

Note: (Incl. Ref No. 18, 46, & 47)

$34.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 17

0

28

Troy-Bilt 918-04826

Transmission Assembly
(Superseded to 918-04826A)

$

$

Not available

29

Troy-Bilt 987-02429A

Handle Bracket Assembly RH
(Superseded to 987-02537)

Note: (Incl. Ref No. 18, 46, & 47)

$51.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 756-04311A

Pulley, Half

$16.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 732-04313

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 748-04096

Blade Adapter

$24.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$6.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$31.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 936-0447

Washer, Wave, 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 16

0

37

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-06112A

Engine Baffle

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 956-04046

Lower Pulley Assembly
(Superseded to 956P04046)

$

$

Not available

40

Troy-Bilt 710-0653

Screw, TT, 1/4-20 x .375

$4.99

$

In Stock, only 2 left!

0

41

Troy-Bilt 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 736-0182

Washer, Spring, .500 x 1.00 x .022

$4.99

$

In Stock, Qty 15

0

43

Troy-Bilt 736-0272

Washer, Flat, .510 x 1.00 x .060

$5.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 711-05040

Shf., .500 Dia.

$

$

Not available

45

Troy-Bilt 731-06284

Baffle

$26.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 748-04177

Bearing Support

$13.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 736-04413

Washer, Wave, .385 ID x .598 OD

$4.49

$

In Stock, only 3 left!

0

49

Troy-Bilt 732-04557

Spring, Comp., .63 OD x 1.00 Lg.

$

$

Not available

50

Troy-Bilt 750-05061

Spacer, .690 x .870 x .150

$

$

Not available

51

Troy-Bilt 750-05008

Spcr., 25mm x 1.375

$

$

Not available

52

Troy-Bilt 750-05250

Spcr.,Flg., .51 ID x .58 OD

$7.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 736-0369

Washer, Flat, .508 x 1.00 x .020

$4.99

$

In Stock, Qty 19

0

54

Troy-Bilt 732-04646

Spring, Wave
(Superseded to 732-04650)

$10.99

$

In Stock, Qty 7

0
