12AKD3AQ766 - Troy-Bilt Walk-Behind Mower (2017) Axles Parts Diagram

Walk-Behind Mower

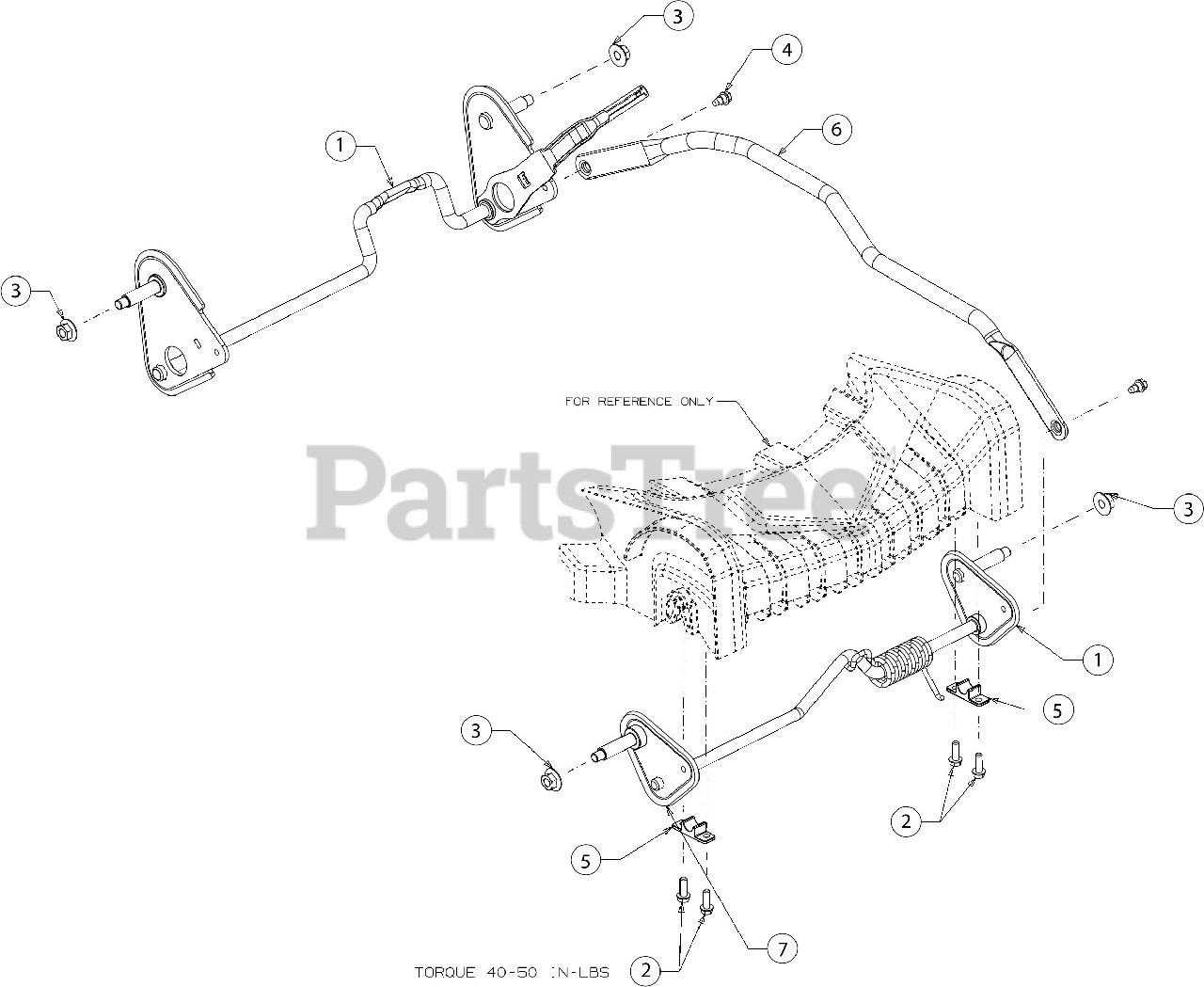

Axles Parts Diagram

  • Title

1

Troy-Bilt 911-04192

HEIGHT AXLE ASSEMBLY
(Superseded to 611-04192A)

$57.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-0895

SCREW 1/4-15 X .750

$6.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 X .50

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 741-0492A

BLOCK BUSHING

$6.49

$

In Stock, Qty 12

0

6

Troy-Bilt 949-04840B

LINK TUBE

Variations

Troy-Bilt 949-04840B-0637

Tube Link - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 911-04191B

FRONT AXLE ASSEMBLY

$54.99

$

In Stock, only 3 left!

0
