12AS469E401 - Yard-Man Walk-Behind Mower (2003) General Assembly Parts Diagram

Walk-Behind Mower

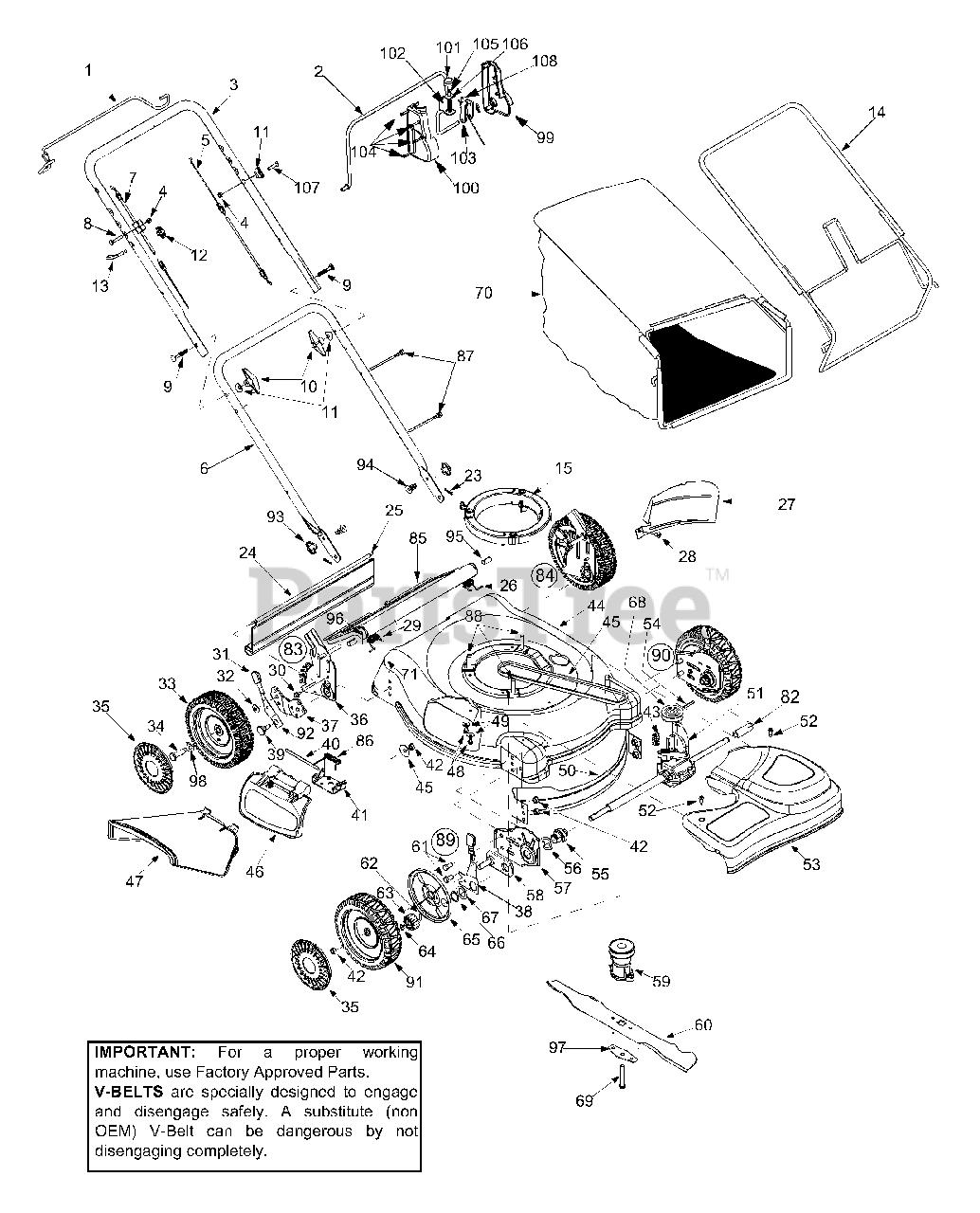

General Assembly Parts Diagram

  • Title

1

MTD 747-2136

Lower Bail Handle
(Superseded to 747-2136-0637)

Variations

MTD 747-2136-0637

BAIL-DRIVE 21" UND - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

2

MTD 647-0070

Blade Control Handle

Variations

MTD 647-0070-0637

No Longer Available BAIL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 749-1500

Upper Handle
(Superseded to 749-1500-0637)

Variations

MTD 749-1500-0637

HANDLE-UPPER LONG - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

5

MTD 746-1141

Control Cable
(Superseded to 946-1141)

$49.99

$

In Stock, Qty 5

0

6

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

7

MTD 746-04026

Drive Cable
(Superseded to 946-04026)

$49.99

$

In Stock, Qty 7

0

8

MTD 710-0606

Hex Screw 1/4-20 x 1.5"

$4.99

$

In Stock, Qty 15

0

9

MTD 710-1174

Carriage Bolt

$6.99

$

In Stock, Qty 20+

0

10

MTD 720-0284

Handle Knob

$6.49

$

In Stock, Qty 20+

0

11

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

12

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

14

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0

15

MTD 631-0075B

Engine Spacer Assembly

$

$

Not available

23

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

24

MTD 731-1236

Rear Trail Shield
(Superseded to 731-04998)

$29.99

$

In Stock, Qty 10

0

25

MTD 732-0700

Wire: Trail Shield
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

26

MTD 732-04071

Torsion Spring LH
(Superseded to 932-04071)

$

$

Not available

27

MTD 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

28

MTD 710-1017

Scr. AB 1/4-14 x 0.625"

$7.99

$

In Stock, Qty 20+

0

29

MTD 732-04072

Torsion Spring RH
(Superseded to 932-04072)

$

$

Not available

30

MTD 710-0896

Hex Scr. w/ Wash. 1/4-14 x 0.62"

$3.99

$

In Stock, Qty 20+

0

31

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

32

MTD 736-0105

Bell Washer.375 x.870

$3.99

$

In Stock, Qty 20+

0

33

MTD 734-2004A

Wheel: Rear w/Ball Brg.
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

MTD 734-2005A

Wheel: Rear
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

34

MTD 738-0102

Shoulder Screw

$9.49

$

In Stock, Qty 11

0

35

MTD 731-1426

Hubcap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

36

MTD 787-01015

Handle Bracket Assembly LH
(Superseded to 787-01015-0637)

Variations

MTD 787-01015-0637

BRACKET-HANDLE LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 787-01016

Handle Bracket Assembly RH
(Superseded to 787-01016-0637)

Variations

MTD 787-01016-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 14766

Pivot Bar LH

$19.99

$

Usually ships in 3-6 days

0

MTD 14765

Pivot Bar RH

$19.99

$

Usually ships in 3-6 days

0

38

MTD 687-02018

Front Lever RH
(Superseded to 987-02018)

$22.99

$

Usually ships in 3-6 days

0

MTD 687-02017

Front Lever LH
(Superseded to 987-02017)

$

$

Not available

39

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

40

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

41

MTD 17032A

Chute Deflector Bracket

$10.99

$

In Stock, only 4 left!

0

42

MTD 712-0431

Hex Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

43

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 14

0

44

MTD 787-01006

3-in-1 Deck: 21"
(Superseded to 753-05203)

Variations

MTD 787-01006-0638

Service Kit, 21" De - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01006-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01006-0691

SERVICE KIT:21" DE - BLACK JACK (0691)

$

$

Not available

$

$

45

MTD 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

46

MTD 687-02055

Mulch Plug Assembly
(Superseded to 987-02055)

$25.99

$

In Stock, Qty 13

0

47

MTD 731-04177

Discharge Deflector SD

$17.99

$

In Stock, Qty 20+

0

48

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0270

Bell Washer 0.265" x 0.75"

$3.99

$

In Stock, Qty 13

0

50

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 618-0657

Transmission Assembly Compl.
(Superseded to 753-05465)

$228.99

$

Usually ships in 3-6 days

0

52

MTD 710-1650

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

53

MTD 731-2600

Front Drive Cover: Yellow
(Superseded to 931-04580)

$

$

Not available

54

MTD 715-04011

Roll Pin

$4.99

$

Usually ships in 3-6 days

0

55

MTD 682-0015

Bearing Assembly
(Superseded to 982-0015)

$29.99

$

Usually ships in 3-6 days

0

56

MTD 736-0447

Wave Washer

$3.99

$

In Stock, Qty 20+

0

57

MTD 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

$21.99

$

In Stock, only 1 left!

0

58

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

59

MTD 748-04015

21" One Piece Blade Adapter
(Superseded to 948-04015A)

$60.99

$

In Stock, only 2 left!

0

60

MTD 742-0741

Mulching Blade w/ Star: 21"
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

61

MTD 710-0216

Hex Screw

$3.99

$

In Stock, Qty 17

0

62

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$3.99

$

In Stock, Qty 20+

0

63

MTD 717-1762

Gear 14T RH

$12.99

$

In Stock, Qty 9

0

MTD 717-1761

Gear 14T LH

$12.99

$

In Stock, Qty 12

0

64

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 6

0

65

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$4.99

$

In Stock, Qty 20+

0

66

MTD 716-0102

Snap Ring

$4.99

$

In Stock, Qty 20+

0

67

MTD 736-0474

Washer DD 1.5" O.D.

$6.49

$

In Stock, only 4 left!

0

68

MTD 756-04017

Input Pulley

$26.99

$

Usually ships in 3-6 days

0

69

MTD 710-1257

Hex Bolt

$7.49

$

In Stock, Qty 20+

0

70

MTD 664-04012

Grass Bag
(Superseded to 964-04012)

$109.99

$

Usually ships in 3-6 days

0

71

MTD 782-5004A

Rear Baffle RH
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

82

MTD 750-1166

Slev. Spacer LH

$4.49

$

Usually ships in 3-6 days

0

MTD 750-1346

Slev. Spacer RH

$

$

Currently unavailable

83

MTD 687-02036

Height Adj. Assembly RH Compl.

$

$

Currently unavailable

84

MTD 687-02037

Height Adj. Assembly LH Compl.

$

$

Currently unavailable

85

MTD 731-04134

RD Chute Door
(Superseded to 931-04134)

$

$

Not available

86

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$9.99

$

Usually ships in 3-6 days

0

87

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

88

MTD 710-1008

TT Screw

$5.49

$

In Stock, Qty 20+

0

89

MTD 682-0512A

Height Adj. Assembly RH Compl.
(Superseded to 987-02194A)

$61.99

$

Usually ships in 3-6 days

0

90

MTD 682-0511A

Height Adj. Assembly LH Compl.
(Superseded to 987-02193A)

$61.99

$

In Stock, only 1 left!

0

91

MTD 734-2042

Wheel: Front
(Superseded to 734-2042A)

$35.99

$

In Stock, Qty 20+

0

92

MTD 732-0417A

Spring Lever

$12.99

$

Usually ships in 3-6 days

0

93

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

94

MTD 710-0703

Hex Carriage Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

95

MTD 750-04162

Spacer.390OD x.810ID x.950"
(Superseded to 950-04162)

$

$

Not available

96

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

97

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

98

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

Note: Equipped w/ Rear Wheel 734-2004A

$4.49

$

In Stock, Qty 12

0

99

MTD 731-2532

Control Lever LH

$

$

Not available

100

MTD 731-2533

Control Cover RH

$

$

Not available

101

MTD 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

102

MTD 732-1171

Compression Spring

$

$

Not available

103

MTD 782-0156

Lever

$

$

Not available

104

MTD 710-1256

Hi-Low Screw

$5.99

$

In Stock, Qty 5

0

105

MTD 715-0168

Pin

$

$

Not available

106

MTD 716-0209

Retention Ring

$

$

Not available

107

MTD 710-0501

Hex Hd. Cap Screw

$6.99

$

In Stock, only 1 left!

0

108

MTD 732-1172

Torsion Spring

$

$

Not available
