12AS569O063 - Troy-Bilt Tuff-Cut 230 Walk-Behind Mower (2002) General Assembly Parts Diagram

Tuff-Cut 230 Walk-Behind Mower

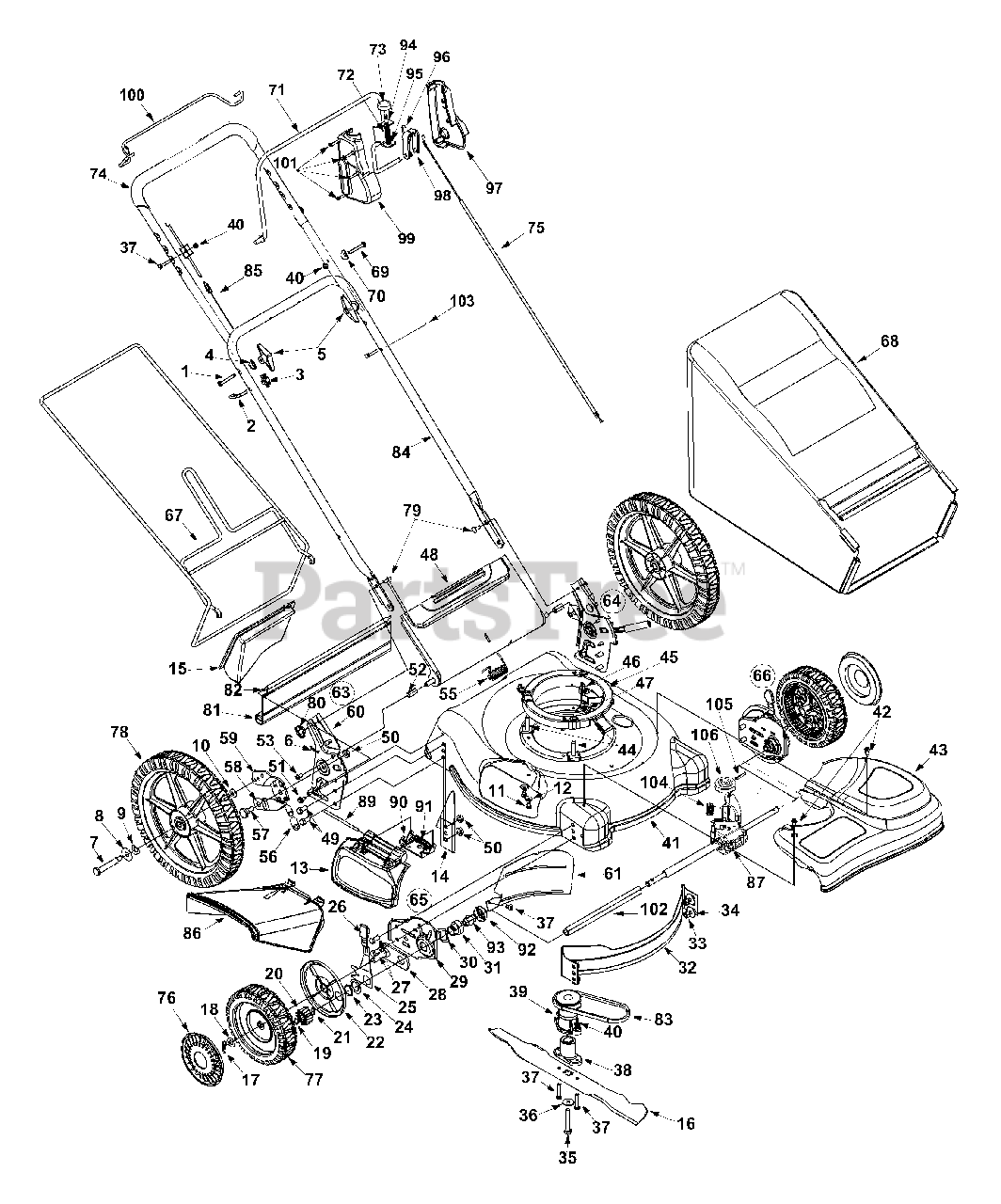

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-1174

Carriage Bolt

$6.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

3

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 720-0284

Handle Knob

$6.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 738-0481A

Shoulder Screw
(Superseded to 938-0481A)

$6.49

$

In Stock, Qty 19

0

8

Troy-Bilt 736-0456

Flat Washer .510 I.D. x 1.373 O.D.
(Superseded to 936-0456)

$4.49

$

In Stock, Qty 10

0

9

Troy-Bilt 736-0182

Spring Wash. .500 I.D. x 1.00 O.D.

$4.49

$

In Stock, Qty 10

0

10

Troy-Bilt 736-0105

Bell Washer .375 I.D. x .870 O.D.

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0599

Tapp Screw 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0270

Bell Wash. .265 I.D. x .75 O.D.

$3.99

$

In Stock, Qty 13

0

13

MTD 682-7000

Mulching Plug (Hinged)

$

$

Not available

14

Troy-Bilt 782-5004

Rear Baffle RH
(Superseded to 782-5004B)

Variations

Troy-Bilt 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

Troy-Bilt 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 782-5007A

Mulching Plug
(Superseded to 782-5007C)

$48.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 742-0741

Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 742-0641

Standard Blade
(Superseded to 942-0641)

$29.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 714-0101

Hairpin Clip

$4.49

$

In Stock, only 4 left!

0

18

Troy-Bilt 736-3013

Flat Washer

$4.49

$

In Stock, Qty 9

0

19

Troy-Bilt 716-0865

Snap Ring

$4.49

$

In Stock, Qty 6

0

20

Troy-Bilt 717-1762

Gear 14T RH

$12.99

$

In Stock, Qty 9

0

20

Troy-Bilt 717-1761

Gear 14T LH

$12.99

$

In Stock, Qty 12

0

21

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 716-0102

Snap Ring

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0474

Washer DD 1.5" O.D.

$6.49

$

In Stock, only 4 left!

0

25

Troy-Bilt 732-0706

Front Lever RH

$14.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 732-0707

Front Lever LH

$14.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 720-0426

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 710-0216

Hex Screw

$3.99

$

In Stock, Qty 17

0

28

MTD 682-0509

Pivot Plate Assembly

$

$

Not available

29

Troy-Bilt 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Variations

Troy-Bilt 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

29

Troy-Bilt 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

Troy-Bilt 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

$21.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 736-0447

Wave Washer

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 748-0355

Bearing Support

$12.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

Troy-Bilt 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

33

Troy-Bilt 712-0798

Hex Nut

$3.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-1257

Hex Bolt

$7.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 736-0452

Bell Washer

$4.49

$

In Stock, Qty 16

0

37

Troy-Bilt 710-0606

Hex Screw 1/4-20 x 1.5"

$4.99

$

In Stock, Qty 15

0

38

Troy-Bilt 748-0411

Blade Adapter
(Superseded to 753-05151)

$62.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 756-1146A

Drive Pulley

$53.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 712-0324

Hex Lock Nut

$3.49

$

In Stock, Qty 20+

0

41

MTD 782-0082A

Rear Dischage Deck 21"

Variations

Troy-Bilt 782-0082A-0638

DECK 21" RD FWD (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 782-0082A-0637

21" RD DECK - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 782-0082A-0650

DECK 21" RD FWD (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 782-0082A-0662

DECK 21" RD FWD (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 782-0082A-0665

DECK 21" RD FWD (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 782-0082A-0667

DECK 21" RD FWD MID BLUE - MIDNIGHT BLUE (0667)

$

$

Not available

Troy-Bilt 782-0082A-0689

DECK 21" RD FWD (POLO GREEN) - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 782-0082A-0691

DECK 21" RD FWD (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 782-0082A-0698

DECK 21" RD FWD - HUNTER GREEN (0698)

$

$

Not available

Troy-Bilt 782-0082A-0709

DECK 21"RD - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

42

Troy-Bilt 710-1650

Shld. Screw

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 731-1936A

Transmission Cover
(Superseded to 931-05132A)

$47.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-1008

TT Screw

$5.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 631-0075B

Engine Spacer Assembly

$

$

Not available

46

Troy-Bilt 711-1293

Belt Keeper Pin

$4.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 712-0271

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 782-7599A

Grassbag Door
(Superseded to 782-7599B-0637)

Variations

Troy-Bilt 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

49

Troy-Bilt 710-0216

Hex Hd. Cap Scr. 3/8-16

$3.99

$

In Stock, Qty 17

0

50

Troy-Bilt 712-0431

Flange L-Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 710-0896

AB Tap Screw 1/4-14 x .625"

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 750-0434

Spacer

$6.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 710-0286

Pan Hd. Screw 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 747-0996

Pivot Rod

$29.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 732-0809

Torsion Spring
(Superseded to 932-0809)

$17.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 720-0312

Foam Grip

$4.49

$

In Stock, Qty 7

0

57

Troy-Bilt 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

58

MTD 732-0866

Spring Lever

$

$

Not available

59

Troy-Bilt 17489A

Pivot Bar LH

$14.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 17488A

Pivot Bar RH

$14.99

$

In Stock, only 3 left!

0

60

Troy-Bilt 682-3058

Handle Bracket Assembly RH
(Superseded to 753-05922)

$106.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 682-3059

Handle Bracket Assembly LH
(Superseded to 753-05922)

$106.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

Troy-Bilt 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-1017

Scr. AB 1/4-14 x 0.625"

$7.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 682-3056A

Handle Brkt. Ass'y Comp. RH

Variations

Troy-Bilt 682-3056A-0606

BRACKETS KIT-HNDL 682 - MAJESTIC ORANGE (0606)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0637

BRACKETS KIT-HNDL 682 - POWDER BLACK (0637)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0638

BRACKETS KIT-HNDL 682 - MTD/TROY-BILT RED (0638)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0650

BRACKETS KIT-HNDL 682 - RED METALLIC (0650)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0662

BRACKET-HANDLE ASM - OYSTER GRAY (0662)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0665

BRACKETS KIT-HNDL 682 - YARDMAN GREEN (0665)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0667

BRACKETS KIT-HNDL 682 - MIDNIGHT BLUE (0667)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0691

BRACKETS KIT-HNDL 682 - BLACK JACK (0691)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3056A-0698

BRACKETS KIT-HNDL 682 - HUNTER GREEN (0698)

$106.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 682-3057A

Handle Brkt. Ass'y Comp. LH
(Superseded to 753-05922)

Variations

Troy-Bilt 682-3057A-0606

BRACKETS KIT-HNDL 682 - MAJESTIC ORANGE (0606)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0637

BRACKETS KIT-HNDL 682 - POWDER BLACK (0637)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0638

BRACKETS KIT-HNDL 682 - MTD/TROY-BILT RED (0638)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0650

BRACKETS KIT-HNDL 682 - RED METALLIC (0650)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0662

BRACKETS KIT-HNDL 682 - OYSTER GRAY (0662)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0665

BRACKETS KIT-HNDL 682 - YARDMAN GREEN (0665)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0667

BRACKETS KIT-HNDL 682 - MIDNIGHT BLUE (0667)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0691

BRACKETS KIT-HNDL 682 - BLACK JACK (0691)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3057A-0698

BRACKETS KIT-HNDL 682 - HUNTER GREEN (0698)

$106.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 682-0512A

Height Adjuster Ass'y Comp. RH
(Superseded to 987-02194A)

$61.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 682-0511A

Height Adjuster Ass'y Comp. LH
(Superseded to 987-02193A)

$61.99

$

In Stock, only 1 left!

0

67

Troy-Bilt 747-0995A

Grassbag Frame
(Superseded to 747-0995A-0637)

Variations

Troy-Bilt 747-0995A-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 664-0123

Grass Bag w/Half Sail
(Superseded to 964-0084)

$179.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 710-0501

Hex Hd. Cap Screw

$6.99

$

In Stock, only 1 left!

0

70

Troy-Bilt 710-0431

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

71

MTD 647-0070

Control Handle

Variations

Troy-Bilt 647-0070-0637

BAIL ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

71

Troy-Bilt 731-2623

Bail Cover

$9.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 732-1171

Compression Spring

$

$

Not available

73

Troy-Bilt 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 749-1405A

Upper Handle
(Superseded to 749-1405A-0637)

Variations

Troy-Bilt 749-1405A-0637

HANDLE-UPR SHORT - POWDER BLACK (0637)

$

$

Not available

$

$

75

Troy-Bilt 746-1141

Control Cable
(Superseded to 946-1141)

$49.99

$

In Stock, Qty 5

0

76

Troy-Bilt 731-0981A

Hub Cap
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

77

Troy-Bilt 734-2042

Wheel 8 x 2
(Superseded to 734-2042A)

$35.99

$

In Stock, Qty 20+

0

78

MTD 734-2050

Wheel 14 x 2

$

$

Not available

79

Troy-Bilt 710-0703

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

80

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

81

Troy-Bilt 731-1236

Trail Shield
(Superseded to 731-04998)

$29.99

$

In Stock, Qty 10

0

82

Troy-Bilt 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

83

Troy-Bilt 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

84

Troy-Bilt 749-0907B

Lower Handle

Variations

Troy-Bilt 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$46.99

$

In Stock, Qty 7

0

$46.99

$

In Stock, Qty 7

0

85

Troy-Bilt 746-04257

Drive Cable
(Superseded to 946-04257)

$31.99

$

Usually ships in 3-6 days

0

86

Troy-Bilt 731-1409

Chute Deflector
(Superseded to 731-1409B)

$26.99

$

In Stock, Qty 5

0

87

Troy-Bilt 753-05465

Transmission Assembly Comp.

Note: Replaces 618-0657

$228.99

$

Usually ships in 3-6 days

0

87

MTD 732-1039

Spring, Extension

Note: Not shown

$

$

Not available

89

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

90

Troy-Bilt 782-7006

Hinge Mtg. Brkt.

Variations

Troy-Bilt 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

91

Troy-Bilt 732-0731

Torsion Spring
(Superseded to 932-0731)

$9.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 741-0604A

Bearing Sleeve .50 I.D.

$11.99

$

In Stock, Qty 12

0

94

Troy-Bilt 715-0168

Pin

$

$

Not available

95

Troy-Bilt 716-0209

Retention Spring

$

$

Not available

96

Troy-Bilt 732-1172

Torsion Spring

$

$

Not available

97

Troy-Bilt 731-2532

Control Cover LH

$

$

Not available

98

Troy-Bilt 782-0156

Lever

$

$

Not available

99

MTD 731-2533

Control Cover RH

$

$

Not available

100

Troy-Bilt 747-2136

Lower Bail Handle
(Superseded to 747-2136-0637)

Variations

Troy-Bilt 747-2136-0637

BAIL-DRIVE 21" UND - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 710-1256

Hi-Low Screw

$5.99

$

In Stock, Qty 5

0

102

Troy-Bilt 750-1166

Sleeve Spacer LH

$4.49

$

Usually ships in 3-6 days

0

102

Troy-Bilt 750-1166

Sleeve Spacer RH

$4.49

$

Usually ships in 3-6 days

0

103

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

104

Troy-Bilt 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 14

0

105

Troy-Bilt 715-0169

Roll Pin

$

$

Not available

106

Troy-Bilt 756-1231

Input Pulley

$15.99

$

Usually ships in 3-6 days

0
