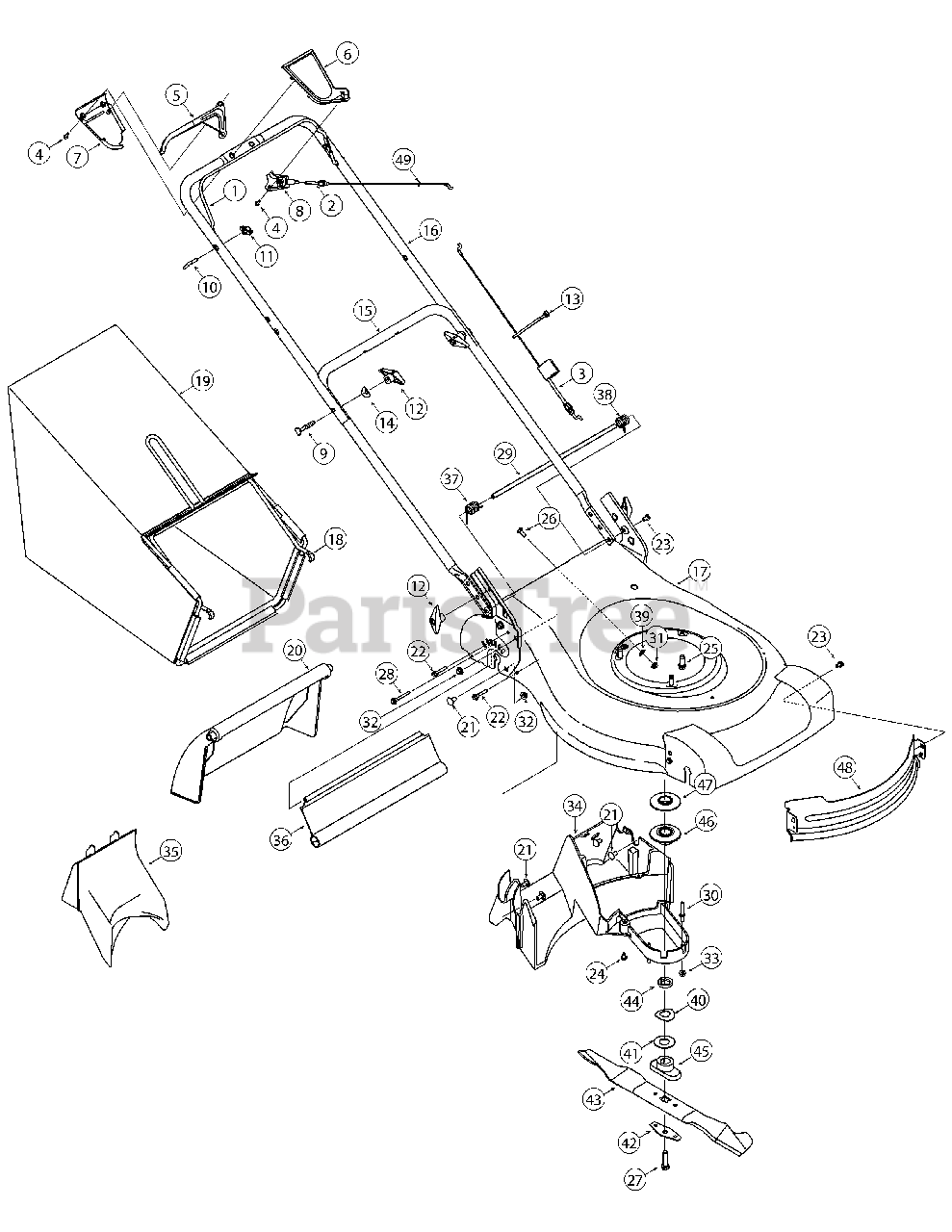

12AV829C755 - Yard-Man Walk-Behind Mower (2005) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

2

MTD 746-04195

Drive Cable
(Superseded to 946-04195)

$38.99

$

Usually ships in 3-6 days

0

3

MTD 746-04213

Control Cable
(Superseded to 946-04213)

$24.99

$

In Stock, Qty 8

0

4

MTD 710-1667

Screw, #10-16 x .625
(Superseded to 710-1667A)

$3.99

$

In Stock, Qty 13

0

5

MTD 731-0620

Drive Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 2 left!

0

6

MTD 731-1057

Upper Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

7

MTD 731-1058

Lower Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

8

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

9

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

10

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 15

0

11

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

12

MTD 720-0284

Handle Knob

$6.49

$

In Stock, Qty 20+

0

13

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

14

MTD 736-0451

Saddle Washer, .320 x .93

$3.99

$

In Stock, only 2 left!

0

15

MTD 749-04202

Lower Handle
(Superseded to 749-04202-0637)

Variations

MTD 749-04202-0637

Lower Handle, Black - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

16

MTD 749-04209

Upper Handle
(Superseded to 749-04209B-0637)

Variations

MTD 749-04209-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

17

MTD 787-01230

21" Deck

Variations

MTD 787-01230-0665

DECK ASM 21" - YARDMAN GREEN (0665)

$

$

Not available

$

$

18

MTD 647-04048

Grass Catcher Frame
(Superseded to 647-04051B-0637)

Variations

MTD 647-04048-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 664-04038

Grass Catcher
(Superseded to 964-04047)

$100.99

$

Usually ships in 3-6 days

0

20

MTD 731-05017

Rear Door
(Superseded to 931-05017A)

$

$

Not available

21

MTD 710-0260A

Carriage Bolt, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-1241

Screw, 1/4-15 x 1.00

$6.49

$

In Stock, Qty 20+

0

23

MTD 710-0599

TT Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0653

TT Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

25

MTD 710-0654A

Screw, 3/8-16 x 1.00

$3.99

$

In Stock, only 4 left!

0

26

MTD 710-0703

Carriage Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 20+

0

28

MTD 710-1802

Screw, 1/4-20 x 2.00

$

$

Not available

29

MTD 711-04374

Door Pivot Rod

$31.99

$

Usually ships in 3-6 days

0

30

MTD 711-0993

Belt Guard Pin
(Superseded to 911-0993)

$3.99

$

In Stock, Qty 20+

0

31

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

33

MTD 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

34

MTD 731-05154

Deck Baffle
(Superseded to 731-05463A)

$

$

Not available

35

MTD 731-05157

Mulch Plug

$30.99

$

In Stock, only 3 left!

0

36

MTD 731-05185

Trailshield
(Superseded to 731-05185C)

$

$

Not available

37

MTD 732-04264

Door Torsion Spring - RH

$9.99

$

In Stock, only 1 left!

0

38

MTD 732-04265

Door Torsion Spring - LH

$9.99

$

Usually ships in 3-6 days

0

39

MTD 936-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

40

MTD 736-0513

Spring Washer, .890 x 1.70 x.048
(Superseded to 936-0513)

$

$

Not available

41

MTD 736-0514

Flat Washer, .885 x 1.850 x .060

$

$

Not available

42

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

43

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

44

MTD 748-0358

Engine Spacer

$

$

Not available

45

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$19.99

$

In Stock, Qty 20+

0

46

MTD 756-04156B

Lower Engine Pulley
(Superseded to 956-04156B)

$

$

Not available

47

MTD 756-04157B

Upper Engine Pulley
(Superseded to 956-04157B)

$16.99

$

In Stock, only 1 left!

0

48

MTD 787-01224

Front Deck Baffle
(Superseded to 753-06213B)

$

$

Not available

49

MTD 735-0226

Rubber Gromet

$9.99

$

Usually ships in 3-6 days

0
