12AV829C755 - Yard-Man Walk-Behind Mower (2006) (Walmart) Drive and Wheels Parts Diagram

Walk-Behind Mower

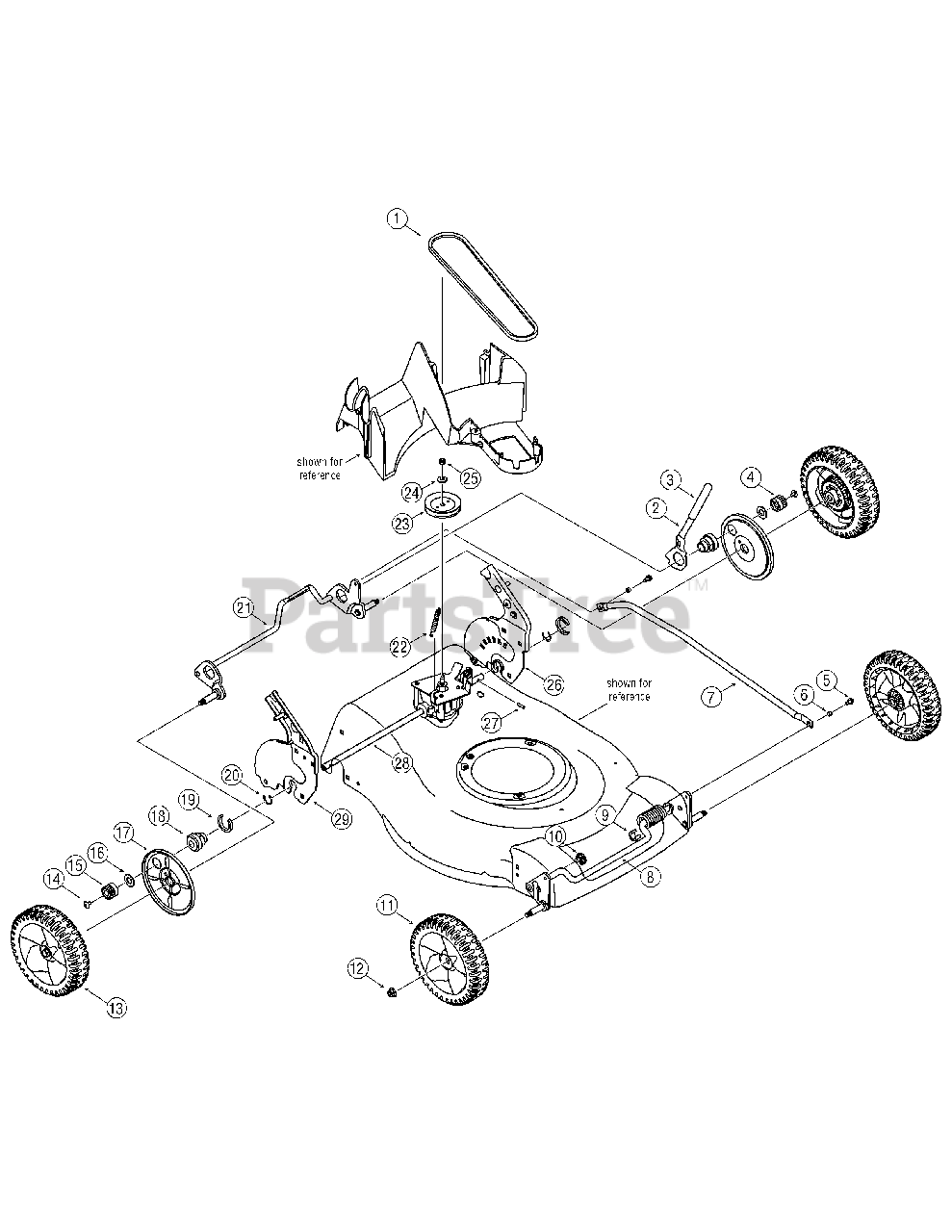

Drive and Wheels Parts Diagram

  • Title

1

MTD 754-04093

V-Belt
(Superseded to 954-04093)

$22.99

$

In Stock, only 2 left!

0

2

MTD 732-04338

Spring Lever
(Superseded to 732-04338C)

$

$

Not available

3

MTD 720-0230

Foam Grip

$7.99

$

In Stock, only 1 left!

0

4

MTD 717-04184A

Spur Gear, 14T - LH
(Superseded to 917-04184C)

$10.99

$

In Stock, only 3 left!

0

5

MTD 710-0599

TT Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

6

MTD 750-04305A

Spacer
(Superseded to 738-04278)

$7.49

$

Usually ships in 3-6 days

0

7

MTD 749-04267

Cross Bracket
(Superseded to 749-04267A-0637)

Variations

749-04267-0637

MTD 749-04267-0637

Cross Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 687-02204

Front Bracket Assembly
(Superseded to 687-02204B)

Variations

687-02204-0637

MTD 687-02204-0637

Front Bracket Assembly Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

9

MTD 731-05470

Clip Spacer

$5.49

$

In Stock, only 1 left!

0

10

MTD 741-04136B

Split Hex Flange Bearing

$4.99

$

Usually ships in 3-6 days

0

11

MTD 734-04087

Front Wheel

$28.99

$

In Stock, Qty 5

0

12

MTD 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

13

MTD 634-04213

Rear Wheel
(Superseded to 634-04363)

$53.99

$

Usually ships in 3-6 days

0

14

MTD 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 8

0

15

MTD 717-04192A

Spur Gear, 14T - RH
(Superseded to 917-04192C)

$7.99

$

In Stock, only 1 left!

0

16

MTD 736-3084

Flat Washer

$5.49

$

In Stock, Qty 20+

0

17

MTD 782-7551A

Wheel Dust Cover

$5.49

$

In Stock, Qty 13

0

18

MTD 748-04073C

Transmission Bearing Support

$30.99

$

In Stock, only 1 left!

0

19

MTD 750-04317

Clip Spacer

$4.49

$

In Stock, Qty 5

0

20

MTD 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

21

MTD 687-02199

Rear Bracket Assembly
(Superseded to 753-05865)

Variations

687-02199-0637

MTD 687-02199-0637

KIT-SERVICE REPLAC - POWDER BLACK (0637)

$118.99

$

In Stock, only 1 left!

0

$118.99

$

In Stock, only 1 left!

0

22

MTD 732-0320

Extension Spring
(Superseded to 932-0320)

$10.99

$

In Stock, only 3 left!

0

23

MTD 756-04151A

Pulley, 3.36 OD
(Superseded to 956-04151)

Note: Single "D" hole, use with 618-04378 transmission

$

$

Not available

23

MTD 756-04237

Pulley, 3.36 OD
(Superseded to 756-04237A)

Note: Double "D" hole, use with 618-04378A transmission

$18.99

$

Usually ships in 3-6 days

0

24

MTD 736-0105

Bell Washer, .375 x .870 x .063

Note: use with 618-04378 transmission, Single "D" input shaft

$4.99

$

In Stock, Qty 20+

0

24

MTD 750-04640

Spacer, .375 ID x .255 Lg.

Note: use with 618-04378A transmission, Double "D" input shaft

$

$

Not available

25

MTD 712-0411

Hex Lock Nut, 5/16-24

Note: use with 618-04378 transmission, Single "D" input shaft

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-04063

Hex Lock Nut, 5/16-16

Note: use with 618-04378A transmission, Double "D" input shaft

$4.49

$

In Stock, Qty 20+

0

26

MTD 687-02205

Handle Bracket Assembly LH
(Superseded to 753-05861)

Variations

687-02205-0637

MTD 687-02205-0637

KIT-SERVICE REPLAC - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

687-02205-0638

MTD 687-02205-0638

KIT-SERVICE REPLAC - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

27

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 17

0

28

MTD 618-04378

Transmission Assembly
(Superseded to 918-04378B)

$

$

Not available

29

MTD 687-02206

Handle Bracket Assembly RH
(Superseded to 753-05862)

Variations

687-02206-0637

MTD 687-02206-0637

BRACKET:ASM:HNDL RH - POWDER BLACK (0637)

$

$

Not available

687-02206-0638

MTD 687-02206-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
