12AV838Q766 - Troy-Bilt Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

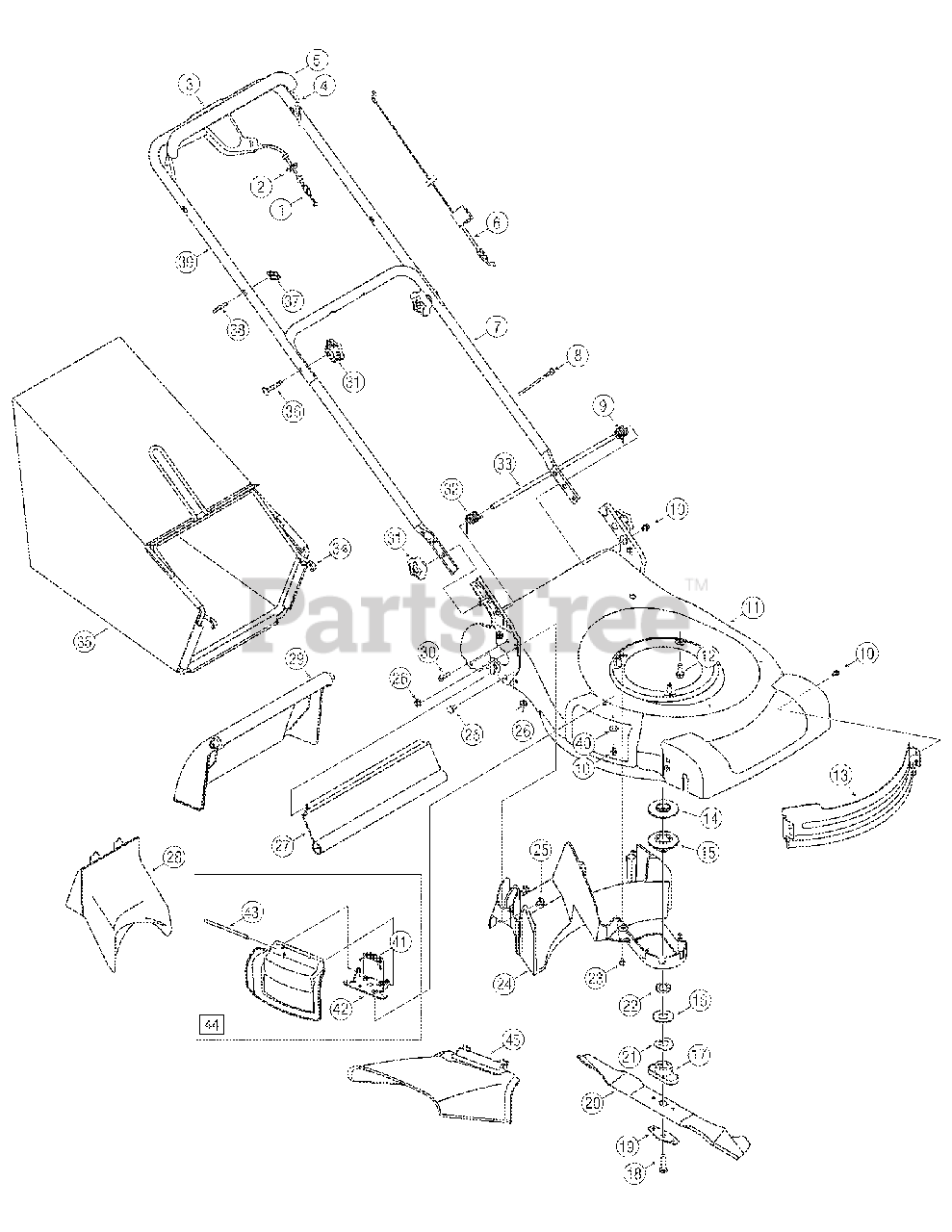

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 746-04265A

Drive Cable
(Superseded to 946-04265A)

$37.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 735-04059

Rubber Grommet

$4.49

$

In Stock, Qty 11

0

3

Troy-Bilt 753-05096A

Drive Control Assembly
(Superseded to 753-06060A)

$25.99

$

In Stock, Qty 10

0

4

Troy-Bilt 747-1161A

Blade Control

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 731-04859

Bail Cover

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 746-04213

Control Cable
(Superseded to 946-04213)

$24.99

$

In Stock, Qty 8

0

7

Troy-Bilt 749-04037

Lower Handle

Variations

Troy-Bilt 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$49.99

$

In Stock, Qty 19

0

$49.99

$

In Stock, Qty 19

0

8

Troy-Bilt 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 732-04265

Torsion Spring, LH

$9.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 787-01341

21-inch Deck
(Superseded to 787-01591)

Variations

Troy-Bilt 787-01341-0638

DECK:RD:21" W/DIS - MTD/TROY-BILT RED (0638)

$

$

Not available

$160.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 710-0654A

TT Screw, 3/8-16 x 1.00

$3.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 787-01346

Deck Baffle
(Superseded to 987-01834)

$44.99

$

In Stock, only 3 left!

0

14

Troy-Bilt 756-04157B

Upper Engine Pulley
(Superseded to 956-04157B)

$16.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 756-04156B

Lower Engine Pulley
(Superseded to 956-04156B)

$

$

Not available

16

Troy-Bilt 736-0514

Flat Washer, .885 x 1.850 x .060

$

$

Not available

17

Troy-Bilt 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$19.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 736-0513

Spring Washer, .890 x 1.70 x .048
(Superseded to 936-0513)

$

$

Not available

22

Troy-Bilt 750-1071

Sleeve Spacer
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

23

Troy-Bilt 710-0653

TT Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

24

Troy-Bilt 731-05463

Deck Baffle
(Superseded to 731-05463A)

$

$

Not available

25

Troy-Bilt 710-0260A

Carriage Bolt, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-05462

Trailshield
(Superseded to 731-05462A)

$21.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 731-05157

Mulch Plug

$30.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 731-05017A

Rear Door
(Superseded to 931-05017A)

$

$

Not available

30

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.00

$6.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 732-04264

Torsion Spring, RH

$9.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 711-04374

Door Pivot Rod

$31.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 647-04051

Grass Catcher Frame
(Superseded to 647-04051B-0637)

Variations

Troy-Bilt 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

35

Troy-Bilt 664-04045

Grass Catcher
(Superseded to 964-04045)

$106.99

$

In Stock, Qty 6

0

36

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2.00

$6.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 15

0

39

Troy-Bilt 749-04206

Upper Handle

Variations

Troy-Bilt 749-04206-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

40

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

41

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 4 left!

0

43

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 987-02055

Mulch Plug Assembly

$25.99

$

In Stock, Qty 13

0

45

Troy-Bilt 731-04177

Side Discharge Chute

$17.99

$

In Stock, Qty 20+

0
