12AV839Q795 - MTD Pro Walk-Behind Mower (2007) Drive & Tires Parts Diagram

Pro Walk-Behind Mower

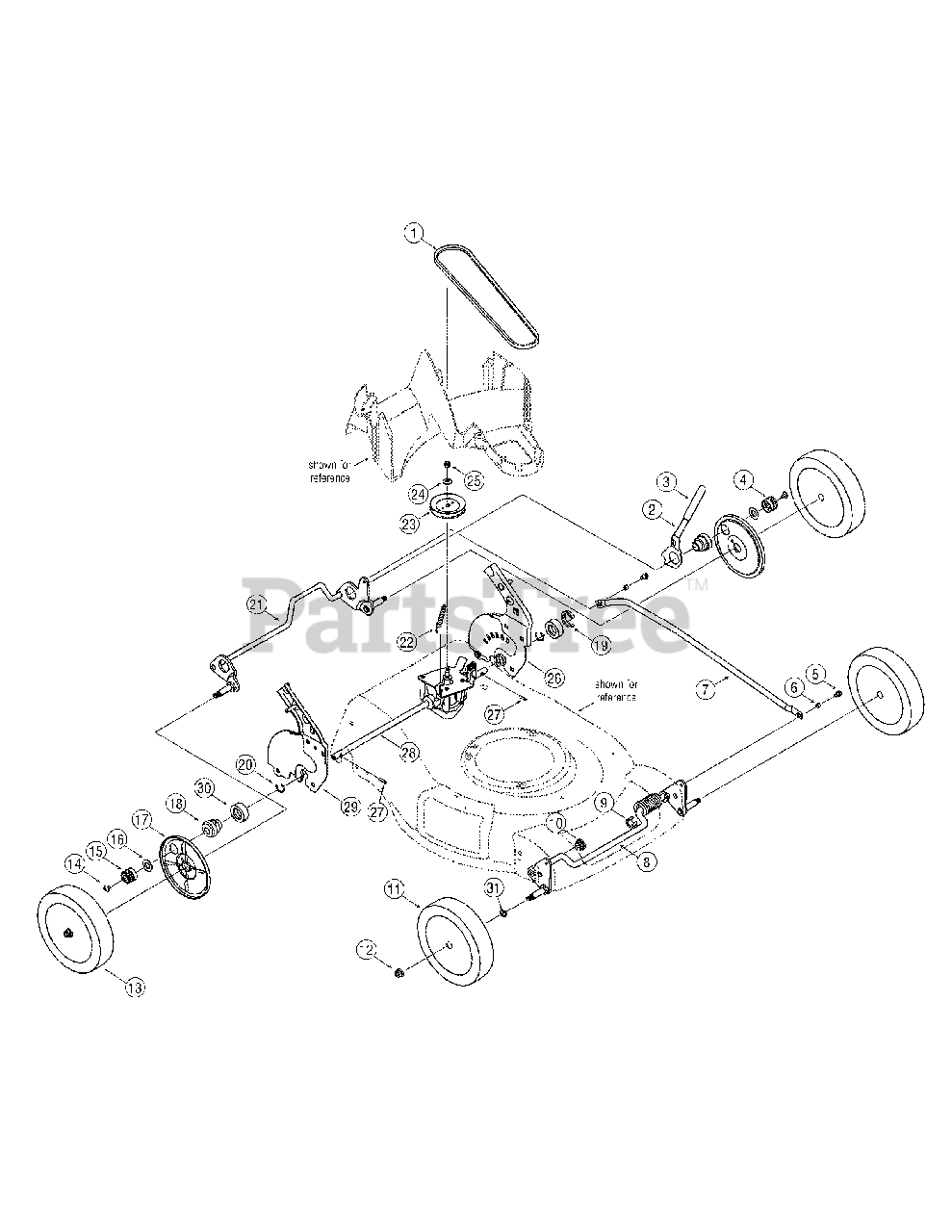

Drive & Tires Parts Diagram

  • Title

1

MTD 954-04093

V-Belt

$21.99

$

Usually ships in 3-6 days

0

2

MTD 732-04338C

Spring Lever

$17.99

$

In Stock, only 4 left!

0

3

MTD 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

4

MTD 917-04184C

Spur Gear, 14T - LH

$9.49

$

In Stock, Qty 10

0

5

MTD 710-0599

TT Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

6

MTD 738-04278

Spacer

$6.99

$

In Stock, Qty 20+

0

7

MTD 749-04267A-0637

Cross Bracket

$

$

Not available

8

MTD 687-02204

Front Bracket Assembly
(Superseded to 687-02204B)

Variations

MTD 687-02204-0637

Front Bracket Assembly Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

9

MTD 731-05470

Clip Spacer

$4.99

$

In Stock, Qty 20+

0

10

MTD 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 20+

0

11

MTD 734-04033

Front Wheel
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

12

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

MTD 934-04207D

Rear Wheel
(Superseded to 753-08092)

$44.99

$

In Stock, Qty 18

0

14

MTD 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

15

MTD 917-04192C

Spur Gear, 14T - RH

$7.49

$

In Stock, Qty 11

0

16

MTD 736-3084

Flat Washer

$4.99

$

In Stock, Qty 20+

0

17

MTD 782-7551A

Wheel Dust Cover

$5.49

$

In Stock, Qty 20+

0

18

MTD 948-04159

Transmission Bearing Support

$24.99

$

In Stock, only 1 left!

0

19

MTD 750-04317

Clip Spacer

$4.49

$

In Stock, Qty 5

0

20

MTD 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 13

0

21

MTD 687-02314A-0637

Rear Bracket Assembly

$62.99

$

In Stock, only 2 left!

0

22

MTD 932-0320

Extension Spring

$10.99

$

In Stock, only 2 left!

0

23

MTD 756-04237

Pulley, 3.36 OD
(Superseded to 756-04237A)

$17.99

$

Usually ships in 3-6 days

0

24

MTD 736-0105

Bell Washer, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-04063

Hex Lock Nut, 5/16-16

$3.99

$

In Stock, Qty 20+

0

26

MTD 687-02205

Handle Bracket Assembly LH
(Superseded to 753-05861)

Variations

MTD 687-02205-0637

KIT-SERVICE REPLAC - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

MTD 687-02205-0638

KIT-SERVICE REPLAC - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

26

MTD 687-02320-0637

Handle Bracket Assembly LH
(Superseded to 687-02320)

$27.99

$

Usually ships in 3-6 days

0

27

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

28

MTD 918-04492A

Transmission Assembly

$160.99

$

Usually ships in 3-6 days

0

29

MTD 687-02206

Handle Bracket Assembly RH
(Superseded to 753-05862)

Variations

MTD 687-02206-0637

BRACKET:ASM:HNDL RH - POWDER BLACK (0637)

$

$

Not available

MTD 687-02206-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

MTD 687-02321-0637

Handle Bracket Assembly RH
(Superseded to 687-02321)

$25.99

$

Usually ships in 3-6 days

0

30

MTD 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

31

MTD 936-0504

Washer, Wave, .510 x .750 x .017

$4.49

$

In Stock, Qty 12

0
