12AVB2M5345 - Yard Machines Walk-Behind Mower (2019) Side Discharge Chute Parts Diagram

Walk-Behind Mower

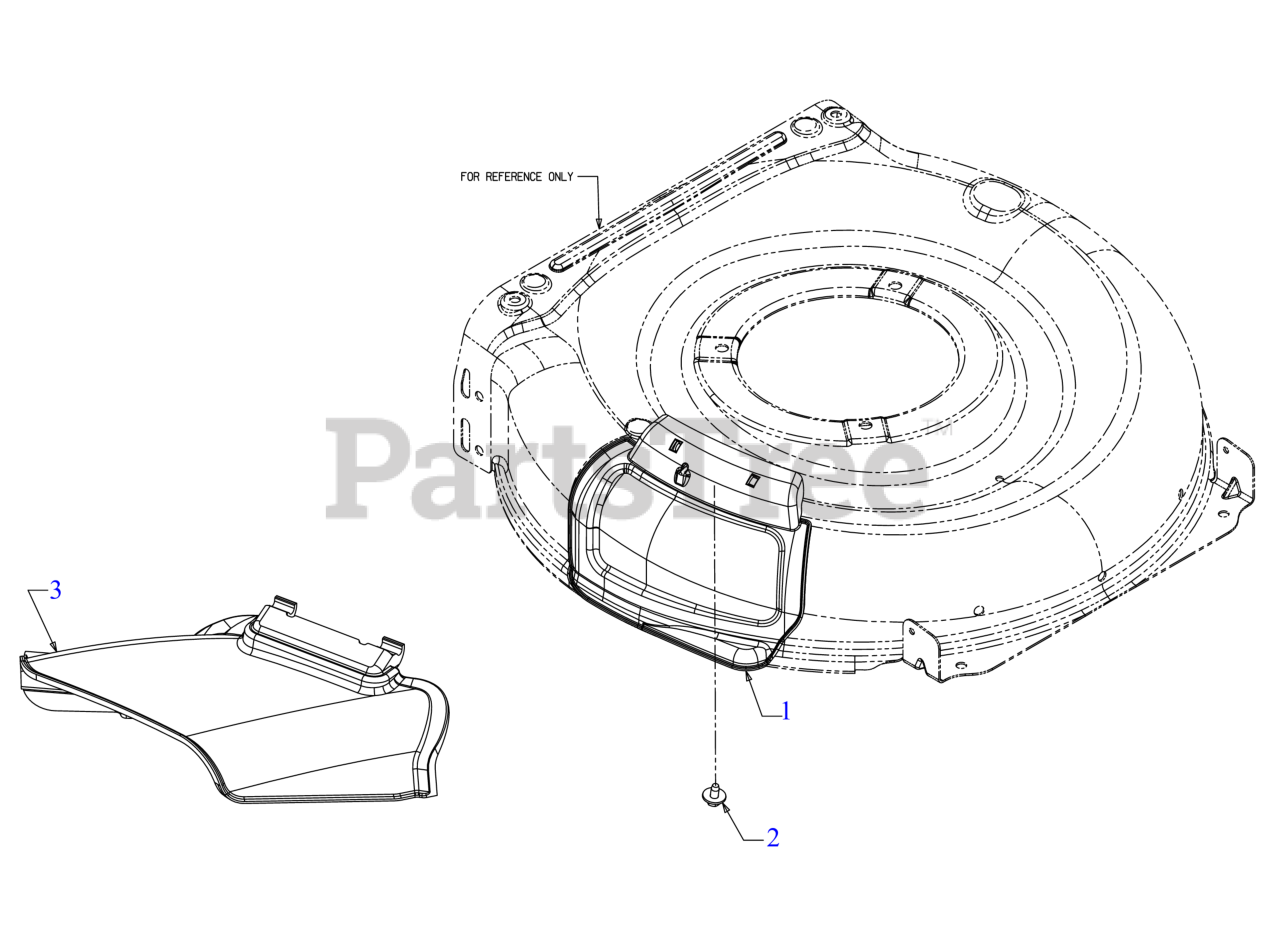

Side Discharge Chute Parts Diagram

  • Title

1

MTD 687-02584A

MULCH PLUG ASSEMBLY

$15.99

$

Usually ships in 3-6 days

0

1

MTD 732-1014C

TORSION SPRING

Note: (Not Shown)

$7.49

$

In Stock, Qty 20+

0

1

MTD 747-0710A

HINGE PIN

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

1

MTD 787-01779

CHUTE DEFLECTOR BRACKET

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-05073

SCREW 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

3

MTD 731-07131

SIDE DISCHARGE CHUTE

$14.99

$

In Stock, Qty 20+

0
