12AVP2R3739 - DeWALT Walk-Behind Mower (2024) Squeezebox Parts Diagram

Walk-Behind Mower

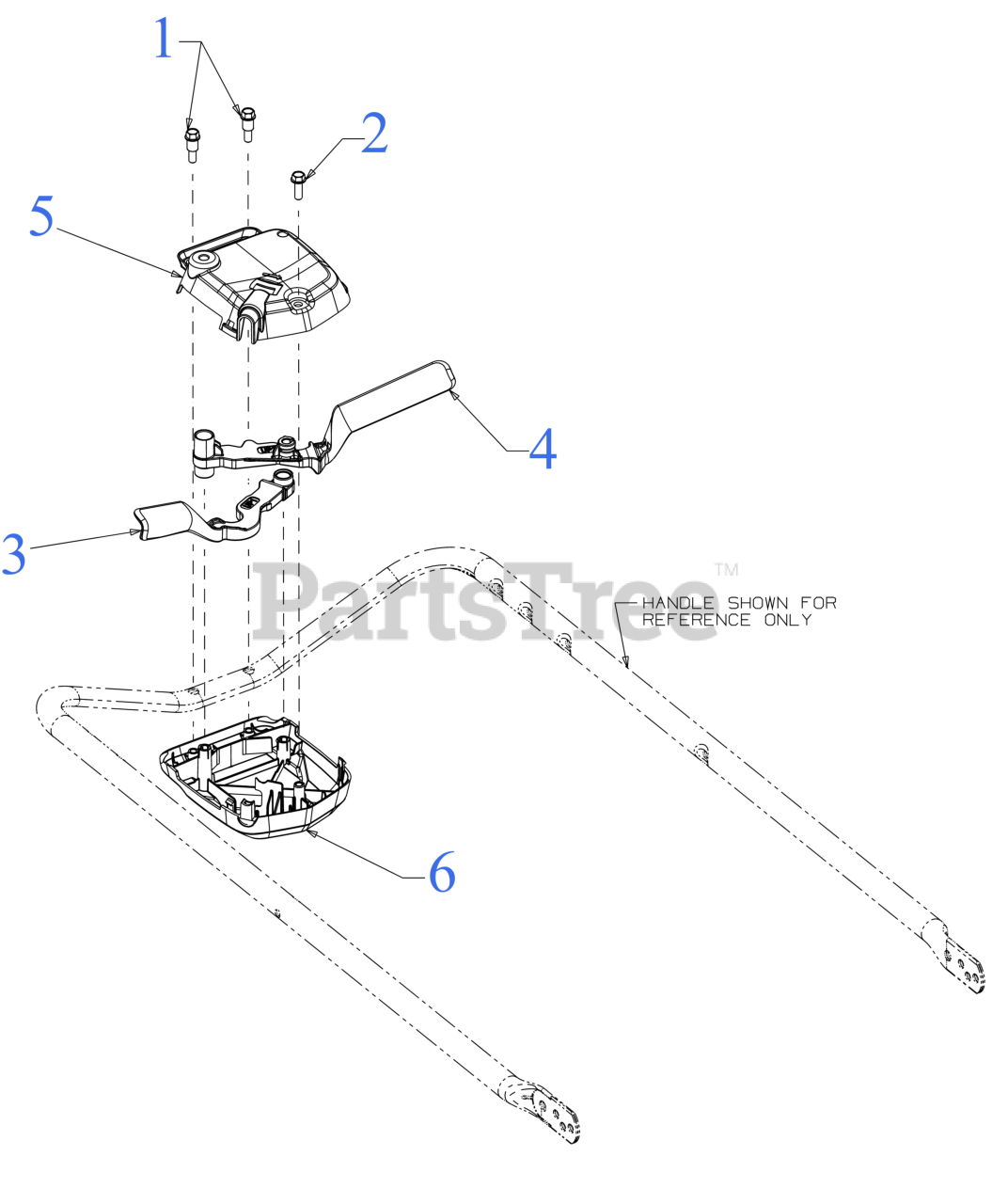

Squeezebox Parts Diagram

  • Title

1

MTD 710-05204

SHOULDER SCREW 1/4-15 x .970

Note: TORQUE TO 36-44 IN-LBS

$4.49

$

In Stock, Qty 18

0

2

MTD 710-0895

SCREW 1/4-15 x .750

Note: TORQUE TO 36-44 IN-LBS

$6.99

$

In Stock, Qty 20+

0

3

MTD 731-08155A

CONTROL LEVER (LH)

$6.99

$

Usually ships in 3-6 days

0

4

MTD 731-08804

CONTROL LEVER (RH)

$8.99

$

Usually ships in 3-6 days

0

5

MTD 731P27516

CONTROL HOUSING (LOWER)

$11.99

$

Usually ships in 3-6 days

0

6

MTD 731P27517

CONTROL HOUSING (UPPER)

$13.99

$

Usually ships in 3-6 days

0
