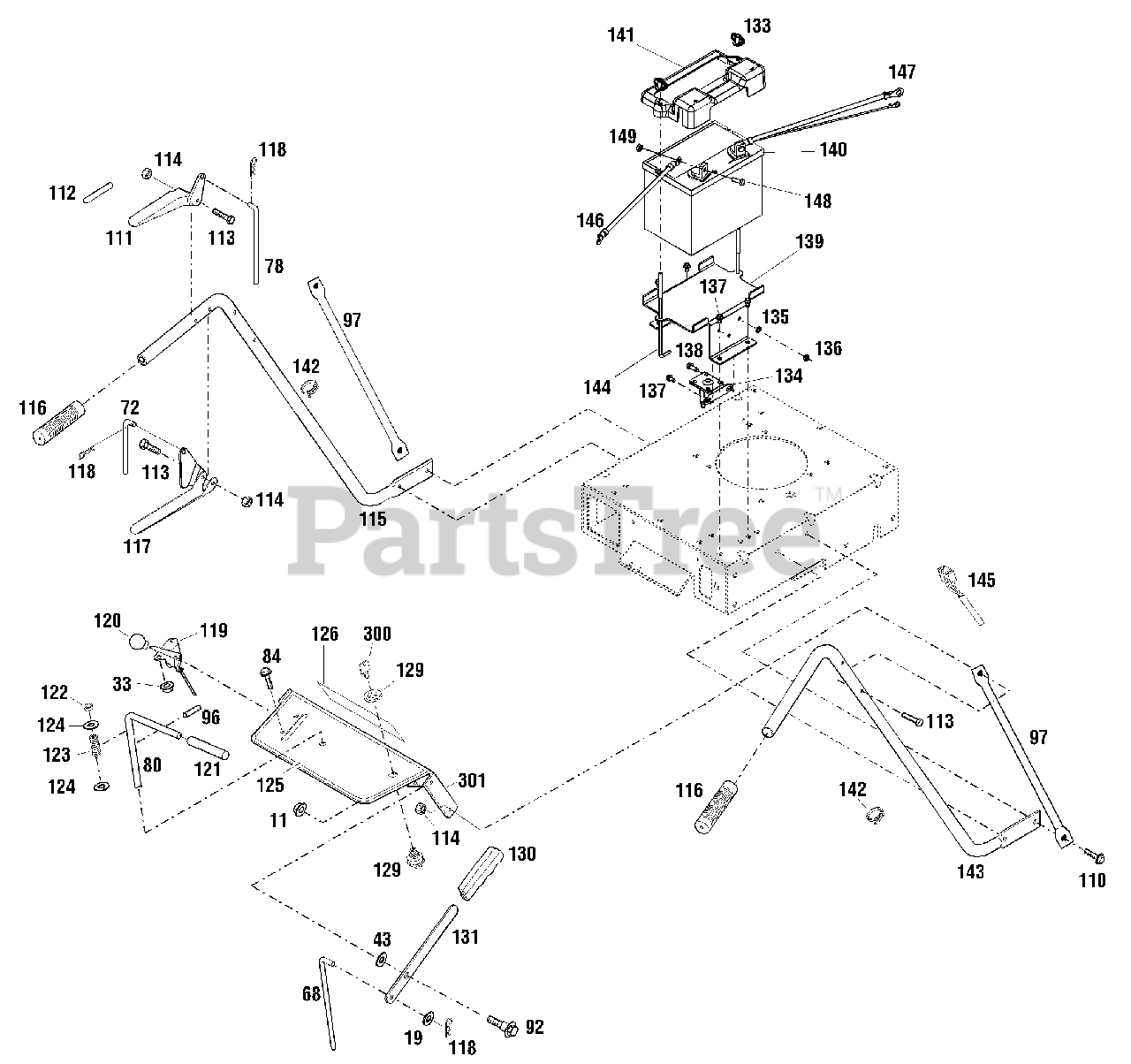

12B-753B766 - Troy-Bilt Wide-Cut 33" Self-Propelled Mower (2004) Handlebar And Console Assembly Parts Diagram

Wide-Cut 33" Self-Propelled Mower

Handlebar And Console Assembly Parts Diagram

  • Title

11

Troy-Bilt 1186393

Flange Locknut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

19

Troy-Bilt 736-0275

Flat Washer, 5/16

$7.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1186389

Flange Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

43

MTD 1702646

Flat Washer, 1/2

$

$

Not available

68

MTD 1769888

Upper Blade Rod

$

$

Not available

72

Troy-Bilt 1773607

Upper Transmission Rod

$

$

Not available

78

Troy-Bilt 1769872

Upper Brake Rod

$

$

Not available

80

Troy-Bilt 1769874

Shift Rod

$33.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 710-0599

Flange Lock Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

92

Troy-Bilt 1703051

Shoulder Bolt

$11.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 1185279

Roll Pin, 1/4 x 2-1/4

$

$

Not available

97

Troy-Bilt 1915545

Brace, Handlebar

Note: Models 753B & F753B

$

$

Currently unavailable

110

Troy-Bilt 710-0817

Flange Lock Screw, 5/16 x 3/4

$6.99

$

In Stock, Qty 12

0

111

MTD 1770445

Control Handle

$

$

Not available

112

MTD 777I00001

Operator Presence Control Decal

$

$

Not available

113

Troy-Bilt 710-0136

Screw, 1/4-20 x 1-3/4, Grade 8

$4.49

$

In Stock, Qty 14

0

114

MTD 712-3055

Locknut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

115

Troy-Bilt 1764922

Left Handlebar
(Superseded to 1764922010)

Note: Models 753B & F753B

$101.99

$

In Stock, only 1 left!

0

116

Troy-Bilt 1703539

Handle Grip
(Superseded to 720-0274)

$12.99

$

In Stock, only 2 left!

0

117

MTD 1773605

Control Handle

$

$

Not available

118

Troy-Bilt 1717897

Hair Pin, 5/64

$3.49

$

Usually ships in 3-6 days

0

119

Troy-Bilt 1768191

Throttle Control
(Superseded to 1768191P)

$46.99

$

Usually ships in 3-6 days

0

120

Troy-Bilt 1737118

Knob
(Superseded to 731-0108)

$9.99

$

In Stock, Qty 8

0

121

Troy-Bilt 1737041

Handle Grip
(Superseded to 720-0312)

$4.99

$

In Stock, Qty 5

0

122

Troy-Bilt 1715716

Nylon Bushing

$3.49

$

Usually ships in 3-6 days

0

123

MTD 1721492

Compression Spring

$

$

Not available

124

Troy-Bilt 736-3019

Flat Washer, 1/2

$6.49

$

In Stock, Qty 8

0

125

Troy-Bilt 777S32064

Warning Decal

Note: Model 753B

$

$

Not available

MTD 777S32233

Warning Decal

Note: Model F753B

$

$

Not available

126

Troy-Bilt 777D06080

Logo Decal

Note: Models 753B & F753B

$

$

Not available

129

Troy-Bilt 1734196

Ignition Switch
(Superseded to 925-0267B)

Note: Model F753B

$37.99

$

In Stock, Qty 20+

0

130

Troy-Bilt 720-0313

Handle Grip

$20.99

$

Usually ships in 3-6 days

0

131

Troy-Bilt 1768223

Mower Engage Lever

$

$

Not available

133

Troy-Bilt 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

Note: Model F753B

$4.49

$

In Stock, Qty 20+

0

134

Troy-Bilt 725-1426

Solenoid
(Superseded to 925-1426A)

Note: Model F753B

$28.99

$

In Stock, Qty 20+

0

135

Troy-Bilt 736-0222

External Lock Washer, 1/4

Note: Model F753B

$6.49

$

In Stock, only 3 left!

0

136

Troy-Bilt 712-0298

Jam Nut, 1/4-20
(Superseded to 912-0298)

Note: Model F753B

$6.99

$

Usually ships in 3-6 days

0

137

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x 1/2

Note: Model F753B

$4.49

$

In Stock, Qty 20+

0

138

Troy-Bilt 710-0642

Self-tapping Screw, 1/4-20 x 3/4

Note: Model F753B

$4.99

$

In Stock, Qty 20+

0

139

Troy-Bilt 787-01120

Battery Bracket
(Superseded to 787-01120-0637)

Note: Model F753B

Variations

Troy-Bilt 787-01120-0637

BRACKET-BATTERY - POWDER BLACK (0637)

$

$

Not available

$

$

140

Troy-Bilt 725-1706

Battery, 270 CCA
(Superseded to 925-1707D)

Note: Model F753B

$

$

Not available

141

MTD 731-0707A

Battery Cover

Note: Model F753B

$

$

Not available

142

Troy-Bilt 725-0157

Plastic Tie

$3.99

$

In Stock, Qty 20+

0

143

Troy-Bilt 1764923

Right Handlebar
(Superseded to 1764923010)

Note: Models 753B & F753B

Variations

Troy-Bilt 1764923-0638

Right Handlebar - MTD/TROY-BILT RED (0638)

$99.99

$

In Stock, Qty 5

0

$99.99

$

In Stock, Qty 5

0

144

Troy-Bilt 711-0222A

Battery Hold-down Rod
(Superseded to 911-0222A)

Note: Model F753B

$11.99

$

In Stock, only 1 left!

0

145

Troy-Bilt 725-04088

Wiring Harness
(Superseded to 925-04088)

Note: Model F753B

$

$

Not available

146

Troy-Bilt 725-04086

Red Wire, 12"

Note: Model F753B

$

$

Not available

147

MTD 725-04087

Black Wire, 14"

Note: Model F753B

$

$

Not available

148

Troy-Bilt 710-3015

Hex Screw, 1/4-20 x .75

Note: Model F753B

$4.49

$

In Stock, Qty 20+

0

149

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20

Note: Model F753B

$4.99

$

In Stock, Qty 17

0

300

Troy-Bilt 725-0201

Ignition Key
(Superseded to 925-0201)

Note: Model F753B

$9.99

$

In Stock, Qty 9

0

301

Troy-Bilt 1768625

Console Assembly

$

$

Currently unavailable
