12E494-0110-E1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sumps, Cylinder Group, Kits/Gaskets - Engine, Oil Group Parts Diagram

Horizontal Engine

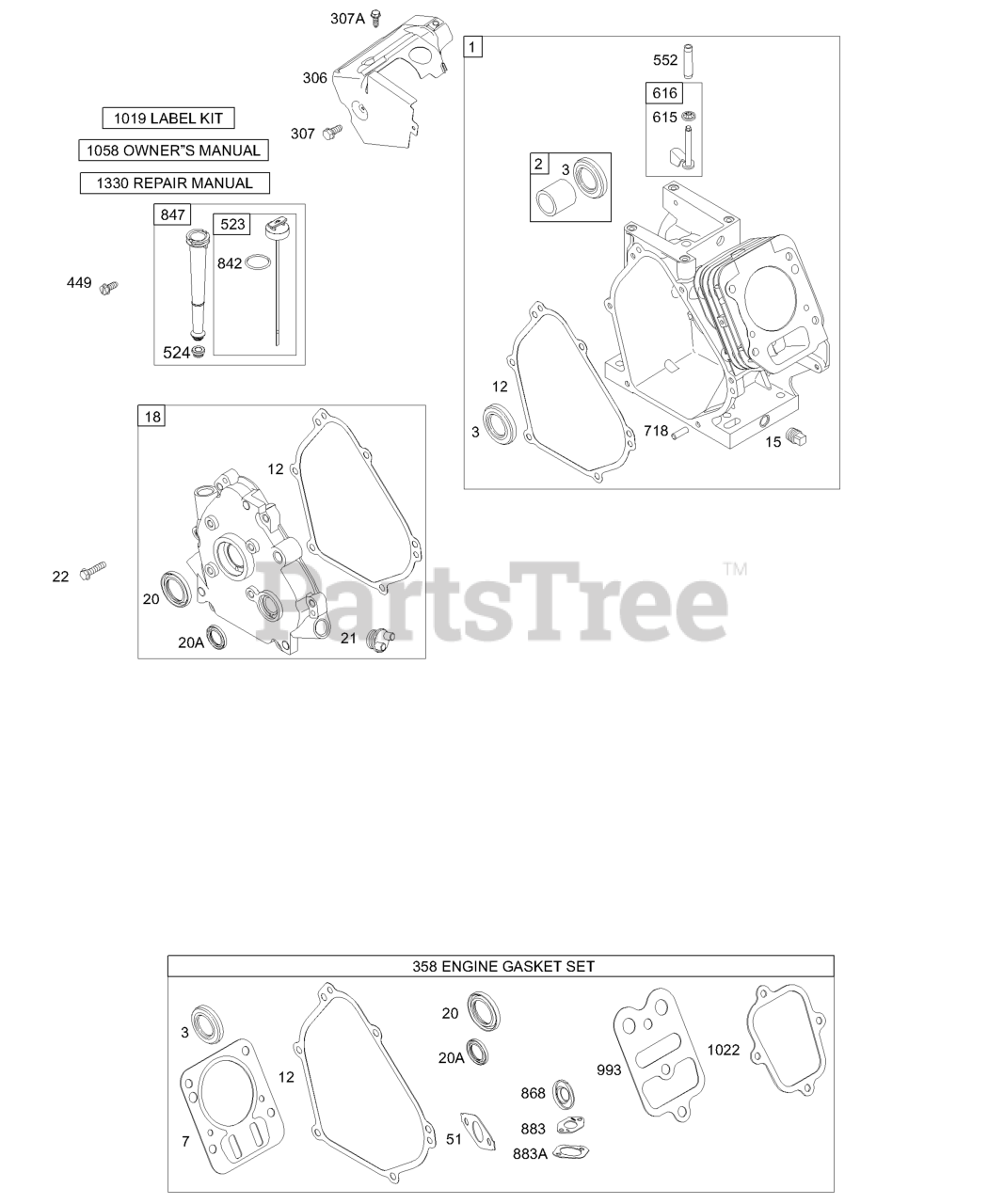

Crankcase Cover/Sumps, Cylinder Group, Kits/Gaskets - Engine, Oil Group Parts Diagram

  • Title

1

Briggs & Stratton 695713

Cylinder Assembly
(Superseded to 699510)

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$21.99

$

In Stock, Qty 6

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 698210

Gasket-Cylinder Head

$8.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692549

Gasket-Crankcase
(Superseded to 699485)

$8.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

$5.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 790000

Cover-Crankcase
(Superseded to 694833)

$109.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: (PTO Side)

$8.99

$

In Stock, Qty 12

0

20A

Briggs & Stratton 691952

Seal-Oil

Note: (PTO Side)

$9.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 692551

Screw

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 20+

0

306

Briggs & Stratton 695710

Shield-Cylinder

$18.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

307A

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, only 2 left!

0

358

Briggs & Stratton 698216

Gasket Set-Engine

$69.99

$

In Stock, only 1 left!

0

449

Briggs & Stratton 691693

SCREW

Note: (Oil Fill Bracket)

$3.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 693618

Dipstick

$15.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370

Seal-Dipstick Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

552

Briggs & Stratton 692346

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 12

0

847

Briggs & Stratton 693617

Dipstick/Tube Assembly

$22.99

$

In Stock, only 4 left!

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

$13.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 11

0

883A

Briggs & Stratton 692237

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 20+

0

1019

Briggs & Stratton 695751

Kit-Label
(Superseded to 792211)

$31.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 10

0

1058

Briggs & Stratton 275697

Operator's Manual

$5.49

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272147

Repair Manual

$59.99

$

In Stock, only 4 left!

0
