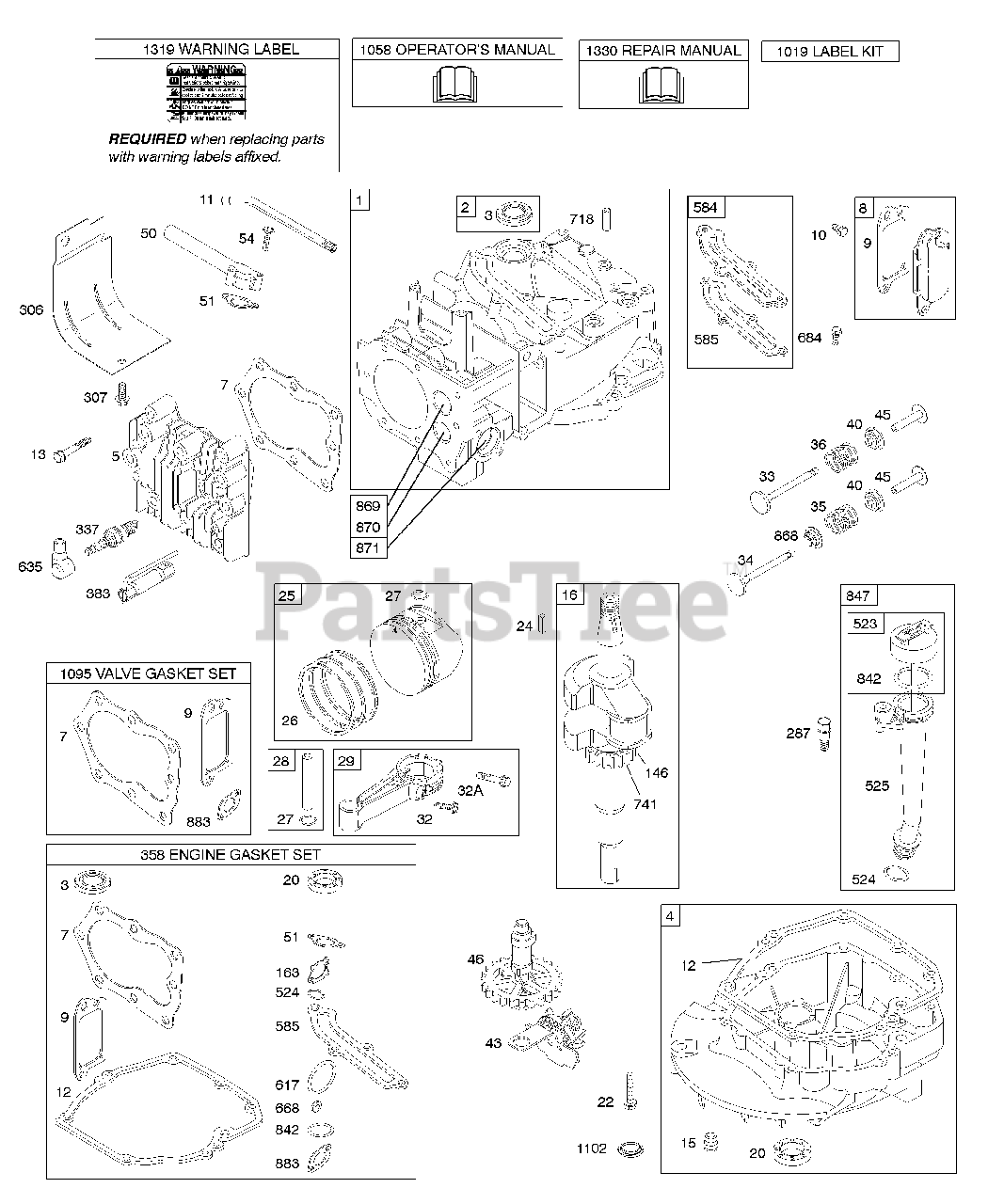

12H702-1708-B1 - Briggs & Stratton Vertical Engine Cams, Crankshaft, Cylinder, Engine Sump, Kit/Gaskets, Lubrication, Piston Group, Valves Parts Diagram

Vertical Engine

Cams, Crankshaft, Cylinder, Engine Sump, Kit/Gaskets, Lubrication, Piston Group, Valves Parts Diagram

  • Title

1

Briggs & Stratton 590401

Cylinder Assembly
(Superseded to 592645)

Note: Used After Code Date 11063000

$268.99

$

In Stock, only 1 left!

0

1

Briggs & Stratton 697322

Cylinder Assembly
(Superseded to 592645)

Note: Used Before Code Date 11070100

$268.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$19.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 493279

Sump, Engine

$109.99

$

In Stock, Qty 6

0

5

Briggs & Stratton 691160

Head-Cylinder
(Superseded to 594989)

Note: Used Before Code Date 11070100

$50.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 590411

Head-Cylinder

Note: Used After Code Date 11063000

$41.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 799875

Gasket-Cylinder Head

Note: Used After Code Date 11063000

$12.99

$

In Stock, Qty 13

0

7

Briggs & Stratton 692249

Gasket-Cylinder Head

Note: Used Before Code Date 11070100

$10.99

$

In Stock, Qty 17

0

8

Briggs & Stratton 590395

Breather Assembly

Note: Used After Code Date 11063000

$13.99

$

In Stock, Qty 18

0

8

Briggs & Stratton 695250

Breather Assembly
(Superseded to 590395)

Note: Used Before Code Date 11070100

$13.99

$

In Stock, Qty 18

0

9

Briggs & Stratton 699833

Gasket-Breather

Note: Used Before Code Date 11070100

$4.99

$

In Stock, Qty 10

0

9

Briggs & Stratton 699472

Gasket-Breather
(Superseded to 699833)

Note: Used After Code Date 11063000

$4.99

$

In Stock, Qty 10

0

10

Briggs & Stratton 94650

Screw

Note: (Breather Assembly)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 691781

Tube-Breather

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 692232

Gasket-Crankcase

$5.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 590422

Screw

Note: (Cylinder Head) Used After Code Date 11063000

$3.49

$

In Stock, Qty 7

0

13

Briggs & Stratton 690912

Screw

Note: (Cylinder Head) Used Before Code Date 11070100

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (Square Socket)

$5.49

$

In Stock, Qty 6

0

16

Briggs & Stratton 593916

Crankshaft

Note: Used Before Code Date 97011300

$178.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 691451

Crankshaft
(Superseded to 797018)

Note: Used After Code Date 97011200

$162.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781S

Seal-Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, Qty 5

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 493386

Piston Assembly

Note: (.020" Oversize) Used Before Code Date 97011300

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 493387

Piston Assembly

Note: (.030" Oversize) Used Before Code Date 97011300

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 590404

Piston Assembly

Note: (Standard) Used After Code Date 11063000

$65.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 590405

Piston Assembly
(Superseded to 590407)

Note: (.020" Oversize) Used After Code Date 11063000

$113.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 791097

Piston Assembly
(Superseded to 799063)

Note: (Standard) Used After Code Date 97011200 Used Before Code Date 07090400

$83.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 791326

Piston Assembly
(Superseded to 799064)

Note: (.020" Oversize) Used After Code Date 97011200 Used Before Code Date 07090400

$109.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 795429

Piston Assembly
(Superseded to 799063)

Note: (Standard) Used After Code Date 07090300 Used Before Code Date 09041700

$83.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 795430

Piston Assembly
(Superseded to 799064)

Note: (.020" Oversize) Used After Code Date 07093000 Used Before Code Date 09041700

$109.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 797302

Piston Assembly
(Superseded to 590404)

Note: (Standard) Used After Code Date 09041600 Used Before Code Date 11070100

$65.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 797303

Piston Assembly
(Superseded to 590405)

Note: (.020" Oversize) Used After Code Date 09041600 Used Before Code Date 11070100

$113.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 493262

Piston Assembly

Note: (Standard) Used Before Code Date 97011300

$67.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 493389

Ring Set

Note: (.020" Oversize) Used Before Code Date 97011300

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493390

Ring Set

Note: (.030" Oversize) Used Before Code Date 97011300

$28.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499425

Ring Set

Note: (Standard) Used After Code Date 97011200 Used Before Code Date 04031500

$29.99

$

In Stock, Qty 6

0

26

Briggs & Stratton 499427

Ring Set

Note: (.020" Oversize) Used After Code Date 97011200 Used Before Code Date 04102200

$47.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 590402

Ring Set

Note: (Standard) Used After Code Date 11063000

$44.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 590403

Ring Set

Note: (.020" Oversize) Used After Code Date 11063000

$47.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 791098

Ring Set

Note: (Standard) Used After Code Date 04031400 Used Before Code Date 07090400

$44.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 791324

Ring Set

Note: (.020" Oversize) Used After Code Date 04102100 Used Before Code Date 07090400

$42.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 795431

Ring Set

Note: (Standard) Used After Code Date 07090300 Used Before Code Date 09041700

$45.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 795432

Ring Set

Note: (.020" Oversize) Used After Code Date 07090300 Used Before Code Date 09041700

$47.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 797304

Ring Set
(Superseded to 590404)

Note: (Standard) Used After Code Date 09041600 Used Before Code Date 11070100

$65.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 797305

Ring Set
(Superseded to 590405)

Note: (.020" Oversize) Used After Code Date 09041600 Used Before Code Date 11070100

$113.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493261

Ring Set

Note: (Standard) Used Before Code Date 97011300

$38.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691588

Lock-Piston Pin

Note: Used After Code Date 09041600

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Piston Pin

Note: Used After Code Date 97011200 Used Before Code Date 09041700

$3.99

$

In Stock, Qty 8

0

27

Briggs & Stratton 691588

Lock-Piston Pin

Note: Used Before Code Date 97011300

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298908

Pin-Piston

Note: (.005" Oversize) Used Before Code Date 97011300

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

Note: (Standard) Used Before Code Date 97011300

$7.99

$

In Stock, Qty 5

0

28

Briggs & Stratton 298909

Pin-Piston

Note: (Standard) Used After Code Date 09041600

$7.99

$

In Stock, Qty 5

0

28

Briggs & Stratton 499423

Pin-Piston

Note: (Standard) Used After Code Date 97011200 Used Before Code Date 09041700

$8.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: (Standard) Used After Code Date 97011200 Used Before Code Date 09041700

$79.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 490566

Rod-Connecting

Note: (Standard) Used Before Code Date 97011300

$36.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 797306

Rod-Connecting

Note: (Standard) Used After Code Date 09041600

$55.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$3.99

$

In Stock, only 3 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod) Used After Code Date 00042200

$4.49

$

In Stock, only 1 left!

0

33

Briggs & Stratton 590394

Valve-Exhaust

Note: Used After Code Date 11063000

$21.99

$

In Stock, Qty 11

0

33

Briggs & Stratton 262651S

Valve-Exhaust
(Superseded to 590394)

Note: Used Before Code Date 11070100

$21.99

$

In Stock, Qty 11

0

34

Briggs & Stratton 262652S

Valve-Intake
(Superseded to 590393)

Note: Used Before Code Date 11070100

$19.99

$

In Stock, Qty 9

0

34

Briggs & Stratton 590393

Valve-Intake

Note: Used After Code Date 11063000

$19.99

$

In Stock, Qty 9

0

35

Briggs & Stratton 691270

Spring-Valve

Note: (Intake)

$4.99

$

In Stock, Qty 15

0

36

Briggs & Stratton 691270

Spring-Valve

Note: (Exhaust)

$4.99

$

In Stock, Qty 15

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.49

$

In Stock, Qty 20+

0

43

Briggs & Stratton 691997

Slinger-Governor/Oil

$23.99

$

In Stock, only 3 left!

0

45

Briggs & Stratton 690548

Tappet-Valve

$8.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691449

Camshaft

Note: Used After Code Date 96060200

$66.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 492830

Camshaft
(Superseded to 691449)

Note: Used Before Code Date 96060300

$66.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 497465

Manifold-Intake
(Superseded to 794305)

$

$

Not available

51

Briggs & Stratton 272199S

Gasket-Intake

$4.49

$

In Stock, only 4 left!

0

54

Briggs & Stratton 691650

Screw

Note: (Intake Manifold)

$2.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.99

$

In Stock, Qty 20+

0

287

Briggs & Stratton 690940

Screw

Note: (Dipstick Tube)

$3.99

$

In Stock, Qty 20+

0

306

Briggs & Stratton 690450

Shield-Cylinder

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592S

Plug-Spark
(Superseded to 796112S)

Note: Used Before Code Date 11070100

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 799876

Plug-Spark
(Superseded to 591868)

Note: Used After Code Date 11063000

$3.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 590508

Gasket Set-Engine

Note: Used After Code Date 11063000

$39.99

$

In Stock, Qty 9

0

358

Briggs & Stratton 497316

Gasket Set-Engine
(Superseded to 590508)

Note: Used Before Code Date 11070100

$39.99

$

In Stock, Qty 9

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$5.99

$

In Stock, Qty 8

0

523

Briggs & Stratton 499621

Dipstick

$15.99

$

In Stock, Qty 8

0

524

Briggs & Stratton 692296

Seal-Dipstick Tube

$4.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 495265

Tube-Dipstick

$19.99

$

In Stock, Qty 6

0

584

Briggs & Stratton 697734

Cover-Breather Passage

$8.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Breather Passage

$6.49

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer

Note: (Includes 2)

$5.99

$

In Stock, only 2 left!

0

684

Briggs & Stratton 690345

Screw

Note: (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$5.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 794388

Gear-Timing

Note: (Use Without Woodruff Key) Used After Code Date 07093000 Used Before Code Date 08021800

$14.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 795755

Gear-Timing
(Superseded to 797521)

Note: (Plastic) Used After Code Date 08021700

$12.99

$

In Stock, Qty 6

0

741

Briggs & Stratton 797521

Gear-Timing

Note: (Metal) Used After Code Date 08021700

$12.99

$

In Stock, Qty 6

0

741

Briggs & Stratton 691830

Gear-Timing

Note: (Uses Woodruff Key)

$15.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 790345

Gear-Timing

Note: (Use Without Woodruff Key) Used Before Code Date 07100100

$14.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$4.99

$

In Stock, Qty 18

0

847

Briggs & Stratton 692047

Dipstick/Tube Assembly

$15.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 697338

Seal-Valve

Note: Used Before Code Date 11070100

$11.99

$

In Stock, Qty 5

0

868

Briggs & Stratton 590410

Seal-Valve

Note: Used After Code Date 11063000

$11.99

$

In Stock, Qty 7

0

869

Briggs & Stratton 691155

Seat-Valve

Note: (Intake)

$8.49

$

In Stock, only 1 left!

0

870

Briggs & Stratton 690380

Seat-Valve

Note: (Exhaust)

$6.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Valve Guide

Note: (Intake) Used Before Code Date 11070100

$13.99

$

In Stock, Qty 5

0

871

Briggs & Stratton 590409

Bushing-Valve Guide

Note: Used After Code Date 11063000

$11.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Valve Guide

Note: (Exhaust) Used Before Code Date 11070100

$12.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 691881

Gasket-Exhaust

$7.99

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 494256

Kit-Label

$25.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 380567TRI

Operator's Manual

Note: Used After Code Date 11063000

$14.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 277039TRI

Operator's Manual
(Superseded to 380567TRI)

Note: Used Before Code Date 11070100

$14.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498528

Gasket Set-Valve

Note: Used Before Code Date 11070100

$24.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 590507

Gasket Set-Valve

Note: Used After Code Date 11063000

$24.99

$

In Stock, only 1 left!

0

1319

Briggs & Stratton 794467

LABEL, Warning

$19.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 270962

Repair Manual

$33.99

$

In Stock, Qty 15

0
