12M4 - Ariens 26" Fairway Rear-Engine Rider, 4hp Tecumseh (SN: 000001 - 013000) Mower Deck Parts Diagram

26" Fairway Rear-Engine Rider, 4hp Tecumseh

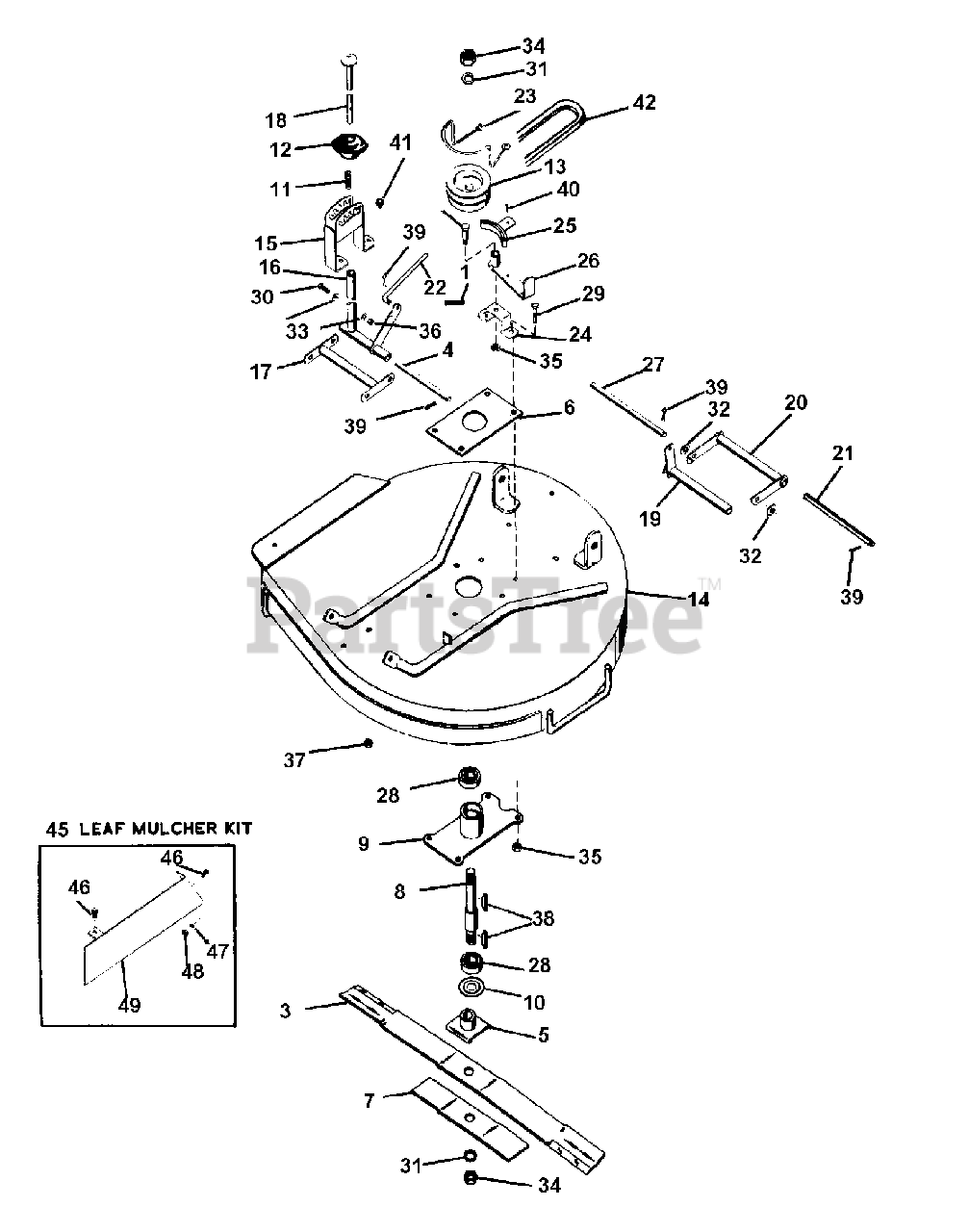

Mower Deck Parts Diagram

  • Title

1

Ariens 00102700

SPRING
(Superseded to 08300400)

$20.99

$

In Stock, only 1 left!

0

2

Ariens 00301600

SHOULDER BOLT .50 X 1.75

$

$

Not available

3

Ariens 00310200

MOWER BLADE
(Superseded to 00316500)

$67.99

$

In Stock, only 2 left!

0

4

Ariens 00310500

ADAPTER PIN

$

$

Not available

5

Ariens 00311600

BLADE RETAINER

$

$

Not available

6

Ariens 00311700

PLATE

$

$

Not available

7

Ariens 00312200

BLADE STIFFNER

$

$

Not available

8

Ariens 00312700

MOWER SPINDLE

$68.99

$

Usually ships in 4-12 days

0

9

Ariens 00312800

SPINDLE HOUSING

$

$

Not available

10

Ariens 00341900

BEARING SLINGER

$20.99

$

In Stock, Qty 5

0

11

Ariens 01023300

SPRING
(Superseded to 08301500)

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 01024800

SHIFT BALL

$15.99

$

Usually ships in 4-12 days

0

13

Ariens 01202500

MOWER SHEAVE

$

$

Not available

14

Ariens 01205200

MOWER PAN

$

$

Not available

15

Ariens 01205300

MOWER HGHT QUAD

$

$

Not available

16

Ariens 01205400

ARM

$

$

Not available

17

Ariens 01205500

FLOATING LINK

$

$

Not available

18

Ariens 01205600

HGHT CNTL PLNGR

$

$

Not available

19

Ariens 01205700

REAR RAISING BRACKET

$

$

Not available

20

Ariens 01205800

REAR FLOAT BRACKET

$

$

Not available

21

Ariens 01205900

REAR BRACKET PIN

$

$

Not available

22

Ariens 01206000

HGHT LINK ROD

$

$

Not available

23

Ariens 01206100

MOWER BELT FINGER

$

$

Not available

24

Ariens 01206200

BLADE BRAKE SUPPORT

$

$

Not available

25

Ariens 01206300

BLADE BRAKE

$

$

Not available

26

Ariens 01206400

BLADE BRAKE ARM

$

$

Not available

27

Ariens 01206700

HANGER PIN

$

$

Not available

28

Ariens 05407300

BRG-BALL .751X1.78X.61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 20+

0

29

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05900700

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

31

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 10

0

32

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06500200

NUT-JAM .625-11

$

$

Not available

35

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

39

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

40

Ariens 06801600

RVT .25X.50 RH ST

$

$

Not available

41

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

42

Ariens 07208700

BELT,5L RAW LAMINATED

$

$

Not available

43

Ariens 07800200

HEIGHT QUADRANT LABEL

Note: (Not Illustrated)

$

$

Not available

44

Ariens 07800200

HEIGHT QUADRANT LABEL

Note: (Not Illustrated)

$

$

Not available

45

Ariens 05-12M00

Leaf Mulcher Kit(Inc. 46,47,48,49)

Note: (Inc. 46,47,48,49)

$

$

Not available

46

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

47

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

48

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

49

Ariens 01208400

LEAF MULCHER

$

$

Not available
