12M4 - Ariens 26" Fairway Rear-Engine Rider, 4hp Tecumseh (SN: 013001 - 016600) Tractor Parts List For Fairway-4 Parts Diagram

26" Fairway Rear-Engine Rider, 4hp Tecumseh

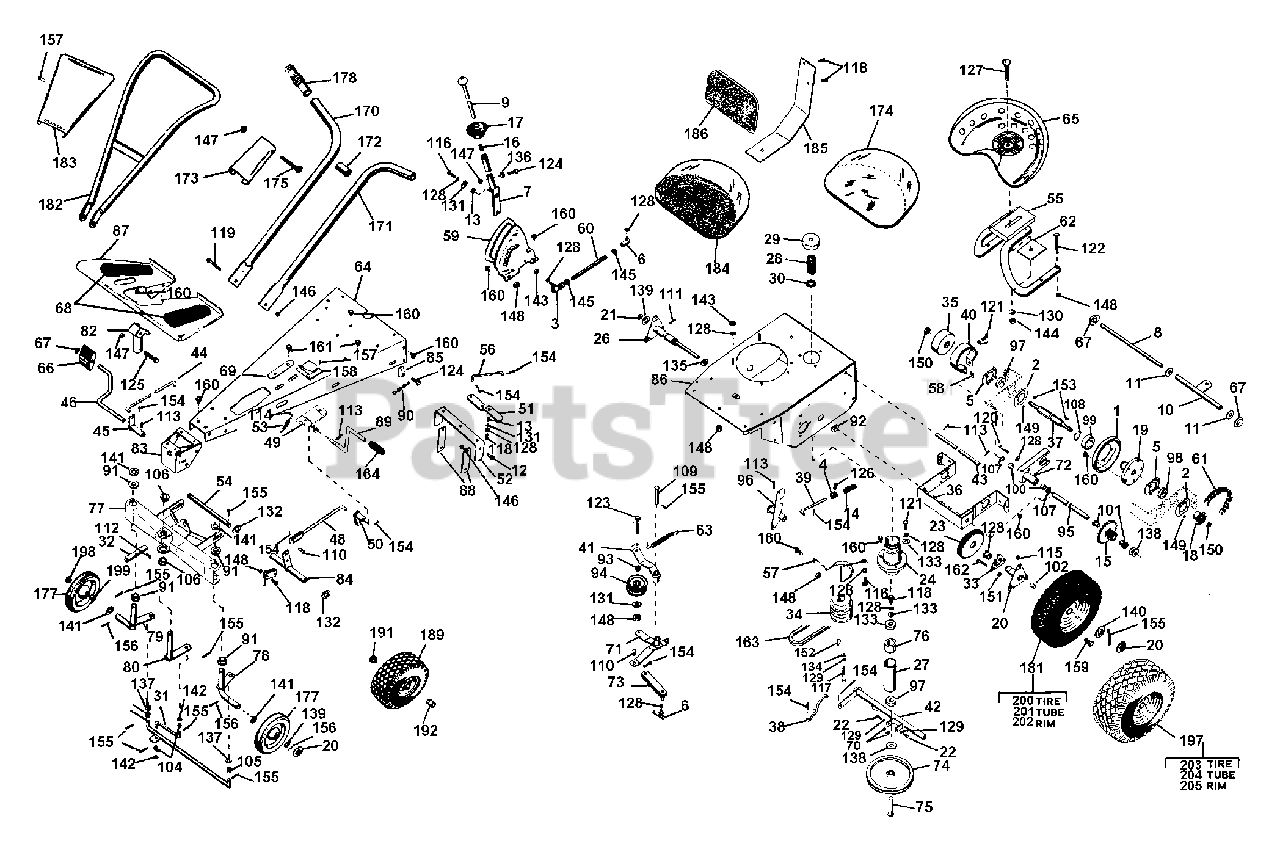

Tractor Parts List For Fairway-4 Parts Diagram

  • Title
1

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$29.99

$

In Stock, Qty 18

0

2

Ariens 00303100

BEARING FLANGE
(Superseded to 02414100)

$18.56

$

In Stock, only 4 left!

0

3

Ariens 00306000

SNAP IN BALL JOINT

$

$

Not available

4

Ariens 00307400

SET COLLAR

$

$

Not available

5

Ariens 00308500

BEARING FLANGE

$22.08

$

In Stock, only 2 left!

0

6

Ariens 00308600

BALL JOINT
(Superseded to 04110300)

$13.36

$

Usually ships in 4-12 days

0

7

Ariens 00308900

SHIFT LEVER

$

$

Not available

8

Ariens 00315900

HITCH SHAFT

$

$

Not available

9

Ariens 00324700

SHIFT RELEASE HANDLE

$5.53

$

Usually ships in 4-12 days

0

10

$

$

Not available

11

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$1.96

$

In Stock, Qty 5

0

12

Ariens 00411500

SHOULDER BOLT .50 X .281
(Superseded to 07000034)

$3.63

$

In Stock, Qty 8

0

13

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$10.73

$

Usually ships in 4-12 days

0

14

Ariens 00612800

BRAKE SPRING
(Superseded to 08301300)

$

$

Not available

15

Ariens 01020700

PINION & SPROCKET
(Superseded to 52400200)

$103.25

$

Usually ships in 4-12 days

0

16

Ariens 01023300

SPRING
(Superseded to 08301500)

$5.53

$

Usually ships in 4-12 days

0

17

Ariens 01024800

SHIFT BALL

$15.21

$

Usually ships in 4-12 days

0

18

Ariens 01027600

9 TOOTH SPROCKET

$47.29

$

Usually ships in 4-12 days

0

19

Ariens 01027700

FRICTION DISC HUB
(Superseded to 01218300)

$

$

Not available

20

Ariens 01028800

HUB CAP
(Superseded to 01238200)

$14.81

$

Usually ships in 4-12 days

0

21

Ariens 01036600

PUSHNUT

$5.53

$

Usually ships in 4-12 days

0

22

Ariens 01052200

SCREW PIN

$3.30

$

Usually ships in 4-12 days

0

23

Ariens 1-12000

Differential Assembly

$

$

Not available

24

Ariens 01200600

DRIVE SPRING HOUSING

$

$

Not available

25

Ariens 01200800

L H AXLE
(Superseded to 51201900)

$35.16

$

Usually ships in 4-12 days

0

26

Ariens 01200900

R H AXLE
(Superseded to 51201100)

$

$

Not available

27

Ariens 01201000

DRIVE SPINDLE HOUSING

$

$

Not available

28

Ariens 01201200

SPRING
(Superseded to 08305500)

$

$

Not available

$

$

Not available

30

Ariens 01201400

SPRING RETAINER

$6.65

$

Usually ships in 4-12 days

0

31

Ariens 01201900

STEERING LINK
(Superseded to 06436500)

$1.96

$

In Stock, only 3 left!

0

32

Ariens 01202100

AXLE PIVOT PIN

$

$

Not available

33

Ariens 01202300

SUPPORT, BEARING

$65.91

$

In Stock, Qty 7

0

34

Ariens 01202400

ENGINE SHEAVE

$

$

Not available

35

Ariens 01202600

BRAKE DRUM

$

$

Not available

36

Ariens 01202700

CARRIER

$

$

Not available

37

Ariens 01202900

HEX SHAFT

$31.58

$

Usually ships in 4-12 days

0

38

$

$

Not available

39

Ariens 01203200

BRAKE ROD

$

$

Not available

40

Ariens 01203300

BRAKE BAND

$

$

Not available

41

Ariens 01203500

IDLER ARM
(Superseded to 01214200)

$5.53

$

Usually ships in 4-12 days

0

42

Ariens 01203800

DISK FORK
(Superseded to 01214400)

$

$

Not available

43

Ariens 01203900

DISC FORK ROD

$5.53

$

Usually ships in 4-12 days

0

44

Ariens 01204000

FRONT CLTCH ROD

$

$

Not available

45

$

$

Not available

46

Ariens 01204200

PEDAL
(Superseded to 01214600)

$

$

Not available

47

Ariens 01204400

FRONT LINK

$

$

Not available

48

Ariens 01204500

MOWER CLTCH LINK

$

$

Not available

49

Ariens 01204600

MOWER CLUTCH BRACKET

$

$

Not available

50

Ariens 01204700

MOWER OVERCENTER LEVER
(Superseded to 02607700)

$

$

Not available

51

Ariens 01204900

CLTCH TRANSFER LEVER

$

$

Not available

52

Ariens 01205000

HANGER BRACKET

$

$

Not available

53

Ariens 01206500

SPRING
(Superseded to 08302500)

$

$

Not available

54

Ariens 01206700

HANGER PIN

$

$

Not available

55

Ariens 01207000

SEAT BRACKET

$

$

Not available

56

Ariens 01207100

REAR CLTCH ROD

$

$

Not available

57

Ariens 01207200

REAR BELT FINGER
(Superseded to 01214700)

$

$

Not available

58

Ariens 01207400

BRAKE BAND WASHER

$

$

Not available

59

Ariens 01207500

SHIFT CNTL

$

$

Not available

60

Ariens 01207600

SHIFT LINKS

$

$

Not available

61

Ariens 01207800

CHAIN
(Superseded to 02477700)

$14.48

$

In Stock, only 2 left!

0

62

Ariens 01207900

SEAT SUPPORT WASHER

$

$

Not available

63

Ariens 01208100

IDLER SPRING
(Superseded to 08302600)

$20.07

$

Usually ships in 4-12 days

0

64

Ariens 01208200

FRAME CHANNEL

$

$

Not available

65

Ariens 01208300

SEAT
(Superseded to 08574053)

$

$

Not available

66

$

$

Not available

67

Ariens 01208600

CAP, .50 ROD YWZC

$2.52

$

In Stock, only 2 left!

0

68

Ariens 01208900

FOOT PAD

$

$

Not available

69

Ariens 01209000

GUIDE PLATE

$

$

Not available

70

Ariens 01209100

SPRING WASH

$

$

Not available

71

Ariens 01209400

SHIFT TRANSFER LEVER

$

$

Not available

72

Ariens 01209500

SLIDING FORK
(Superseded to 51201700)

$

$

Not available

73

Ariens 01209600

SHIFT LINK

$

$

Not available

74

Ariens 01209800

DRIVE DISK
(Superseded to 01231600)

$

$

Not available

75

Ariens 01209900

DRIVE SPINDLE
(Superseded to 01231600)

$

$

Not available

76

Ariens 01210000

BEARING SPACER .87 X .63 X 1.2

$

$

Not available

77

Ariens 01210100

FRONT AXLE ASSM

$

$

Not available

78

Ariens 01210200

L H WHEEL SPINDLE
(Superseded to 02735400)

$90.56

$

Usually ships in 4-12 days

0

79

Ariens 01210300

R H WHEEL SPINDLE

$

$

Not available

80

Ariens 01210400

CENTER STEER COL

$

$

Not available

81

Ariens 01210500

TIE ROD

$

$

Not available

82

Ariens 01210600

STEER BLOCK

$

$

Not available

83

Ariens 01210700

FRONT FRAME ASSM

$

$

Not available

84

Ariens 01210800

MOWER CLUTCH LEVER

$

$

Not available

85

Ariens 01210900

BLADE BRAKE

$

$

Not available

86

Ariens 01212200

REAR FRAME

$

$

Not available

87

Ariens 01212300

FOOT REST

$

$

Not available

88

Ariens 01212400

HANGER LINK

$

$

Not available

89

Ariens 01212600

MOWER CLTCH PEDAL

$

$

Not available

90

Ariens 01212700

BRAKE RELEASE CHAIN

$

$

Not available

91

Ariens 01212800

FLANGE BUSHING

$5.53

$

Usually ships in 4-12 days

0

92

Ariens 01212900

FLANGE BUSHING

$5.53

$

Usually ships in 4-12 days

0

93

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.30

$

In Stock, only 4 left!

0

94

Ariens 01213200

IDLER
(Superseded to 52007000)

$44.55

$

Usually ships in 4-12 days

0

95

Ariens 01213300

CARR SHFT

$

$

Not available

96

Ariens 01213400

BRAKE BELLCRNK
(Superseded to 51200300)

$

$

Not available

97

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$13.36

$

In Stock, Qty 20+

0

98

Ariens 05408000

BRG-BALL .500X1.38X.437

$20.07

$

In Stock, Qty 13

0

99

Ariens 05408300

BRG-BALL 1.25X2.18X.63

$

$

Not available

100

Ariens 05501400

BSHG-SLV .625X.750X.500

$

$

Not available

101

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$3.63

$

In Stock, Qty 20+

0

102

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

$6.65

$

In Stock, only 2 left!

0

103

Ariens 05503000

BSHG-FLG.875X1X.625X1.250 BR

$9.45

$

In Stock, Qty 12

0

104

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$3.63

$

In Stock, Qty 20+

0

105

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.63

$

In Stock, Qty 20+

0

106

Ariens 05503800

BSHG-FLG.750X1X.375X1.250 IC

$

$

Not available

107

Ariens 05603400

SEAL .625X.875X.125

$9.34

$

Usually ships in 4-12 days

0

108

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.58

$

In Stock, Qty 8

0

109

Ariens 01215000

PIN-CLEVIS .500 X 3.250

$

$

Not available

110

Ariens 01215100

CLEVIS PIN

$

$

Not available

111

Ariens 05800300

PIN-ROLL .188X1.25

$1.96

$

In Stock, Qty 10

0

112

Ariens 05800700

PIN-ROLL .250X1.25

$1.96

$

In Stock, Qty 20+

0

113

Ariens 05800700

PIN-ROLL .250X1.25

$1.96

$

In Stock, Qty 20+

0

114

Ariens 05802500

PIN-GRV .188X.75 TP G

$

$

Not available

115

Ariens 01035400

HYDRAULIC DRIVE FITTING

$5.53

$

In Stock, Qty 19

0

116

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.96

$

In Stock, Qty 18

0

117

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$1.79

$

In Stock, Qty 5

0

118

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.96

$

Usually ships in 4-12 days

0

119

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.96

$

In Stock, Qty 18

0

120

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.96

$

In Stock, Qty 18

0

121

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.96

$

In Stock, Qty 18

0

122

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$2.80

$

In Stock, Qty 20+

0

123

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$2.99

$

In Stock, only 2 left!

0

124

Ariens 05900700

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

$2.52

$

In Stock, only 2 left!

0

125

Ariens 05900700

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

$2.52

$

In Stock, only 2 left!

0

126

Ariens 06001800

SCR-SET .25-20X.50 SQHCUP HT

$

$

Not available

127

Ariens 06201400

BLT-RDHDSQNK .50-13X1.25 PL
(Superseded to 06224700)

$5.53

$

Usually ships in 4-12 days

0

128

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$2.24

$

In Stock, Qty 6

0

129

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$2.24

$

In Stock, only 3 left!

0

130

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.52

$

In Stock, only 4 left!

0

131

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

132

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$2.52

$

In Stock, Qty 6

0

133

Ariens 05407000

BRG-CUP1.980X.420

$16.71

$

In Stock, Qty 20+

0

134

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

135

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$2.52

$

In Stock, Qty 6

0

136

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$2.52

$

In Stock, Qty 6

0

137

Ariens 05403800

BRG-NEEDLE .625X.812X.50

$20.07

$

Usually ships in 4-12 days

0

138

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$13.36

$

In Stock, Qty 20+

0

139

Ariens 06404200

WSHR-FL-STL .755X2.000X.125
(Superseded to 06444800)

$5.53

$

Usually ships in 4-12 days

0

140

Ariens 05404500

BRG-CONE .750X.61

$13.36

$

In Stock, Qty 7

0

141

Ariens 05404800

BRG-CUP 3.346X.532

$

$

Not available

142

Ariens 06400500

WSHR-FL-STL .812X2.000X.148
(Superseded to 06439800)

$3.63

$

In Stock, only 2 left!

0

143

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.96

$

In Stock, Qty 20+

0

144

Ariens 06500200

NUT-JAM .625-11

$

$

Not available

145

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.68

$

Usually ships in 4-12 days

0

146

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$2.24

$

In Stock, Qty 20+

0

147

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$2.24

$

In Stock, Qty 20+

0

148

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

149

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$1.96

$

In Stock, only 3 left!

0

150

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.12

$

In Stock, only 2 left!

0

151

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.96

$

In Stock, Qty 20+

0

152

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.12

$

In Stock, only 2 left!

0

153

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.80

$

In Stock, Qty 20+

0

154

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 10

0

155

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$1.96

$

In Stock, Qty 14

0

156

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 10

0

157

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

158

Ariens 06903800

THROTTLE CONTROL

$

$

Not available

159

Ariens 05405000

BRG-CUP 2.441X.562

$

$

Not available

160

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.46

$

Usually ships in 4-12 days

0

161

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.58

$

Usually ships in 4-12 days

0

162

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.63

$

In Stock, Qty 16

0

163

Ariens 07204800

V-BELT, SAE 380-RAW EDGE

$19.68

$

Usually ships in 4-12 days

0

164

$

$

Not available

165

Ariens 07800200

HEIGHT QUADRANT LABEL

Note: (Not Illustrated)

$

$

Not available

166

Ariens 07800300

MOWER IN-OUT LABEL

Note: (Not Illustrated)

$

$

Not available

167

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

Note: (Not Illustrated)

$25.49

$

Usually ships in 4-12 days

0

168

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

Note: (Not Illustrated)

$25.49

$

Usually ships in 4-12 days

0

169

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

Note: (Not Illustrated)

$25.49

$

Usually ships in 4-12 days

0

170

Ariens 00309500

R H HANDLE BAR
(Superseded to 00300500)

Note: (12M4)

$

$

Not available

171

Ariens 00309600

L H HANDLE BAR
(Superseded to 00300500)

Note: (12M4)

$

$

Not available

172

Ariens 00327900

SPACER

Note: (12M4)

$

$

Not available

173

Ariens 01200700

HNDLBR PANEL

Note: (12M4)

$

$

Not available

174

Ariens 01208800

SEAT COVER
(Superseded to 01217500)

Note: (12M4)

$

$

Not available

175

Ariens 05900700

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

Note: (12M4)

$2.52

$

In Stock, only 2 left!

0

176

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

Note: (12M4)

$2.80

$

In Stock, only 4 left!

0

177

Ariens 07106900

WHL 10 IN O.D.
(Superseded to 07116500)

Note: (12M4)

$

$

Not available

178

Ariens 07500600

GRIP
(Superseded to 07500113)

Note: (12M4)

$5.81

$

Usually ships in 4-12 days

0

179

Ariens 07800200

HEIGHT QUADRANT LABEL

Note: (12M4)

$

$

Not available

180

Ariens 07800300

MOWER IN-OUT LABEL

Note: (12M4)

$

$

Not available

181

Ariens 07116500

T/WHL ASSY

Note: (12M4)

$

$

Not available

200

Ariens 07104900

TIRE 4.10/3.50X6 2PLY

Note: (Req'd. per wheel)(12M4)

$31.45

$

In Stock, only 2 left!

0

201

Ariens 07105000

TUBE

Note: (Req'd. per wheel)(12M4)

$8.89

$

Usually ships in 4-12 days

0

202

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Req'd. per wheel)(12M4)

$

$

Not available

182

Ariens 01211800

HANDLE BAR

Note: (12M5)

$

$

Not available

183

Ariens 01211900

HANDLE BAR PANEL
(Superseded to 01215800)

Note: (12M5)

$

$

Not available

184

Ariens 01212000

SEAT COVER
(Superseded to 01217500)

Note: (12M5)

$

$

Not available

185

Ariens 01212100

SEAT BACK SUPPORT

Note: (12M5)

$

$

Not available

186

Ariens 01213500

BACK REST
(Superseded to 01217600)

Note: (12M5)

$

$

Not available

187

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

Note: (12M5)

$1.96

$

Usually ships in 4-12 days

0

188

Ariens 06803100

RVT-POP.125 X .294 DOME

Note: (12M5)

$

$

Not available

189

Ariens 61200500

FRONT WHEEL ASSEMBLY
(Superseded to 07126400)

Note: (12M5)

$59.20

$

In Stock, only 1 left!

0

190

Ariens 00328900

PAPER GASKET

Note: (Req'd per wheel)(12M5)

$

$

Not available

191

Ariens 05502700

BSHG-FLG.750X1.125X1.250X1.312

Note: (Req'd per wheel)(12M5)

$5.81

$

Usually ships in 4-12 days

0

192

Ariens 05502800

BSHG-FLG .750X1.129X.750

Note: (Req'd per wheel)(12M5)

$8.89

$

Usually ships in 4-12 days

0

193

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

Note: (Req'd per wheel)(12M5)

$1.96

$

Usually ships in 4-12 days

0

194

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (Req'd per wheel)(12M5)

$2.24

$

In Stock, Qty 6

0

195

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

Note: (Req'd per wheel)(12M5)

$1.96

$

In Stock, Qty 20+

0

203

Ariens 07105500

TIRE 4.1/3.50X4

Note: (Req'd per wheel)(12M5)

$

$

Not available

204

Ariens 07105600

TUBE
(Superseded to 07108500)

Note: (Req'd per wheel)(12M5)

$11.12

$

Usually ships in 4-12 days

0

205

Ariens 07105700

WHL
(Superseded to 52703100)

Note: (Req'd per wheel)(12M5)

$85.64

$

Usually ships in 4-12 days

0

196

Ariens 07800300

MOWER IN-OUT LABEL

Note: (12M5)

$

$

Not available

197

Ariens 14-12000

Tire and Wheel Assembly consisting of:(12M5)

Note: (12M5)

$

$

Not available

Ariens 07106600

TIRE 12.5/4.50-6
(Superseded to 07102800)

Note: (Req'd per wheel)(12M5)

$

$

Not available

Ariens 07105000

TUBE

Note: (Req'd per wheel)(12M5)

$8.89

$

Usually ships in 4-12 days

0

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Req'd per wheel)(12M5)

$

$

Not available

198

Ariens 05502000

BSHG-FLG.750X1.125X1.000X1.125

$

$

Not available

199

Ariens 05501900

BSHG-FLG.750X1.125X1.000X1.250

$

$

Not available
