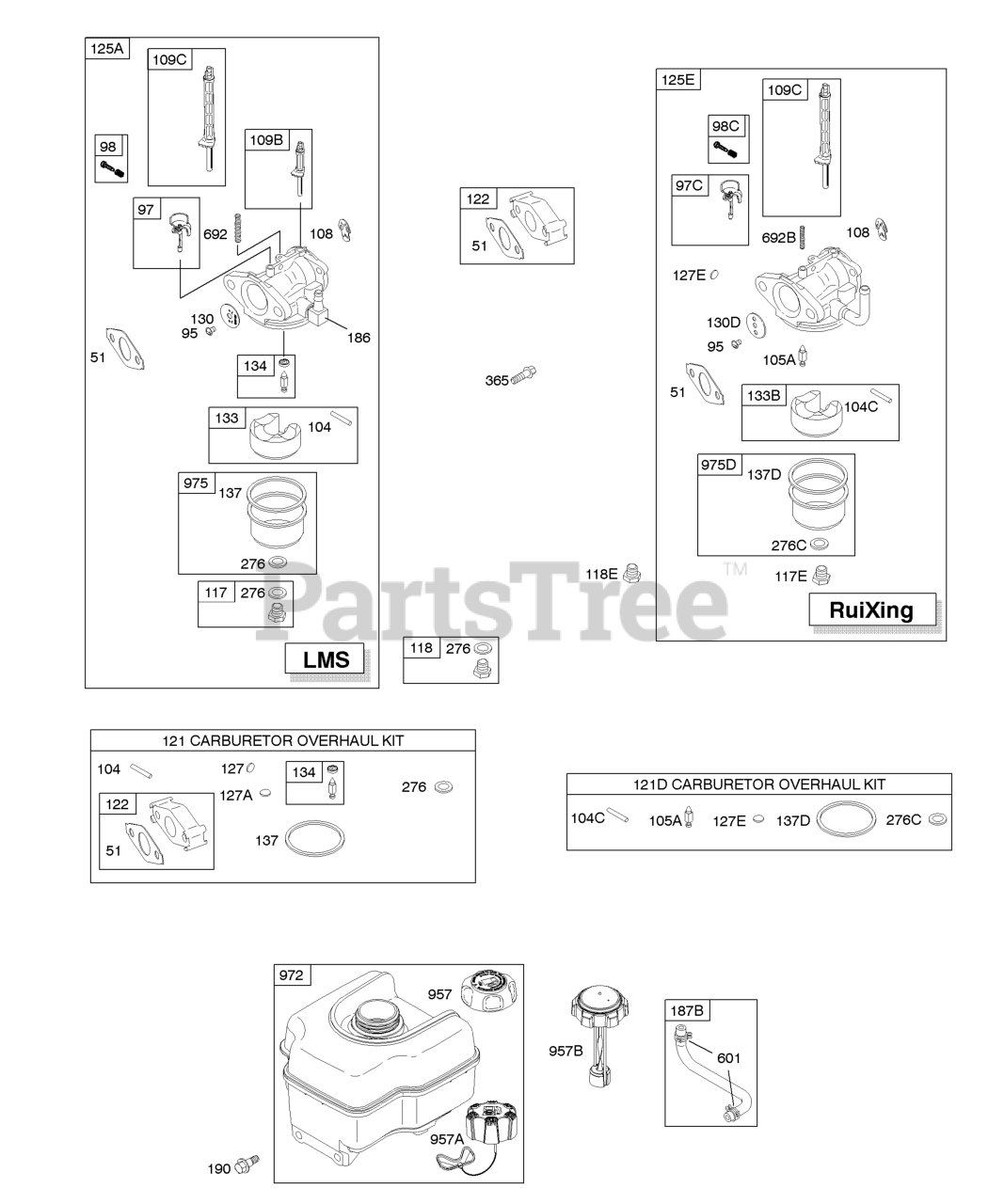

12R212-0366-E1 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply Parts Diagram

Horizontal Engine

Carburetor, Fuel Supply Parts Diagram

  • Title
51

Briggs & Stratton 692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 20+

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

97C

Briggs & Stratton 797628

Shaft-Throttle

$28.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Kit-Idle Speed

$7.99

$

In Stock, only 1 left!

0

98C

Briggs & Stratton 797156

Kit-Idle Speed

$12.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 5

0

104C

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 5

0

105A

Briggs & Stratton 797139

Valve-Float Needle

$15.99

$

In Stock, only 3 left!

0

108

Briggs & Stratton 695807

Valve-Choke
(Superseded to 796993)

$9.49

$

In Stock, only 1 left!

0

109B

$30.99

$

In Stock, only 1 left!

0

109C

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690048

Jet-Main

Note: (Standard)

$13.99

$

Usually ships in 2-12 days

0

117E

Briggs & Stratton 798930

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 498977

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

118E

Briggs & Stratton 798661

Jet-Main

Note: (High Altitude)

$19.99

$

In Stock, only 3 left!

0

121

Briggs & Stratton 792006

Kit-Carb Overhaul

$28.99

$

In Stock, only 4 left!

0

121D

Briggs & Stratton 797634

Kit-Carb Overhaul

$57.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 795643

Spacer-Carburetor

$13.99

$

In Stock, Qty 13

0

125A

Briggs & Stratton 794587

Carburetor
(Superseded to 798917)

Note: Used Before Code Date 10050100

$92.99

$

In Stock, only 1 left!

0

125E

Briggs & Stratton 798917

Carburetor

Note: Used After Code Date 10043000

$92.99

$

In Stock, only 1 left!

0

127

$4.49

$

In Stock, Qty 7

0

127A

$4.49

$

In Stock, only 3 left!

0

127E

$4.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

130D

Briggs & Stratton 797630

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 7

0

133B

Briggs & Stratton 797136

Float-Carburetor

$14.99

$

In Stock, only 1 left!

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

137D

Briggs & Stratton 798932

Gasket-Float Bowl

$7.99

$

In Stock, Qty 7

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 798907

Line-Fuel

Note: (Molded) Used After Code Date 10043000

$15.99

$

In Stock, only 1 left!

0

187B

Briggs & Stratton 791874

Line-Fuel

Note: (Molded) Used Before Code Date 10050100

$16.99

$

In Stock, Qty 9

0

190

Briggs & Stratton 699220

Screw
(Superseded to 597133)

Note: (Fuel Tank)

$4.99

$

In Stock, Qty 13

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

276C

Briggs & Stratton 797632

Washer-Sealing

$7.99

$

In Stock, Qty 20+

0

365

Briggs & Stratton 699484

Screw

Note: (Carburetor)

$3.99

$

In Stock, Qty 15

0

601

$3.49

$

In Stock, Qty 20+

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Choke)

$5.49

$

In Stock, only 2 left!

0

692B

Briggs & Stratton 797624

Spring-Detent

$5.49

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 792647

Cap-Fuel Tank
(Superseded to 795027)

Note: (Plastic) (Fresh Start)

$10.99

$

In Stock, Qty 8

0

957

Briggs & Stratton 795027

Cap-Fuel Tank

Note: (Plastic) (Text Free)

$10.99

$

In Stock, Qty 8

0

957A

Briggs & Stratton 799719

CAP, Fuel Tank

Note: (Plastic) (Carbon In Cap)

$40.99

$

In Stock, only 1 left!

0

957B

Briggs & Stratton 698109

Cap-Fuel Tank

Note: (Plastic)

$39.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$89.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$6.49

$

In Stock, Qty 20+

0

975D

$43.99

$

Usually ships in 2-12 days

0
