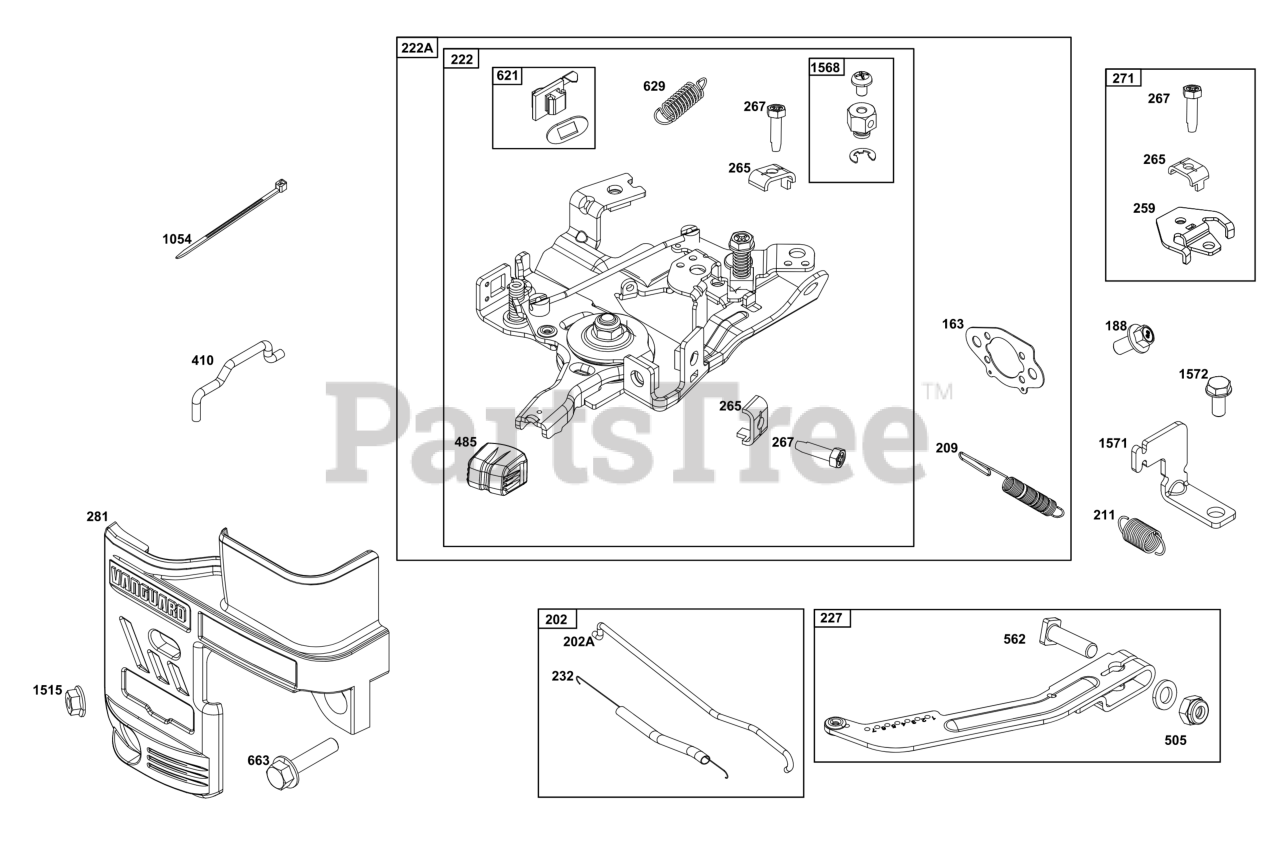

12V337-0167-F1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

188

Briggs & Stratton 590850

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, only 4 left!

0

202

Briggs & Stratton 597032

LINK, Mechanical Governor

$5.99

$

In Stock, only 2 left!

0

202A

Briggs & Stratton 597033

LINK, Mechanical Governor

$3.99

$

In Stock, only 3 left!

0

209

Briggs & Stratton 84003519

SPRING, Governor

Note: Used Before Code Date 20110600

$4.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 597111

SPRING, Governor

Note: Used After Code Date 20110500

$6.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691278

SPRING, Governor

$7.99

$

In Stock, Qty 11

0

222A

Briggs & Stratton 84007746

BRACKET, Control

Note: Used Before Code Date 20110600

$

$

Currently unavailable

222

Briggs & Stratton 84006188

BRACKET, Control

Note: Used After Code Date 20110500

$37.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 84003330

LEVER, Governor Control

$12.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 597034

SPRING, Governor Link

$4.49

$

Usually ships in 2-12 days

0

259

Briggs & Stratton 596950

BRACKET, Casing Clamp

$

$

Currently unavailable

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 14

0

267

Briggs & Stratton 597027

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 597026

BRACKET, Remote

$6.49

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 84004647

PANEL, Control

$10.99

$

Usually ships in 2-12 days

0

410

Briggs & Stratton 597024

LINK, Control

$5.49

$

Usually ships in 2-12 days

0

485

Briggs & Stratton 84004631

KNOB, Control

$3.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 590641

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 597121

BOLT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 84007989

SWITCH, Stop

$6.99

$

Usually ships in 0 days

0

629

Briggs & Stratton 597022

SPRING, Throttle Return

$9.49

$

In Stock, only 2 left!

0

663

Briggs & Stratton 84003635

SCREW

Note: (Control Panel)

$3.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1515

Briggs & Stratton 590692

NUT

Note: (Control Panel)

$3.49

$

In Stock, only 1 left!

0

1568

Briggs & Stratton 84005188

RETAINER, Wire

$3.99

$

Usually ships in 2-12 days

0

1571

Briggs & Stratton 597035

BRACKET, Governor Control

$3.99

$

Usually ships in 2-12 days

0

1572

Briggs & Stratton 597036

SCREW

Note: (Governed Idle Spring Bracket)

$3.49

$

Usually ships in 2-12 days

0
