12V337-0171-H7 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

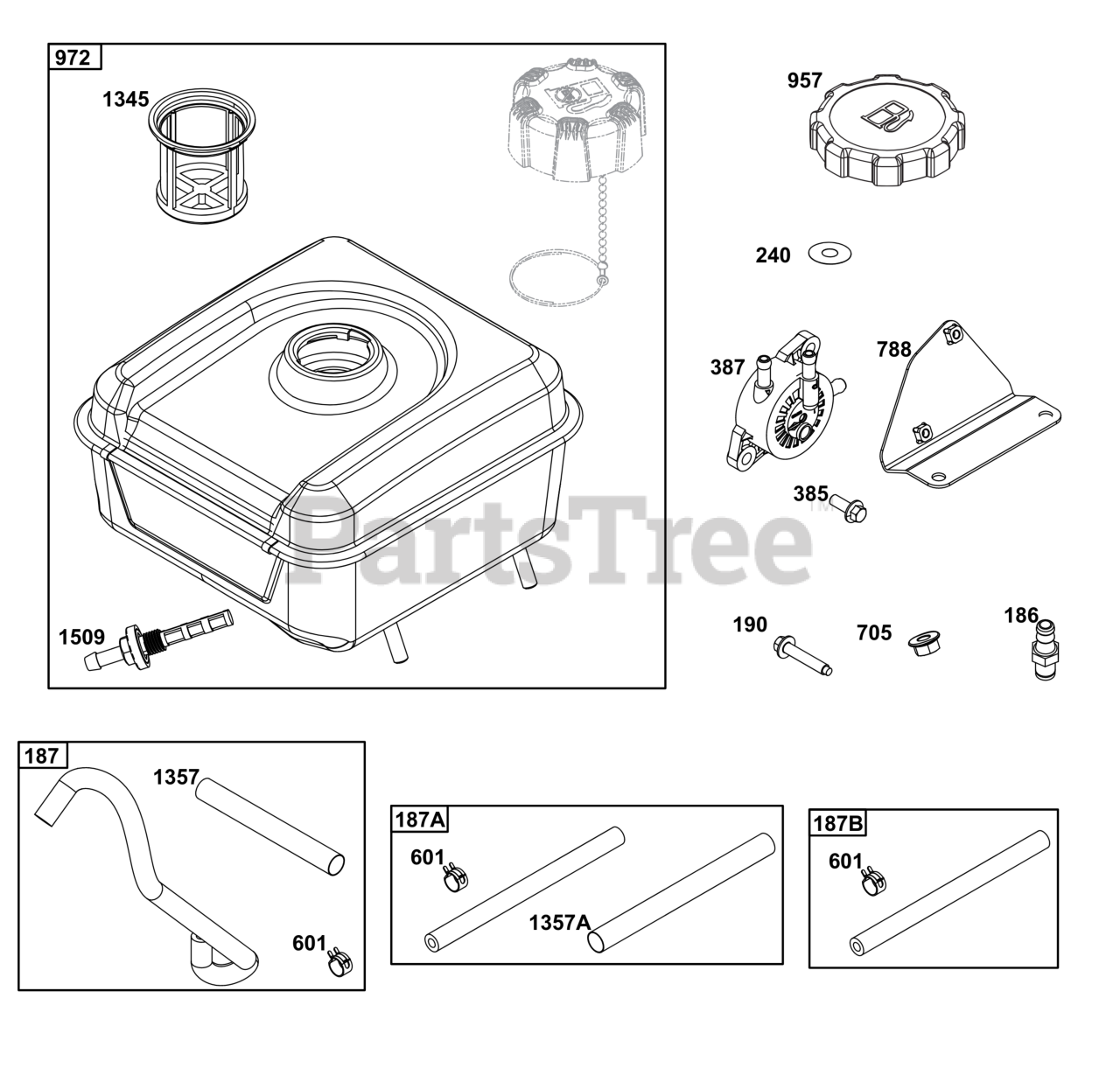

Fuel Supply Group Parts Diagram

  • Title

186

Briggs & Stratton 84007494

CONNECTOR, Hose

$

$

Currently unavailable

187

Briggs & Stratton 84003746

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791745

LINE, Fuel

$10.99

$

In Stock, Qty 15

0

187B

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 591476

SCREW

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 597039

FILTER, Fuel

$6.99

$

In Stock, only 1 left!

0

385

Briggs & Stratton 590703

SCREW

Note: (Fuel Pump)

$3.49

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 597338

PUMP, Fuel

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 18

0

705

Briggs & Stratton 707919

NUT

Note: (Fuel Tank)

$3.49

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 84005241

BRACKET, Fuel Pump

$20.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 794641

CAP, Fuel Tank

$20.99

$

In Stock, only 2 left!

0

972

Briggs & Stratton 84004779

TANK, FUEL

$74.99

$

Usually ships in 2-12 days

0

1345

Briggs & Stratton 792917

FILTER, Filler Neck

$5.49

$

In Stock, only 2 left!

0

1357

Briggs & Stratton 590688

SLEEVE, Fuel Line

Note: (160mm)

$8.99

$

In Stock, only 1 left!

0

1357A

Briggs & Stratton 84005253

SLEEVE, Fuel Line

Note: (278mm)

$6.99

$

Usually ships in 2-12 days

0

1509

Briggs & Stratton 797346

OUTLET, Tank

$12.99

$

In Stock, only 2 left!

0
