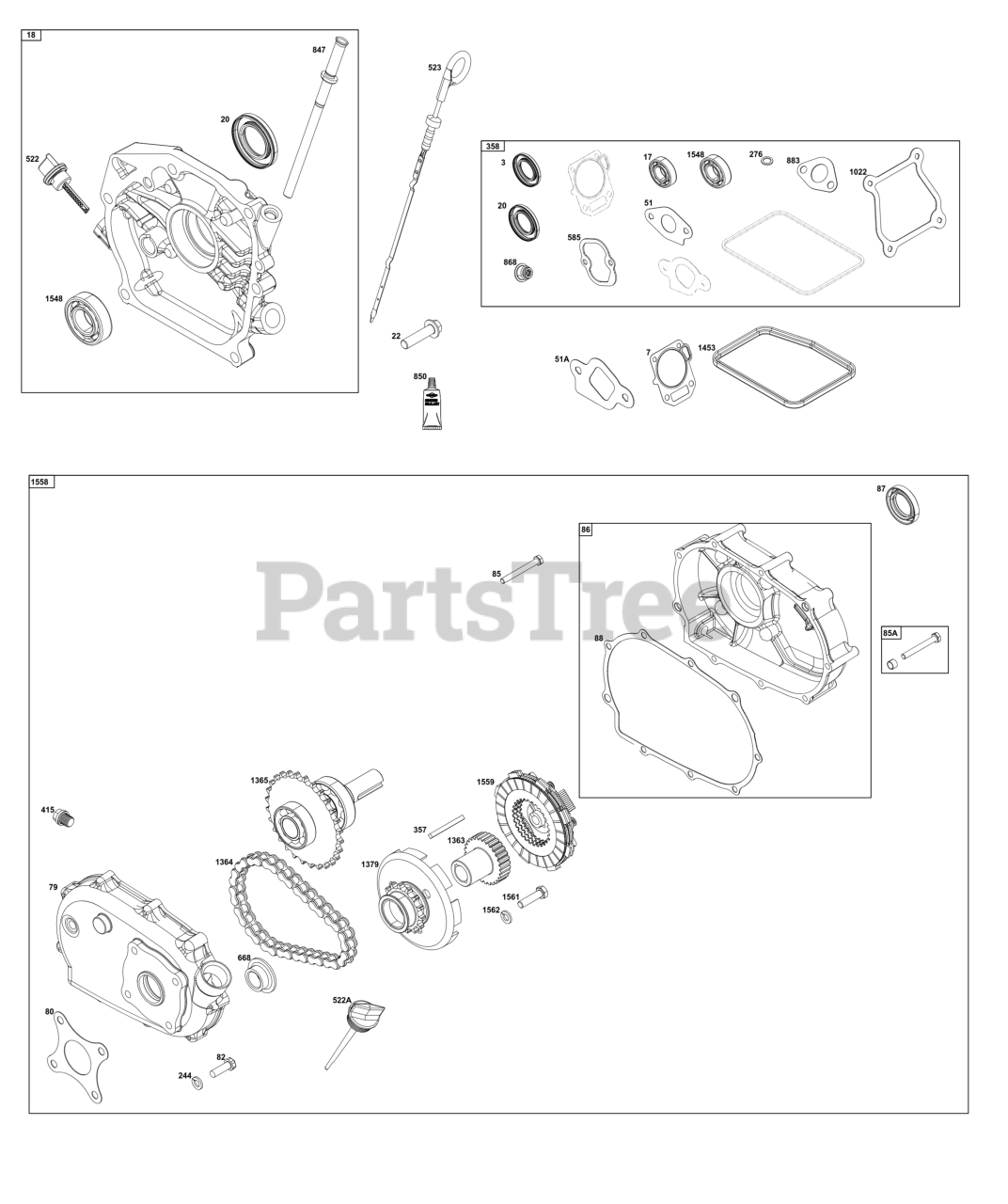

12V367-0150-F1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 596986

COVER, Crankcase

$172.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 596991

SEAL, Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 84003635

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

79

Briggs & Stratton 84003401

CASE, GEAR REDUCTION

$217.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 84003382

GASKET, GEAR CASE

$34.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 84003392

SCREW

$17.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 84003384

SCREW

$16.99

$

Usually ships in 2-12 days

0

85A

Briggs & Stratton 84003385

SCREW

$21.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 84003400

COVER, GEAR

$217.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 84003383

SEAL, GEAR REDUCTION

$23.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 84003398

GASKET, GEAR COVER/HOUSING

$58.99

$

Usually ships in 2-12 days

0

244

Briggs & Stratton 84003393

WASHER

$4.49

$

Usually ships in 2-12 days

0

276

WASHER, Sealing

Note: (Part information located in Carburetor Group.)

$

$

Not available

357

Briggs & Stratton 84003394

KEY, DRIVE PULLEY

$11.99

$

Usually ships in 2-12 days

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

415

Briggs & Stratton 84003388

PLUG

$23.99

$

Usually ships in 2-12 days

0

522

PLUG, Dipstick/Fill

Note: (Part information located in Lubrication Group.)

$

$

Not available

522A

Briggs & Stratton 84003386

PLUG, DIPSTICK/FILL

$31.99

$

Usually ships in 2-12 days

0

523

DIPSTICK

Note: (Part information located in Lubrication Group.)

$

$

Not available

585

GASKET, Breather Passage

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

668

Briggs & Stratton 84003390

SPACER

$68.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton JUMPTO847

DIPSTICK/TUBE ASSEMBLY

Note: (Part information located in Lubrication Group.)

$

$

Currently unavailable

850

SEALANT, Liquid

Note: (Part information located in Cylinder Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1363

Briggs & Stratton 84003404

SPROCKET, GEAR REDUCTION

$107.99

$

Usually ships in 2-12 days

0

1364

Briggs & Stratton 84003389

CHAIN, GEAR REDUCTION

$94.99

$

Usually ships in 2-12 days

0

1365

Briggs & Stratton 84003387

SHAFT, OUTPUT GEAR REDUCTION

$217.99

$

Usually ships in 2-12 days

0

1379

Briggs & Stratton 84003395

CLUTCH, DRUM

$142.99

$

Usually ships in 2-12 days

0

1453

SEAL, Air Cleaner Cover

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

1548

Briggs & Stratton 596990

BEARING, Ball

Note: (Crankcase Cover/Sump)

$22.99

$

Usually ships in 2-12 days

0

1558

Briggs & Stratton 84003432

GEAR REDUCTION ASSEMBLY

$611.99

$

Usually ships in 2-12 days

0

1559

Briggs & Stratton 84003433

CLUTCH ASSEMBLY

$358.99

$

Usually ships in 2-12 days

0

1561

Briggs & Stratton 84003391

SCREW

$10.99

$

Usually ships in 2-12 days

0

1562

Briggs & Stratton 84003393

WASHER

$4.49

$

Usually ships in 2-12 days

0
