13-260 (1692256) - Simplicity Bio-Cycler Chipper Hoppers & Engine/Motor Group (2631I01) Parts Diagram

Bio-Cycler Chipper

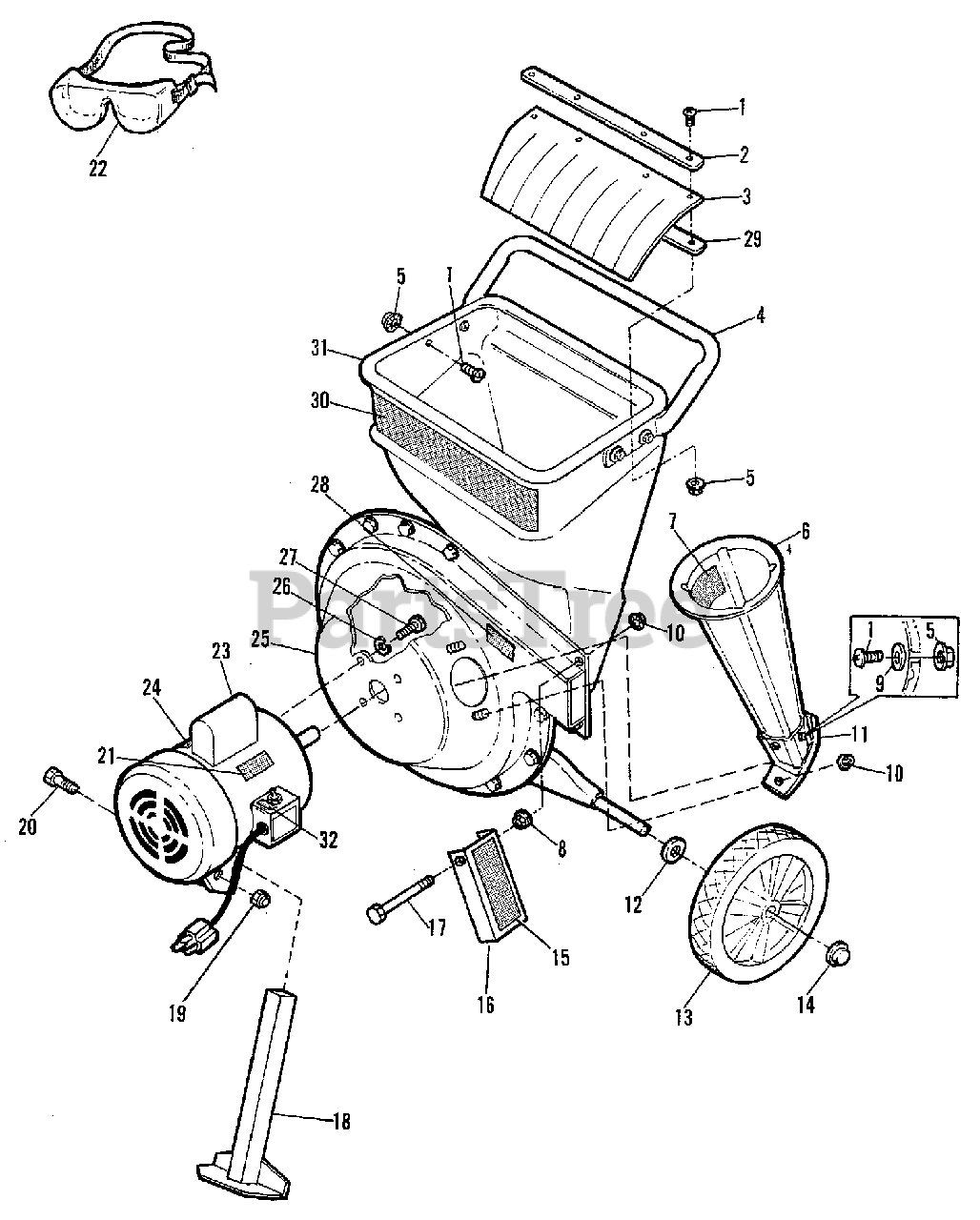

Hoppers & Engine/Motor Group (2631I01) Parts Diagram

  • Title

1

Simplicity 1960507SM

SCREW, Button Head, Hex Socket, 1/4-20 x 3/4

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1098100SM

RETAINING STRIP, Hopper Guard

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1095100SM

GUARD, Hopper

$42.99

$

Usually ships in 2-12 days

0

4

Simplicity 1729181SM

HANDLE, Hopper

$46.99

$

Usually ships in 2-12 days

0

5

Simplicity 1930642SM

NUT, Flange Two Way Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 1709472SM

CHIPPER CONE

$

$

Not available

7

Simplicity 1729207SM

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

8

Simplicity 1687022SM

NUT, Shoulder

$

$

Not available

9

Simplicity 1921319SM

WASHER, 1/4"
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

10

Simplicity 1931277SM

NUT, Whiz, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1067200SM

CHIPPER CONE CASTING

$131.99

$

Usually ships in 2-12 days

0

12

Simplicity 1924361SM

WASHER, 1/2"
(Superseded to 703451)

$4.49

$

In Stock, Qty 6

0

13

Simplicity 1714250SM

WHEEL, 1-3/4 x 12

$43.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960519SM

PUSH NUT, 1/2"
(Superseded to 703179)

$3.49

$

In Stock, only 1 left!

0

15

Simplicity 1709529SM

DECAL, Danger

$6.99

$

Usually ships in 2-12 days

0

16

Simplicity 1709538SM

DISCHARGE DEFLECTOR

$

$

Not available

17

Simplicity 1709536SM

BOLT, Shoulder

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 1729185SM

LEG TUBE ASSEMBLY

$

$

Not available

19

Simplicity 1919438SM

NUT, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 10

0

20

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

21

Simplicity 1709503SM

DECAL, Caution-Motor

$8.49

$

Usually ships in 2-12 days

0

22

Simplicity 1729013SM

GOGGLES

$

$

Not available

23

Simplicity 7002100

MOTOR ASSEMBLY, 1-1/2 HP Electric

$

$

Not available

24

Simplicity 1709502SM

DECAL, Danger-Motor

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 1729177

CHIPPER HOUSING

$

$

Not available

26

Simplicity 1916803SM

LOCKWASHER, 3/8"

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1922586SM

CAPSCREW, Hex Head, 3/8-16 x 5/8

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 1709603SM

SUPPORT, Hopper Guard

$55.99

$

Usually ships in 2-12 days

0

31

Simplicity 1713521SM

SHREDDER HOPPER

$364.99

$

Usually ships in 2-12 days

0

32

Simplicity 1709504SM

DECAL, On-Off

$7.99

$

Usually ships in 2-12 days

0
