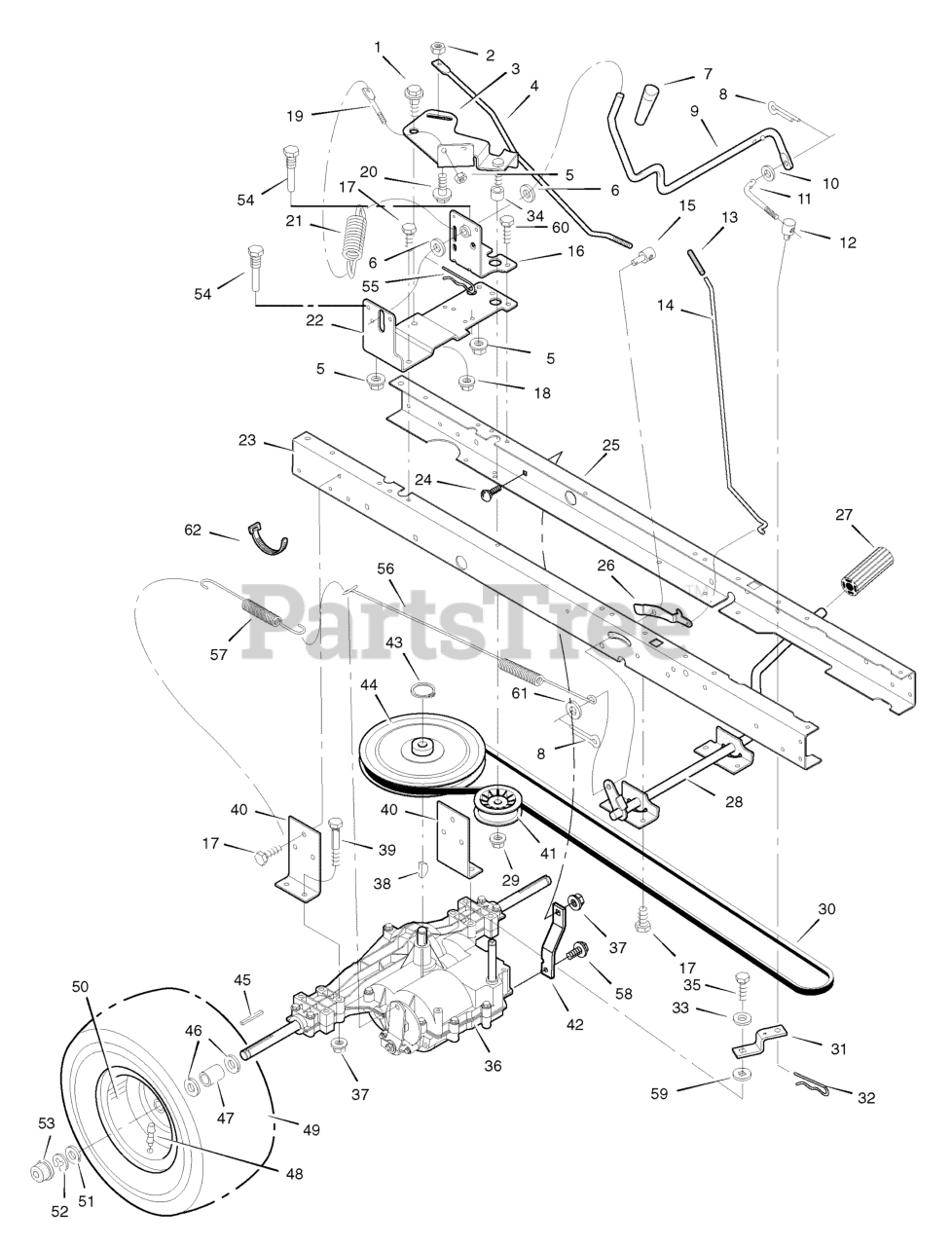

13/30 (312006x11E) - Hayter Heritage 30" Lawn Tractor, Canada (2008) Motion Drive Parts Diagram

Heritage 30" Lawn Tractor, Canada

Motion Drive Parts Diagram

  • Title
1

Murray MU009X39MA

BOLT, Shoulder

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Murray MU7400241MA

ARM, Idler

$

$

Currently unavailable

4

Murray MU094041ZMA

ROD, Clutch

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

8

Murray MU030X20MA

PIN, Cotter

$

$

Currently unavailable

9

Murray MU094043ZMA

LEVER, Shift

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Murray MU094044ZMA

LINK, Shift

$

$

Currently unavailable

12

Murray MU021920ZMA

NUT, Adjuster

$

$

Currently unavailable

$

$

Currently unavailable

14

Murray MU1001245ZMA

ROD, Parking Brake

$

$

Currently unavailable

15

Murray MU094815ZMA

NUT, Adjuster

$

$

Currently unavailable

16

Murray MU1001303ZMA

BRACKET, Shift Pivot

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

19

Murray MU094042ZMA

STUD, Spring Mounting

$

$

Currently unavailable

20

Murray MU009X54MA

BOLT, Shoulder

$

$

Currently unavailable

21

Murray MU165X116MA

SPRING, Extension

$

$

Currently unavailable

22

Murray MU7300824ZMA

BRACKET, Right Shifter

$

$

Currently unavailable

23

Murray MU7300870ZMA

FRAME, Right

$

$

Currently unavailable

24

Murray MU002X53MA

BOLT, Carriage

$

$

Currently unavailable

25

Murray MU7300869ZMA

FRAME, Left

$

$

Currently unavailable

26

Murray MU094045ZMA

LATCH, Parking Brake

$

$

Currently unavailable

$

$

Currently unavailable

28

Murray MU7400256ZMA

LEVER, Brake/Clutch

$

$

Currently unavailable

$

$

Currently unavailable

30

Murray MU7101749MA

BELT, Motion Drive

$

$

Currently unavailable

31

Murray MU094031ZMA

YOKE, Shift

$

$

Currently unavailable

32

Murray MU0031X6MA

PIN, Hair

$

$

Currently unavailable

33

$

$

Currently unavailable

34

$

$

Currently unavailable

$

$

Currently unavailable

36

TRANSAXLE, Peerless **

$

$

Not available

$

$

Currently unavailable

38

Murray MU020697MA

KEY, Woodruff

$

$

Currently unavailable

$

$

Currently unavailable

40

Murray MU7300769ZMA

BRACKET, Transaxle

$

$

Currently unavailable

41

$

$

Currently unavailable

42

Murray MU7300845ZMA

BRACKET, Torque Strap, LH

$

$

Currently unavailable

43

Murray MU0011X7MA

RING, Snap

$

$

Currently unavailable

44

Murray MU095094MA

PULLEY, Drive

$

$

Currently unavailable

45

Murray MU021553MA

KEY, Square

$

$

Currently unavailable

46

$

$

Currently unavailable

47

Murray MU690554ZMA

SPACER, Transaxle

$

$

Currently unavailable

48

Murray MU024373MA

Stem, Valve

$

$

Currently unavailable

49

TIRE

$

$

Not available

$

$

Currently unavailable

50

Murray MU1740470601MA

WHEEL & TIRE ASSEMBLY *

$

$

Currently unavailable

51

$

$

Currently unavailable

52

$

$

Currently unavailable

53

$

$

Currently unavailable

54

Murray MU093349MA

GUIDE, Belt

$

$

Currently unavailable

55

Murray MU0031X4MA

PIN, Hair

$

$

Currently unavailable

56

Murray MU165X141MA

SPRING, Extension

$

$

Currently unavailable

57

Murray MU165X92MA

SPRING, Extension

$

$

Currently unavailable

$

$

Currently unavailable

59

$

$

Currently unavailable

$

$

Currently unavailable

61

$

$

Currently unavailable

62

Murray MU032618MA

TIE, Strap

$

$

Currently unavailable
