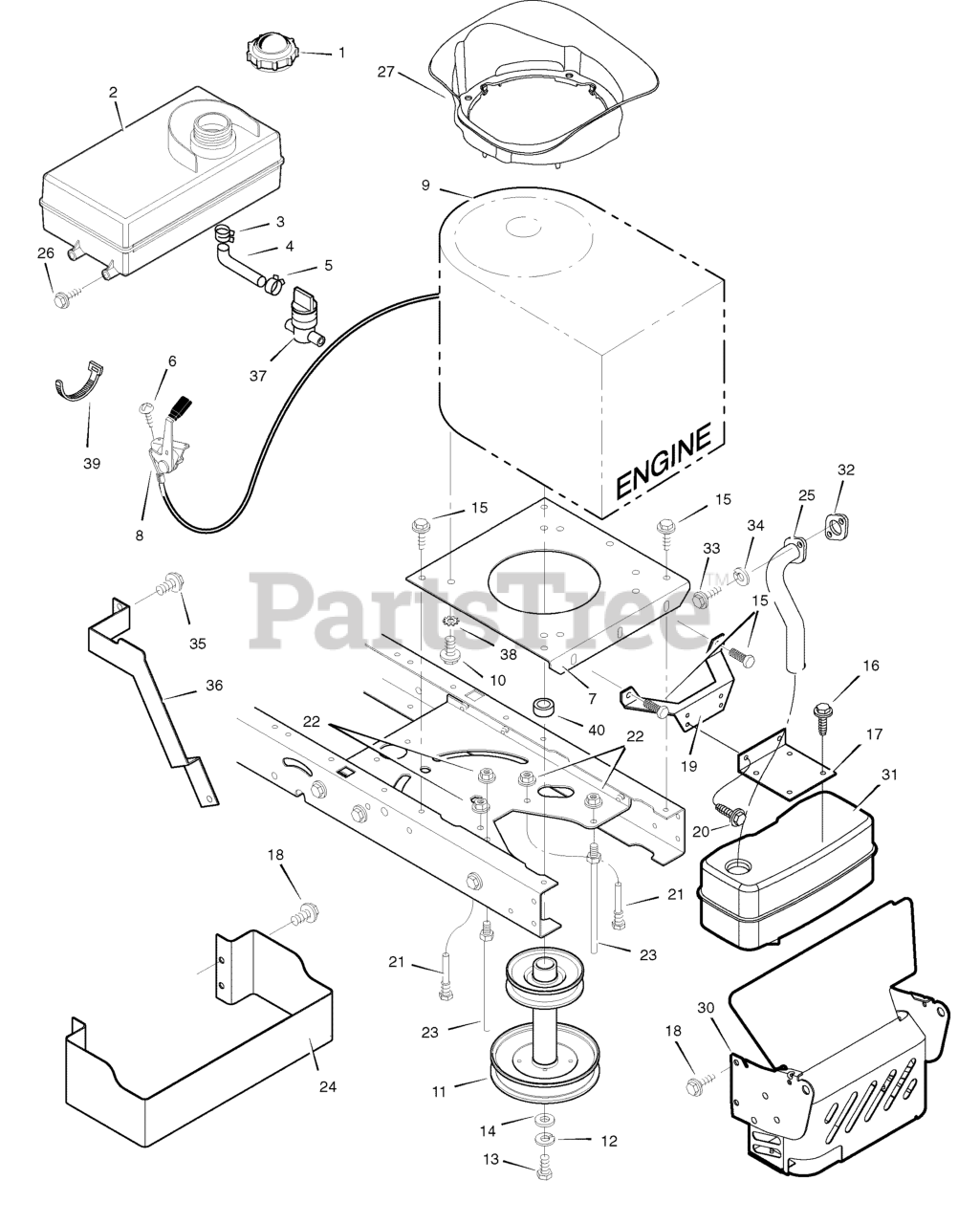

13/30 (312006x11F) - Hayter Heritage 30" Lawn Tractor, Canada (2009) Engine Mount Parts Diagram

Heritage 30" Lawn Tractor, Canada

Engine Mount Parts Diagram

  • Title

1

Murray MU092317MA

FUEL CAP

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

2

Murray MU1002081MA

FUEL TANK

$

$

Currently unavailable

3

Murray MU095197MA

HOSE CLAMP

$

$

Currently unavailable

4

Murray MU7601033MA

FUEL LINE (Cut to length)

$

$

Currently unavailable

5

Murray MU095197MA

HOSE CLAMP

$

$

Currently unavailable

6

Murray MU26X201MA

SCREW

$

$

Currently unavailable

7

Murray MU7300863ZMA

PLATE, Engine

$

$

Currently unavailable

8

Murray MU092371MA

THROTTLE CONTROL

$

$

Currently unavailable

9

ENGINE, Briggs & Stratton *

Note: (Model: 31A5070123B1)

$

$

Not available

10

Murray MU0025X7MA

BOLT, Engine Mount

$

$

Currently unavailable

11

Murray MU690439MA

STACK PULLEY ASSEMBLY

$

$

Currently unavailable

12

Murray MU019X35MA

LOCKWASHER

$

$

Currently unavailable

13

Murray MU01X140MA

BOLT, Hex

$

$

Currently unavailable

14

Murray MU17X170MA

WASHER

$

$

Currently unavailable

15

Murray MU26X249MA

SCREW

$

$

Currently unavailable

16

Murray MU26X229MA

SCREW

$

$

Currently unavailable

17

Murray MU7300760AMA

BRACKET, Muffler

$

$

Currently unavailable

18

Murray MU26X277MA

SCREW

$

$

Currently unavailable

19

Murray MU7300817ZMA

BRACKET, Muffler Mount

$

$

Currently unavailable

20

Murray MU26X213MA

SCREW

$

$

Currently unavailable

21

Murray MU094384MA

GUIDE, Belt

$

$

Currently unavailable

22

Murray MU7090585MA

NUT, Flange

$

$

Currently unavailable

23

Murray MU094066MA

GUIDE, Belt

$

$

Currently unavailable

24

Murray MU7300783AMA

GUARD, Heat Shield

$

$

Currently unavailable

25

Murray MU1001496MA

EXHAUST TUBE, Single

$

$

Currently unavailable

26

Murray MU26X253MA

SCREW

$

$

Currently unavailable

27

Murray MU1001587MA

PLENUM

$

$

Currently unavailable

30

Murray MU7500710AMA

SHIELD, Heat

$

$

Currently unavailable

31

Murray MU094654MA

MUFFLER

$

$

Currently unavailable

32

Murray MU692236

GASKET

$

$

Currently unavailable

33

Murray MU06X103MA

SCREW

$

$

Currently unavailable

34

Murray MU018X15MA

WASHER

$

$

Currently unavailable

35

Murray MU06X104MA

BOLT, Washer Hex Head

$

$

Currently unavailable

36

Murray MU1001880MA

GUARD, Exhaust Pipe

$

$

Currently unavailable

37

Murray MU698183

VALVE, Fuel Shut-Off

$

$

Currently unavailable

38

Murray MU0019X8MA

WASHER, 3/8-5/8 Star

$

$

Currently unavailable

39

Murray MU032618MA

STRAP, Tie

$

$

Currently unavailable

40

Murray MU093077MA

SPACER, Engine

$

$

Currently unavailable
