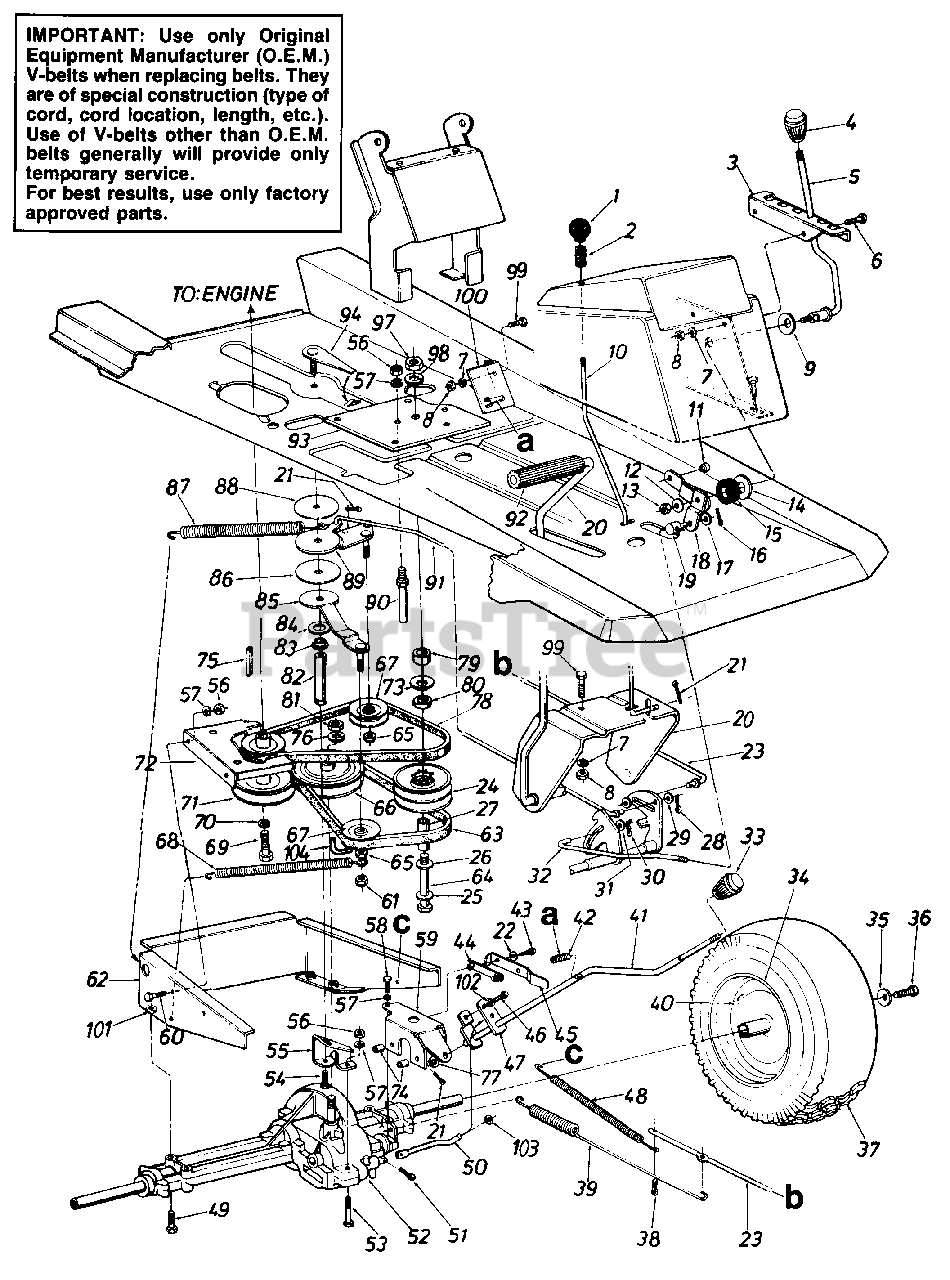

130-511B - MTD Lawn Tractor (1990) Riding Parts Diagram

Lawn Tractor

Riding Parts Diagram

  • Title
1

MTD Part# 720-0187

Ball Knob 1/4-20 Thd. 1.25"
Usually ships in 5 to 10 days

$

$7.29

0

2

MTD Part# 732-0437

Compression Spring
Usually ships in 1 day

$

$7.16

0

3

MTD Part# 16389

Speed Index Bracket

Variations

MTD Part# 16389-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 16389-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 16389-0638

No Longer Available - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

4

MTD Part# 720-0232

Shift Knob
(Superseded to 920-0232)
Usually ships in 1 day

$

$7.29

0

5

MTD Part# 747-0652

Speed Control Lever
Usually ships same day

Not available

$

$

6

MTD Part# 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.
Usually ships in 1 day

$

$3.23

0

7

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

8

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

9

MTD Part# 736-0253

Bell-Wash. .345" I.D. x .88"
(Superseded to 936-0253)
Usually ships in 1 day

$

$2.84

0

10

MTD Part# 747-0450

Brake Locking Rod
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

12

MTD Part# 736-0242

Bell-Wash. .345" I.D. x .08"
Usually ships in 1 day

$

$3.00

0

13

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

14

MTD Part# 736-0154

Fl-Wash. .50" I.D. x 1.5" O.D.
Usually ships same day

Not available

$

$

15

MTD Part# 735-0219

Rubber Washer
Usually ships same day

Not available

$

$

16

MTD Part# 714-0145

Intern. Cotter Pin 1/2" Dia.
(Superseded to 914-0145)
Usually ships same day

Not available

$

$

17

MTD Part# 736-0275

Fl-Wash. .34" I.D. x .68" O.D.
(Superseded to 936-0275)
Usually ships same day

Not available

$

$

18

MTD Part# 16396

Speed Control Lever Brkt. Ass'y.
Usually ships same day

Not available

$

$

19

MTD Part# 711-0677

Ferrule Engagement
(Superseded to 911-0677)
Usually ships in 1 day

$

$12.50

0

20

MTD Part# 17677

Clutch/Brake Pedal Ass'y.
Usually ships same day

Not available

$

$

21

MTD Part# 714-0507

Cotter Pin 3/32" Dia. x .75"
(Superseded to 914-0507)
Usually ships in 1 day

$

$3.15

0

22

MTD Part# 736-0426

Plastic Washer
Usually ships same day

Not available

$

$

23

MTD Part# 747-0431

Brake Rod
Usually ships same day

Not available

$

$

24

MTD Part# 717-0884

Variable Speed Pulley Ass'y.
Usually ships in 5 to 10 days

$

$154.24

0

25

MTD Part# 736-0247

Fl-Wash. .4" I.D. x 1.25" O.D.
Usually ships in 1 day

$

$7.00

0

26

MTD Part# 741-0405

Thrust Brg. 1.25" O.D. x .56" I.D.
(Superseded to 941-0405)
Usually ships same day

Not available

$

$

27

MTD Part# 750-0705

Spacer Sleeve 2.71 "
Usually ships same day

Not available

$

$

28

MTD Part# 714-0115

Cotter Pin 1/8" Dia. x 1.25"
(Superseded to 914-0115)
Usually ships in 1 day

$

$2.79

0

29

MTD Part# 736-0275

Fl-Wash. .34" I.D. x .60" O.D.
(Superseded to 936-0275)
Usually ships same day

Not available

$

$

30

MTD Part# 714-0104

Intern. Cot-Pin 5/16" Dia.
(Superseded to 914-0104)
Usually ships in 1 day

$

$3.09

0

31

MTD Part# 736-0275

Fl-Wash. .34" I.D. x .60" O.D.
(Superseded to 936-0275)
Usually ships same day

Not available

$

$

32

MTD Part# 747-0451

Speed Control Rod
Usually ships same day

Not available

$

$

33

MTD Part# 720-0232

Shift Knob
(Superseded to 920-0232)
Usually ships in 1 day

$

$7.29

0

34

MTD Part# 734-0594

Rear Wheel Rim Only

Variations

MTD Part# 734-0594-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)
Usually ships in 5 to 10 days

$

$50.06

0

MTD Part# 734-0594-0629

RIM ASSEMBLY-8 X 5 - SILVER FLAKE (0629)
Usually ships in 5 to 10 days

$

$50.06

0

MTD Part# 734-0594-0662

RIM ASSEMBLY-8 X 5 - OYSTER GRAY (0662)
Usually ships in 5 to 10 days

$

$50.06

0

MTD Part# 734-0594-0674

No Longer Available RIMASSEMBL - YARDMAN YELLOW (0674)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

35

MTD Part# 736-0242

Bell-Wash. .345" I.D. x.88"
Usually ships in 1 day

$

$3.00

0

36

MTD Part# 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.
Usually ships in 1 day

$

$2.95

0

37

MTD Part# 734-0591

Rear Wheel Ass'y. Comp.

Variations

MTD Part# 734-0591-0911

Wheel Assembly, Gray - Carlisle Gray (0911)
Usually ships in 5 to 10 days

$

$226.13

0

MTD Part# 734-0591-0912

Wheel Assembly, Gray - Dico Gray (0912)
Usually ships in 5 to 10 days

$

$226.13

0

MTD Part# 734-0591-0932

Wheel Assembly, Gray - Dico Beige (0932)
Usually ships in 5 to 10 days

$

$226.13

0

MTD Part# 734-0591-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)
Usually ships in 5 to 10 days

$

$226.13

0

Usually ships same day

$

$

MTD Part# 734-0275

Tire Only

Variations

MTD Part# 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)
Usually ships in 5 to 10 days

$

$107.18

0

MTD Part# 734-0275-0905

TIRE-16X6.5 - Duro (0905)
Usually ships in 5 to 10 days

$

$107.18

0

MTD Part# 734-0275-0902

TIRE-16X6.5 - Dico (0902)
Usually ships same day

Not available

$

$

Usually ships in 5 to 10 days

$

$107.18

0

38

MTD Part# 714-0470

Cotter Pin 1/8" Dia. x 1.25
(Superseded to 914-0470)
Usually ships in 1 day

$

$3.09

0

39

MTD Part# 732-0389

Extension Spring 17.0" Lg.
Usually ships same day

Not available

$

$

40

MTD Part# 734-0255

Air Valve
(Superseded to 934-0255)
Usually ships in 1 day

$

$3.10

0

41

MTD Part# 16475

Shift Lever Ass'y.

Variations

MTD Part# 16475-0637

No Longer Available LEVER ASM- - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

42

MTD Part# 732-0499

Compression Spring 1.50" Lg.
Usually ships in 1 day

$

$6.61

0

43

MTD Part# 710-0227

Hex Wash. Hd. Scr. #8 x .5" Lg
Usually ships in 1 day

$

$3.09

0

44

MTD Part# 726-0222

Insulator Nut
(Superseded to 926-0320)
Usually ships in 5 to 10 days

$

$4.81

0

45

MTD Part# 732-0615

Spring Switch
Usually ships same day

Not available

$

$

46

MTD Part# 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)
Usually ships in 1 day

$

$2.53

0

47

MTD Part# 16476

Shift Lever Adjusting Link
Usually ships same day

Not available

$

$

48

MTD Part# 732-0487

Ext. Spring 81/4" Lg.
Usually ships same day

Not available

$

$

49

MTD Part# 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.
Usually ships in 5 to 10 days

$

$3.29

0

50

MTD Part# 747-0668

Shift Rod
Usually ships same day

Not available

$

$

51

MTD Part# 714-0149B

Intern. Cotter Pin
(Superseded to 914-0149B)
Usually ships same day

Not available

$

$

52

MTD Part# 717-0775V

Transaxle

Note: (See Breakdown)

Usually ships same day

Currently unavailable

$

$

53

MTD Part# 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.
Usually ships in 1 day

$

$2.91

0

54

MTD Part# 710-0180

Hex Bolt 3/8-24 x .75" Lg.
Usually ships in 1 day

$

$4.76

0

55

MTD Part# 15564A

Torque Rod Bracket

Variations

MTD Part# 15564A-0637

No Longer Available BRACKET-TO - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

56

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

57

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

58

MTD Part# 710-0965

Self-Tap Mach. Scr. Type "C" 1/4-20 x 1.37" Lg.
Usually ships same day

Not available

$

$

59

MTD Part# 17515

Shift Lever Support Brkt.
Usually ships same day

Not available

$

$

60

MTD Part# 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.
Usually ships in 1 day

$

$2.91

0

61

MTD Part# 712-0262

Hex L-Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.09

0

62

MTD Part# 15552

Transaxle Support Ass'y.

Variations

MTD Part# 15552-0637

No Longer Available SUPPORT AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

63

MTD Part# 754-0240

V-Belt
(Superseded to 954-0240)
Usually ships in 1 day

$

$33.75

0

64

MTD Part# 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.
Usually ships in 1 day

$

$10.32

0

65

MTD Part# 712-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 912-0116)
Usually ships same day

Not available

$

$

66

MTD Part# 756-0390

5/8 V-Pulley .500" I.D. x 6"
Usually ships same day

Not available

$

$

67

MTD Part# 756-0116

V-Belt Idler .38" I.D. x 3.06"
(Superseded to 756-04209)
Usually ships in 1 day

$

$16.65

0

68

MTD Part# 732-0308

Ext. Spring .50" O.D. x 6.37"
(Superseded to 732-0308A)
Usually ships in 1 day

$

$8.34

0

69

MTD Part# 710-0314

Hex Bolt 7/16-20 x 1.00" Lg.
Usually ships in 1 day

$

$3.15

0

70

MTD Part# 736-0171

L-Wash. 7/16" I.D.
(Superseded to 936-0171)
Usually ships same day

Not available

$

$

71

MTD Part# 756-0391

Engine Pulley .500" O.D. & 3.56" O.D.
Usually ships in 5 to 10 days

$

$119.03

0

72

MTD Part# 15623

Upper Eng. Belt Guard
Usually ships same day

Not available

$

$

73

MTD Part# 736-0219

Bell-Wash. .4" I.D. x 1.12" O.D.
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

74

MTD Part# 750-0686

Spacer.256" I.D. x .50" O.D.
Usually ships same day

Not available

$

$

75

MTD Part# 714-0114

Sq.-Key 1/4" X 2.00" Lg.
(Superseded to 914-0114)
Usually ships in 1 day

$

$2.96

0

76

MTD Part# 736-0921

L-Wash. 1/2" I.D.
(Superseded to 936-0921)
Usually ships same day

Not available

$

$

77

MTD Part# 736-0226

Fl-Wash. .469" I.D. x .88" O.D.
(Superseded to 936-0226)
Usually ships in 1 day

$

$2.88

0

78

MTD Part# 754-0241

V-Belt
(Superseded to 954-05040)
Usually ships in 1 day

$

$35.77

0

79

MTD Part# 750-0706

Spacer 1.00" x .380" O.D.
(Superseded to 950-0706)
Usually ships same day

Not available

$

$

80

MTD Part# 741-0405

Thrust Wash. .56" I.D. x 1.25" O.D.
(Superseded to 941-0405)
Usually ships same day

Not available

$

$

81

MTD Part# 712-0922

Hex Nut 1/2-13 Thd.
(Superseded to 712-3029)
Usually ships in 1 day

$

$4.81

0

82

MTD Part# 711-0676

Torque Rod
Usually ships same day

Not available

$

$

83

MTD Part# 748-0294

Flange Bearing .378
Usually ships same day

Not available

$

$

84

MTD Part# 736-0187

Fl-Wash. .640" I.D. x 1.24"
Usually ships in 1 day

$

$3.19

0

85

MTD Part# 15569A

Idler Bracket Ass'y.
(Superseded to 15569B)
Usually ships in 1 day

$

$26.52

0

86

MTD Part# 736-0283

Thrust Wash. .635" I.D.
Usually ships same day

Not available

$

$

87

MTD Part# 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)
Usually ships in 1 day

$

$15.91

0

88

MTD Part# 736-0284

Thrust Wash. .385" I.D.
Usually ships same day

Not available

$

$

89

MTD Part# 15585

Idler Bracket Ass'y. For Clutch
Usually ships same day

Not available

$

$

90

MTD Part# 711-0747

Belt Guard Pin 1/4" Dia.
(Superseded to 911-0747)
Usually ships in 5 to 10 days

$

$7.48

0

91

MTD Part# 747-0560

Clutch Rod
Usually ships same day

Not available

$

$

92

MTD Part# 735-0196

Foot Pad
(Superseded to 735-0239A)
Usually ships in 1 day

$

$8.63

0

93

MTD Part# 17100

Mtg. Brkt. Variable Pulley
Usually ships same day

Not available

$

$

94

MTD Part# 15642

Weld Bolt Brkt. Ass'y.

Variations

MTD Part# 15642-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

97

MTD Part# 712-0798

Hex Nut 3/8-16
Usually ships in 1 day

$

$3.06

0

98

MTD Part# 736-0217

L-Wash. 3/8 Heavy Duty
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

99

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

100

MTD Part# 16482

Shift Lever Spring Brkt.
Usually ships same day

Not available

$

$

101

MTD Part# 712-0265

Hex Sems Nut 5/16-18 Thd.
Usually ships in 5 to 10 days

$

$2.53

0

102

MTD Part# 736-0270

Bell-Wash. .265" I.D. x .75" O.D.
Usually ships in 5 to 10 days

$

$2.87

0

103

MTD Part# 726-0231

Push On Retaining Ring
(Superseded to 926-0106)
Usually ships same day

Not available

$

$

104

MTD Part# 747-0758

Belt Guard
Usually ships same day

Not available

$

$
