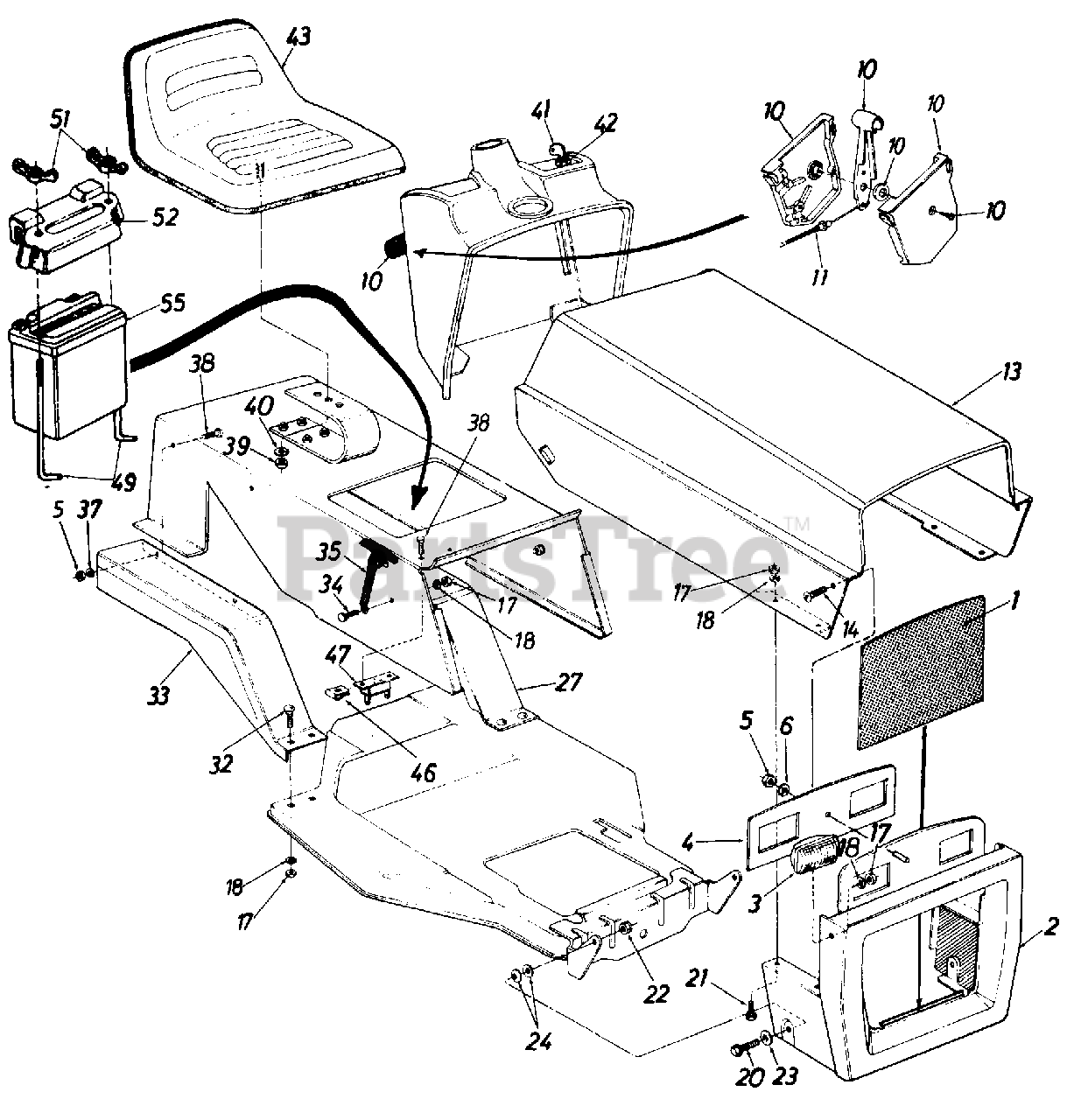

130-527-000 - MTD Lawn Tractor (1990) Parts13 Parts Diagram

Lawn Tractor

Parts13 Parts Diagram

  • Title

1

MTD 12903

Screen-Grille

$

$

Not available

2

MTD 12901

Grille Ass'y.

$

$

Currently unavailable

3

MTD 725-0417

Headlight

$

$

Not available

4

MTD 10795

Headlight Retainer

$

$

Currently unavailable

5

MTD 712-0121

Hex Nut #10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0722

L-Wash. #10 I.D.

$6.49

$

Usually ships in 3-6 days

0

10

MTD 831-0823A

Throttle Control Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

11

MTD 746-0500

Throttle Control Wire
(Superseded to 946-0500)

$14.99

$

In Stock, only 4 left!

0

13

MTD 12451

Hood-Front

$

$

Currently unavailable

14

MTD 710-0286

Truss Hd. Mach. Scr. 1/4-20 x .50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

18

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

20

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg.*
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-0211

Hex Sems Bolt 1/4-20 x .75"

$

$

Not available

22

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

23

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

24

MTD 736-0105

Bell-Wash. .4" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

27

MTD 12715

Fender Ass'y. L.H.

$

$

Currently unavailable

32

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

33

MTD 12712

Fender Ass'y. R.H.

$

$

Currently unavailable

34

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

35

MTD 723-0296

Hood Lock Ass'y.

$

$

Not available

37

MTD 736-0147

Wash. #10 I.D.
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

38

MTD 710-0425

Truss Hd. Mach. Scr. #10-24 x .62" Lg.*

$4.49

$

Usually ships in 3-6 days

0

39

MTD 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 20+

0

41

MTD 725-1341B

Ignition Key

$9.99

$

In Stock, only 3 left!

0

42

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

43

MTD 757-0285

Seat Ass'y.

$

$

Not available

46

MTD 726-0156

Speed Nut 10-24

$

$

Not available

47

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

49

MTD 711-0222

Hold-Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

51

MTD 712-0113

Wing Nut 1/4-20 Thd.
(Superseded to 912-0113)

$6.49

$

In Stock, only 2 left!

0

52

MTD 731-0708

Battery Cover

$

$

Not available

55

MTD 725-0514A

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

Note: (Not Shown)

$24.99

$

In Stock, Qty 12

0
