130-611-000 - MTD Lawn Tractor, Style 1 (1990) Parts Parts Diagram

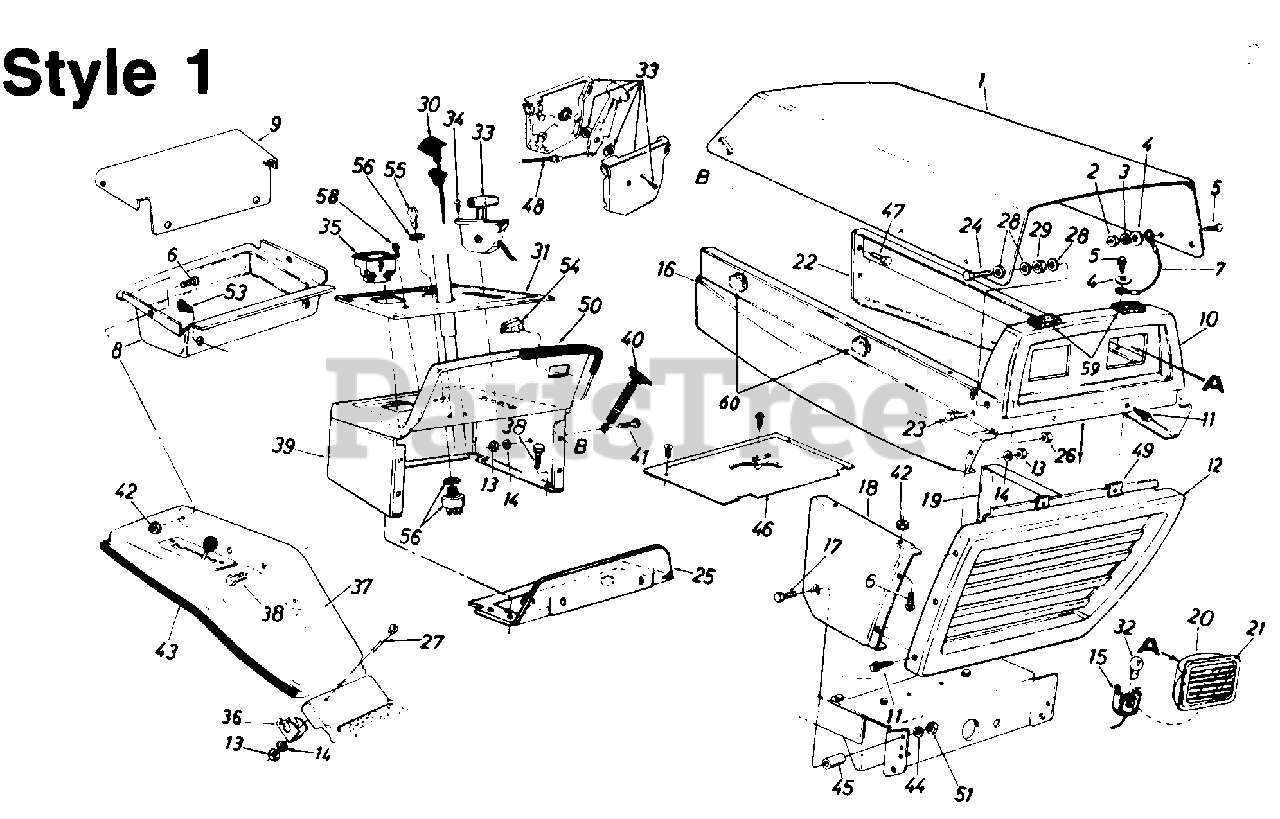

Lawn Tractor, Style 1

Parts Parts Diagram

  • Title

1

MTD 12780

Hood

Variations

MTD 12780-0629

No Longer Available HOOD-FRONT - SILVER FLAKE (0629)

$

$

Not available

MTD 12780-0650

No Longer Available HOOD-FRONT - RED METALLIC (0650)

$

$

Not available

$

$

2

MTD 712-0998

Hex L-Nut #10-24 Thd.

$3.49

$

Usually ships in 3-6 days

0

3

MTD 736-0722

L-Wash. #10 I.D.

$6.49

$

Usually ships in 3-6 days

0

4

MTD 736-0463

Fl-Wash. .25" I.D. x .62"

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0192

Truss Scr. #10-24 x .375"

$3.49

$

In Stock, Qty 11

0

6

MTD 710-0473

Truss Hd. Scr. #10-24 x .50"

$3.99

$

In Stock, only 1 left!

0

7

MTD 727-0199

Hood Stop

$

$

Not available

8

MTD 731-0561

Tool Tray

$

$

Currently unavailable

9

MTD 14789

Fender Panel

Variations

MTD 14789-0637

No Longer Available PANEL-FEND - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 15871

Front Grille Upper Ass'y.

$

$

Not available

11

MTD 710-0224

Hex AB-Tap Scr. #10 x .50"
(Superseded to 910-0224)

$3.49

$

In Stock, only 2 left!

0

12

MTD 15872

Lower Grille

Variations

MTD 15872-0629

No Longer Available PANEL-GRIL - SILVER FLAKE (0629)

$

$

Not available

MTD 15872-0638

No Longer Available PANEL-GRIL - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

15

MTD 725-1058A

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

16

MTD 12784C

Side Panel-R.H.

Variations

MTD 12784C-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 12784C-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 12784C-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 12784C-0665

No Longer Available PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

MTD 12784C-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

17

MTD 710-0442

Hex Bolt 5/16-18 x 1.50"
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

18

MTD 15544A

R.H. Lower Side Panel

Note: (B&S)

$

$

Currently unavailable

MTD 16600

R.H. Lower Side Panel

Note: (Tec.)

$

$

Currently unavailable

19

MTD 15545B

L.H. Lower Side Panel

Variations

MTD 15545B-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 15545B-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

20

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

21

MTD 731-0706

Headlight Lens
(Superseded to 931-0706)

$

$

Not available

22

MTD 12785C

Side Panel-L.H.

Variations

MTD 12785C-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 12785C-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 12785C-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

23

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

25

MTD 17633

Support Brkt.

$

$

Not available

26

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Th.

$4.49

$

In Stock, Qty 12

0

27

MTD 710-0495

Carriage Bolt 1/4-20 x 2.00"

$

$

Not available

28

MTD 736-0101

Fl-Wash. .380" I.D. x 1.00"
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

29

MTD 735-0200

Rubber Washer

$

$

Not available

30

MTD 746-0615A

Choke Control
(Superseded to 946-0615A)

$44.99

$

Usually ships in 3-6 days

0

31

MTD 731-0804

Dash Panel Insert

$

$

Not available

32

MTD 725-0963

Head Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

33

MTD 831-0823A

Throttle Box Ass'y.

$30.99

$

In Stock, Qty 20+

0

34

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

35

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

36

MTD 14671

Fender Clamp

$

$

Not available

37

MTD 16642

Fender

Note: (R.H.)

$

$

Currently unavailable

MTD 14655

Fender

Note: (L.H.)

$

$

Currently unavailable

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

39

MTD 17299

Dash Panel Ass'y.

$

$

Not available

40

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

41

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

42

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

43

MTD 731-0511-57

Trim Strip-57" Lg.

$68.99

$

Usually ships in 3-6 days

0

44

MTD 736-0242

Belleville Wash. .34" I.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 748-0193

Spacer
(Superseded to 948-0193)

Note: (Side Disc. Deck)

$

$

Not available

MTD 748-0298

Spacer

Note: (Rear Disc. Deck)

$

$

Not available

46

MTD 17287

Shift Cover
(Superseded to 17286B-0637)

$39.99

$

Usually ships in 3-6 days

0

47

MTD 710-0258

Hex Wash. Hd. AB-Tap Scr. 1/4-20 x .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

48

MTD 746-0505A

Throttle Control Wire

Note: (B&S)

$

$

Not available

MTD 746-0637A

Throttle Control Wire
(Superseded to 946-0638)

Note: (Tec.)

$9.49

$

In Stock, Qty 11

0

49

MTD 726-0139

Speed Nut #10Z

$6.49

$

In Stock, only 3 left!

0

50

MTD 731-0511-18

Trim Strip-15"

$27.99

$

Usually ships in 3-6 days

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0726

Hex AB-Tap Scr. 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

54

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

55

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

56

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 16

0

58

MTD 710-0227

Hex AB-Tap Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

59

MTD 722-0135

Foam Strip

$

$

Not available

60

MTD 726-0152

Mtg. Clamp

$

$

Not available
