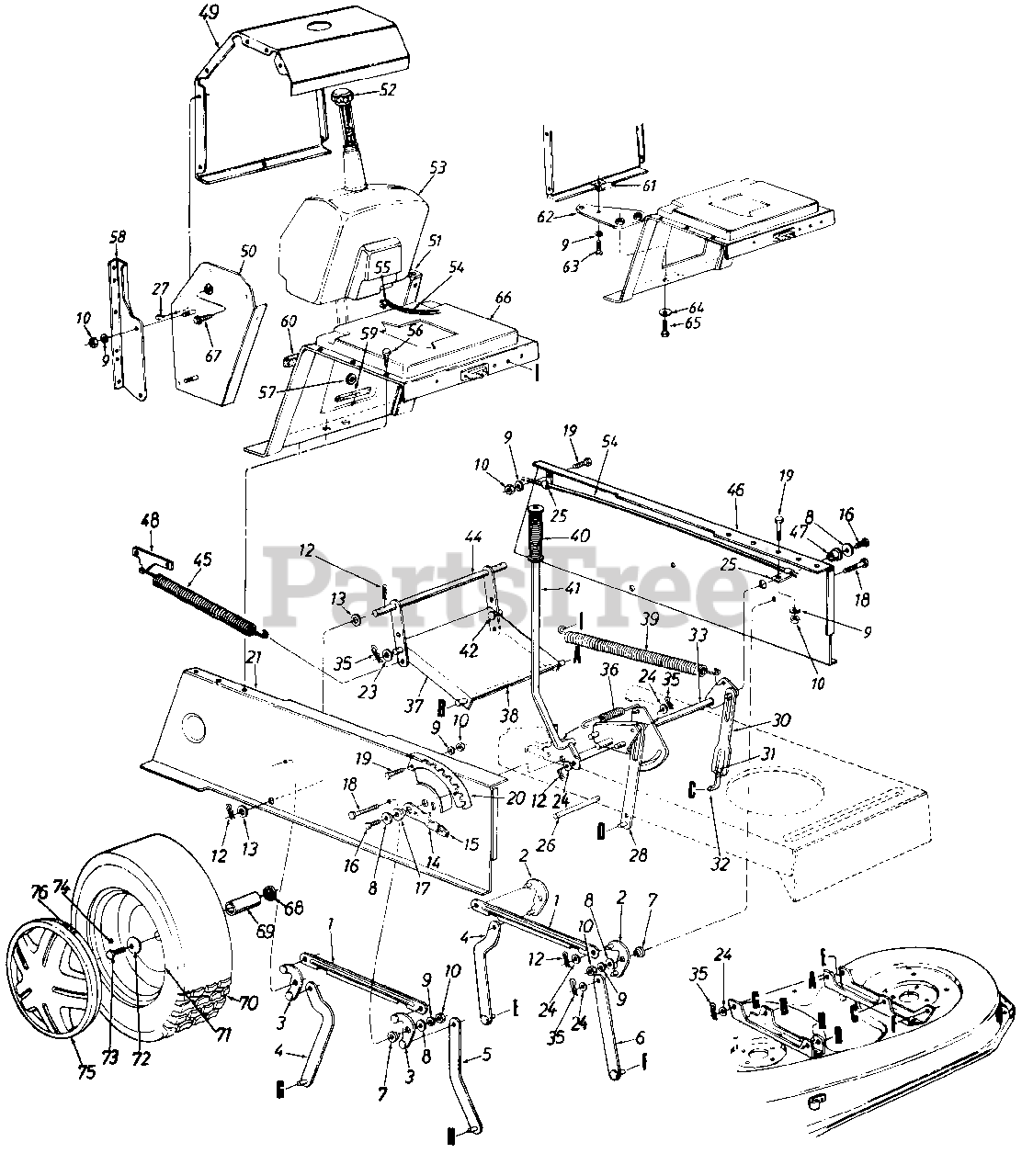

130-734G - MTD Lawn Tractor (1990) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 09735A

Connecting Rod

$

$

Not available

2

MTD 17640

Pivot Link Ass'y. L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

3

MTD 17641

Pivot Link Ass'y. R.H.

$

$

Not available

4

MTD 17710

Deck Hanger Link Ass'y.

Variations

17710-0637

MTD 17710-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 14800A

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Variations

14800A-0637

MTD 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 14804A

Deck Hanger Link Ass'y.

$

$

Not available

7

MTD 748-0331

Shld. Spacer .3/8" I.D.
(Superseded to 948-0331)

$

$

Not available

8

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 19

0

9

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

12

MTD 714-0115

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, only 1 left!

0

13

MTD 736-0256

Fl-Wash. 635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.99

$

Usually ships in 3-6 days

0

14

MTD 732-0412A

Deck Lift Down Stop
(Superseded to 983-0003)

Note: (Incl. Ref. 15)

$

$

Not available

15

MTD 08540

Knob

$

$

Not available

16

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 8

0

17

MTD 748-0176

Flange Brg. .63" I.D.

$10.99

$

In Stock, only 1 left!

0

18

MTD 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x .875" Lg.

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

MTD 17728

Index Brkt.

$

$

Not available

21

MTD 17622

Upper Frame R.H.
(Superseded to 783-0042D)

$

$

Not available

23

MTD 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.99

$

In Stock, Qty 11

0

24

MTD 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

Usually ships in 3-6 days

0

25

MTD 726-0272

Clamp

$7.99

$

Usually ships in 3-6 days

0

26

MTD 738-0526

Running Board Rod

$

$

Not available

27

MTD 710-0351

Truss Mach. Scr. #10 x .5" Lg.

$4.99

$

In Stock, Qty 20+

0

28

MTD 14802A

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

Variations

14802A-0637

MTD 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 17712

Adj. Deck Lift Link
(Superseded to 17712-0637)

Variations

17712-0637

MTD 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

31

MTD 712-3066

Hex Nut 1/2-20 Thd. (Grade 5)
(Superseded to 912-3066)

$7.49

$

In Stock, only 1 left!

0

32

MTD 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

33

MTD 17637

Lift Shaft Ass'y.

$

$

Not available

35

MTD 714-0145

Inter. Cotter Pin 3/8" Dia.

$5.49

$

In Stock, Qty 20+

0

36

MTD 732-0637

Extension Spring
(Superseded to 932-0637)

$

$

Not available

37

MTD 17636A

Stabilizer Bracket
(Superseded to 17636D-0637)

$

$

Not available

38

MTD 738-0670

Shaft 1/2" Dia. x 10.28" Lg.
(Superseded to 738-0670A)

$

$

Not available

39

MTD 732-0638

Extension Spring

$

$

Not available

40

MTD 720-0233

Grip
(Superseded to 920-0233)

Note: (Lift Handle)

$

$

Not available

41

MTD 17675

Deck Lift Handle Ass'y.

$

$

Not available

42

MTD 710-0233

Weld Pin .375" Dia. x 1.25" Lg.

$

$

Currently unavailable

44

MTD 17624

Stabilizer Shaft Ass'y.
(Superseded to 97624-0637)

$

$

Not available

45

MTD 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$22.99

$

In Stock, Qty 8

0

46

MTD 17623

Upper Frame L.H.
(Superseded to 783-0043B)

$

$

Not available

47

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.99

$

In Stock, Qty 20+

0

48

MTD 17820

Spring Retainer Brkt.

$

$

Not available

49

MTD 16238

Gas Tank Housing

$

$

Not available

50

MTD 17082

Side Panel Ass'y. R.H.

$

$

Not available

51

MTD 17083

Side Panel Ass'y. L.H.

Variations

17083-0637

MTD 17083-0637

No Longer Available PANEL-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 751-0226A

Gas Gauge
(Superseded to 951-0226A)

$60.99

$

In Stock, only 3 left!

0

53

MTD 751-0530A

Gas Tank

$

$

Not available

54

MTD 751-0535-68

Fuel Line
(Superseded to 751-10349-72)

$64.99

$

In Stock, Qty 5

0

55

MTD 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-0726

Hex Wash. AB-Tap 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

57

MTD 735-0112

Rubber Grommet

$

$

Not available

58

MTD 17078A

Mtg. Brkt. R.H.

Note: (Use w/Optional Grass Catcher)

$

$

Not available

MTD 17077A

Mtg . Brkt. L.H. Use w/Optional Grass Catcher)

$

$

Currently unavailable

59

MTD 731-0511-5

Trim Strip

$14.99

$

Usually ships in 3-6 days

0

60

MTD 722-0157

Foam Strip

$4.99

$

Usually ships in 3-6 days

0

61

MTD 726-0211

Speed Nut

$4.99

$

In Stock, only 2 left!

0

62

MTD 17166

Hitch Bar Ass'y.

$

$

Not available

63

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

64

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

65

MTD 710-0623

Hex Wash. Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

66

MTD 17226A

Hitch Plate

$

$

Not available

67

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x.38" Lg.

$4.99

$

In Stock, only 1 left!

0

68

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.99

$

In Stock, Qty 20+

0

69

MTD 731-1086

Sleeve .75" I.D. x 1.0" O.D.
(Superseded to 731-1086A)

$11.99

$

Usually ships in 3-6 days

0

70

MTD 734-1679

Wheel Ass'y. Comp.
(Superseded to 634-0177)

Variations

734-1679-0911

MTD 734-1679-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$501.99

$

Usually ships in 3-6 days

0

734-1679-0912

MTD 734-1679-0912

WHEEL ASM-COMPLETE - Dico Gray (0912)

$501.99

$

Usually ships in 3-6 days

0

734-1679-0915

MTD 734-1679-0915

WHEEL ASM-COMPLETE - Duro Gray (0915)

$501.99

$

Usually ships in 3-6 days

0

734-1679-0931

MTD 734-1679-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$501.99

$

Usually ships in 3-6 days

0

734-1679-0942

MTD 734-1679-0942

WHEEL ASM-COMPLETE - Dico Yellow (0942)

$501.99

$

Usually ships in 3-6 days

0

734-1679-0945

MTD 734-1679-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$501.99

$

Usually ships in 3-6 days

0

$407.99

$

Usually ships in 3-6 days

0

MTD 734-1680

Tire Only

Variations

734-1680-0901

MTD 734-1680-0901

No Longer Available TIRE-20.0X - Carlisle (0901)

$

$

Not available

734-1680-0905

MTD 734-1680-0905

No Longer Available TIRE-20.0X - Duro (0905)

$

$

Not available

$

$

71

MTD 734-0603A

Wheel Rim Only
(Superseded to 634-04369)

$142.99

$

Usually ships in 3-6 days

0

72

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

73

MTD 710-0627

Hex L-Bolt 5/16-24 x 75" Lg.

$4.49

$

In Stock, Qty 9

0

74

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

75

MTD 734-1614

Hub Cap

$

$

Not available

76

MTD 727-0425

Spring Clip
(Superseded to 927-0425A)

$

$

Not available
