130-754F - MTD Lawn Tractor (1990) Electrical Parts Diagram

Lawn Tractor

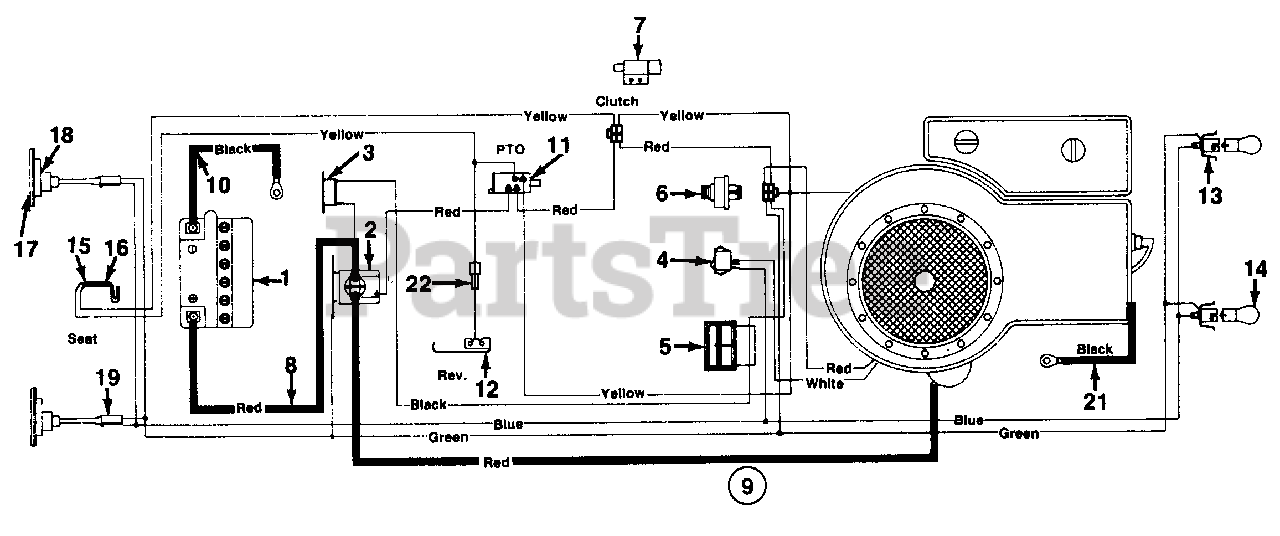

Electrical Parts Diagram

  • Title

1

MTD 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

3

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 1 left!

0

6

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

7

MTD 725-3169

Safety Switch (Clutch)
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

8

MTD 725-1351

Electric Wire 8" Lg.

$

$

Not available

9

MTD 725-1495

Wire Harness

$

$

Currently unavailable

10

MTD 725-0977

Ground Wire 11.5" Lg.

$

$

Not available

11

MTD 725-0803B

Safety Switch (Deck)

$31.99

$

In Stock, Qty 7

0

12

MTD 725-0759

Safety Switch (Reverse)
(Superseded to 753-0579)

$

$

Not available

13

MTD 725-1058A

Twist Lock Bulb Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

14

MTD 725-0963

Bulb
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

15

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

16

MTD 725-1439

Safety Switch (Seat)

$7.99

$

In Stock, Qty 8

0

17

MTD 725-3020

Taillight Bulb

$

$

Not available

18

MTD 725-3018

Taillight

$

$

Currently unavailable

19

MTD 725-1380

Taillight Harness

$

$

Not available

MTD 726-0152

Mounting Clamp

Note: (Not Shown)

$

$

Not available

21

MTD 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

22

MTD 725-1399

Extension Wire

$

$

Not available
