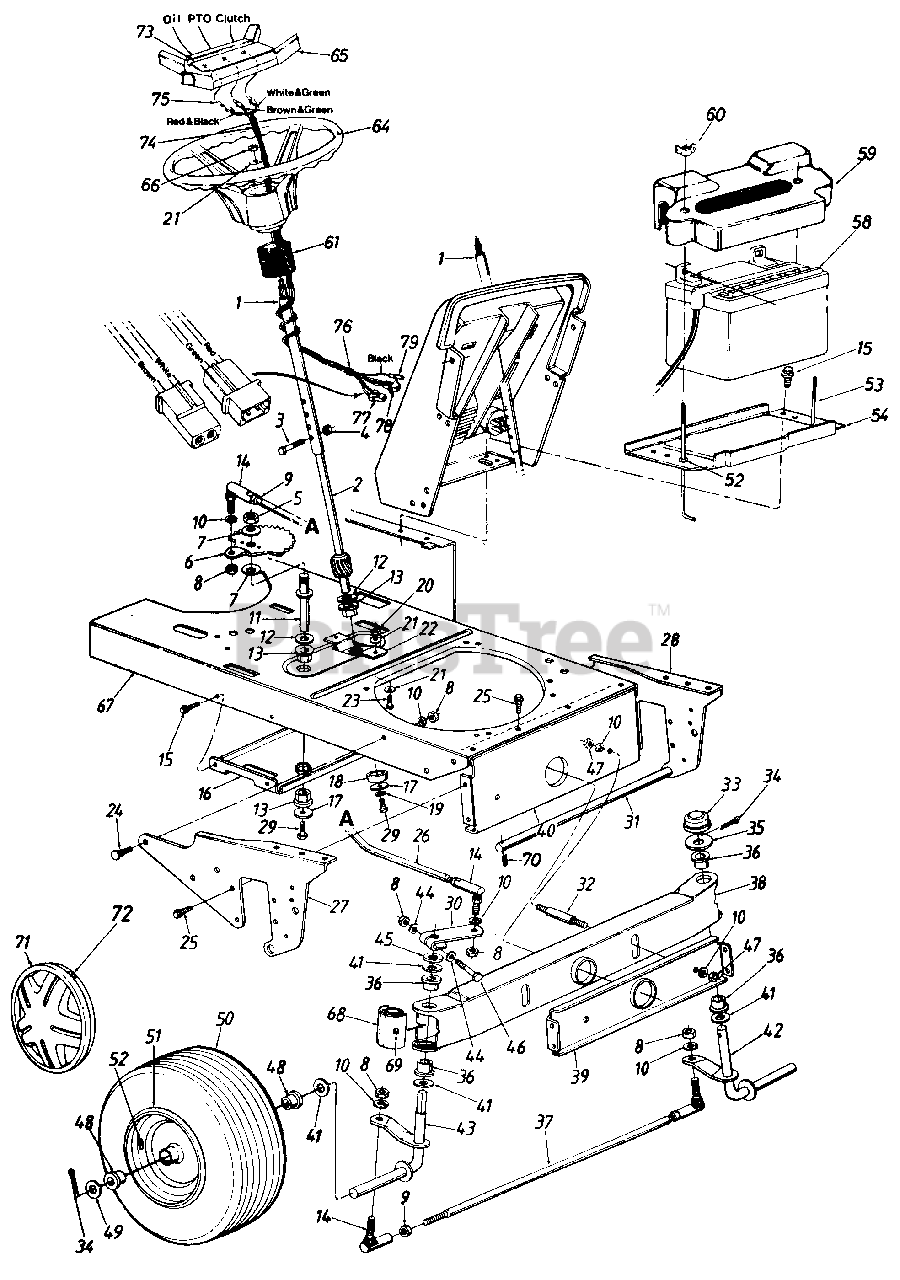

130-824H - MTD Lawn Tractor (1990) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title
1

MTD Part# 16512

Steering Column Ass'y.
Usually ships same day

Not available

$

$

2

MTD Part# 738-0763

Lower Steering Shaft
(Superseded to 938-0763)
Usually ships in 1 day

$

$58.97

0

3

MTD Part# 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
Usually ships same day

Not available

$

$

4

MTD Part# 712-0324

Hex L-Nut 1/4-20 Thd.
Usually ships in 1 day

$

$2.68

0

5

MTD Part# 712-0337

Hex Nut 5/8-18 Thd.
Usually ships in 1 day

$

$3.37

0

6

MTD Part# 717-0943A

Steering Gear Segment
(Superseded to 717-0943C)
Usually ships in 1 day

$

$63.18

0

7

MTD Part# 736-0317

Bell-Wash. 5/8" I.D. x 1.25" O.D.
Usually ships in 1 day

$

$5.60

0

8

MTD Part# 712-0241

Hex Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.10

0

9

MTD Part# 712-0711

Hex Jam Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.09

0

10

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

11

MTD Part# 738-0768

Steering Gear Segment Shaft
Usually ships same day

Not available

$

$

12

MTD Part# 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.
Usually ships in 1 day

$

$3.19

0

13

MTD Part# 748-0227

Hex Flange Brg. .63" I.D.
(Superseded to 948-0227A)
Usually ships in 5 to 10 days

$

$6.04

0

14

MTD Part# 723-3018

Ball Joint Ass'y.
(Superseded to 923-3018)
Usually ships in 1 day

$

$12.31

0

15

MTD Part# 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.
Usually ships in 1 day

$

$3.06

0

16

MTD Part# 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)
Usually ships in 5 to 10 days

$

$42.89

0

17

MTD Part# 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.
Usually ships in 1 day

$

$3.11

0

18

MTD Part# 750-0532

Spacer .985" I.D. x 1.25" O.D.
(Superseded to 950-0532)
Usually ships in 1 day

$

$4.36

0

19

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

20

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

21

MTD Part# 736-0242

Bell-Wash. .345" I.D. x .88" O.D.
Usually ships in 1 day

$

$3.00

0

22

MTD Part# 16894

Bearing Retainer Brkt.

Variations

MTD Part# 16894-0637

No Longer Available BRACKET-BE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

23

MTD Part# 710-0157

Hex Bolt 5/16-24 x .75" Lg.
Usually ships in 1 day

$

$3.09

0

24

MTD Part# 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.
Usually ships same day

Not available

$

$

25

MTD Part# 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)
Usually ships in 1 day

$

$3.15

0

26

MTD Part# 747-0579

Steering Drag Link
(Superseded to 753-0674)
Usually ships same day

Not available

$

$

27

MTD Part# 16896

Pivot Bar Side Plate R.H.
Usually ships same day

Not available

$

$

28

MTD Part# 16897

Pivot Bar Side Plate L.H.
Usually ships same day

Not available

$

$

29

MTD Part# 710-0538

Hex Bolt 5/16-18 x .62" Lg.
Usually ships in 1 day

$

$3.19

0

30

MTD Part# 16918

Steering Arm
(Superseded to 983-0061A-0637)
Usually ships in 1 day

$

$28.55

0

31

MTD Part# 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)
Usually ships in 5 to 10 days

$

$30.55

0

32

MTD Part# 738-0775

Pivot Bar Shld. Bolt 3/8-16 x 5/8" Lg.
Usually ships in 5 to 10 days

$

$17.50

0

33

MTD Part# 731-0484

Cap
(Superseded to 931-0484A)
Usually ships in 1 day

$

$4.76

0

34

MTD Part# 714-0121

Cotter Pin 5/32" Dia.
(Superseded to 914-0121)
Usually ships in 5 to 10 days

$

$3.27

0

35

MTD Part# 736-0316

Flat Washer
(Superseded to 936-0316)
Usually ships in 1 day

$

$3.19

0

36

MTD Part# 741-0523

Flange Brg. .757" I.D.
(Superseded to 941-0523)
Usually ships in 1 day

$

$7.13

0

37

MTD Part# 747-0721

Tie Rod 20.25" Lg.
Usually ships same day

Not available

$

$

38

MTD Part# 16843

Pivot Bar Assy.
(Superseded to 96843-0637)
Usually ships in 1 day

$

$111.23

0

39

MTD Part# 16889

Pivot Bar Support Brkt. Front

Variations

MTD Part# 16889-0637

Pivot Support Bracket - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

40

MTD Part# 16890

Pivot Bar Support Brkt. Rear

Variations

MTD Part# 16890-0637

Pivot Support Bracket - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$34.65

0

Usually ships same day

$

$

41

MTD Part# 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.
Usually ships in 1 day

$

$3.00

0

42

MTD Part# 738-0781

Front Axle Ass'y. L.H.
Usually ships same day

Currently unavailable

$

$

43

MTD Part# 738-0782

Front Axle Ass'y. R.H.
Usually ships same day

Not available

$

$

44

MTD Part# 736-0286

Bowed Washer
(Superseded to 936-0286)
Usually ships in 1 day

$

$4.81

0

45

MTD Part# 748-0160

Spacer .755" I.D. x 1.25" O.D.
(Superseded to 948-0160)
Usually ships in 1 day

$

$4.69

0

46

MTD Part# 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.
Usually ships in 1 day

$

$4.81

0

47

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

48

MTD Part# 748-3007A

Bronze Flange Brg. .75" I.D.
(Superseded to 948-3007A)
Usually ships in 1 day

$

$11.68

0

49

MTD Part# 736-0316

Fl-Wash. .71" I.D. x 1.5" O.D.
(Superseded to 936-0316)
Usually ships in 1 day

$

$3.19

0

50

MTD Part# 734-1676

Wheel Ass'y. Comp.
Usually ships same day

Not available

$

$

MTD Part# 734-0864

Tire Only

Variations

MTD Part# 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)
Usually ships in 5 to 10 days

$

$96.82

0

MTD Part# 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)
Usually ships in 5 to 10 days

$

$96.82

0

MTD Part# 734-0864-0904

TIRE 15 X 6 - Cheng (0904)
Usually ships in 5 to 10 days

$

$96.82

0

MTD Part# 734-0864-0905

TIRE 15 X 6 - Duro (0905)
Usually ships same day

Not available

$

$

MTD Part# 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)
Usually ships same day

Not available

$

$

Usually ships in 5 to 10 days

$

$96.82

0

51
Usually ships same day

Currently unavailable

$

$

52

MTD Part# 726-0271

Push Nut
(Superseded to 926-0271)
Usually ships in 1 day

$

$4.81

0

53

MTD Part# 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)
Usually ships in 1 day

$

$11.15

0

54

MTD Part# 17635

Battery Plate
Usually ships same day

Not available

$

$

58

MTD Part# 725-1430

Battery (275 Cold Crank Amps)
(Superseded to 753-0608)
Usually ships same day

Not available

$

$

59

MTD Part# 731-1132

Battery Cover
Usually ships in 5 to 10 days

$

$11.13

0

60

MTD Part# 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)
Usually ships in 1 day

$

$4.81

0

61

MTD Part# 731-0954

Steering Bellow
(Superseded to 931-0954)
Usually ships in 5 to 10 days

$

$17.27

0

64

MTD Part# 731-0806A

Steering Wheel
(Superseded to 931-0806A)
Usually ships same day

Not available

$

$

65

MTD Part# 731-0955

Steering Wheel Insert
(Superseded to 931-0955)
Usually ships same day

Not available

$

$

66

MTD Part# 712-0237

Hex L-Nut 5/16-24 Thd.
(Superseded to 912-0237)
Usually ships same day

Not available

$

$

67

MTD Part# 17359A

Lower Frame
Usually ships same day

Not available

$

$

68

MTD Part# 731-1049

Pivot Bar End Cap
Usually ships same day

Not available

$

$

69

MTD Part# 737-0146

Grease Fitting
(Superseded to 937-0146)
Usually ships in 1 day

$

$3.86

0

70

MTD Part# 714-0149B

Internal Cotter Pin
(Superseded to 914-0149B)
Usually ships same day

Not available

$

$

71
Usually ships same day

Not available

$

$

72

MTD Part# 727-0425

Spring Clip
(Superseded to 927-0425A)
Usually ships same day

Not available

$

$

73

MTD Part# 777-7993

Steering Wheel Insert Label
Usually ships same day

Currently unavailable

$

$

74

MTD Part# 725-1364

Wire Harness

Note: (Incl. Ref. 75)

Usually ships same day

Not available

$

$

75

MTD Part# 725-1365

Bulb
(Superseded to 925-1365)
Usually ships in 1 day

$

$7.58

0

Usually ships same day

Currently unavailable

$

$

77

MTD Part# 729-0139

Connector
Usually ships same day

Not available

$

$

78

MTD Part# 729-0166

Connector
Usually ships same day

Not available

$

$

79

MTD Part# 729-0132

Connector
Usually ships same day

Not available

$

$
