130-824H - MTD Lawn Tractor (1990) Lawn Parts Diagram

Lawn Tractor

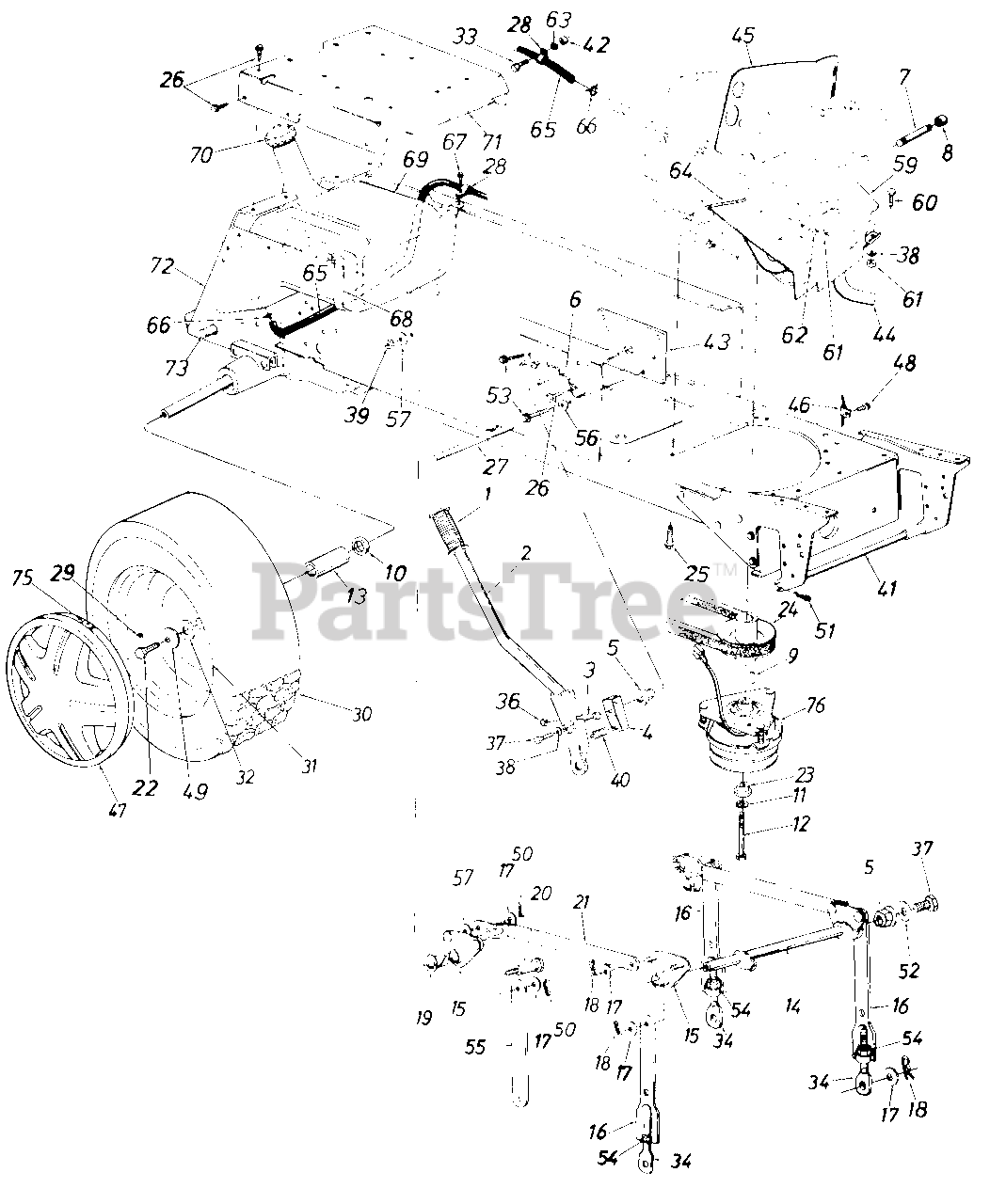

Lawn Parts Diagram

  • Title
1

MTD Part# 720-0233

Grip
(Superseded to 920-0233)
Usually ships same day

Not available

$

$

2

MTD Part# 17282

Lift Handle Ass'y.
Usually ships same day

Not available

$

$

3

MTD Part# 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)
Usually ships in 1 day

$

$3.00

0

4

MTD Part# 748-0274A

Lift Shaft Drive
Usually ships same day

Not available

$

$

5

MTD Part# 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)
Usually ships in 1 day

$

$5.20

0

6

MTD Part# 14231

Index Brkt. Deck Lift

Variations

MTD Part# 14231-0637

Index Deck Bracket - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

7

MTD Part# 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)
Usually ships same day

Not available

$

$

8

MTD Part# 737-0143

Pipe Cap 3/8-18 Npt.
Usually ships same day

Not available

$

$

9

MTD Part# 714-0118

Sq. Key 1/4" x 1/4" x 1.50" Lg.
Usually ships in 1 day

$

$4.87

0

10

MTD Part# 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.
Usually ships in 1 day

$

$3.00

0

11

MTD Part# 736-0171

L-Wash. 7/16" I.D.
(Superseded to 936-0171)
Usually ships in 5 to 10 days

$

$3.10

0

12

MTD Part# 710-1049

Hex Bolt 7/16-20 x 3.75" Lg.
Usually ships in 5 to 10 days

$

$7.55

0

13

MTD Part# 731-1086

Sleeve 75" I.D. x 1.0" O.D.
(Superseded to 731-1086A)
Usually ships in 5 to 10 days

$

$7.66

0

14

MTD Part# 13889

Lift Shaft Ass'y.
Usually ships same day

Not available

$

$

15

MTD Part# 13895

Lift Pivot Brkt. Ass'y.
Usually ships in 1 day

$

$19.10

0

16

MTD Part# 17303

Adj. Deck Lift Link

Variations

MTD Part# 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)
Usually ships in 1 day

$

$11.73

0

Usually ships same day

$

$

17

MTD Part# 736-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090"
(Superseded to 936-0192)
Usually ships in 1 day

$

$3.00

0

18

MTD Part# 714-0101

Hairpin Cotter
(Superseded to 914-0101)
Usually ships same day

Not available

$

$

19

MTD Part# 741-0295

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)
Usually ships in 1 day

$

$3.19

0

20

MTD Part# 738-0445

Shld. Bolt 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)
Usually ships same day

Not available

$

$

21

MTD Part# 13790

Connecting Link

Variations

MTD Part# 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

22

MTD Part# 710-0627

Hex Bolt 5/16-24 x .75" Lg.
Usually ships in 1 day

$

$2.95

0

23

MTD Part# 738-0785

Shoulder Spacer
(Superseded to 938-0785)
Usually ships in 1 day

$

$19.14

0

24

MTD Part# 756-0575

Engine Pulley
Usually ships same day

Not available

$

$

25

MTD Part# 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.
Usually ships in 1 day

$

$4.58

0

26

MTD Part# 710-0726

Hex Thd. Rolling Scr. 5/16-18 x.75" Lg.
Usually ships in 1 day

$

$3.04

0

27

MTD Part# 738-0435

Running Board Rod
Usually ships same day

Not available

$

$

Usually ships in 5 to 10 days

$

$5.02

0

29

MTD Part# 734-0255

Air Valve
(Superseded to 934-0255)
Usually ships in 1 day

$

$3.10

0

30

MTD Part# 734-1679

Rear Wheel Ass'y. Comp.

Variations

MTD Part# 734-1679-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)
Usually ships in 5 to 10 days

$

$334.63

0

MTD Part# 734-1679-0912

WHEEL ASM-COMPLETE - Dico Gray (0912)
Usually ships in 5 to 10 days

$

$334.63

0

MTD Part# 734-1679-0915

WHEEL ASM-COMPLETE - Duro Gray (0915)
Usually ships in 5 to 10 days

$

$334.63

0

MTD Part# 734-1679-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)
Usually ships in 5 to 10 days

$

$334.63

0

MTD Part# 734-1679-0942

WHEEL ASM-COMPLETE - Dico Yellow (0942)
Usually ships in 5 to 10 days

$

$334.63

0

MTD Part# 734-1679-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)
Usually ships in 5 to 10 days

$

$334.63

0

Usually ships same day

$

$

MTD Part# 734-1680

Tire Only

Variations

MTD Part# 734-1680-0901

No Longer Available TIRE-20.0X - Carlisle (0901)
Usually ships same day

Not available

$

$

MTD Part# 734-1680-0905

No Longer Available TIRE-20.0X - Duro (0905)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

31

MTD Part# 734-0603A

Rear Wheel Rim Only
(Superseded to 634-0070)
Usually ships same day

Not available

$

$

32

MTD Part# 736-0346

Flat Washer .34" I.D.
Usually ships same day

Not available

$

$

33

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

34

MTD Part# 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)
Usually ships in 1 day

$

$10.15

0

36

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

37

MTD Part# 710-0237

Hex Bolt 5/16-24 x .62" Lg.
Usually ships in 1 day

$

$3.15

0

38

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

39

MTD Part# 712-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 912-0181)
Usually ships same day

Not available

$

$

40

MTD Part# 732-0369

Compression Spring
(Superseded to 932-0369)
Usually ships in 1 day

$

$7.10

0

41

MTD Part# 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)
Usually ships in 5 to 10 days

$

$30.55

0

42

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

43

MTD Part# 14170

Index Brkt. Reinforcement Plate

Variations

MTD Part# 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

44
Usually ships same day

Not available

$

$

45

MTD Part# 17319

Heat Shield
Usually ships same day

Not available

$

$

46

MTD Part# 726-0273

Mounting Clamp
Usually ships in 1 day

$

$5.02

0

47
Usually ships same day

Not available

$

$

48

MTD Part# 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.
Usually ships in 1 day

$

$3.06

0

49

MTD Part# 736-0242

Bell-Wash. .39" I.D.
Usually ships in 1 day

$

$3.00

0

50

MTD Part# 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.
(Superseded to 914-0111)
Usually ships in 1 day

$

$3.36

0

51

MTD Part# 714-0149B

Int. Cotter Pin
(Superseded to 914-0149B)
Usually ships same day

Not available

$

$

52

MTD Part# 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125"
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

53

MTD Part# 710-0600

Hex Wash. Hd. AB-Tap Scr. 5/16-24 x .5" Lg.
Usually ships in 1 day

$

$2.53

0

54

MTD Part# 712-0206

Hex Nut 1/2-13 Thd.
(Superseded to 912-0206)
Usually ships in 1 day

$

$3.11

0

55

MTD Part# 14399

Deck Link

Variations

MTD Part# 14399-0637

LINK-DECK - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$11.98

0

Usually ships same day

$

$

56

MTD Part# 736-0264

Fl-Wash..344" I.D.
(Superseded to 936-0264)
Usually ships in 1 day

$

$4.81

0

57

MTD Part# 736-0219

Bell-Wash. .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

59

MTD Part# 16934

Front Heat Shield
Usually ships same day

Not available

$

$

60

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

61

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

62

MTD Part# 736-0170

L-Wash. 5/16" I.D.
(Superseded to 936-0170)

Note: (Special)

Usually ships same day

Not available

$

$

63

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

64

MTD Part# 731-0511

Trim Strip 10" Lg.
Usually ships in 5 to 10 days

$

$2.84

0

65

MTD Part# 751-0535

Fuel Line 50" Lg.
Usually ships same day

Currently unavailable

$

$

66

MTD Part# 726-0205

Hose Clamp
Usually ships in 1 day

$

$2.95

0

67

MTD Part# 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)
Usually ships in 1 day

$

$3.06

0

68

MTD Part# 17424

Fuel Tank Strap
Usually ships same day

Not available

$

$

69
Usually ships same day

Currently unavailable

$

$

70

MTD Part# 751-0531A

Gas Gauge
(Superseded to 751-0531B)
Usually ships in 1 day

$

$58.77

0

71

MTD Part# 16848A

Seat Plate
(Superseded to 983-0108A-0637)
Usually ships same day

Not available

$

$

72

MTD Part# 17343

Hitch Plate

Variations

MTD Part# 17343-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

73

MTD Part# 738-0482

Hitch Rod
Usually ships same day

Not available

$

$

75

MTD Part# 727-0425

Spring Clip
(Superseded to 927-0425A)
Usually ships same day

Not available

$

$

76

MTD Part# 717-0949

Electric Clutch
(Superseded to 917-1434)
Usually ships in 5 to 10 days

$

$446.97

0
