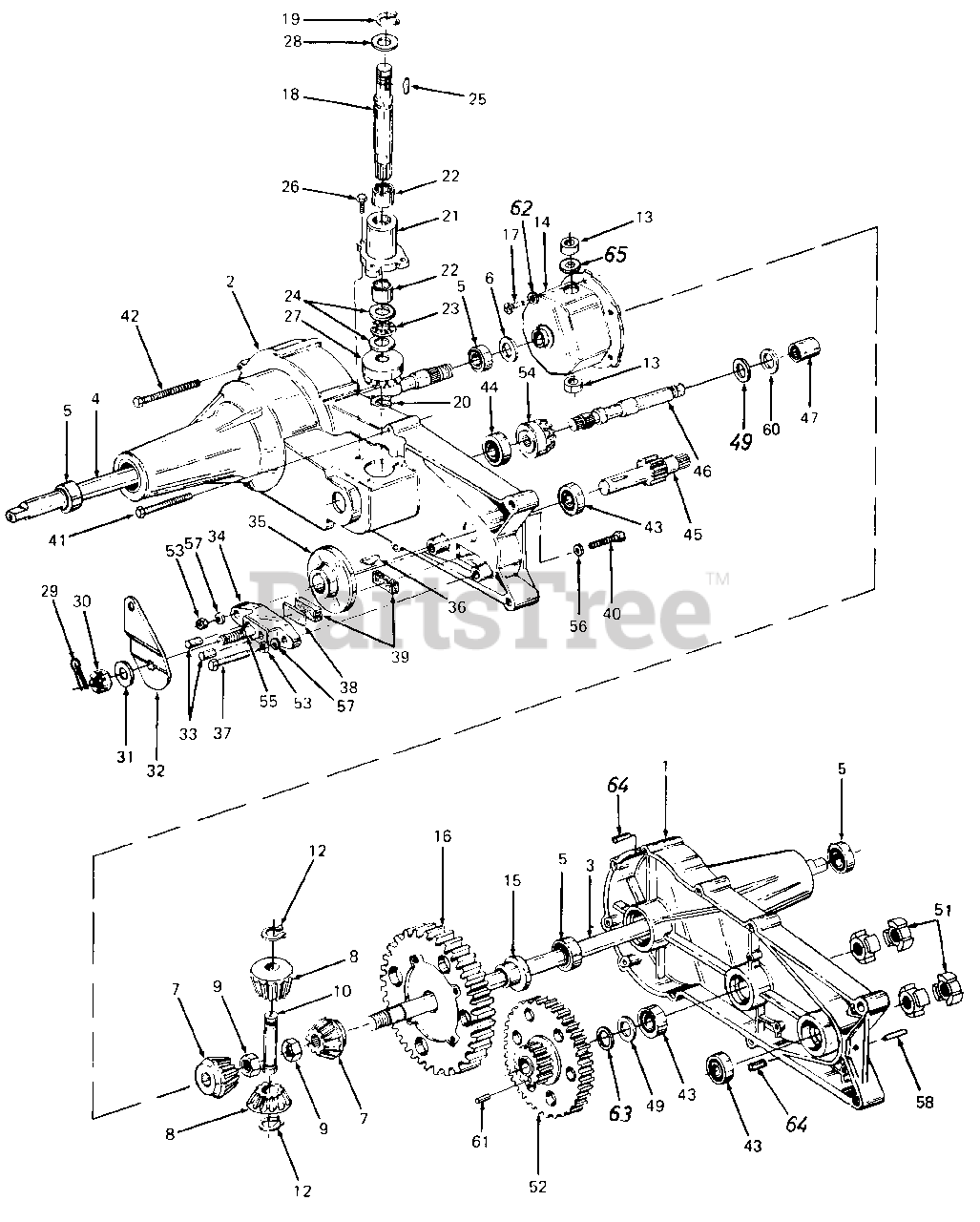

130-824H - MTD Lawn Tractor (1990) Transaxle Parts Diagram

Lawn Tractor

Transaxle Parts Diagram

  • Title
1

MTD Part# AF-44077

Housing Half, L.H.
(Superseded to HG-62587)
Usually ships same day

Not available

$

$

2

MTD Part# AF-44076

Housing Half, R.H.
(Superseded to HG-62586P)
Usually ships same day

Not available

$

$

3

MTD Part# AF-44393

Axle, L.H.
Usually ships same day

Not available

$

$

4

MTD Part# AF-44392

Axle, R.H.
Usually ships same day

Not available

$

$

5

MTD Part# AF-44121

Bearing, Ball
(Superseded to HG-44121P)
Usually ships in 5 to 10 days

$

$42.52

0

6

MTD Part# AF-44008

Washer, Flat, .76 x 1-1/8" x .306 Thk. Hdn.
(Superseded to HG-44008)
Usually ships in 5 to 10 days

$

$3.02

0

7

MTD Part# 717-1019

Gear, Miter
(Superseded to 917-1019)
Usually ships in 5 to 10 days

$

$20.60

0

8

MTD Part# 717-1020

Gear, Miter
Usually ships in 1 day

$

$21.47

0

9

MTD Part# 712-0200

Nut, Hex Jam Patch Lock, 1/2-20
(Superseded to 712-0200A)
Usually ships in 1 day

$

$3.08

0

10

MTD Part# 717-0673

Shaft, Cross
(Superseded to 753-0527)
Usually ships same day

Not available

$

$

12

MTD Part# 716-0142

Ring, Snap
(Superseded to 753-0527)
Usually ships same day

Not available

$

$

13

MTD Part# 717-0690

Bearing, Thrust
(Superseded to 753-0527)
Usually ships same day

Not available

$

$

14

MTD Part# 717-0777

Housing Ass'y. Differential
(Superseded to 753-0546)
Usually ships in 5 to 10 days

$

$44.02

0

15

MTD Part# 741-0376

Bearing, Flange, .75 I.D. x .587
(Superseded to 941-0376)
Usually ships in 1 day

$

$6.11

0

16

MTD Part# 717-0759

Gear, Differential. 72 Tooth
(Superseded to 917-0767)
Usually ships same day

Not available

$

$

17

MTD Part# 710-0862

Bolt ,Torx Head 1/4-28 x 5/8" Lg.
(Superseded to 710-0862A)
Usually ships in 5 to 10 days

$

$3.24

0

18

MTD Part# AF-44270

Shaft, Input
(Superseded to HG-62636)
Usually ships same day

Not available

$

$

19

MTD Part# 716-0115

Ring, Snap
(Superseded to 916-0115)
Usually ships same day

Not available

$

$

20

MTD Part# 716-0108

Ring, Retaining, Ext. 7/16 Dia.
(Superseded to 916-0108)
Usually ships in 1 day

$

$3.63

0

21

MTD Part# AF-44081

Bearing, Input Housing
Usually ships same day

Currently unavailable

$

$

22

MTD Part# 741-0335

Bearing, Needle, 5/8 I.D. x .50 Lg.
(Superseded to 941-0335)
Usually ships in 1 day

$

$13.39

0

23

MTD Part# AF-44139

Bearing, Thrust
(Superseded to HG-44139P)
Usually ships same day

Not available

$

$

24

MTD Part# AF-44109

Washer, Flat, 5/8 I.D. x 1.12 O.D. x .030 Thk.
(Superseded to HG-44109)
Usually ships in 5 to 10 days

$

$8.48

0

25

MTD Part# 714-0129

Key #4 Hi-Pro, 3/32 x 5/8 Dia. (Hdn.)
(Superseded to 914-0129)
Usually ships same day

Not available

$

$

26

MTD Part# AF-44122

Screw, Hex Patch Lock, 1/4-20 X 3/4 Lg.
Usually ships same day

Not available

$

$

27

MTD Part# AF-44078

Gear, Input Pinion, 17 Tooth
Usually ships same day

Currently unavailable

$

$

28

MTD Part# 736-0336

Washer, Flat, .62 I.D. x 1.0 O.D. x .030 Thk.
(Superseded to 936-0336)
Usually ships in 1 day

$

$3.11

0

MTD Part# 736-0349

Washer, Flat, .62 I.D. x 1.0 O.D. x .020 Thk.
(Superseded to 936-0349)
Usually ships in 1 day

$

$3.06

0

MTD Part# 736-0337

Washer, Flat, .62 I.D. x 1.0 O.D. x .040 Thk.
(Superseded to 936-0337)
Usually ships in 1 day

$

$3.15

0

MTD Part# AF-44371

Washer,Flat .62" I.D. x 1.0" O.D. x .050" Thk.
(Superseded to HG-44371)
Usually ships in 5 to 10 days

$

$10.90

0

29

MTD Part# 714-0507

Pin, Cotter
(Superseded to 914-0507)
Usually ships in 1 day

$

$3.15

0

30

MTD Part# 712-0335

Nut, Castle, 5/16-24
(Superseded to 912-0273)
Usually ships in 5 to 10 days

$

$3.23

0

31

MTD Part# 736-0371

Washer, Flat, .343 x .88 x .062 Thk.
Usually ships in 1 day

$

$3.16

0

32

MTD Part# AF-44094

Arm, Brake Actuator
Usually ships same day

Not available

$

$

33

MTD Part# 741-0343

Pin, Actuating, 5/16 Dia.
(Superseded to 941-0343)
Usually ships same day

Not available

$

$

34

MTD Part# 717-0679

Yoke, Brake
Usually ships same day

Not available

$

$

35

MTD Part# 717-0677

Disc, Brake
Usually ships same day

Not available

$

$

36

MTD Part# 714-0161

Key, Hi-Pro, 3/16 x 5/8 Dia.
(Superseded to 914-0161)
Usually ships in 1 day

$

$3.07

0

37

MTD Part# AF-44276

Screw, Hex Patch Lock, 1/4-20 x 1.5 Lg.
Usually ships same day

Not available

$

$

38

MTD Part# 717-0682

Plate, Puck
(Superseded to 917-0682)
Usually ships in 1 day

$

$8.00

0

39

MTD Part# 717-0678

Puck, Brake
(Superseded to 917-0678)
Usually ships in 1 day

$

$5.46

0

40

MTD Part# AF-44277

Screw, Hex Cap, 1/4-20 x 1.5 Lg.
Usually ships same day

Not available

$

$

41

MTD Part# AF-44123

Screw, Hex Self-Tap, 1/4-20 x 2.0 Lg.
Usually ships same day

Not available

$

$

42

MTD Part# AF-44124

Screw, Hex Self-Tap, 1/4-20 x 2.75 Lg.
Usually ships same day

Not available

$

$

43

MTD Part# 741-0155

Bearing, Ball
(Superseded to 941-0155)
Usually ships in 1 day

$

$17.54

0

44

MTD Part# 741-0361

Bearing, Ball
(Superseded to 941-0361)
Usually ships in 1 day

$

$35.15

0

45

MTD Part# AF-44083

Shaft, Pinion w/11 Tooth Gear
(Superseded to HG-44083P)
Usually ships same day

Not available

$

$

46

MTD Part# AF-44080

Shaft, Drive
(Superseded to HG-44080)
Usually ships in 1 day

$

$147.57

0

47

MTD Part# AF-44342

Bearing, Needle
(Superseded to 941-0478)
Usually ships in 5 to 10 days

$

$34.34

0

49

MTD Part# AF-44110

Washer, Flat, 5/8 x 1.12 x .060 Thk.
Usually ships same day

Currently unavailable

$

$

51

MTD Part# AF-44084

Coupling
(Superseded to HG-44084P)
Usually ships in 1 day

$

$12.32

0

52

MTD Part# AF-44082

Gear, Tooth 60 & 17
(Superseded to HG-62760P)
Usually ships same day

Not available

$

$

53

MTD Part# 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)
Usually ships in 1 day

$

$4.32

0

54

MTD Part# AF-44079

Gear, Drive Pinion, 17 Tooth
Usually ships same day

Not available

$

$

55

MTD Part# 717-0796

Bolt, Square Hd. 5/16-24
Usually ships in 5 to 10 days

$

$4.23

0

56

MTD Part# 736-0176

Washer, Flat, .265 x .938 x .12 Thk.
(Superseded to 936-0176)
Usually ships in 1 day

$

$3.18

0

57

MTD Part# 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

58

MTD Part# AF-44269

Pin, Roll, 3/16 Dia. x .50 Lg.
Usually ships same day

Not available

$

$

60

MTD Part# AF-44343

Bronze Thrust Brg. 5/8" I.D.
(Superseded to HG-44343)
Usually ships in 1 day

$

$19.77

0

61

MTD Part# AF-44346

Dowel Pin 3/32" x 1/4"
Usually ships same day

Not available

$

$

62

MTD Part# AF-44504

Washer, HD. Spring Lock 1/4"
Usually ships same day

Not available

$

$

63

MTD Part# AF-44394

Seal, Grease
(Superseded to HG-44394)
Usually ships same day

Not available

$

$

64

MTD Part# AF-44269

Pin Roll 3/16" Dia.
Usually ships same day

Not available

$

$

65

MTD Part# 736-0368

Washer Flat .62" I.D. x 1.0" O.D. x .20" Thk.
Usually ships same day

Not available

$

$

MTD Part# AF-44421

Washer Flat .62" I.D. x 1.0" O.D. x .030" Thk.
Usually ships same day

Currently unavailable

$

$
