130 BT (965102208) - Husqvarna Backpack Blower (2013-08) PISTON CRANKSHAFT Parts Diagram

Backpack Blower

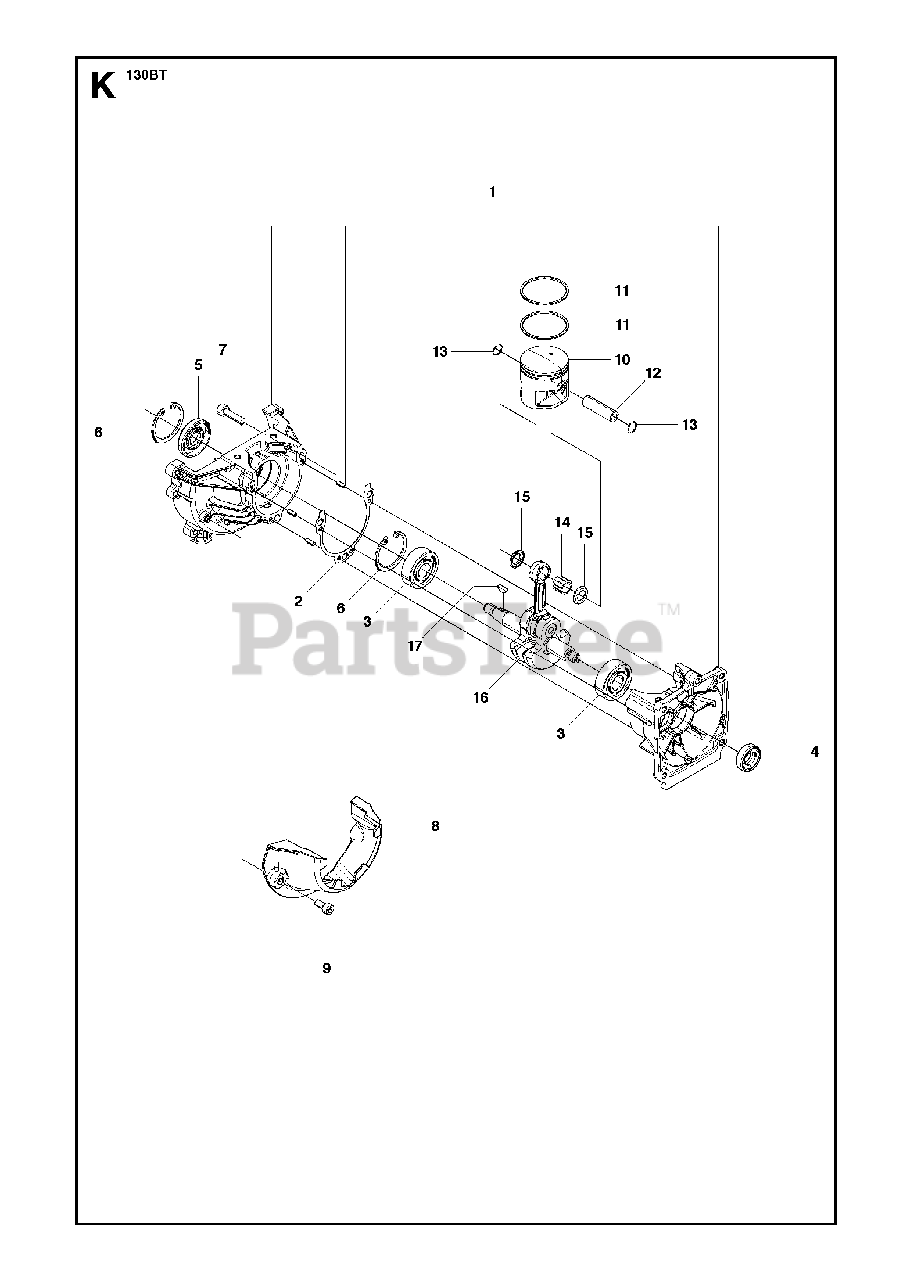

PISTON CRANKSHAFT Parts Diagram

  • Title

1

Husqvarna 504119401

CRANKCASE-C

$14.99

$

In Stock, only 1 left!

0

2

Husqvarna 504121201

GASKET CASE

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 522639001

BEARING

$9.99

$

In Stock, only 4 left!

0

4

Husqvarna 504121501

SEAL

$10.99

$

In Stock, Qty 5

0

5

Husqvarna 504121301

SEAL
(Superseded to 522639201)

$12.99

$

In Stock, only 4 left!

0

6

Husqvarna 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 504114301

BOLT
(Superseded to 506689001)

$6.49

$

In Stock, Qty 12

0

8

Husqvarna 511392601

COVER

$

$

Not available

9

Husqvarna 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 576389101

PISTON

$34.99

$

In Stock, only 2 left!

0

11

Husqvarna 504120501

RING

$11.99

$

In Stock, Qty 20+

0

12

Husqvarna 577501601

PISTON PIN
(Superseded to 504120601)

$10.99

$

In Stock, Qty 6

0

13

Husqvarna 504120901

RING

$4.99

$

In Stock, only 4 left!

0

14

Husqvarna 504120101

BEARING

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 504120201

WASHER

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 504119301

CRANKSHAFT C

$133.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506689401

KEY

$4.99

$

In Stock, Qty 9

0
