1300 - Green Machine String Trimmer, Electric

String Trimmer, Electric

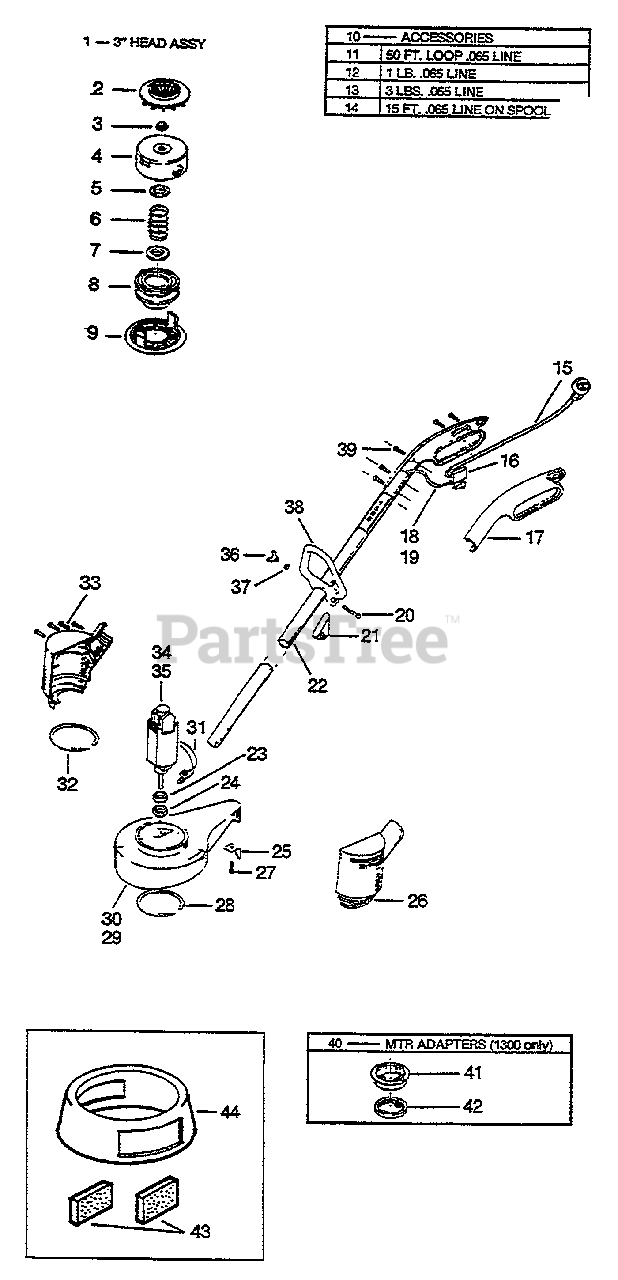

1300 - Green Machine String Trimmer, Electric > Parts Diagrams (1) > Electric Trimmer

  • Title
GM20205

1

HEAD ASSY

Part# GM20205

OEM Warranty Repair Part for Homelite

Currently unavailable

GM120603

2

FAN KIT

Part# GM120603

OEM Warranty Repair Part for Homelite

Currently unavailable

GM051005

3

ARBOR NUT

Part# GM051005

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $6.90

GM120312

4

3" TWIN LINE HEAD

Part# GM120312

OEM Warranty Repair Part for Homelite

Not available

GM166903

5

SPRING PLATE

Part# GM166903

OEM Warranty Repair Part for Homelite

Not available

GM167901

6

SPRING

Part# GM167901 (Superseded to UP06740)

OEM Warranty Repair Part for Homelite

Currently unavailable

GM166903

7

SPRING PLATE

Part# GM166903

OEM Warranty Repair Part for Homelite

Not available

GM125208

8

SPOOL

Part# GM125208 (Superseded to GM165209)

OEM Warranty Repair Part for Homelite

Not available

GM165208

9

CAP

Part# GM165208 (Superseded to GM20105)

OEM Warranty Repair Part for Homelite

Not available

10

ACCESSORIES

Part#

Not available

GM31065

11

50 FT.LOOP .065 LINE

Part# GM31065

OEM Warranty Repair Part for Homelite

Currently unavailable

GM31001

12

1 LB. .065 LINE

Part# GM31001

OEM Warranty Repair Part for Homelite

Currently unavailable

GM31002

13

3 LB. .065 LINE

Part# GM31002

OEM Warranty Repair Part for Homelite

Currently unavailable

GM32011

14

15 FT. .065 LINE ON SPOOL

Part# GM32011

OEM Warranty Repair Part for Homelite

Currently unavailable

GM123403

15

PIGTAIL

Part# GM123403

OEM Warranty Repair Part for Homelite

Currently unavailable

GM201030

16

SWITCH

Part# GM201030

OEM Warranty Repair Part for Homelite

Not available

120601

17

TRIGGER HSG. SET

Part# 120601

Note: OBSOLETE

OEM Warranty Repair Part for Homelite

Currently unavailable

GM973510

18

HARNESS (1500)

Part# GM973510

OEM Warranty Repair Part for Homelite

Currently unavailable

GM201106

19

HARNESS (1300)

Part# GM201106

OEM Warranty Repair Part for Homelite

Currently unavailable

GM030017

20

HANDLE BOLT

Part# GM030017

OEM Warranty Repair Part for Homelite

Not available

GM201110

21

ASSIST HANDLE SUPPORT

Part# GM201110

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $3.47

GM201033

22

TUBE

Part# GM201033

OEM Warranty Repair Part for Homelite

Not available

GM157601

23

NUT (1300)

Part# GM157601

OEM Warranty Repair Part for Homelite

Currently unavailable

GM051010

24

NUTS (1500)

Part# GM051010

OEM Warranty Repair Part for Homelite

Currently unavailable

GM201051

25

CUT OFF BLADE

Part# GM201051

OEM Warranty Repair Part for Homelite

Currently unavailable

GM120606

26

MOTOR HSG. SET

Part# GM120606

OEM Warranty Repair Part for Homelite

Currently unavailable

GM201044

27

BLADE SCREW

Part# GM201044 (Superseded to UP04141)

OEM Warranty Repair Part for Homelite

Not available

GM201037

28

SKIRT SNAP RING

Part# GM201037

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $3.17

GM155220

29

SKIRT MODEL 1500

Part# GM155220

OEM Warranty Repair Part for Homelite

Currently unavailable

GM125211

30

SKIRT MODEL 1300

Part# GM125211

OEM Warranty Repair Part for Homelite

Currently unavailable

GM953601

31

WIRE CONNECTOR

Part# GM953601

OEM Warranty Repair Part for Homelite

Currently unavailable

GM060019

32

SNAP RING MOTOR HSG.

Part# GM060019

OEM Warranty Repair Part for Homelite

Currently unavailable

GM201044

33

HOUSING SCREW

Part# GM201044 (Superseded to UP04141)

OEM Warranty Repair Part for Homelite

Not available

GM201077

34

MOTOR (1300)

Part# GM201077

OEM Warranty Repair Part for Homelite

Currently unavailable

663802

35

MOTOR (1500)

Part# 663802

Note: OBSOLETE

OEM Warranty Repair Part for Homelite

Currently unavailable

GM201040

36

WING NUT

Part# GM201040

OEM Warranty Repair Part for Homelite

Currently unavailable

GM040016

37

WASHER

Part# GM040016

OEM Warranty Repair Part for Homelite

Not available

GM201012

38

ASSIST HNDL

Part# GM201012

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $14.18

GM201044

39

HANDLE SCREW

Part# GM201044 (Superseded to UP04141)

OEM Warranty Repair Part for Homelite

Not available

40

MOTOR ADAPTERS

Part#

Note: Model 1300 only

Not available

GM201079

41

UPPER MTR ADAPTER

Part# GM201079

OEM Warranty Repair Part for Homelite

Usually leaves our warehouse in 7 to 10 business days

Your price: $8.33

GM201078

42

LOWER MOTOR ADAPTOR

Part# GM201078

OEM Warranty Repair Part for Homelite

Currently unavailable

GM201130

43

AIR FILTER

Part# GM201130

OEM Warranty Repair Part for Homelite

Currently unavailable

GM125213

44

AIR FILTER CAP

Part# GM125213

OEM Warranty Repair Part for Homelite

Currently unavailable
