130212-1770-01 - Briggs & Stratton Horizontal Engine Blower Hsg,Flywheel,Rewind Parts Diagram

Horizontal Engine

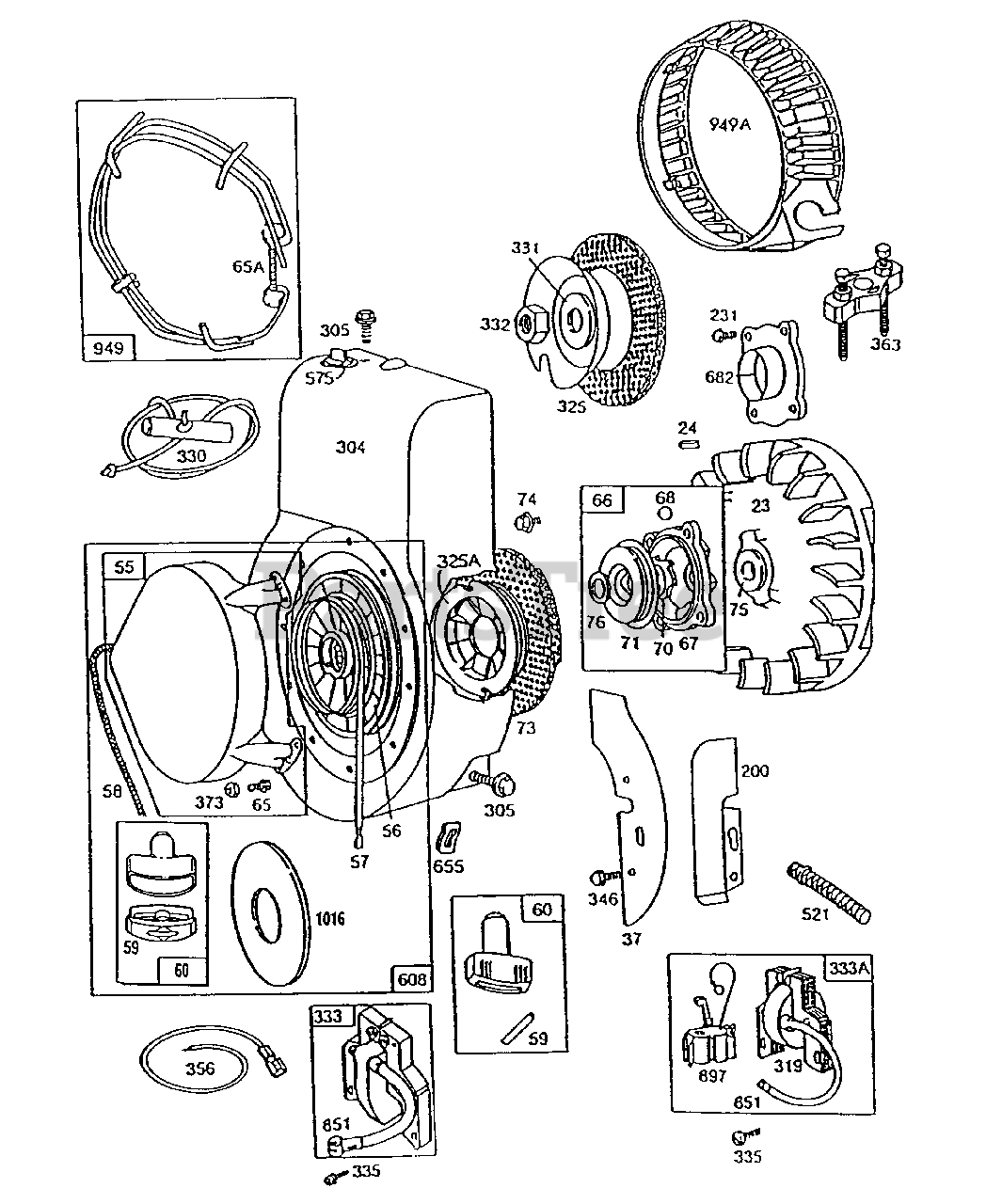

Blower Hsg,Flywheel,Rewind Parts Diagram

  • Title
23

Briggs & Stratton 297229

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: If Longer Rope is Required Order Rope No. 66894 and Cut to Length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

Note: If Longer Rope is Required Order Rope No. 66894 and Cut to Length.

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 490653

Insert-Starter Rope
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 12

0

65A

Briggs & Stratton 94124

Screw-Round Head

$3.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94063

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221923

Screen-Starter Pulley

$29.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 224061

Washer, Flat (5/8" Hole)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 93064

Screw-Sem
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 398345

Housing-Blower

$

$

Not available

305

Briggs & Stratton 94608

Screw, Machine Hex
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

319

Briggs & Stratton 298316

Armature-Mag (For Points And Condenser)
(Superseded to 397358)

$53.99

$

In Stock, Qty 20+

0

325A

Briggs & Stratton 280457

Pulley, Rope Starte
(Superseded to 691903)

$60.99

$

Usually ships in 2-12 days

0

325

Briggs & Stratton 299421

Pulley-Rope Start (With Screen)

$19.99

$

Usually ships in 2-12 days

0

330

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

331

Briggs & Stratton 224061

Washer, Flat (5/8" Hole)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333A

$53.99

$

In Stock, Qty 20+

0

333

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw, Sem Hex Head
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

521

Briggs & Stratton 298529

Shielding-Ignition Cable

$33.99

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 396691

Switch, Rotary Stop (Mech. Gov.)
(Superseded to 692309)

$20.99

$

In Stock, only 1 left!

0

608

Briggs & Stratton 390463

Starter-Rewind

$

$

Not available

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

682

Briggs & Stratton 211516

Shield-Starter Clutch

$4.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available

949A

$37.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 396580

Guard-Rewind Starter

$24.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
